| Prod Model: |
WY906C/1206C/1506C |
| Control System: |
Topwisdom (Optional Dahao) |
| Display: |
10" Touch Screen |
| Main Motor: |
Servo Motor |
| Hook: |
Japan Koban Hook |
| Belts: |
Italy Belts |
| Warranty: |
24 Months |
| Package Material: |
Wooden Case/as Customer Required |
| Weight: |
450kg |
| Speed: |
850/1200rpm |
| Rail: |
Linear Rail |
Product Description

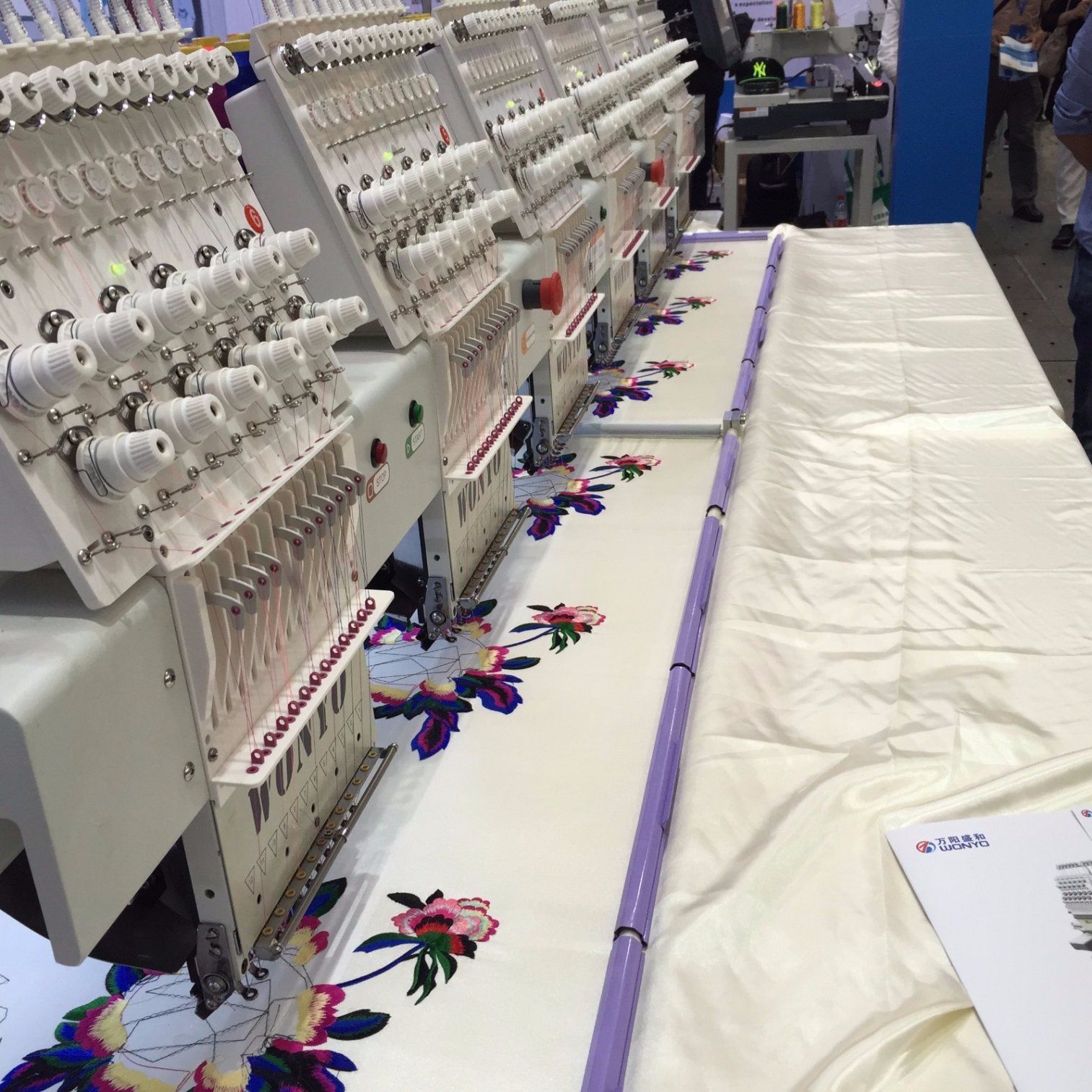

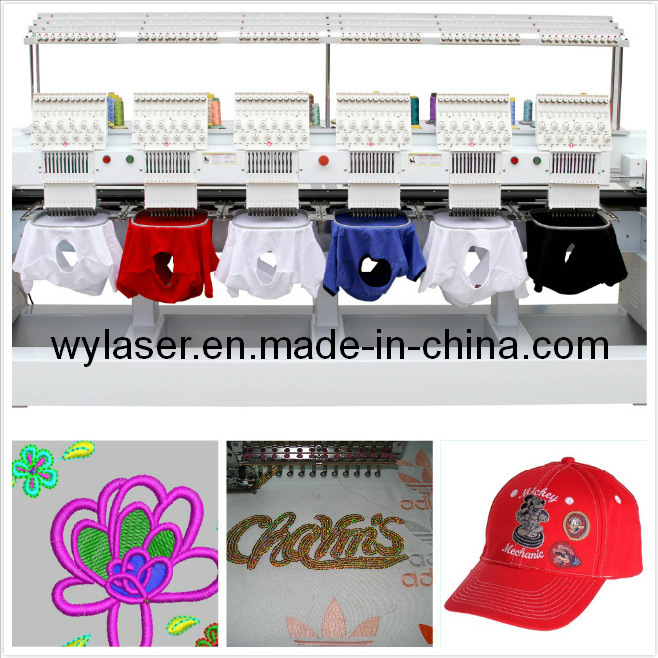

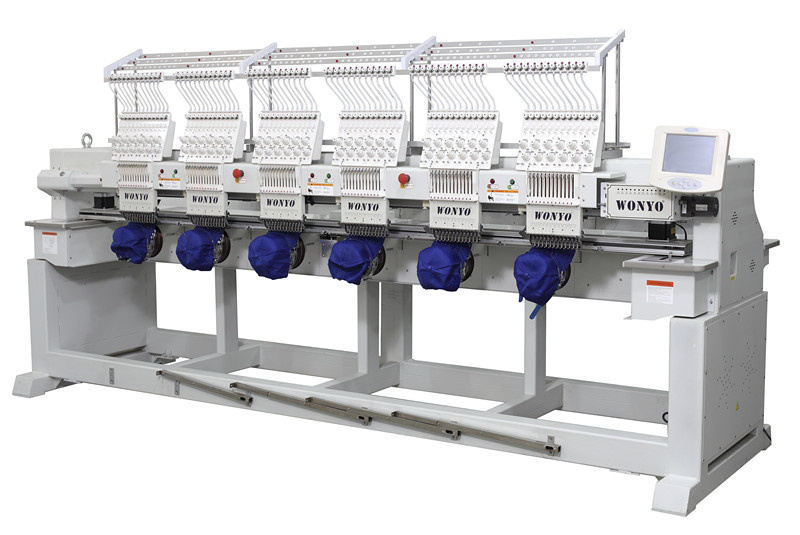

WONYO 6 Heads Computerized Most Durable Embroidery Machine
Much Better Than Second-hand Barudan machine!!!
machine to create t shirts ,cap, finished garments, jeans, belt, shoes, socks, insoles, bead, sequin, cording, boring, 3D, flat embroidery.
1.flat Embroidery machine
2.High Speed embroidery machine
3.cap embroidery machine
5.Sequin embroidery machine
6.Cording embroidery machine8.optional device machine
1.The introduction of Embroidery MachineMulti -function computerized embroidery machine, both domestic and commercial,covers with unique embroidery patterns and logo, realizing the personalized identification customization and much better clothes designs. It has been the personal customized tools for entrepreneurs.2.MAIN FEATUREI. Main features of the embroidery machine
1. Suitable for flat bed embroidery, cap
Embroidery and finished garments embroidery
2. Embroidery area: 400 x 450 mm, or 15.7" x 17.7"
3. Automatic thread trimmer
4. Maximum speed 850 RPM
5.270° Wide cap frame unit
6.5" color LCD display showing real time stitching
7. USB port ready
8. Auto color change
9. Thread break detection
10. Pre-Sew Design Trace capable
11. Memory size: 20, 000, 000 stitches
12. Electricity: 110V/60Hz or 220V/50Hz available
13. Start, Stop, and Emergency Stop
14. On-board lettering

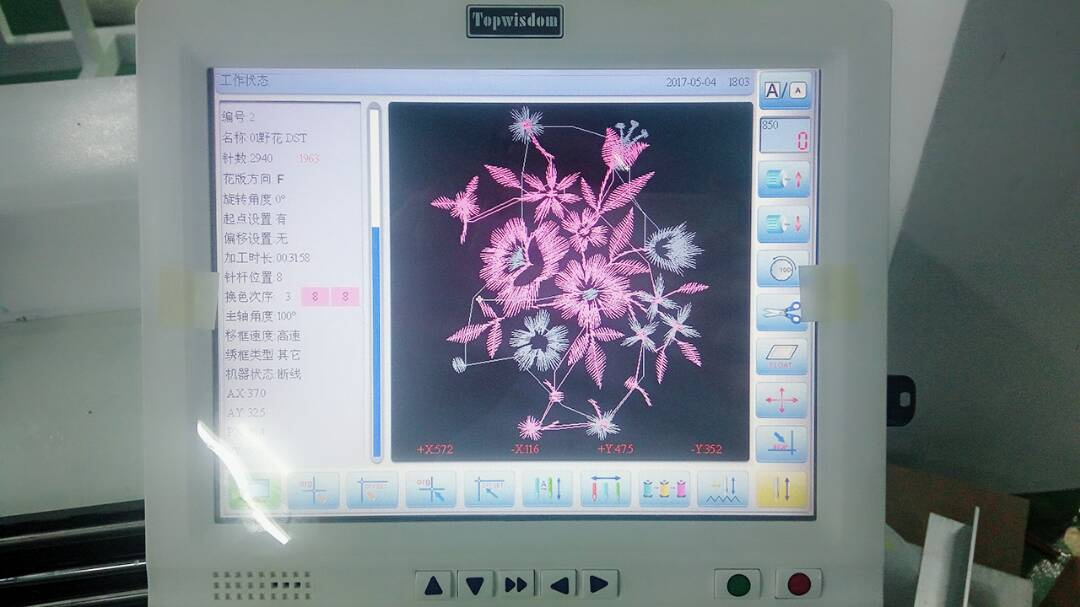

3.LCD TOUCH SCREEN COMPUTER1.10" High Definition color LCD display showing real time stitching
2. Function keys including Menu, Speed up and slow
Down (also Page Up and Page Down), Help, USB-
Input, Parameter Settings, Clear, ESC, Enter, etc.
3. Numeric keys for selection of needles
4. Frame-moving keys
5. Manual Trimming
6. Manual Color Change
7. Embroidery Status
8. Embroidery Method
9. DOT Key to return to 100 degrees
10. Mutli languages available

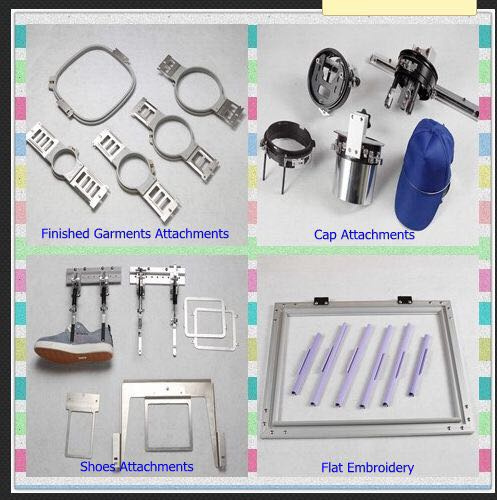

4.Hoops/frames inclued 1 Sash Frame: 244cm x 48cm
2 sets of back hoops for 30cm x 30cm (11.80" x 11.80") for each head
2 sets of front hoops of 19cm (7.50") for each head
2 sets of front hoops of 15cm (5.90") for each head
2 sets of front hoops of 12cm (4.70") for each head
2 sets of front hoops of 9cm (3.50") for each head
5.Optional DevicesSingle sequin device:
install on both side of the head
(first needle or end needle) | Simple coiling/cording device:
install on both side of the head
(first needle or end needle) |
Eight in one device:
install on hoop frames
(embroidery on pocket, sock,ect) | Simple taping device:
install on both side of the head
(first needle or end needle) |
Boring device:
install on each needle | laser position device:
install on all single head machine |

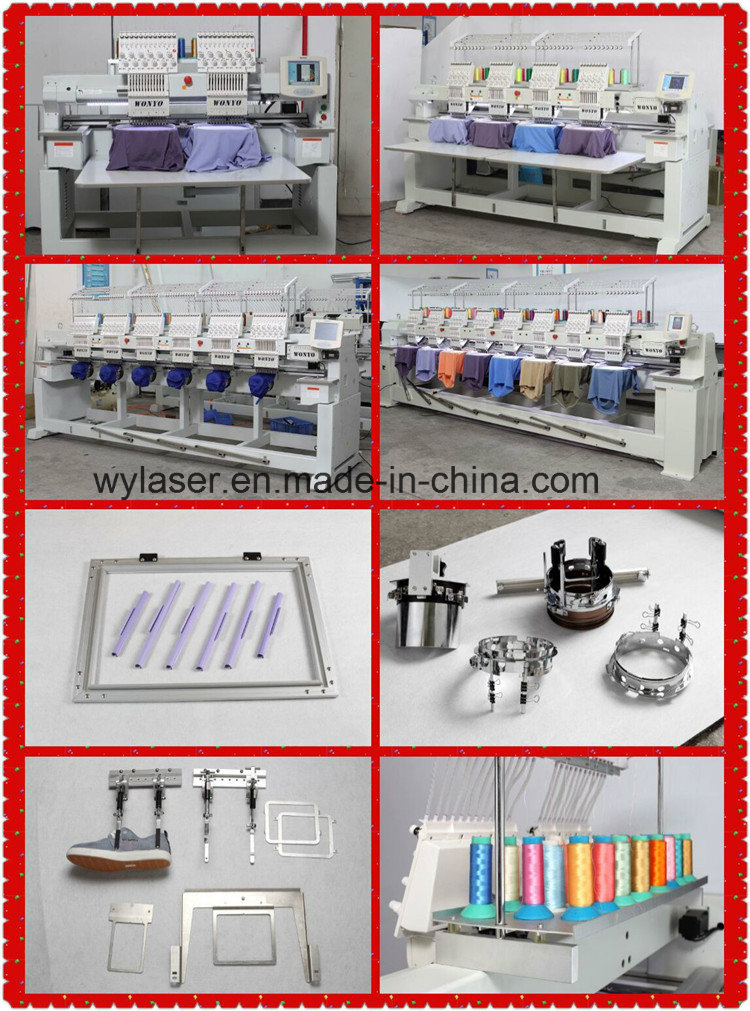

Model| Model | Head | NW
KG | GW
KG | Power
W | Machine size
M | Packing size
M | Packing volume CBM |
WY1201CS
WY1501CS | 1 | 150 | 170 | 150 | 0.75*0.74*0.85 | 0.84*0.83*0.94 | 1 |
WY1201CL
WY1501CL | 1 | 200 | 250 | 150 | 1.49*0.98*1 | 1.58*1.03*1.09
| 2 |
WY902C
WY1202C | 2 | 350 | 450 | 400 | 1.52*0.97*1.4 | 1.72*1.085*1.45 | 3 |
WY904C
WY1204C | 4 | 900 | 1000 | 750 | 2.638*1.1*1.5 | 2.75*1.15*1.65 | 6 |
WY906C
WY1206C | 6 | 1000 | 1100 | 750 | 3.438*1.1*1.5
| 3.7*1.15*1.65 | 8 |
WY908C
WY1208C | 8 | 1100 | 1200 | 1000 | 4.238*1.1*1.5
| 4.7*1.15*1.65 | 9 |
6.Packing and DeliveryDelivery term: Production takes around 13 days ship within 7-10days after receiving 100% payment
Payment term: 30% TT advance payment before production, 70% TT remaining balance before shipping.
7.Service1. Pre-sale & in-sale servicesOffer consulting service, sample's process experiment , equipment selection, training and the installation to the engineers and the user of the buyer.
1) Training : after the acceptance check by the buyer, the supplier offer the free training for 2-3 operators and maintenance persons of the buyer.
2) Training and installation time is 3-5 days
3) Installation & adjustment : When the buyer receives the equipment, the supplier install and adjusts the equipment with buyer's assistance on site then finally deliver it to the buyer. 2. After-sale servicesOur company offer One-year warranty and lifetime maintenance for the buyer , during the warrantyperiod, if there is any fault in the course of using the equipment (except the man-made factors and factors other than force majeure), we offer free maintenance, the parts which need to change also provided by us(except the consumable parts) . After the warranty period, we will charge appropriately according to the maintenance situation.8.FAQ Hot Questions Q: Is this a trustable long-term strategic partner?A: Just ask our customers, view our company profile, assessment of capability, factory glimpse, and the honor we had. And why not contact us or pay a visit to us?Q: What service will I get with this buying?A: Simply at your service: available consultancy before sales, easy communication during sales, easy payment term, smooth and safe delivery of guaranteed quality, and assured timely services after sales.Q: What kind of embroidery work and embroidery machine do I need?A: Think: ready-made garment/cap/hat, or garment before sewing, or just flat fabric?Normal flat stitch, or special chenille/chain/loop stitch, or sequin/paillette, or cord/tape/ribbon to add value to your embroidery?Q: How many heads do I need and what embroidery area on each head?A: Think: how big is your factory and how much is your expected production?The embroidery area on each head depends on the maximum area of your embroidery design to run.Q: How many stitches do I get per minute (SPM) on each head?A: Super high speed model gives max. 1500SPM,High speed model gives max. 1200SPM,Normal speed model gives max. 1000SPM,Lower speed model gives max.850SPM.Q: Do I need the Elite model or economy model?A: Think: How much would you pay for a machine? What we offer is what you need!Q: Can I represent and sell ORDER machines in my market?A: Welcome to join ORDER family and grow to be a strong distributor.
