Price: | US $ 35000-42000/Set |
---|---|
Min Order: | 1/Set |
Pay Type: | L/C,T/T |
Prod Model: | HT-8G/H |
---|---|
Type Machine: | Rotary Type with 8 Working Station for 60bags/Min |

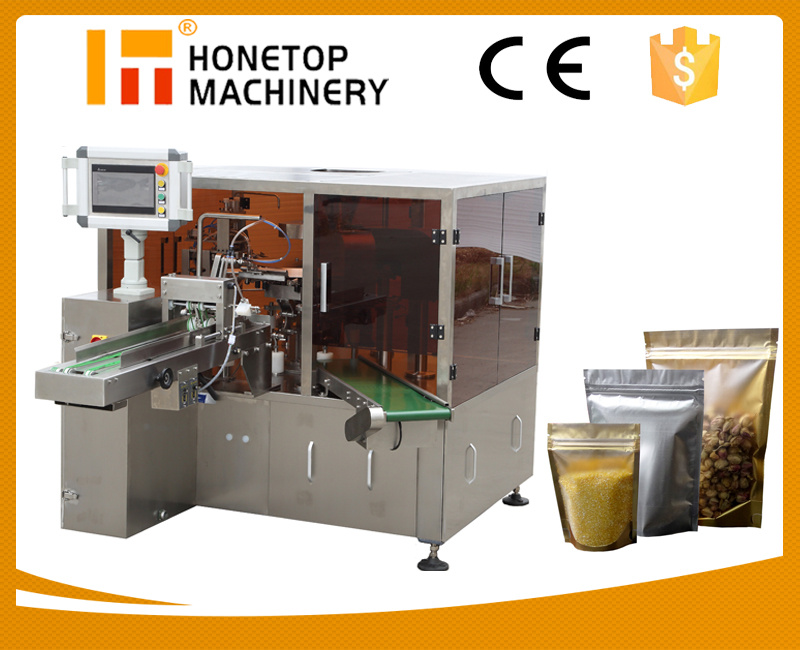

Machine Name: | Automatic Premade Pouch Packing Machine (Ht8-200h/ |
Bag Size Range: | Width 70-220mm, Length 80-350mm |
Main Electrical Components: | Siemens PLC/Siemens HMI/Omron/Schneider |
Main Pneumatic Components: | SMC Solenoids & Cylinders |
The Methods For Adjust Bag Width: | PLC Automatic Adjust Bag Width |
Cam Design: | Internal Grooved Cam Design |
Bag Cabinet Type: | Horizontal Infeed Belt |
The Methods For Lubrication: | Automatic Lubrication System |
The Methods For Guarding: | Automatic Detection/Glass Door Alarm |
Automatic Grade: | Automatic |
Application: | Oil |
Driven Type: | Mechanical |
Material Type: | Solid |
Packaging Material: | Composite Materials |
Packaging Type: | Bags |
Application:
1. Type of packing all kinds of grains and solids: frozen dumpling, meat, dates, candy, nuts, pet food, tobacco, raisins, seeds, cereal, fruit, potato chips, chocolate, bread, biscuits, cakes, expanded food and bulk food etc.
2. The snack packing machine machine is automatically packing the solid particles, achieve product packaging assembly line work, greatly improving the company's production efficiency, the best choice for the company pack products. The machine has a solid measured, automatically take bag, bag coding, automatic bag opening, the solid into the bag, bag sealing stations.

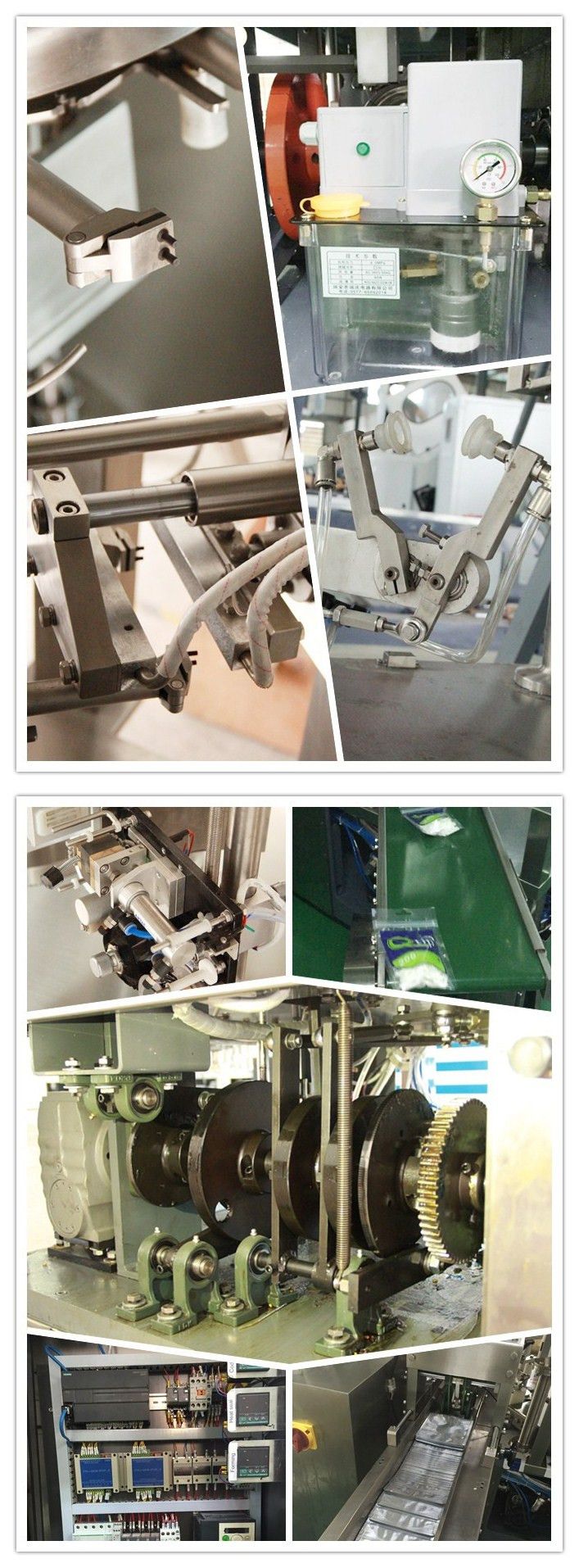

Machine Function: according to the clients' packing requirements.
1. It uses stainless steel 304 shell for food grade required.
2. Automatic detection. No pouch or pouch is not opened completely, no filling, no sealing.
3. Horizontal Infeed conveyor suits for bags with zipper, max. put 300pcs each time.
4. Zipper Openner System: Servo motor (Yaskawa / Japan) controlled.
5. Independent temperature control system (Omron/Japan).
6. PLC adjust bag width clamping: Only needs 2mins by auto PLC for adjust different bag width sizes.
7. Automatic lubrication system: PLC control the lubrication time,automatically lubricate the machine parts instead of by manual.
8. It includes ribbon type date code: 3 lines * 17 characters.
9. Guarding: Glass Door Alarm / Air Pressure Abnormal
10. Internal grooved cam design: The technology with high precision, suits for max. packing
speed: 50 cycles/min with stable running.
11. Use free oil vacuum pump, avoid polluting the environment in the production.

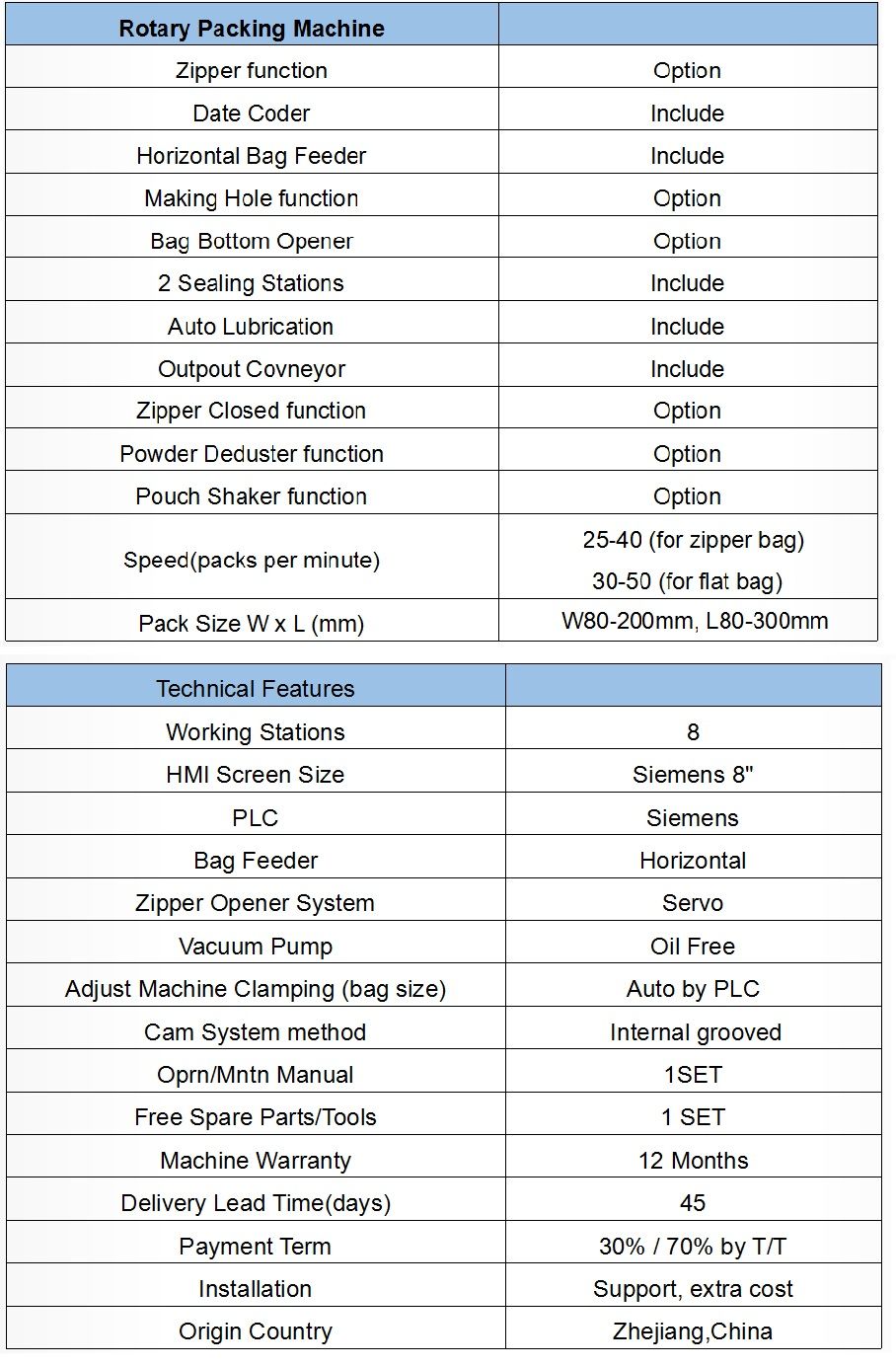

Main Technical Parameter:
Model | HT-8G |
Packing Range(bag size) | Width 80-200mm, Length 80-300mm |
Packing Weight | 10-2000g |
Capacity | 20-50 bag/min (speed depends on filling product &weight) |
Packing Precision | error<±1% |
Pouch Type | Stand-up bag, Flat bag, paper bag, laminated material etc. |
Total Power | 4.5 kw |
Compressed Air Consumption | 0.6 m3/min |
Voltage | 3 Phase 380V 50HZ/60HZ |

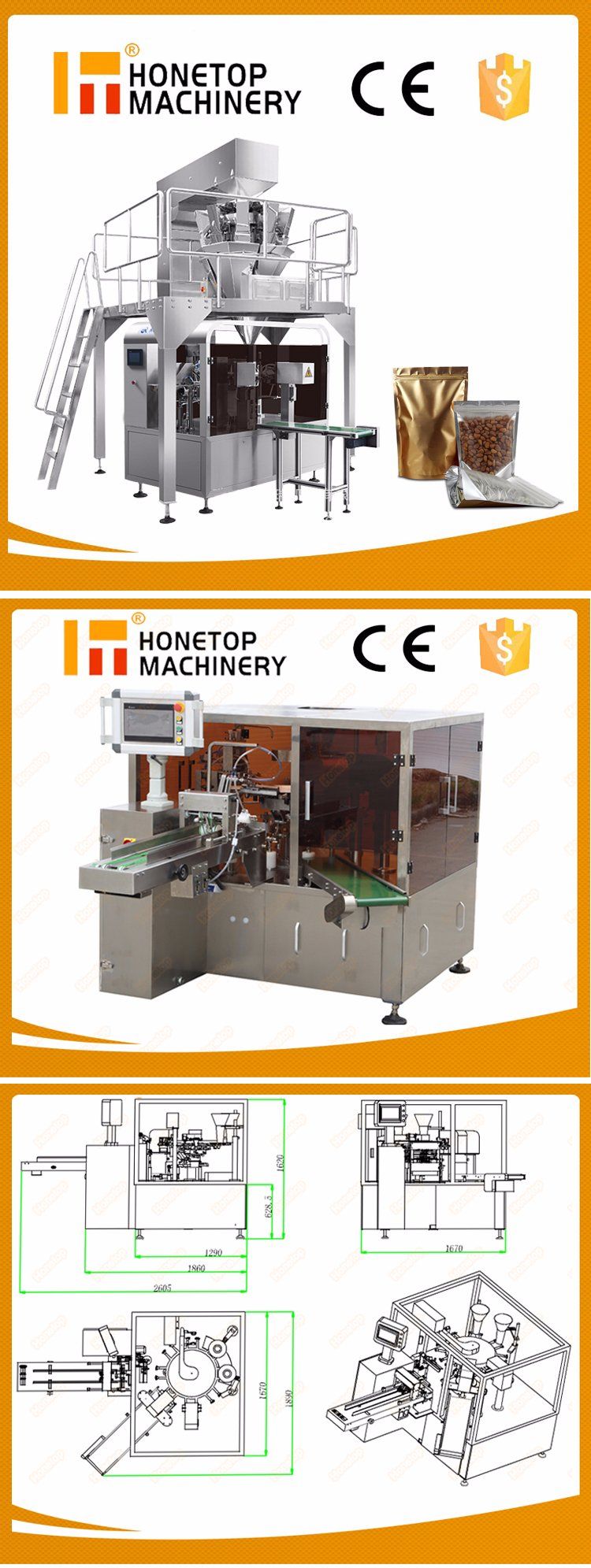

Machine Dimensions | (L)4400*(W)1800*(H)3700mm |
Machine Weight | 2900 kg |
Note: | 1. According to the customer request, provides the special design. 2. The machine disposition may make the choice. |
