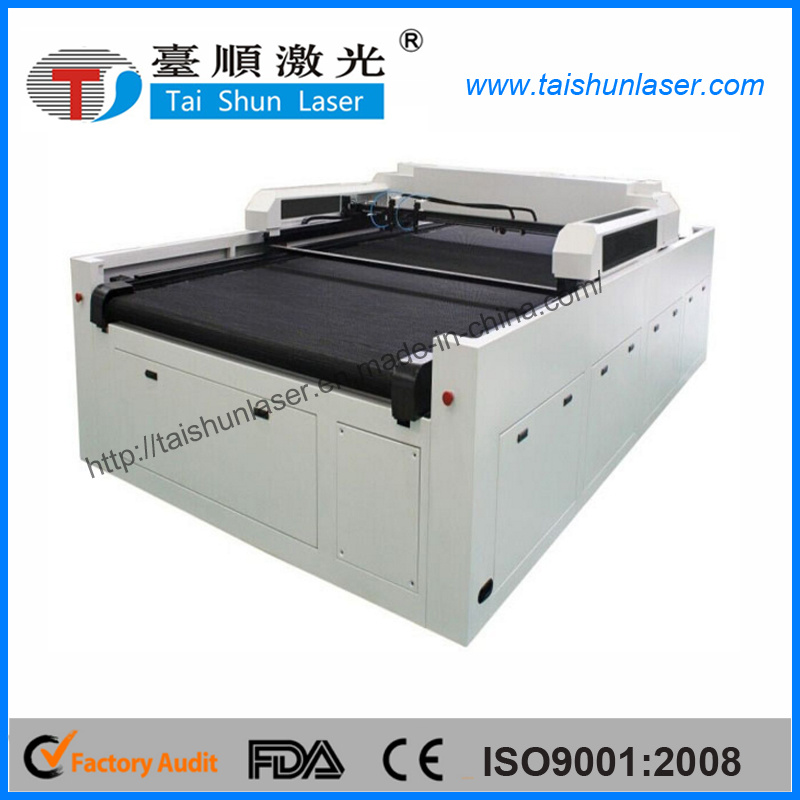

130watt CO2 Laser Cutting Machine for Sofa Cover Sofa Cushion
| Price: |
US $ 3800-5000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Paypal |
| Prod Model: |
TSC-160300LD |
| Laser Type: |
CO2 |
| Application Area: |
Car Carpet, Plush Toys, Home Textiles, Garments |
| Application Material: |
Fabric, Rubber, Non-Woven, Leather Textile |
| Power Supply: |
AC220V+-5%50Hz |
| Graphic Format Supported: |
Ai, Plt, Dxf, BMP, Dst, Dwg, Dxp |
| Cutting Area: |
1600X3000mm |
| Output Power: |
110W |
| Cutting Speed: |
Adjustable |
| Working Table: |
Conveyor Working Table |
| Guarantee: |
One Year Free Maintenance |
Product Description
Product configuration:| 1). 1 ×110watts Co2 Laser tube (Installed in the machine). |
| 2). 3 × Reflecting Mirrors + 1× Focusing Lens (Installed in the machine). |
| 3). 1× 5200W Industrial Water Chiller |
| 4). 1× conveyor working table OR 1× Honeycomb table |
| 5). 1× Air Compressor + 2× Exhaust blower |
| 6). 1× USB cable (Connecting PC and Laser) |
| 7). 1× Manual (User-friendly User's Manual, Guiding video & Demo video.) |
| 8). 1× Power cable(we also stock 110V~240V power version and USA.UK.EU.AU plugs for the country all over the world) |
| 9). 1× Tool box |
Parameter:| Model | TSHY-160300LD | Option |
| Working Area | 1600mmx3000mm | According to Demands |
| Laser Power | 110w150w |
| Laser Type | CO2 Sealed Laser Tube , 10.6μm |
| Cooling Type | Compulsory water circling system |
| Engraving Speed | 0-40000mm/min |
| Cutting Speed | 0-10000mm/min |
| Laser Output Control | 0-100% Set by Software |
| Min. Engraving Size | Chinese: 2.0mm*2.0mm, English Letter:1.0mm*1.0mm |
| Locating Accuracy | ≤±0.01mm |
| Controlling Software | DSP Control System |
| Graphic Format Supported | AI,BMP,PLT,DXF,DSTand etc |
| Compatible Software | CORELDRAW,PHOTOSHOP, AUTOCAD,TAJIMA,etc. |
| Color Separation | Yes |
| Drive System | High-precision 3-phase Stepper Motor |
| Auxiliary Equipments | Exhaust Fan and Air Exhaust Pipe |
| Power Supply | AC110V/220V+10%,50HZ/60HZ |
| Working Environment | Temperature:0-45C,Humidity 5-95%(No Condensate Water) |
| Option | Water chiller,CCD or Red Dot Position System |
|
Applied Materials and Industries
It's applied for cutting variety of textile and apparel fabrics, soft materials, it's applied widely in industries for textile,garment, industrial fabric and other materials.CharacteristicIt adopted conveyor working table with over-exceed long working area, which can realize one time cutting for more wider home textile and industrial products. Through Multi-head intelligent typesetting software, it can realize double head divided automatically, and make cutting speed faster, and increase higher utilization rate for fabric materials, various laser power and working area can be chosen,customer can request for multi-head to increase production efficiency according to their requirements.Samples
Our strength:
1. We use ball screw rod to make the up and down table, which ensure its long-term using and precision. While other company may have less precision, and will be noise after a period using.
2. We use American IIV company's reflect mirror and focus lens, which prolong the lifetime of the spare parts.
3. For laser tube, we use the Chinese top brand laser tube, have very stable performance, lifetime can reach 3000 hours. Also, we have another brand laser tube with 10000 hours lifetime.
4. For water chiller, we use CW3000 CW5000 for single head, and CW5200 for double head laser machine.
5. Good quality and unique design for red pointer and auto feeder
6. All the machine have LCD offline control system + USB port.
7. The bearing we use Japan import NSK brand, which ensure the long time performance and accuracy.
8. the transforming belt adopt the famous FULONG brand, it have the metal inside, so it is fasten and not easy to loosen.
9. All the power supply and laser device are kept on running for at least 24 hours testing to ensure it's in good performance.

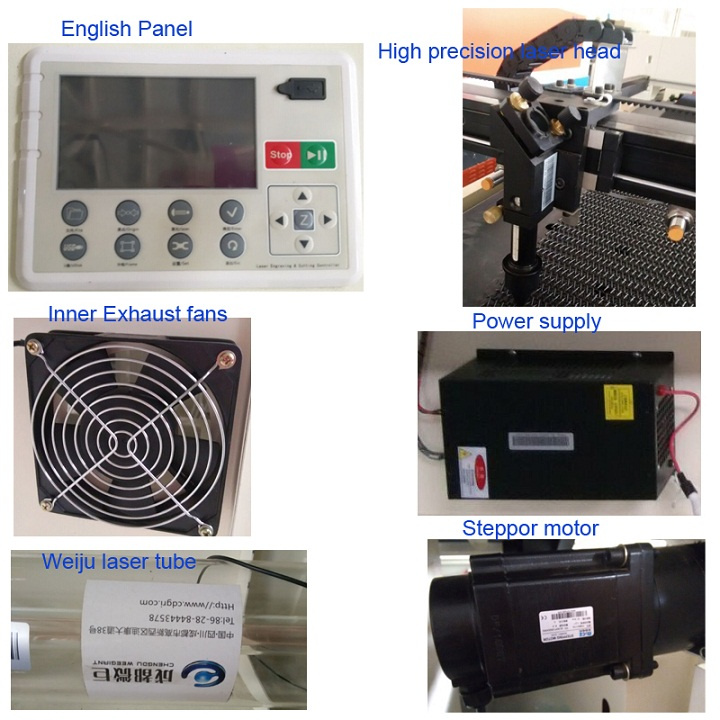

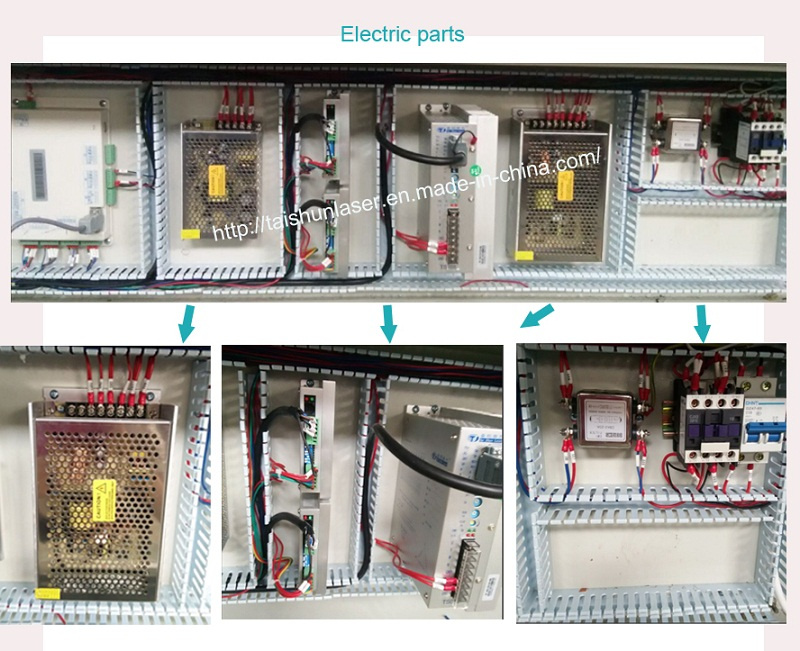

Configuration
Guarantee&After-sale service
1, Best components, perfect technics and strictly ex factory inspection.
2, 1 year guarantee for whole machine.
3, 24 hours (all days) technical support by call ,e-mail, skype or computer
remote control service by engineer.
4, Multi-language software, operation CD and detailed User Manual together with machine.
5, We offer free training in our factory, engineer oversea service is available if you like.
Order Notice:
Please let us know following informations:
1.What materials you want to cut ?
2.What is the mostly used thickness and what is the maximum thickness?
3. What is the MAX dimension of your materials ?
4. After cutting, what will be the metal used for? (application)
5. Are you an end user or reseller?
According to your above information,we'll recommend the most suitable machine to you.

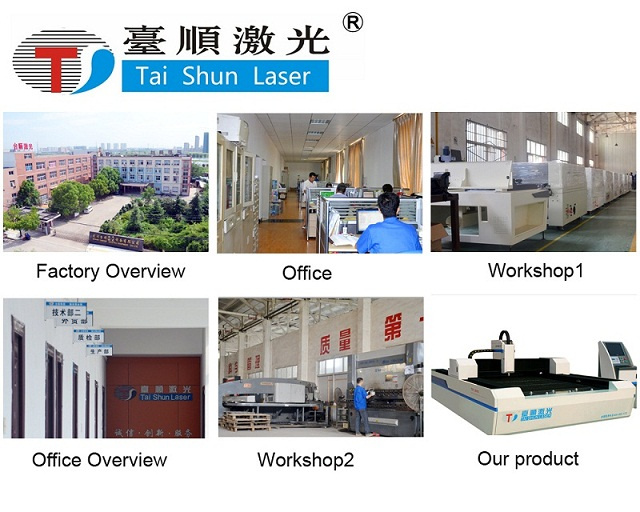

Taishun laser equipment Co., Ltd has been in the field of laser technology development and production for more than 20 years since the company was established, and always stand in the fore front product research and development.
Taishun company has strong Technical force and established set of perfect quality Management system, passed ISO9001: 2008 Quality Management System Certification, BV authentication, SGS and National Mandatory Product "3C" certification, which has reliable quality.
We developed 6 series of more than 10 types laser products which adopt international advanced technology. Such as, fiber laser metal cutting machine, YAG laser metal cutting machine, CO2 laser cutting and engraving machine, Fabric Flatbed laser cutting machine, Conveyor working table machine, laser marking machine and so on.
Taishun laser are good at produced medium and small laser power laser cutting machine, specially to supply one whole sets of laser processing solution scheme and related facilities for customers in plush toys, leather cutting, plush fabrics, automobile, textile, textile clothing, advertising handicrafts, electronics, medical equipment and etc. These laser equipment were widely applied in electronic circuit, auto spare parts, hardware tool, medical instrument, digital products, apparatus and instrument, optic communication component, packing and printing etc. To create a new Second-Generation small power laser cutting machine with more rapid and refinement manufacturing.
