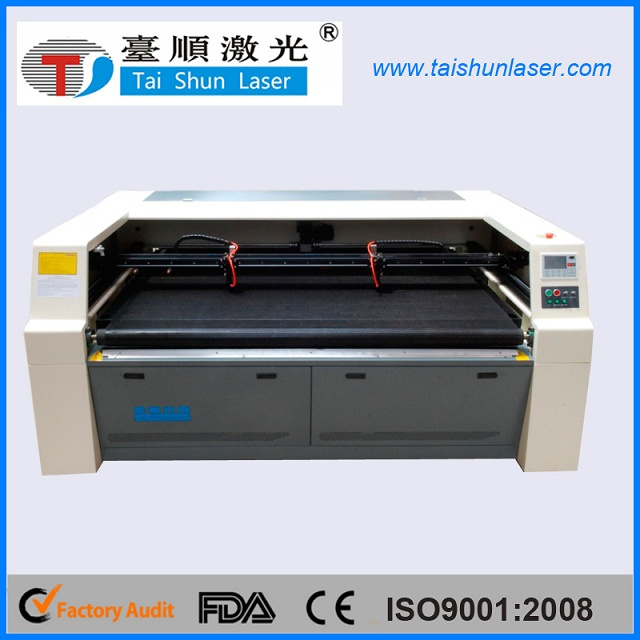

140100 Rubber Laser Engraving Machine with Precise Linear Rails
| Price: |
US $ 4000-5200/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
Technic parameter:| Model | TSYQ-180140 | | Option |
| Working Area | 1800x1400mm | | According to Demands |
| Laser Power | 40w/50w/60w/80w/100w/130w/150w |
| Laser Type | CO2 Sealed Laser Tube , 10.6μm |
| Cooling Type | Water Cooling |
| Engraving Speed | 0-60000mm/min |
| Cutting Speed | 0-36000mm/min |
| Laser Output Control | 0-100% Set by Software |
| Min. Engraving Size | Chinese: 2.0mm*2.0mm, English Letter:1.0mm*1.0mm |
| Highest Scanning Precision | 2500DPI |
| Locating Accuracy | ≤±0.01mm |
| Controlling Software | DSP Control System |
| Graphic Format Supported | DST PLT BMP DXF DWG AI LAS,etc |
| Compatible Software | CORELDRAW,PHOTOSHOP, AUTOCAD,TAJIMA,etc. |
| Color Separation | Yes |
| Drive System | High-precision 3-phase Stepper Motor |
| Auxiliary Equipments | Exhaust Fan and Air Exhaust Pipe |
| Power Supply | AC110V/220V+10%,50HZ/60HZ |
| Working Environment | Temperature:0-45C,Humidity 5-95%(No Condensate Water) |
| Option | Water chiller Red Dot Position System |
|
Applicable Material:
Non-metal materials such as double-color sheets,fabric,acrylic,glass,wood planks,paper,leather,rubber,marble,granite and tiles,etc.
Applicable industries:
Suitable for industries such as billboards,artistic gifts,crystal ornaments,paper cut engraving,bamboo embossment,printing,garments and leather industries, embroidery,interior decoration and photo frame Making,etc.
Our strength:
1. We use ball screw rod to make the up and down table, which ensure its long-term using and precision. While other company may have less precision, and will be noise after a period using.
2. We use American IIV company's reflect mirror and focus lens, which prolong the lifetime of the spare parts.
3. For laser tube, we use the Chinese top brand laser tube, have very stable performance, lifetime can reach 3000 hours. Also, we have another brand laser tube with 10000 hours lifetime.
4. For water chiller, we use CW3000 CW5000 for single head, and CW5200 for double head laser machine.
5. Good quality and unique design for red pointer and auto feeder
6. All the machine have LCD offline control system + USB port.
7. The bearing we use Japan import NSK brand, which ensure the long time performance and accuracy.
8. the transforming belt adopt the famous FULONG brand, it have the metal inside, so it is fasten and not easy to loosen.
9. All the power supply and laser device are kept on running for at least 24 hours testing to ensure it's in good performance.
Samples
Notice:
Please let us know following informations:
1. What materials you want to cut ?
2. What is the mostly used thickness and what is the maximum thickness?
3. What is the MAX dimension of your materials ?
4. After cuting, what will be the metal used for?
5. Are you an end user or retailer?
According to your above information,we'll recommend the most suitable machine to you.
Why choose us:
1.Supported by the government of Wuhan City
2.Has its own R & D center, update for technology
3.We are the manufacturer, our price are the most competitive!
4.With 20 years history on researching and producing all kinds of laser machines
5.Our company welcomes AGENTS all over the world
Guarantee&After-sale service
1, Best components, perfect technics and strictly ex factory inspection.
2, 1 year guarantee for whole machine.
3, 24 hours (all days) technical support by call ,e-mail, skype or computer
remote control service by engineer.
4, Multi-language software, operation CD and detailed User Manual together with machine.
5, We offer free training in our factory, engineer oversea service is available if you like.
| Prod Model: |
TSHY180140 |
| Laser Type: |
CO2 Sealed Glass Tube |
| Laser Power: |
80W |
| Working Area: |
1800X1400mm |
| Working Table: |
Conveyor Working Table |
| Position Accuracy: |
+/-0.1mm |
| Movement System: |
Single Side Servo System |
| Standard Accessories: |
550W 2 Set Exhaust Fans |
| Supported File Format: |
Ai, BMP Plt Dxf Dst Ai BMP Plt Dxf |
| Guarantee: |
One Year Free Maintenance |
| Locating Accuracy: |
0.01mm |
Taishun laser equipment Co., Ltd has been in the field of laser technology development and production for more than 20 years since the company was established, and always stand in the fore front product research and development.
Taishun company has strong Technical force and established set of perfect quality Management system, passed ISO9001: 2008 Quality Management System Certification, BV authentication, SGS and National Mandatory Product "3C" certification, which has reliable quality.
We developed 6 series of more than 10 types laser products which adopt international advanced technology. Such as, fiber laser metal cutting machine, YAG laser metal cutting machine, CO2 laser cutting and engraving machine, Fabric Flatbed laser cutting machine, Conveyor working table machine, laser marking machine and so on.
Taishun laser are good at produced medium and small laser power laser cutting machine, specially to supply one whole sets of laser processing solution scheme and related facilities for customers in plush toys, leather cutting, plush fabrics, automobile, textile, textile clothing, advertising handicrafts, electronics, medical equipment and etc. These laser equipment were widely applied in electronic circuit, auto spare parts, hardware tool, medical instrument, digital products, apparatus and instrument, optic communication component, packing and printing etc. To create a new Second-Generation small power laser cutting machine with more rapid and refinement manufacturing.
