| Prod Model: |
XYJ-3/150 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand Name: |
Chaoying |
| Power(W: |
7.5kw |
| Net Weight: |
1100kg |
| Dimension(L*W*H): |
2400*1500*1700mm |
| Type: |
Cutting Machine |
| Certification: |
SGS |
| Knife Type: |
According to Die Cutter |
| Color: |
Gray |
Product Description

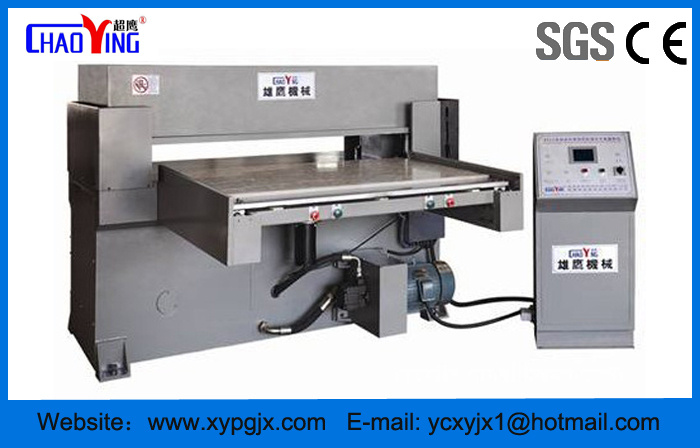

150T automatic hydraulic four-column cutting machine with single-side feeding table
Usage and characteristics:
1.The machine is mainly suitable for cutting materials like leather, plastic, cloth, leather bags, toys, hats, spongy floss pieces, floor materials, soft wood pieces and materials needed cutting out.
2. Adopt double oil cylinder, four-column, precise double-crank connecting rod mechanism which can guarantee that the cutting depth at every cutting position is same.
3. With special setting mechanism, and equipped with die cutter and cutting depth setting,the travel adjustment is simple and accurate.
4. The pressing board of cutting carries out slow cutting when it contacts the die cutter which can make that there is no size error between the uppermost layer and lowermost layer of cut materials.
5. The central oil supply automatic lubricating system guarantees machine precision and prolongs service life of machine.
6. The operation is labor-saving and simple, with low malfunction, strong cutting power and high cutting speed.
7. Single-side or double-side automatic feeding system can be allocated to enhance the production.
Main technical parameters:
Maximum cutting force |
150Tons |
Travel adjustment range |
0-150mm |
Range between the working tables |
60-210mm |
Size of the upper pressing board |
1600×1000mm |
Size of lower worktable |
1600*1020mm |
Main motor power |
7.5 kW |
Frenquency voltage phase |
50h/60hz 220/380v single /three phase |
Net weight |
11000kgs |
Gross weight |
11100kgs |
Overall dimension |
2400×1500×1700mm
|
Remark: We can make the machine according to your specifically order,
for example the color, the motor information ,the working table
If have any questions about the cutting machine, welcome to contact us with below informations:
Name: Kate chen
Kate chen
Web:www.xypgjx.com
Tel: 18962004086
F A Q
1.Q:Are you a factory or trading company?
A: Yes,we are a factory. you are most welcomed to visit us
2.Q:Where is your factory located? How can I visit there?
A: Our factory is located in Yancheng City, Jiangsu Province, China, about 4 hours from Shanghai.All our clients, from home or abroad, are warmly welcome to visit us!
3.Q:What is the material of your products?
A: The material is mainly steel,Cast iron(Ductile cast iron) We can also choose material as customers' requirements.
4.What is the artwork of your products,can print our logo?
A: Yes,we can provide your logo.
5.Q: What is your MOQ of this item? A: 1 set per style
6.Q: What is the lead time?
A: It depends on your order quantity.
7.Q: Is it all right to make customer's own brand name?
A: That's all right to make your own brand name.
8.Q: Where is your Loading Port
A: Shanghai. port,China.
Yancheng Xiongying Precision Machinery Co., Ltd. is a scale enterprise specialized in producing series precision machinery and general machinery products such as hydraulic cutting machines, die cutting machines, cloth cutting machines, embossing machines and etc. With powerful technical strength, complete production facilities, beautiful environment and convenient traffic conditions, the company is located in Dagang Industrial Park, Yancheng City, Jiangsu Province --- the "Hometown of Chinese Shoe Machinery" known as a national intensive area of spark plan technology.
The company has developed comprehensive technical cooperation with internationally famous companies from Hong Kong, Italy and etc. By insisting on developing with scientific innovation and continuously introducing advanced production technology and modern management mode from home and abroad, the company has made unceasing efforts to establish and strengthen management systems for product research and development, flow work, inspection and installation, quality control, and sale and maintenance, accelerating independent research and development of hi-tech products.
The main products with the brand of "Chaoying" include 10-20T hydraulic swing arm cutting machine, 22/27T automatic hydraulic swing arm cutting machine, 25T hydraulic plane cutting machine, 25/30T hydraulic traveling head cutting machine, 25-60T automatic feeding hydraulic traveling head cutting machine, 25-250T four-column hydraulic plane cutting machine, 30-300T precision four-column hydraulic plane cutting machine, 30-150T automatic parallel-moving precision four-column hydraulic plane cutting machine, 30-300T single & double side automatic feeding precision four-column hydraulic plane cutting machine, 150-300T Top-down pressure(Bottom-up pressure) four-column hydraulic plane cutting machine, 30-60T precision four-column half/full-cut hydraulic die cutting machine, 30-60T automatic feeding cloth material cutting machine, 130T leather embossing machine and etc., which are widely used in such industries as shoes, caps, clothing, toys, jigsaw puzzles, balls, sand paper, plastic packing, wood industry, sports articles, packaging, printing, carpets (floors), home textile, medical goods, PU, air conditioner seals, automobile inner decorations, adhesives and etc.
The products are sold well in the country and exported far to USA, UK, Japan, Canada, Italy, Argentina, Vietnam, India, Saudi Arabia, Sri Lanka, South Africa, Malaysia, South Korea, Hong Kong, Taiwan and other countries and areas. The series products of "Chaoying" brand have been successively appraised as "Creditable Quality Product in Jiangsu Province" and "Famous Product in Yancheng", and the company has been successively honored such titles as "Chairman Unit of the Council of China Light Industry Machinery Association", "Member Unit of China Leather Industry Association", "Member Unit of Standing Committee of Professional Commission of Leather and Footwear Machinery of China Leather Industry Association", "Jiangsu Province Private Science and Technology Enterprise", "Yancheng High-tech Enterprise", "Member Enterprise of Yancheng Chamber of Commerce of Shoe Machinery" and "Contract Honoring and Credit Keeping Enterprise" etc. In addition, the company has been granted the right of independently managing import and export.
Military strategies are used to achieve grand prospect, and Xiongying will assist you to build a successful business. By adhering to the development guideline of "innovative science and technology, quality first; Sincere management and excellent service", we will provide customers with all-round and high quality service with the strict and down-to-earth working style, enterprising spirit of continuous perseverance, honest and sincere management conception, as well as the strong support of advanced technology and soaring development.
Sincerely welcome merchants from home and abroad to visit and instruct us!
