| Price: | Negotiable/Set |
|---|---|
| Min Order: | 1/Set |
| Pay Type: | T/T |
27t Hydraulic Shoes Making Machine with Table
USE AND FEATURES
It is suitable for cutting all kinds of single layer or multi-layer of leather, plastic, paperboard, fabric and other small area non-metallic materials by the cutting die. It is an ideal cutting equipment for shoemaking, bag & suitcase, clothing, automobile, artware, packaging, electron and other industries.
1. Two cutting modes to choose: (I) small pressure (P)stepless adjustment; No need to set height of cutting die due to using intelligent pressure(T)feedback design, height of cutting die has no effect on cutting depth and each cutting point can get ideal cutting result.
2. The column is provided with self-lubricating system of double oil circuit static pressure supporting which make operator more easy and free in working.
3. Main parts using high reliable quality imported parts, with lower noise, high efficiency and energy saving.
4. Operating with both hands, ensures high safety of operators.
TECHNICAL PARAMETERS
Max. cutting force | 220kN | 270kN |
Cutting speed | 0.15m/s | |
Stroke adjustment range | 0-70mm | 0-100mm |
Range between the working tables | 35-105mm | 45-145mm |
Size of swing arm | 360×430mm | 500×500mm |
Size of lower worktable | 900×430mm | 1000×500mm |
Motor power | 1.1kW | 1.5kW |
Overall dimension | 900×900×1350mm | 1000×1000×1400mm |
Total weight | 680kg | 980kg |

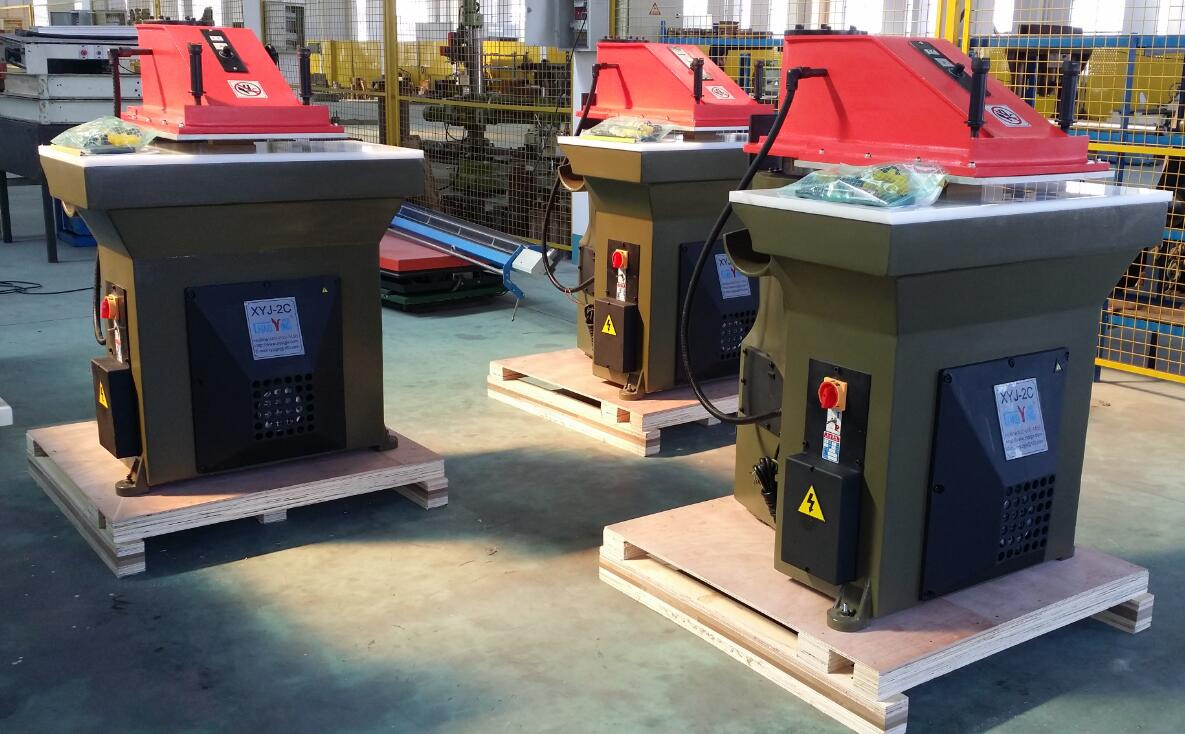

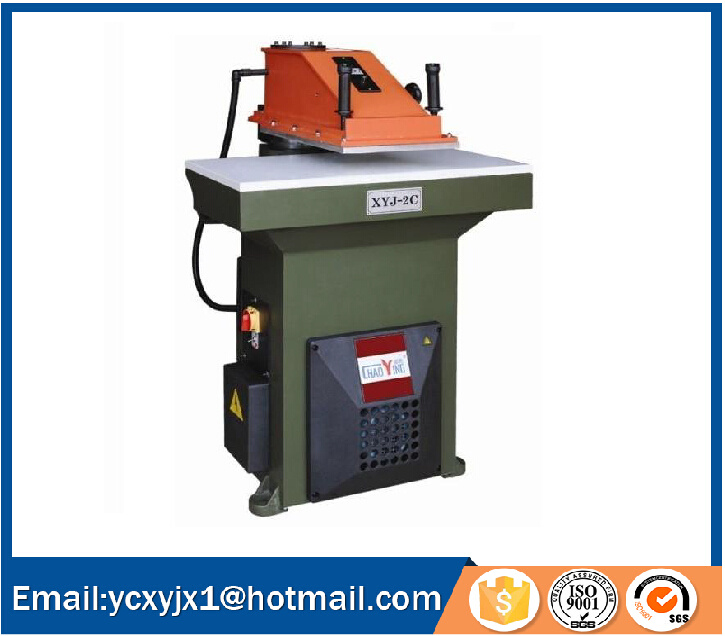

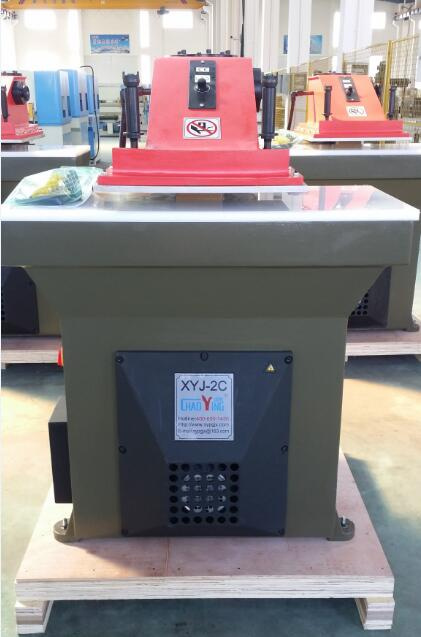

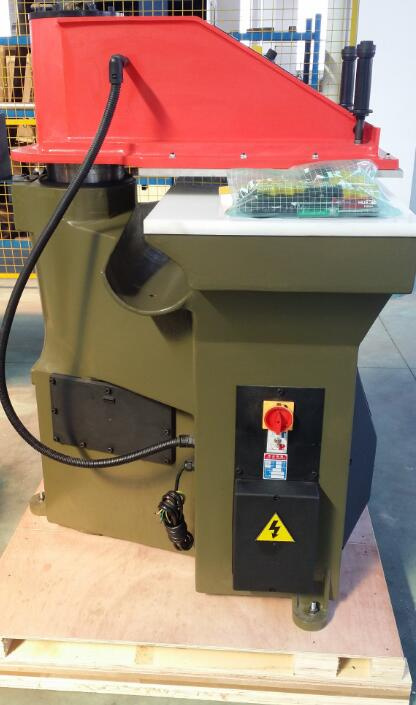

PRODUCT PICTURES

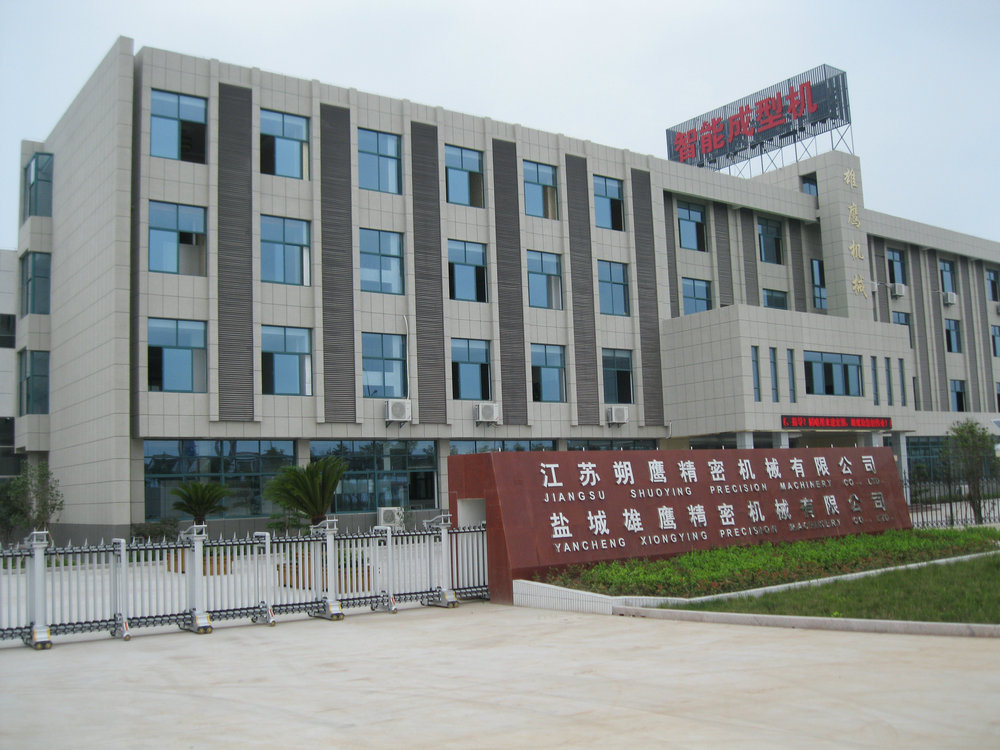

OUR COMPANY
Jiangsu xiongying Precision Machinery Co., Ltd. Specializes in making hydraulic cutting machine, die cutting machine, cold press machine, high speed slicing machine, multi-blade sawing machine, embossing machine and such other precision machine and general machine. Our company covers an area of 14000m2, as a large enterprise in this industry, we have powerful technical force, complete production equipment, nice environment and convenient transportation condition. Our company is located in Yancheng City Dagang Industry Zone of Jiangsu Province and this town is called as "China Shoe Machinery City", which belongs to National Spark Technology Concentration Area.
After-sales service:
Guarantee is one year, but maintenance is lifelong. Replacement is free and ex-factory. All parts have to be delivered within 12 months (carriage paid). Guarantee excludes every worn or torn parts . Replacement handwork is excluded and it will be done by the buyer. The supplier is not responsible for any rewards for, damages or last earnings met by buyer. Guarantee is not valid if the machine is used the wrong way or it is not serviced as shown in our technical handbook.
Guarantee of quality :
The Manufacturer shall guarantee the goods are made of Manufacturer's best materials, with first class workmanship, brand new, unused and correspond in all respects with the quality, specification and performance as stipulated in this Contract. We have Q/C department to control the quality from raw material to the finished product. When the machine was finished, we will send you the inspection video or photos. Or you can come to our factory to check it by yourself. As well as we have professional experience for packaging, so you can one hundred percent sure about our quality.
Lifelong service:
After the warranty period expires, our company will offer lifelong service to all contract-honoring clients and timely provide clients with spare parts, products and technical service at the most favorable price.
File service:
After the contract is implemented, we will establish files for clients, which include sales contracts, technical parameters, production task forms, commissioning reports and acceptance forms, relevant technical drawings, etc.
FAQ
1. Are you the factory or trading company?
We are the direct factory.
2. What is your MOQ of your Product?
Normally our MOQ is 1 set.
3. Do you have any certification on your product?
We have CE approved for some of our product.
4. What is your main market for the overseas?
Our mainly exported to Iran,Indian,Italy and so on.
5. What is the warranty of your product?
We have 1 years warranty.
We can make the machine according to your specifically demand , for example the color, the motor information, the cutting force, the working table size, your brand name logo etc.
Contact with me
| Prod Model: | XYJ-2C/27 |
|---|---|
| Brand Name: | Chaoying |
| Working Table Size: | 1000*500mm |
| Motor Power: | 1.5kw |
| The Guarantee: | 1 Year |
| Max Cutting Force: | 27t |
| Imprinting Type: | Platen |
| Placing Form Of Template: | Horizontal |
| Die Cutting Tool: | Metal Mold |
| Application: | Paper Packaging Materials |
| Automatic Grade: | Manual |
