Stainless Steel/Aluminum Window & Door Screen Mesh Net Curtain-Mosquito, Bug, Insect, Fly Proof
Stainless Steel/Aluminum Window Screen is used to keep leaves, debris, insects, birds and other animals from entering a building or a screened structure such as a porch, while permitting fresh air-flow. Therefore Stainless Steel/Aluminum Window Screen is applied to filtration, windows for mosquitoes and flies, doors, etc.
Stainless steel window screen is the most durable of the materials available for insect mesh and has excellent resistance to corrosion. Stainless steel window screen keeps out flies, wasps, bees, mosquitoes and other insects, but not midges.
1.Stainlesss Steel Window Screen Mesh Specification
Material |
Mesh per inch |
Wire Dia (mm) |
Wire Dia (inch) |
Open Area % |
AISI 316 or 304 |
10 x 10 |
0.9 |
0.035" |
41.7 |
AISI 316 or 304 |
10 x 10 |
1.2 |
0.028" |
27.8 |
AISI 316 or 304 |
10 x 10 |
0.8 |
0.032" |
46.9 |
AISI 316 or 304 |
10 x 10 |
1.15 |
0.045" |
29.9 |
AISI 316 or 304 |
11 x 11 |
0.8 |
0.032" |
42.5 |
AISI 316 or 304 |
11 x 11 |
0.7 |
0.027" |
48.3 |
AISI 316 or 304 |
12 x 12 |
0.7 |
0.027" |
44.8 |
AISI 316 or 304 |
12 x 12 |
0.58 |
0.023" |
52.8 |
Special mesh can be made according to customers requirement
|

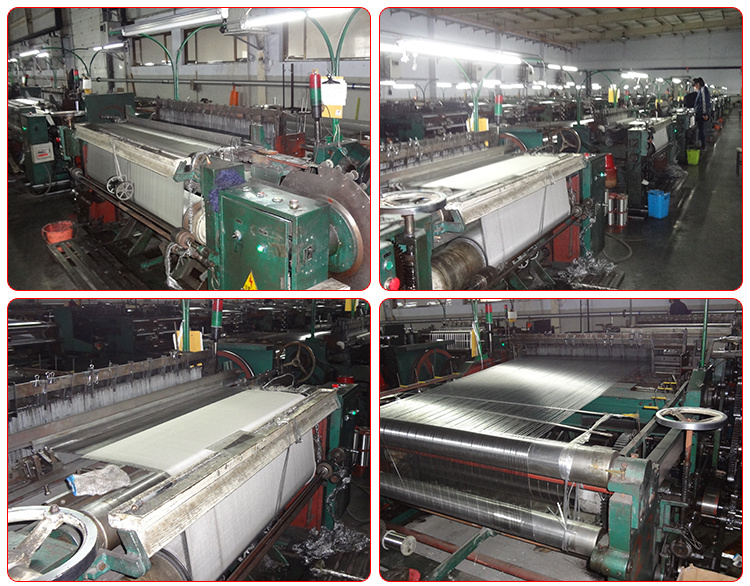

2.Stainless Steel Window Screen Mesh Making Process
1) The stainless steel wire is used to making the stainelss steel window screen mesh
2) The weaving machine is making the stainless steel window screen mesh
3) The extra edge of the mesh is being cut by the knife on the weaving machine

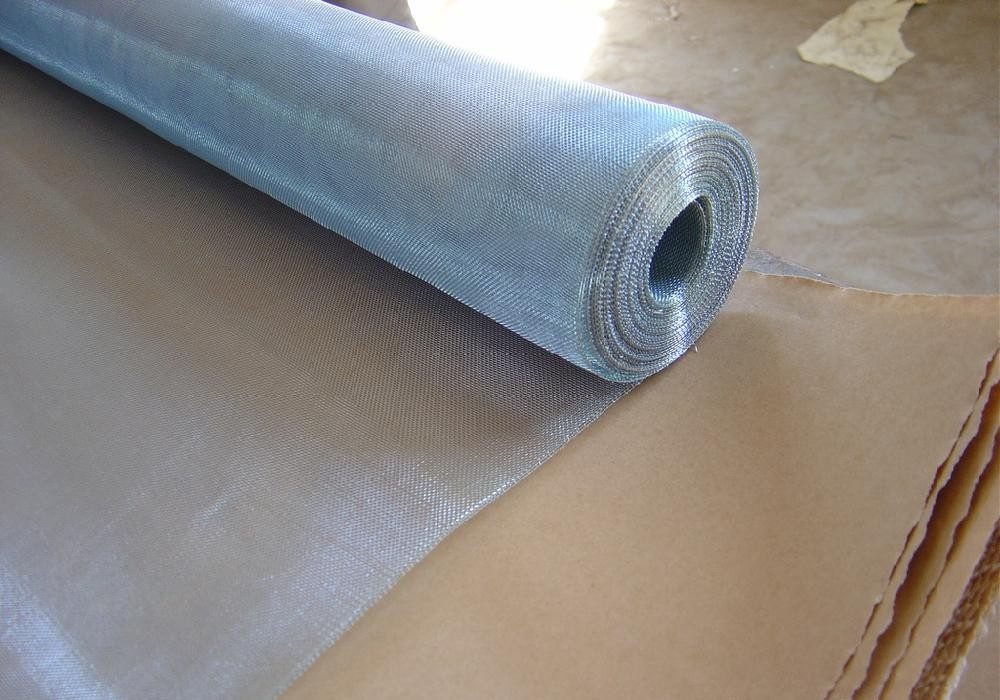

3.Stainless Steel Window Screen Mesh Packing
The extra edge of the mesh is being cut by the knife on the weaving machine

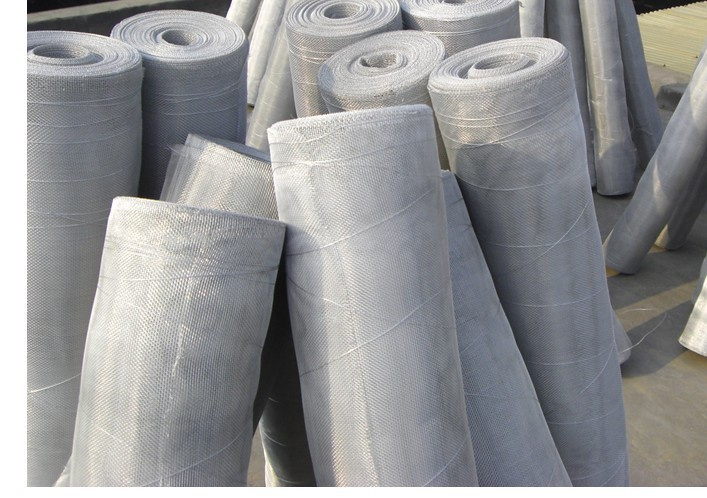

4.Stainless Steel Window Screen Mesh In Our Warehouse
Hengshui Zhongbao Wire Mesh Co., Ltd. Specializes in the customized manufacture of high quality and unique water and oil filters and filtration equipment. We also specialize in the design and production of decontamination plants. Oil, gas and water separation units are our specialty. Our mainly products are structured packing, wire mesh demister, stainless steel filter mesh, filter element, and so on.
Our company brings together a large number of outstanding scientific, technical and managerial personnel who are specifically trained in the research and development of unique filtration and purification techniques. Our company is equipped with advanced production, monitoring and self-contained testing equipment. Our products are widely used in the petroleum and chemical manufacturing industries, textile manufacturing, energy and electric power generation, heavy construction equipment, transportation and many other customized commercial needs.
We welcome your special requirements, and we can produce your prototypes or production runs on time due to flexible manufacturing schedules.
