Price: | US $ 0.56/Square Meter |
---|---|
Min Order: | 1/Square Meter |
Pay Type: | T/T,Western Union |
Polyester Screen Printing Mesh
Polyester screen printing mesh is one of our widely used printing fabrics. It is constructed with woven fabric. It can be used for graphics printing, garment printing, textiles, flat films according to customs' request or different application.
1. Material: 100%Polyester
2. Shape of screen mesh fabric: tubular
3. Function: Printing
4. Mesh count: 15-420 mesh
5. Size available: standard and custom sizes
6. Characteristic :high tensity,low elongation,excellent dimensional stability
Polyester monofilament mesh | |||||
Mesh Count | Weaving | Thread | Pening | Open Area | Tension |
Diameter/um | um | % | N/cm | ||
10T | 1:1PW | 250 | 740 | 53 | 60 |
12T | 1:1PW | 150 | 522 | 47 | 62 |
16T | 1:1PW | 200 | 435 | 47 | 48 |
16T | 1:1PW | 100 | 450 | 70 | 48 |
20T | 1:1PW | 100 | 410 | 68 | 49 |
24T | 1:1PW | 100 | 323 | 58 | 50 |
24T | 1:1PW | 120 | 303 | 51 | 48 |
27T | 1:1PW | 100 | 270 | 58 | 46 |
32T | 1:1PW | 71 | 230 | 60 | 28 |
32T | 1:1PW | 64 | 245 | 61 | 28 |
32T | 1:1PW | 100 | 200 | 43 | 42 |
36T | 1:1PW | 100 | 182 | 42 | 42 |
39T | 1:1PW | 55 | 199 | 61 | 32 |
39T | 1:1PW | 80 | 172 | 46 | 42 |
43T | 1:1PW | 80 | 151 | 43 | 36 |
47T | 1:1PW | 55 | 157 | 55 | 32 |
48T | 1:1PW | 71 | 141 | 44 | 32 |
53T | 1:1PW | 55 | 133 | 50 | 34 |
55T | 1:1PW | 55 | 126 | 49 | 32 |
55T | 1:1PW | 64 | 115 | 39 | 30 |
59T | 1:1PW | 55 | 101 | 42 | 33 |
64T | 1:1PW | 55 | 104 | 43 | 33 |
64T | 1:1PW | 64 | 95 | 36 | 35 |
72T | 1:1PW | 48 | 96 | 46 | 32 |
72T | 1:1PW | 55 | 80 | 30 | 32 |
77T | 1:1PW | 55 | 75 | 28 | 33 |
80T | 1:1PW | 48 | 78 | 30 | 29 |
90T | 1:1PW | 48 | 55 | 26 | 32 |
100T | 1:1PW | 40 | 58 | 32 | 27 |
110T | 1:1PW | 40 | 48 | 27 | 30 |
120T | 1:1PW | 34 | 45 | 30 | 26 |
120T | 1:1PW | 40 | 40 | 20 | 27 |
140T | 1:1PW | 34 | 32 | 19 | 31 |
150T | 1:1PW | 34 | 26 | 20 | 31 |

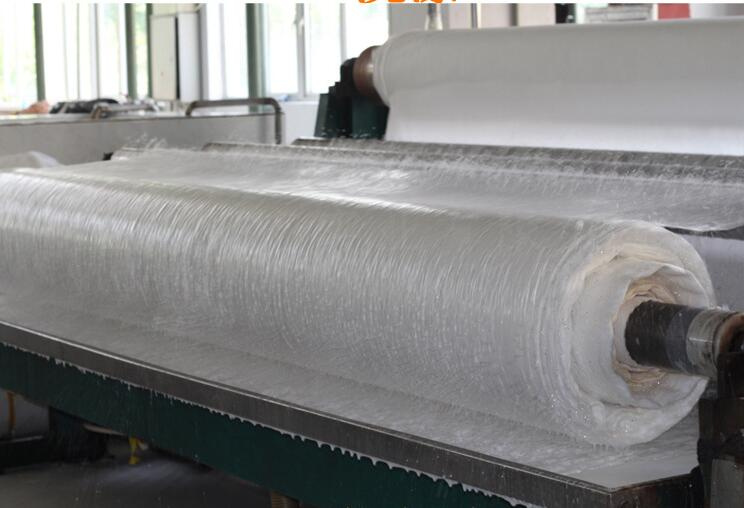

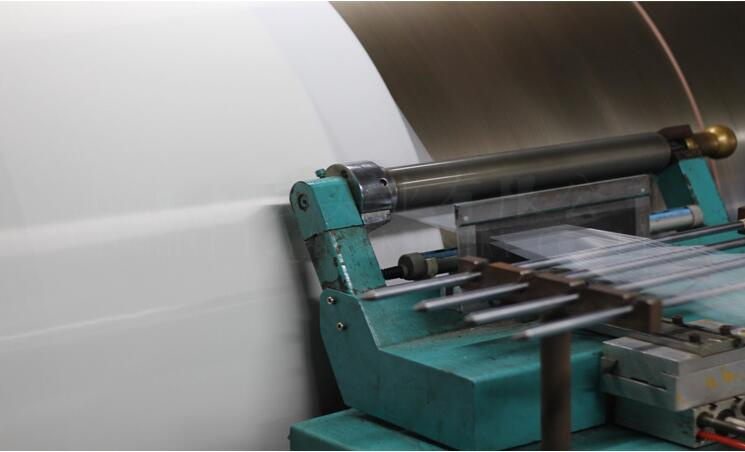

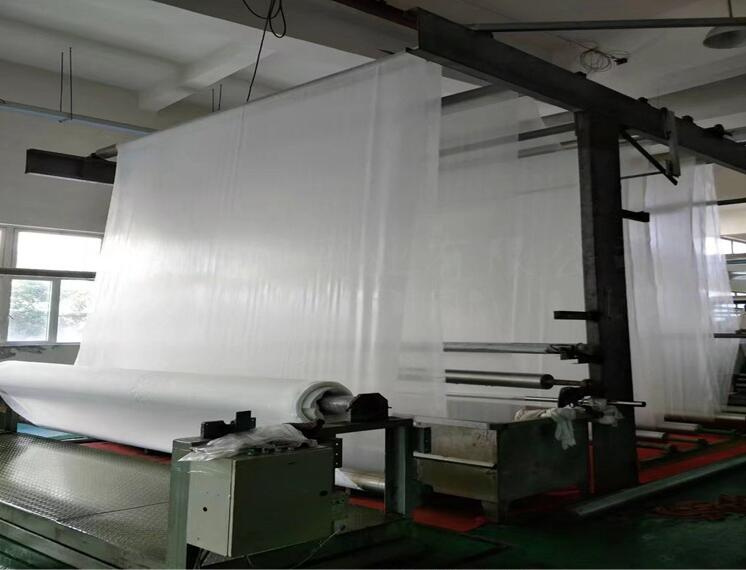

Production process
Prod Model: | ZB-PM-03 |
---|---|
Mesh Color: | White, Yellow |
Width: | 0.6- 3.68m |
Mesh: | 10-420mesh/Inch |
Length: | 50m |
Character: | High Tensile&Low Enlongation |
Sample: | Yes |
Material: | 100% Polyester |
Weave Type: | Plain |
Printing: | Polyester Screen Printing |
Elasticity: | High |
