Price: | US $ 0.1-2.85/Piece |
---|---|
Min Order: | 1/Piece |
Pay Type: | T/T,Paypal |

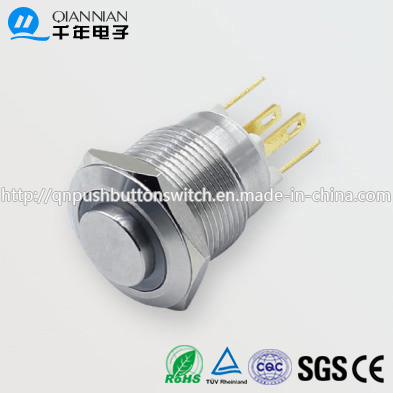

title:19mm high flat ring 4pin with no resistor metal button
They are widely used in household appliances, electric force,telecommunications,machine tool,vessel,textile,printing,Mining machine,Mustic Instrument, etc.
Product brand | QIANNIAN | |
Product name | Button switch | |
Product model | QN19-G2 | |
Product information | Mounting hole | 19mm |
Operation types | momentary and latching | |
Head shape | mushroom head | |
Enclosure material | Stainless Steel | |
Degree of protection | IP67 IK10 | |
Contact parameters | Switch rating | 5A/250VDC |
Contact configuration | 1NO1NC /2NO2NC | |
Contact | Silver alloy,screw terminal | |
Color/voltage | Optional color | Red Green Blue Yellow White Orange |
Optional voltage | 3V 6V 12V 24V 36V 48V 110V 220V | |
Other parameters | Mechanical life | 50,000cyles |
Electrical life | 50,000cyles | |
LED life | 40,000hour | |
Terminal Type | Pin Terminal(2.8X0.5) | |
Contact resistance | ≤50mΩ | |
Insylation resistance | ≥1000mΩ | |
Dielectric Strength | 2000VAC | |
Operation Temperature | -20ºC~+55ºC | |
Panel thickness | 1~10mm | |
nut torque | 5~14Nm | |
Opration pressure | About3~5N | |
Operation stroke | About2.5mm | |
Base | PA66 | |
Packages | 50PCS/BOX | |
Website | http://qnpushbuttonswitch.en.made-in-china.com | |
Official website | http://www.qnele.com |
Prod Model: | QN19-G2 |
---|---|
Material: | Nickel Plated Brass/Stainless Steel |
Operation Type: | Rotate |
Manufatcure: | Yes |
Head Type: | Flat ,High Flat |
Switch Combination: | 1no |
LED Color: | Red Green Blue Yellow White Orange |
LED Voltage: | 3V 6V 12V 24V 36V 48V 110V 220V |
Usage: | Check Button |
Kind: | Double-pole on-off Switch |
Type: | Normal Open or Normal Close |
Contact Type: | Normal Open or Normal Close |
Brand: | Qian Nian |
Certification: | CQC Reach RoHS |
