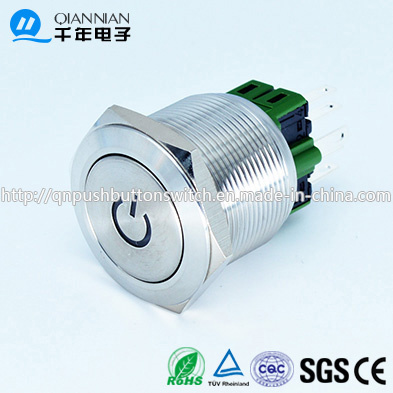

Qn25-A3 25mm Power Port Green Strong Light 3V Mini Button

Qn25-A3 25mm Power Port Green Strong Light 3V Mini Button
Price: US $ 0.1-3.8/Piece
Min Order: 1/Piece
Pay Type: T/T,Paypal


       title:QN25-A3 25mm power port green strong light 3V mini button

       They are widely used in household appliances, electric force,telecommunications,machine tool,vessel,textile,printing,Mining machine,Mustic Instrument, etc.

Product brandQIANNIAN
Product nameButton switch
Product modelQN25-A3
Product informationMounting hole25mm
Operation typesMomentary& Latching
Head shapeflat head
Enclosure materialStainless Steel
Degree of protectionIP67 IK10
Contact parametersSwitch rating5A/250VDC
Contact configuration1NO1NC /2NO2NC
ContactSilver alloy,Pin terminal
Color/voltageOptional color R.B.G.Y.O.W
Optional voltage3V,6V,12V,24V,36V,48V,110V,220V
Other parametersMechanical life50,000cyles
Electrical life50,000cyles
LED life40,000hour
Terminal TypePin Terminal(2.8X0.5)
Contact resistance≤50mΩ
Insylation resistance≥1000mΩ
Dielectric Strength2000VAC
Operation Temperature-20ºC~+55ºC
Panel thickness1~10mm
nut torque5~14Nm
Opration pressureAbout3~5N
Operation strokeAbout2.5mm
BasePA66
Packages50PCS/BOX
Websitehttp://qnpushbuttonswitch.en.made-in-china.com
Official websitehttp://www.qnele.com

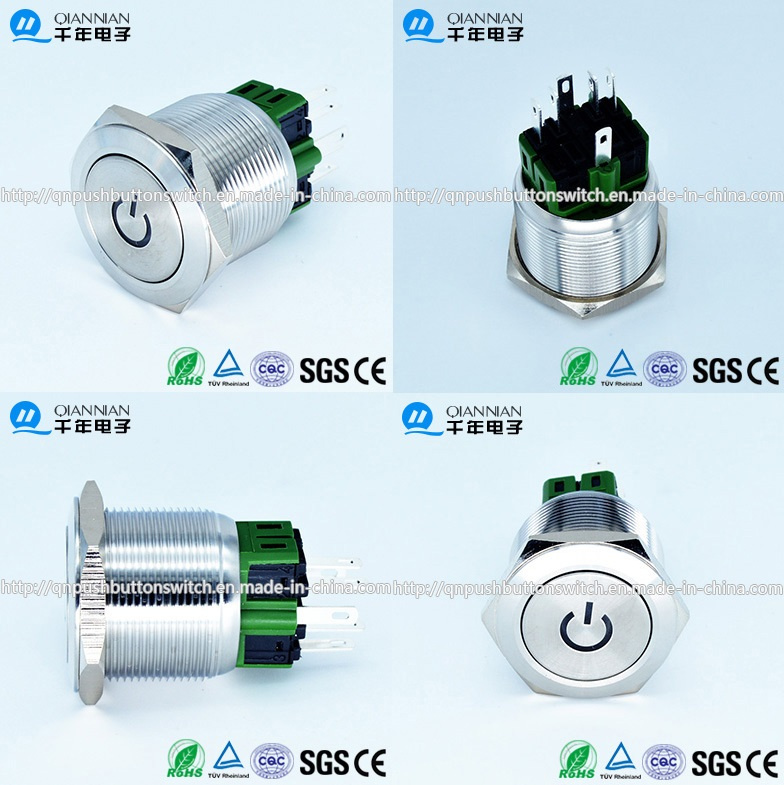

Product size






Prod Model: QN25-A3
Material: Nickel Plated Brass/Stainless Steel
Operation Type: Momentary Latching
Manufatcure: Yes
LED Color: Red Green Blue Orange White Yellow
LED Voltage: 3V 6V 12V 24V 110V 220V
Usage: Check Button
Kind: Double-pole on-off Switch
Type: Normal Open or Normal Close
Contact Type: Normal Open or Normal Close
Brand: Qian Nian
Certification: CQC Reach RoHS
