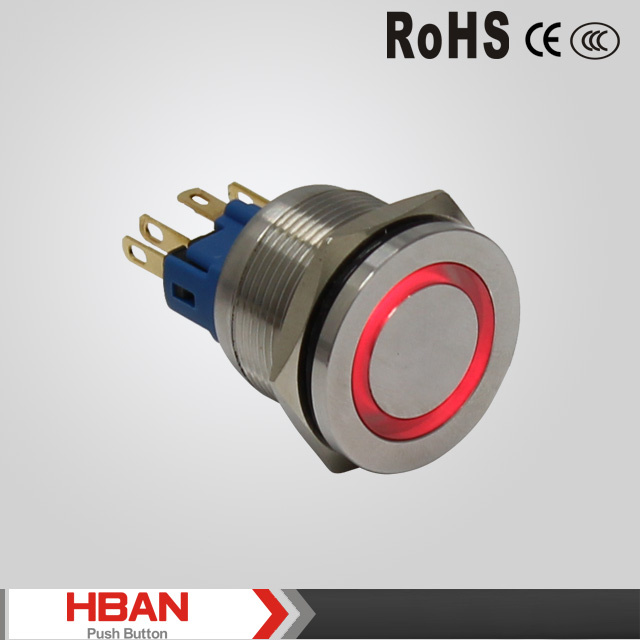

22mm 25mm 30mm Normal Closed Push Button, Ring LED Illuminated Push Button Switch Exit Button
| Price: |
US $ 5.3/Piece |
| Min Order: |
40/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |

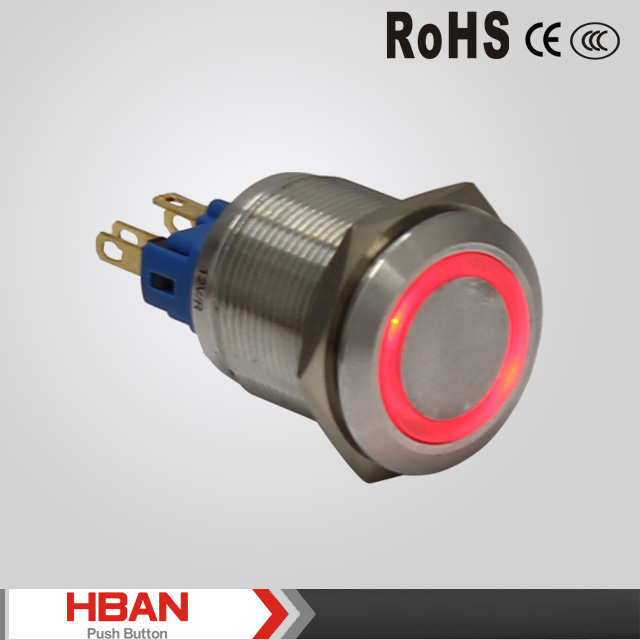

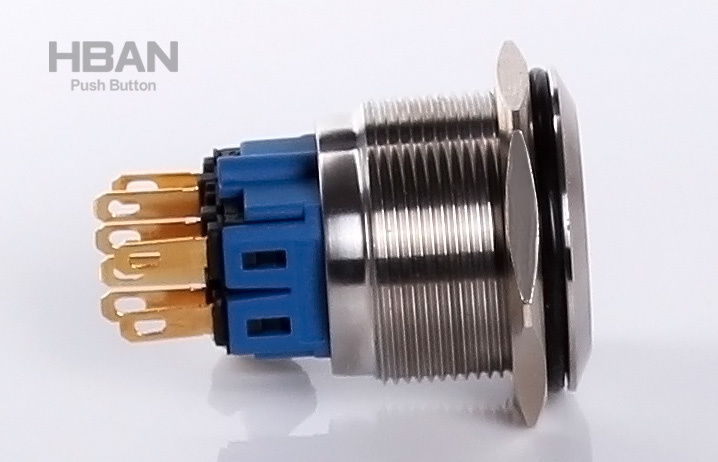

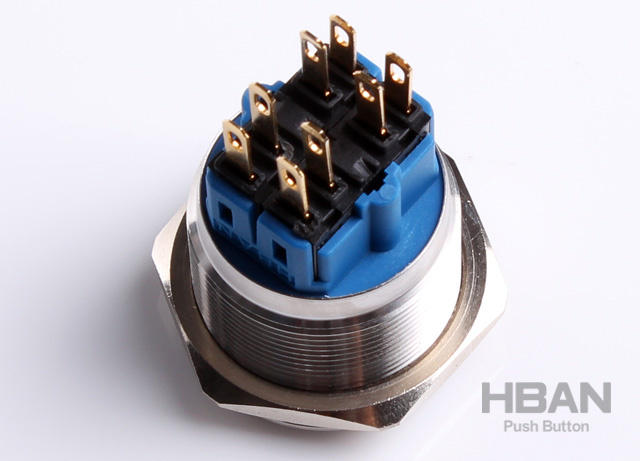

22mm anti vandal normal closed ring led push button switch exit button Item No.:HBGQ22F-11E/S (1NO1NC,momentary,ring illumination,stainless steel)
HBGQ22F-11EZ/S (1NO1NC,latchig,ring illumination,stainless steel)
HBGQ22F-11E/N (1no1nc,ring illumination,momentary,nickel-plated brass)
HBGQ22F-11EZ/N (1no1nc,ring illumination,momentary,nickel-plated brass)Mounting Hole Size: Φ 22mm
Switch Rating: 5A/250VAC
The Front Shape: FLAT ROUND
The Crust Material: STAINLESS STEEL
Protection Degree: IP65, IK10 | ITEM,NO | HBGQ22-11E/S |
| SPECIFICATION | 1NO1NCMOMENTARY,STAINLESS STEEL |
| FRONT SHAPE | FLAT ROUND |
| CRUST MATERIAL | STAINLESS STEEL |
| SWITCH RATING | 5A/250VAC |
| PROTECTION DEGREE | IP65,IK10 |
| TERMINAL TYPE | PIN TERMINAL(2X0.5MM) | | OPERATIN TEMPRATURE | -20ºC+55ºC | | DIELECTRIC STRENGTH | 2000VAC | | MECANICAL LIFE | >1000000 | | MECHANICAL | >200000 | | PANNEL THICKNESS | 1-5MM | | TORQUE | 5-14nNm | | OPRATING STROKE | ABOUT 2.5MM | | CONTACT ATERIAL | SILVER ALLOY | | BUTTON MATERAL | PBT | | CASE MATERIAL | stainless steel | | BASE MATERIAL | PBT | | lamp type | led ring illumination | | lamp voltage | 6v/12v/24v/110v/220v | | lamp color | R G W B Y O | | lamp life | 50000 HOURS |
| |
Packging Details:We pack 20 pieces diameter 22mm metal push button switches into 1 foam box to protect them. We supply 20pieces rubber rings and 1 piece guarantee card with these switches. Then we packed this foam box into a plastic bag, it will packed into a small box with 3 layers corrugated. Finally, we packed 20 boxes into
A 5 layers corrugated export carton.FAQ:Why choose us?
1:complete product catagory,metal push button switch,plastic bush button switch,signal light,rotary switch,key lock switch,emergency stop switch,buzzer and so on.
2:13 years manufacturing experiences
3:factory direct price
4safe payment terms:T/T,PAYPAL,WEST UNION
5:OEM avaliable
6 provideing customized products
7 certificate of CCC,CE,ROHS,UL,TUVAbout Us:Yueqing Dahe Electric Co., Ltd is a professional manufacturer of push button
Switch, signal lamp, buzzers, waterproof and anti vandal metal push button switch for more than 10 years with CE and RoHS certificates.
Our products are widely used in machinery, machine tools, electric power,
Electronics, production control, medical, banks, ships, automation and other
Industries.
We can customize push button switch according to your specification, If you have any requirement or question, please feel free to contact us.
We offer a warranty on all items that we sold. Item will be tested before ship,it will be in good condition,if there are some problems with the item,feel free to contact us. send the photo to us that we can check and give you best solution .
Tel: 0086-577-62708000 Fax: 0086-577-62708007
| Prod Model: |
HBS1-AGQ-11E/S |
| Item No.: |
Hbgq28-11e/S |
| Switch Rating: |
5A/250VAC |
| The Front Shape: |
Flat Round |
| The Crust Material: |
Stainless Steel |
| Protection Degree: |
IP65,Ik10 |
| LED Color: |
Red, Green, Yellow, Orange, White, Blue |
| Operation Type: |
Momentary |
| Contact Configuration: |
1no1nc |
| Contact Material: |
Silver |
| Crust Material: |
Stainless Steel |
| Type: |
Composite |
| Usage: |
Check Button |
| Kind: |
Double-pole on-off Switch |
| Contact Type: |
Za |
| Brand: |
Hban |
| Certification: |
ISO9001,Ce,RoHS,CCC |
