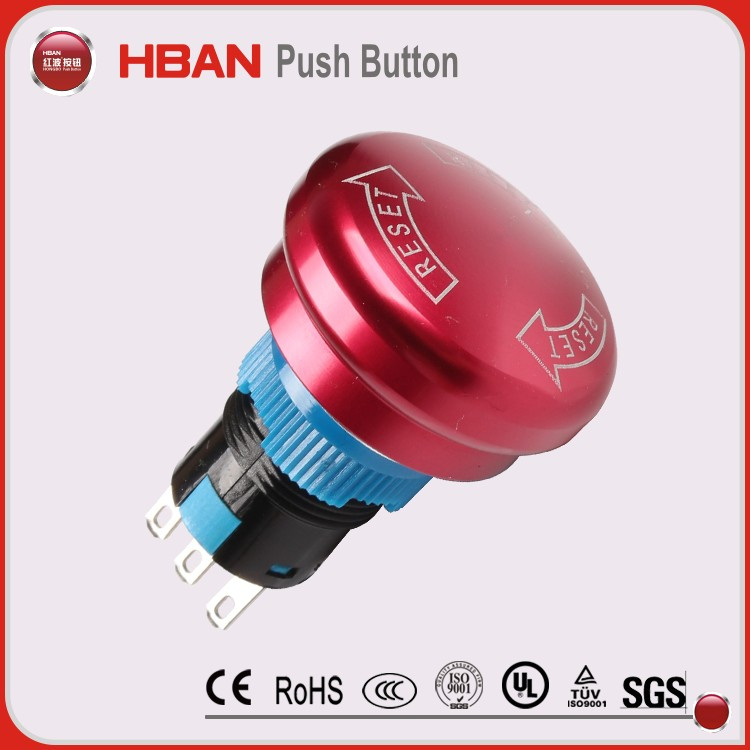

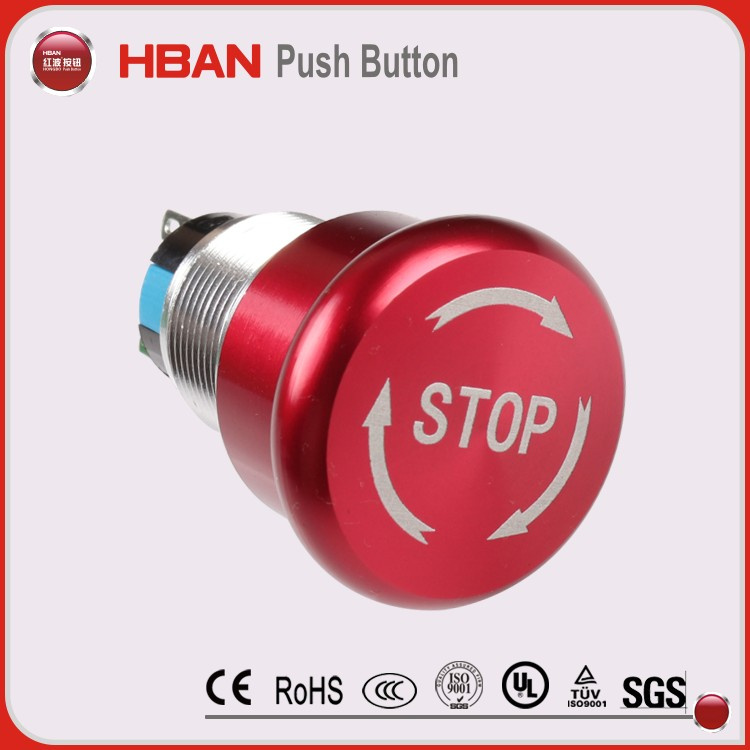

CE, ISO9001,TUV ip67 emeregncy stop mushroom buttonItem No.
HBS1AGQ-11TS
Mounting Hole Size: Φ22mm
Switch Rating: 5A/250VAC
The Front Shape: MUSHROOM
The Crust Material: ALLUMINUM
Protection Degree:IP67
Packging Details:
We pack 20 pieces diameter 22mm metal push button switches into 1 foam box to protect them. We supply 20 pieces rubber rings and 1 piece guarantee card with these switches. Then we packed this foam box into a plastic bag, it will packed into a small box with 3 layers corrugated. Finally, we packed 10boxes / 20 boxes into
A 5 layers corrugated export carton.
About Us:
Yueqing Dahe Electric Co., Ltd is a professional manufacturer of push button
Switch, signal lamp, buzzers, waterproof and anti vandal metal push button switch for more than 10 years with CE and RoHS certificates.
Our products are widely used in machinery, machine tools, electric power,Electronics, production control, medical, banks, ships, automation and otherIndustries.
We can customize push button switch according to your specification, If you have any requirement or question, please feel free to contact us.
We offer a warranty on all items that we sold. Item will be tested before ship,it will be in good condition,if there are some problems with the item,feel free to contact us. send the photo to us that we can check and give you best solution .
Tel: 0086-577-62708000 Fax: 0086-577-62708007
PRODUCT SPECIFICATION
| Item No. | HBS1AGQ-11TS |
| Specification | 1NO1NC MOMNTARY |
| Terminal Type | PIN TERNIMAL |
| Switch Type | C(SNGLE BREAKPOINT FAST-MOTION CANGEOVR CONTACT) |
| Switch Specification | Ith:5A Ui: 250VAC |
| Contact Resistance | ≤50m Ω |
| Insulation Resistance | ≥1000MΩ |
| Dielectric Strength | 2000V AC |
| Operating Temperature | -20degree~+55degree |
| Machanical Life | >2,000,000 times |
| Electrical Life | >50,000 times |
| Panel Thickness | 1~10mm |
| Torque | 5~14Nm |
| Operating Pressure | About 4N |
| Operating Stroke | About 2.5mm |
| Protection Degree | IP67,IK09 |
| Material | Contact | Sliver Alloy |
| Button | alluminum |
| Case | alluminum |
| Base | PBT |
Yueqing Dahe Electric Co., Ltd. Set up on 2003, is a professional manufacturer of push button switch, indicator lights, signal lamp, buzzers, high-intensity resistance and anti-vandal metal push button switch.
Our products are widely used in machinery, machine tools, electric power, electronics, production control, medical, banks, ships, automation and other industries. We have state-of-the-art production, laboratory equipment and testing apparatus, and insist on the quality of survival, to serve and promote the development quality management service support system, to ensure that the product of the index is quality controlled state.
After years of pioneering spirit, the company has now made a number of patents, the products have passed national mandatory CCC certification, CE certification and RoHS certification, with high quality and cost-effective, favored by the majority of users. We sincerely welcome people to join together to create brilliant.
At present, we cooperate with customers in more than 50 countries and areas. We sincerley hope to cooperate with you. Welcome to become our Distributor in your city.
Tel: 0086-577-62708000 Fax: 0086-577-62708007
