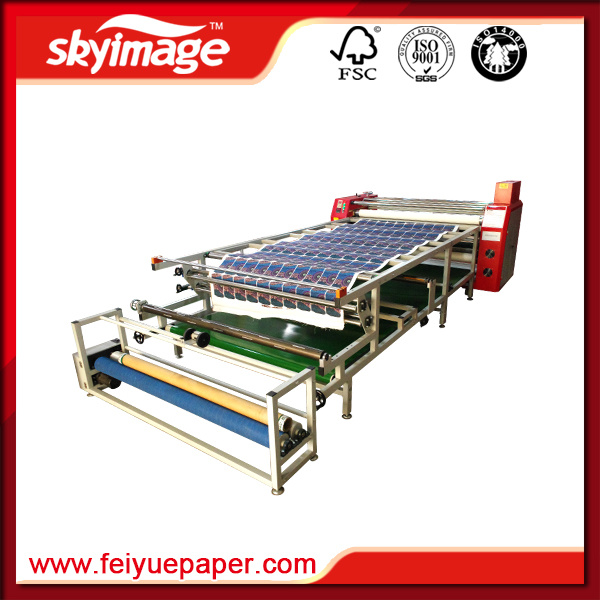

500*1900mm Roll to Roll Heat Transfer Machine for Sublimation Printing
| Price: |
US $ 9845/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Specifications: Item No.: FY-RHTM500*1900
Electric Requirements: 50HZ380V or customized
Power: 40KW
Heated model: Oil heating system
Adjustable temper ranges: 0---399°
Working temper: 220°----260°
Heating System: Digital adjustable temper control
Automatic system: frequency motor to control the speed
Production: 100-130m/hour
Diameter Of Heating Drum: 420MM
Length Of Heating Drum: 2000MM
Width Of Blanket: 1980MM
Working Table Length: 2.4m/3.5m(customized length is ok)
Packing size: 2700mm*1160mm*1500mm
Net weight: 2200kg
Gross Weight: 2300kg
Features: 1. Large size cloth,fabric tape print
2. Auto- position fix
3. Accurate heating Features of heat press machine : *Automatically fix the position of the cloth and the paper, suitable for printing rolling cloth, fabric tape or umbrella cloth and so on.
*Using new technology, import elements control, high accuracy.
*Accurate heating, automatic space, safe and durable.
*Heating wheel uses sealed conducting oil, it could be guaranteed. The temperature is more even and durable. Applicatioin: - Clothing industry (sportswear, uniforms, uniforms, uniforms, swimsuits, diving suits, fashion, t-shirts, socks, denim)
- Advertising industry (Guanggu Shan, banner, banner, advertising umbrella, advertising products)
- Bed linen (sheets, sheets, quilt cover, mattresses, mosquito nets, curtains, mantle, pillowcases, pillowcases)
- Household items (sofa sets, sofa mats, mats, pillow, pillow, curtains, shower curtains, towels, bath towels, dry hair towels)Outdoor products (tents, mountaineering bags, travel bags, sleeping bags)
- Luggage shoes (luggage cloth, green bags, shopping bags, handbags, shoulder bags, non-woven bags, canvas shoes)
- Jewelry accessories (scarves, scarves, scarves, shawls, gloves, wrist, masks, goggles, hats, hair bands)
- Ribbon products (fence belt, hair band, belt, strap, elastic band, shoelace, shoulder strap, gift belt, pet belt.
Characteristics: 1) The electric control adopts latest technology that allows separation of the machine body and the blanket automatic,with a power failure protection functions.
2) It is applicable to all over or piece hot press, with a 2-3 times higher work efficiency.
3) Electronic digital terminal temperature control and motor frequency conversion digital speed regulation, with highaccuracy (±1-2°C).
4) Drum surface with chrome plating, high hardness and good printing performance, wearable and stickiness-proof.
5) It adopts advanced oil-warming technology and liquid circular heat conduction, with even heating and high thermalconductivity.
6) External oil-filling tank and auto-close valve make it convenient to change heat transfer.
7) A design of pneumatic pressure system make rotary printing machine do perfect transfer.
8) Can let the blanket to be automatic correction, ensure the normal orbit, make the efficiency of heat transfer enhancementand the transfer quality guaranteed.Nanjing Fei Yue Paper Industrial Co., LTD
Tel: 86-25-83228884
Fax: 86-25-83228894
Web: www.feiyuepaper.com
| Prod Model: |
FY-500*1900mm |
| Printing Plate: |
Heat Transfer Printing |
| Temp Range: |
0-399 |
| Power: |
15-42kw |
| Weight: |
1000-2600kg |
| Diameter Of Drump: |
500mm |
| Printing Width: |
1900mm |
| Blanket: |
DuPont Material |
| Thermal Oil: |
Mobil |
| Certificate: |
Ce |
| Type: |
Ink Jet |
| Structure: |
Rotary Letterpress |
| Color & Page: |
Multi-Colour Printing Press |
| Plate: |
Heat Transfer Printing |
| Printing Speed: |
3-8m/Min |
FeiYue Paper is a leading manufacturer of coated speciality papers in China. The company, which was founded in 2007, has a factory in SuZhou, trade compangy in NanJing and a global sales network.
Fei Yue Paper Inc specialized in manufacturing kinds of thermal transfer paper and print media.
Our main products including sublimation printing equipments and supplies such as sublimation transfer paper, inkjet sublimation inks, sublimation printers, heat press machines and transfer paper for cottons.
Sublimation is a type of phase transition, or a change in a state of matter, just like melting, freezing, and evaporation. Through sublimation, a substance changes from a solid to a gas without ever passing through a liquid phase. Dry ice, solid CO2, provides a common example of sublimation.
This is exactly what happens in sublimation printing. A sublimation printer prints the ink on a specially coated paper. The ink dries and turns into a solid. When heat and pressure is applied to the sublimation inks on the paper, it quickly turns to gas and is forced into the polyester substrate. When heat is taken away, the gas becomes trapped in the polyester permanently.
Dye Sublimation, as a process is really very simple. It is the method of applying an image to specially coated ceramics, metals and polyester cloth, using three main ingredients: Sublimation ink, heat and pressure. FeiYue Paper offer you one-stop sublimation printing service. The above mentioned devices and consumables can all be purchased in a single package to make it simpler for new users. We make it easy and fast for you to get your business up and running and ready for growth!
We committed to one-stop sublimation transfer printing solutions.
We run our own coating factory and heat press machine assembling workshop, thus to offer the most reasonable pricing and give the most profit to our clients.
Our factory covers 15000 square meters, and the fixed assets have reached of 40 million Yuan.
The products produced by us been widely applied to apparels like sportswear, swimsuit, basketball Jersey and so on. And also advertising industry and home internal like flags, banners, home textiles, and some hard substrates like ceramics, mugs, metals, snowboards etc.
FeiYue Paper strives for excellence. We work hard to produce the best specialty papers and graphic media to the digital dye-sublimation, industrial specialty and sewn products markets.
We are glad to provide brand name or do OEM to home and abroad clients.
Corporate Culture: High quality of product, High standard of customer service, Continously reformed production technology and high competitive rate.
Customer Base: Southeast Asia, Europe and America.
Service Concept: Always be tough on ourselves, do our best to meet your every demand. Keep a good and long business relations to customers.
Prospect: Strengthen the establishment of sales and marketing platform, which is the most basic economic foundation of future development. Promote and develop a boarder market. Have abundant capital reserves, personnel, technology and vertical network platform.
