Price: | US $ 6920/Piece |
---|---|
Min Order: | 1/Piece |
Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
Product Description
This model can be used for transferring on continuous or roll materials.There is external tank connected to the oil drum to fill the oil drum full. Full oil drum improves the stability of oil drum temperature. It makes sure that density of color is the same throughout the large format fabric. New Rotary Heat Press 100% full oil drum is excellent for roll-to-roll transfer. Moreover, heating power (working) is 20% lower now. It helps sign producers reduce the electrical cost.
Product | Sublimation Calender(Roll to Roll Heat Transfer) Machine |
( Printing Area)(MM) | 800*1700mm |
(Power)(kw) | 21kw/25kw/28kw |
(Temperature Range)(C) | 230°C |
(Time Range)(H) | 0s-999s |
(Weight)(kg) | 900-2000kg |
Feature
△ Roll-to-roll or Piece-by-piece processing
△Double layer drum
△ Filing Oil Drum to 100% (Saving 30% Power)
△ 18 heating elements
△ 75% Nome Drum Blanket Coverage
△ Maximum transfer speed:2.6m/min(8.5ft)
△ Fabric / Transfer Paper / Tissue Paper Tension Controlled

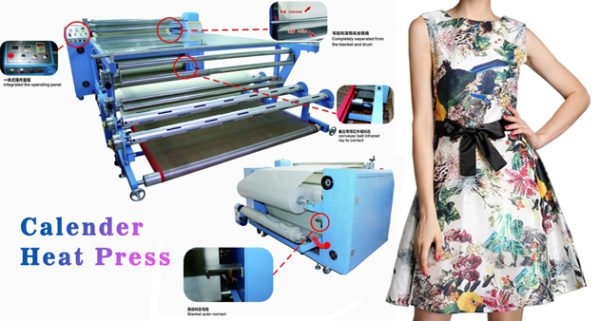

Characteristic
- Aligning Blanket Automatically
- Detecting Temperature on the Surface
- Filling Oil Drum to 100% Full (Saving 30% Power)
- Controlling Temperature Precisely (Controllable Silicon Solid State Relay)
- Minimizing Maintenance Effort (Slip Ring)
- At Least 70% Blanket Coverage
- Blanket Tension Controlled by Piston
- Fabric/Transfer Paper/Tissue Paper Tension Controlled by Compressed Air
- Daily Power On/off

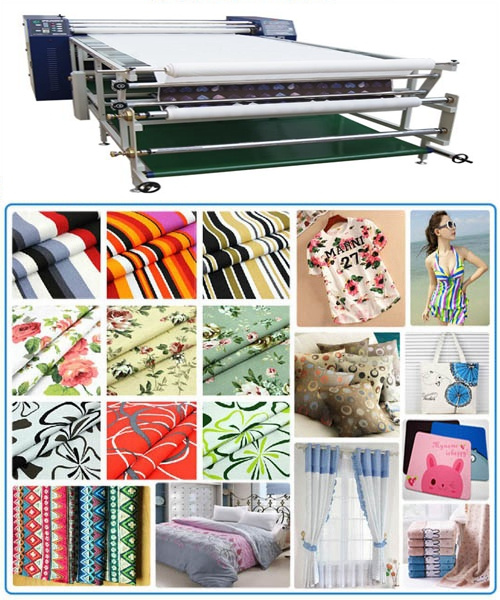

Applicatioin:
1) Clothing industry (sportswear, uniforms, uniforms, uniforms, swimsuits, diving suits, fashion, t-shirts, socks, denim)
2) Advertising industry (Guanggu Shan, banner, banner, advertising umbrella, advertising products)
3) Bed linen (sheets, sheets, quilt cover, mattresses, mosquito nets, curtains, mantle, pillowcases, pillowcases)
4) Household items (sofa sets, sofa mats, mats, pillow, pillow, curtains, shower curtains, towels, bath towels, dry hair towels)Outdoor products (tents, mountaineering bags, travel bags, sleeping bags)
5) Luggage shoes (luggage cloth, green bags, shopping bags, handbags, shoulder bags, non-woven bags, canvas shoes)
6) Jewelry accessories (scarves, scarves, scarves, shawls, gloves, wrist, masks, goggles, hats, hair bands)
7) Ribbon products (fence belt, hair band, belt, strap, elastic band, shoelace, shoulder strap, gift belt, pet belt.
Quality Control on Finished Machine:
All heat press machines are strictly tested before shipping out.
1) Turn on the heat transfer machine.
2) Use black transfer paper test print fabrics.
Machine Warranty:
1) One-year warrantys on machines & parts.
2) Free lifetime technical support on all heat presses.
△ Auto Power On / Off
FAQ:
1. How wide is the machine?
1.2M width, 1.7M width machine; 1.9M width machine
2. Does the Press rolls the Fabric once it is printed or you have to roll it on a different Machine?
It can roll fabric after heat press, but we suggest you can roll it on other machine - roll yard machine to collect fabric as attachment, coz when finished printed , the fabric still has temperature about 90-150, if Roll the printed fabric, the pattern become shape by pulled, and color,fabric will affect , more important if stretch fabric, we still advice to keep the stretch fabric in 5-6 hours after finished printing then roll it , or one night ,the color will more perfect.
3. Are you able to print on dark Fabrics? If so how dark and on what contents? can it print on stretch goods?
This press machine can press light color fabric,not dark fabric but can print on stretch fabric
4. How many yards or meters per hour?
150-200 meters per hours, depend on the fabric and the transfer speed.
5. Do you supply Paper and ink and Parts?
We also offer sublimation paper and sublimation ink! We provide one-stop services!
Why choosing us?
1. Strict Quality Control: We have over 10 workers cooperating on Quality control both for the original Material and finished Goods. QC before delivery is also what we need for each order.
2. One stop Solution: We offer a wide range of sublimation paper, dye sublimation ink and Blanks. Making you able to source all the items you need.
3. Reasonable Pricing: We run our own coating factory and Heat Press Machine assembling Workshop, thus to offer the most reasonable pricing and give the most profit to our clients.
4. Fast Delivery: We offer one week delivery for most paper orders. And 2-3 weeks production lead time for other sublimation inks.
5. Responsible after sale service: As a responsible company, we never make any exercise for mistakes, clients comes first, any complaint issupposed to be settled in a responsible manner.
Nanjing Fei Yue Paper Industrial Co., LTD
Tel: 86-25-83228884
Fax: 86-25-83228894
Web: www.feiyuepaper.com
Prod Model: | Y-04 |
---|---|
Printing Plate: | Heat Transfer Printing |
Temp Range: | 0-399 |
Power: | 15-42kw |
Weight: | 1000-2600kg |
Diameter Of Drump: | 420/600/800mm |
Blanket: | DuPont Material |
Thermal Oil: | Mobil |
Certificate: | Ce |
Type: | Ink Jet |
Structure: | Rotary Letterpress |
Color & Page: | Multi-Colour Printing Press |
Printing Speed: | 3-8m/Min |
Plate: | Heat Transfer Printing |
