| Prod Model: |
600/250/600 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Area Weight: |
1450GSM |
| 3 Layers: |
2 Sides Is Fiberglass, Middle Is PP |
| Feature: |
Flexible |
| PP: |
Resin Flow Fast |
| PP Weight: |
250GSM |
| 2 Layers Fiberglass Weight: |
600GSM*2 |
| Function: |
Fireproof |
| Certification: |
ISO |
| Type: |
Sandwich Fabric |
Product Description
Fiberglass PP core sandwich fabricis a stitch bonded composite reinforcement fabric containing a PP layer inside the fabric. The fabric consists of 3 layers: A PP non-woven layer in the middle, and chopped strands on the outside of the PP layer.Properties:Core Resilience and Compressibility.
Rovicore adapts to the different thicknesses of composite parts.
Good Surface Aspect:
The homogeneous finish of the cut glass fiber helps improve the surface aspect of finished parts.
High Permeability of the Synthetic Core:
The high permeability of its synthetic core allows resin to quickly flow through the part. ROVICORE is thus perfectly adapted to low-pressure injection processes, while ensuring a rapid flow.
Application:pplying to unsaturated polyester resin,vinyl ester resin epoxy resin and phenolic resin etc.And suitable for RTM,hand lay up,vacuum infuse etc.Various for FRP body of boat,insulation board,automobile body and nacelle cover etc.

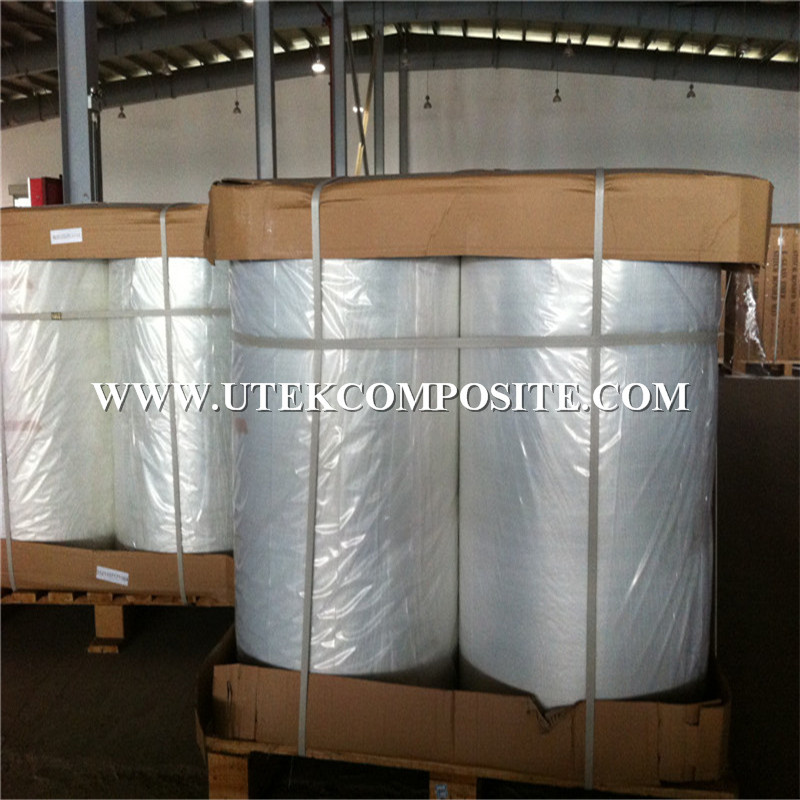

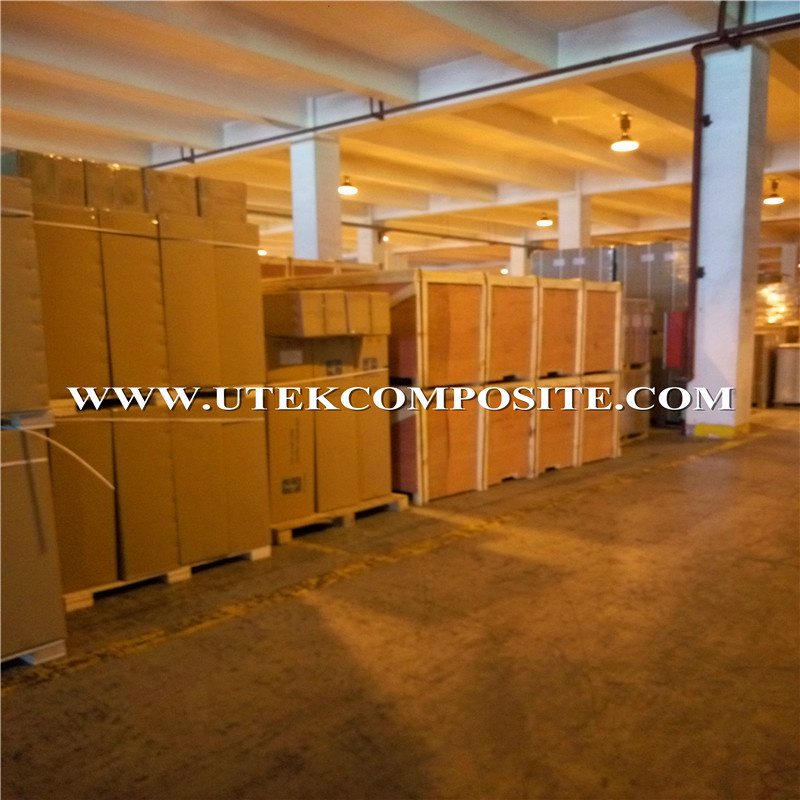

Packing & Storage:Each roll covering by polyethylene plastic bag,then placed into carton and set on pallet,or set on pallet directly.
The pallet shall no be higher than 2 layers.
Product shall be placed under dryness condition and shall no be open the covering membrane until applying.
Technical Data:Product
Code | CS
(g/m 2 ) | Core
(g/m 2 ) | CS
(g/m 2 ) | Total Weight
(g/m 2 ) |
| M300/P180/M300 | 300 | 180 | 300 | 780 |
| M450/P180/M450 | 450 | 180 | 450 | 1080 |
| M600/P180/M600 | 600 | 180 | 600 | 1380 |
| M300/P250 | 300 | 180 | -- | 480 |
| M450/P250 | 450 | 180 | -- | 630 |
| M600-/P250 | 600 | 180 | -- | 780 |

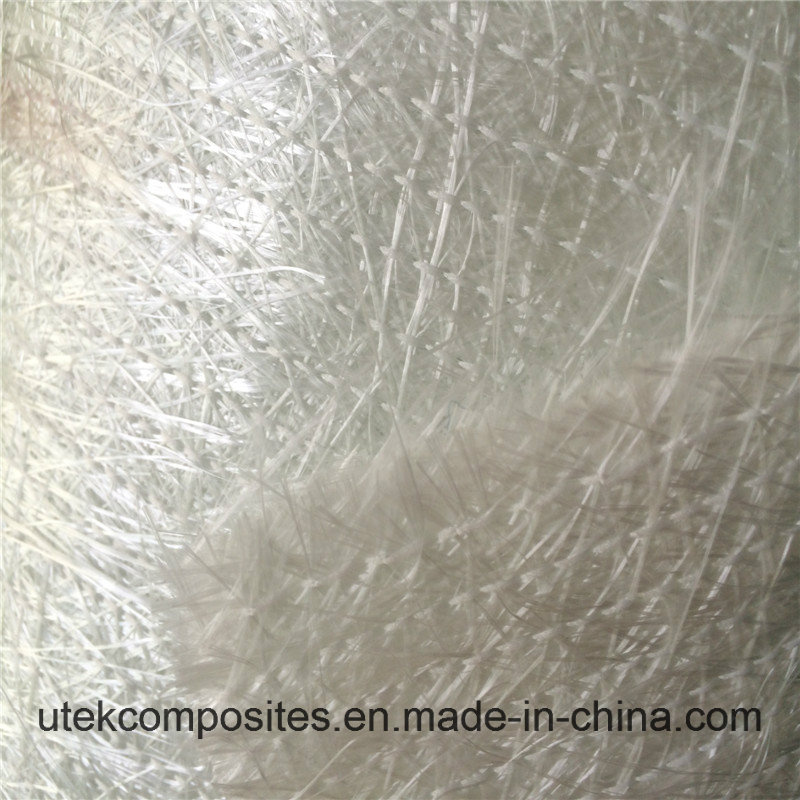

Picture of Product:
| CHANGZHOU UTEK COMPOSITE COMPANY CO.,LTD |
|
| COMPANY INTRODUCTION: |
| Company Name | CHANGZHOU UTEK COMPOSITE CO.,LTD |
| Address | Fuhanyuan 1-814,Taihu Road,Changzhou,Jiangsu,China |
| Contact Person | Name | Tel | |
| Manger | Gong Xiaojun | 0086 13357899376 | |
| Manger | Irene Xi | 0086 13961156380 | |
| Business Condition | Manufacture | Trading |
| Consititution of company | Pvt.Ltd |
| Annual turnover | USD10,000,000 |
| Company Occupy Areas(M2) | 3000M2 |
| Shower room Occupy Areas(M2) | 200M2 |
| website | www.utekcomposite.com |
| http://utekcomposites.en.made-in-china.com/ |
| Mainly Customer & Marketing | Europe,Asia,America,Middle East |
| Mainly Product | Fiberglass chopped strand mat (powder and emulsion), stitch mat, combo mat, uni-direction and biaxial fabric, RTM core mat, woven roving, special products like Ar-glass roving, chopped strand, thin fiberglass fabric, SMC(sheet molding compound), fiberglass/polyester geogrid and geocomposite. fiberglass mica fabric for insulation. |
|
|
|
| Sales Team | 15(University Graduates) | Product Team | 150 |
| Research & Development Team | 12 | QC Team | 8 |
| Certificate | ISO 9001 ,ISO 14001 ,SGS |
Give us a chance, and we' ll return you with satisfaction.
Changzhou Utek Composite Co. Is committed to provide tailor-made service to customers with various requirements. We pay attention to needs of customers who adopt different production technologies like hand lay up, pultrusion, winding, close molding… Changzhou Utek is customer-oriented, from sales to production, in each step.
With many years of experiences in composite industry, we utilize our good working knowledge to develop, manufacture and distribute materials for:
Composite Reinforcement
1. Fiberglass cloth for surfboard: Standard and warp enhanced, have a lot of export to Australia, Indonesia, Brazil, Argentina…
2. Sandwich mat with PP core for RTM process: Exported to Russia, Malaysia, Spain, used to make big size road plate, cooling tower…
3. Fiberglass chopped strand mat: Big roll and wide width available, good quality of light weight mat for auto headliner such as 100g, 120g, 150g

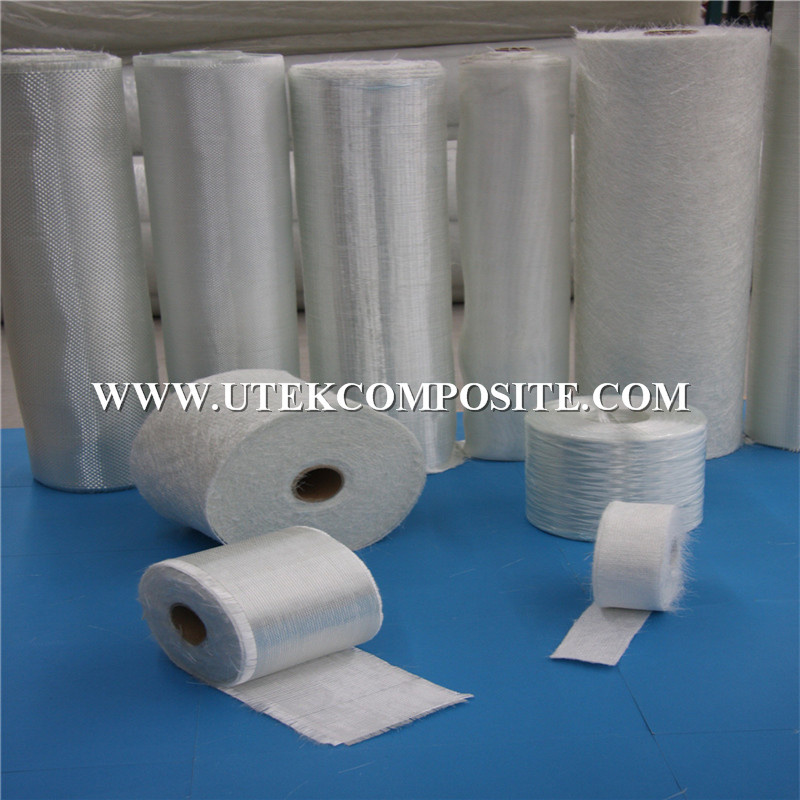

4. Other reinforcement material such as stitch mat, combo mat, uni-direction and biaxial fabric, woven roving, Ar-glass roving, chopped strand
Chemicals:
1. SMC/BMC: Experienced in SMC for water tank, electric meter box, manhole cover. Have a lot of export to Saudi Arabia, South Africa, Malaysia
2. UP resin: Exported to Thailand, Chile, Nigeria
GRC: Ar-glass spray up roving, Ar-glass chopped strand, exported to Saudi Arabia, Egypt, Indonesia…
Geosynthetics: Fiberglass/polyester geogrid, paving grid, drainage geonet for landfill
We' Re one step source for composite reinforcements. Give us a chance, and we' Ll return you with satisfaction.
