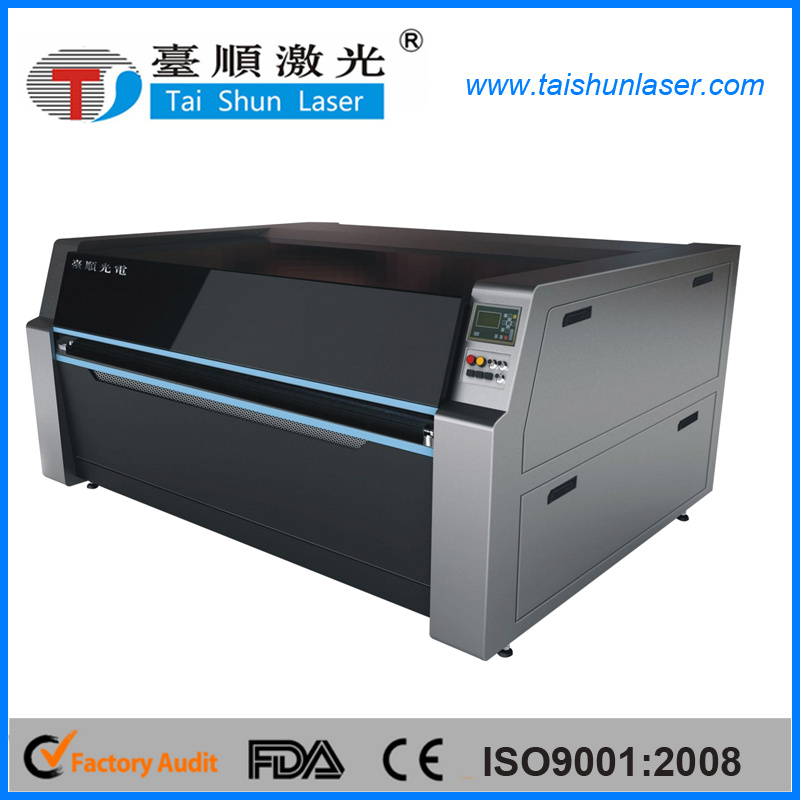

Applique/ Embroidery Laser Cutting Machine with Auto Feeding System
| Price: |
US $ 4000-6500/Piece |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Paypal |
| Prod Model: |
TSHY160100LD |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Laser Type: |
CO2 |
| Laser Power: |
80wx2 |
| Working Area: |
1600X1000mm |
| Working Table: |
Conveyor Working Table |
| Position Accuracy: |
+-0.1mm |
| Movement System: |
Single Side Servo System |
| Standard Accessories: |
550W 2 Set Exhaust Fans |
| Supported File Format: |
Ai, BMP Plt Dxf Dst Ai BMP Plt Dxf |
| Guarantee: |
One Year Free Maintenance |
Product Description
Main Configuration : Working table:1600mmx1000mm conveyor table
Laser Type:Co2 glass laser tube
Laser head:dual head,divide automatically to make cutting speed faster
Type setting softable:intelligent Taishun typesetting sofatware to achieve continuous feeding materialWater Chiller:water cooling system CW3000/make sure the laser tube work in ambient temperature.
Fume extractor: 2 sets 550W exhaust fan
Optional Configuration (1) Auto-feeding deviceThe feeder realizes continuous cutting on fabric.(2) Automatic typesetting filesThrough a simple copy collection equipment to achieve fast copy and maker function,convenient for staff operation.(3) Auto-recognition system High-resolution CCD camera,fast response,no sense of stay,single-screen field of view can reach 150*125mm,with strong stitching function.Sample show:
Parameter| Working size: | 1600*1000mm | customized |
| Laser power: | 80W*2 | 50w-150w |
| Laser tube: | Co2 sealed glass laser tube | RECI laser tube |
| Engraving speed | 0-1500mm/s | |
| Cutting speed: | 0-800mm/min | |
| Repeating location: | ±0.1mm | |
| Resolution ratio: | 0.025mm | |
| Minimum shaping character | English Letters 1 x 1mm | |
| Highest scanning precision | 2000DPI | |
| Laser output control | 1-100% software setting | |
| Control system | DSP control system | |
| Interface | USB | |
| Software supported | Coreldraw Phototshop ,Autocad output | |
| Support graphic format | DST, PLT, BMP, DXF AI,CDR | |
| Cooling system | water-cooling and protection system | industrial Chiller |
| Driving system | Stepper motor | |
| Exhaust system | exhaust fan and air pump | |
| Offline work: | support | |
| Working voltage: | AC100V-220V±10%,50-60HZ | 110V/60Hz |
| Operating temperature: | 0-45°C | |
| Operating humidity: | 5%-95% free of condensed water | |

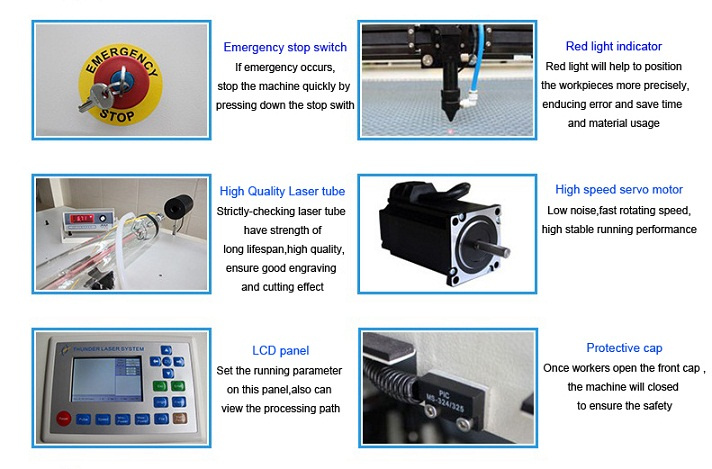

Our strength:1. We use ball screw rod to make the up and down table, which ensure its long-term using and precision. While other company may have less precision, and will be noise after a period using.2. We use American IIV company's reflect mirror and focus lens, which prolong the lifetime of the spare parts.3. For laser tube, we use the Chinese top brand laser tube, have very stable performance, lifetime can reach 3000 hours. Also, we have another brand laser tube with 10000 hours lifetime.4. For water chiller, we use CW3000 CW5000 for single head, and CW5200 for double head laser machine.5. Good quality and unique design for red pointer and auto feeder6. All the machine have LCD offline control system + USB port.7. The bearing we use Japan import NSK brand, which ensure the long time performance and accuracy.8. the transforming belt adopt the famous FULONG brand, it have the metal inside, so it is fasten and not easy to loosen.9. All the power supply and laser device are kept on running for at least 24 hours testing to ensure it's in good performance.Our machine series: CO2 Laser Engraving and Cutting Machine for most of the non-metal materials. Laser Marking Machine fiber laser marker for meta tag,hardware,circuit board,machinery,plastic marking of barcode,symbol,texts,;CO2 laser marker for nonmetal (fabric,leather,textile,PU,paper,cardboard,PVC,etc) of barcode,images,floral,flying dynamic marking effects.Metal laser Cutting Machine:YAG metal laser cutting machine(can 7-8mm Mild Steel and 5-6mm Mild Steel ), Fiber metal laser cutting machine( can cut 8-12 mm Carbon Steel )FAQ:Q1.What's the guarantee for the product quality? A:We offer one-year free maintenance services for our machines. Fault parts with the valid period will be replaced for free except for consumable parts. Q2. Is it easy to operate for the new user ?A: It is very easy ,we offer you operating manual in English ,also our technician can help you via MSN ,Skype or other instant communication tools.If problems in the process of operation,pls keep your lens and mirrors be clean ,then check your laser tube and talk details to us. Q3. How to maintain the machine?A: After 3 hours working, it's better close 10 minutes. B, Keep lens and mirrors clean. C, The water for laser tube should keep clean and lower temperature, in winter you need input antifreeze. Q4 .How about the life-span of the laser tube ?A: If you operate the machine rightly, it can reach to 1500 or 3000hours.(RF metal laser tube can max to 10000hours),It depends on your usageFor example, if it works 8 hours per day, the detailed data as follows:1, If you set the power at 20%-30% of the total power, the service life is about 1-2years2, If you set the power at 40-50% of the total power, the service life is about 1 year3, If you set the power at 70%-80% of the total power, the service life is about 6-8 months Q5: How can I know the power of the laser tube has been exhausted?A: you can check the color of the laser beam ,new and strong laser tube is purple when working, otherwise it will be white color. Q6: Is it harmful to human body when in operation ?A: It is not harmful, as long as avoid to see it directly 7:How to distinguish laser tubes with different powers and applications?A: 1. Laser tube length(relatively speaking, the longer, the bigger/stronger)2. Laser tube diameter(relatively speaking, the thicker,the stronger)3.The machine with bigger laser tube can cut deeper&more quickly, also its light spot is bigger, So, it is better to choose low-power for engrave, such as 40w, 50w, or 60w and strong power for cutting.Why choose us:
1.Supported by the government of Wuhan City
2.Has its own R & D center, update for technology
3.We are the manufacturer, our price are the most competitive!
4.With 20 years history on researching and producing all kinds of laser machines
5.Our company welcomes AGENTS all over the world
Notice:
Please let us know following informations:
1. What materials you want to cut ?
2. What is the mostly used thickness and what is the maximum thickness?
3. What is the MAX dimension of your materials ?
4. After cutting, what will be the material used for?
5. Are you an end user or retailer?
According to your above information,we'll recommend the most suitable machine to you.

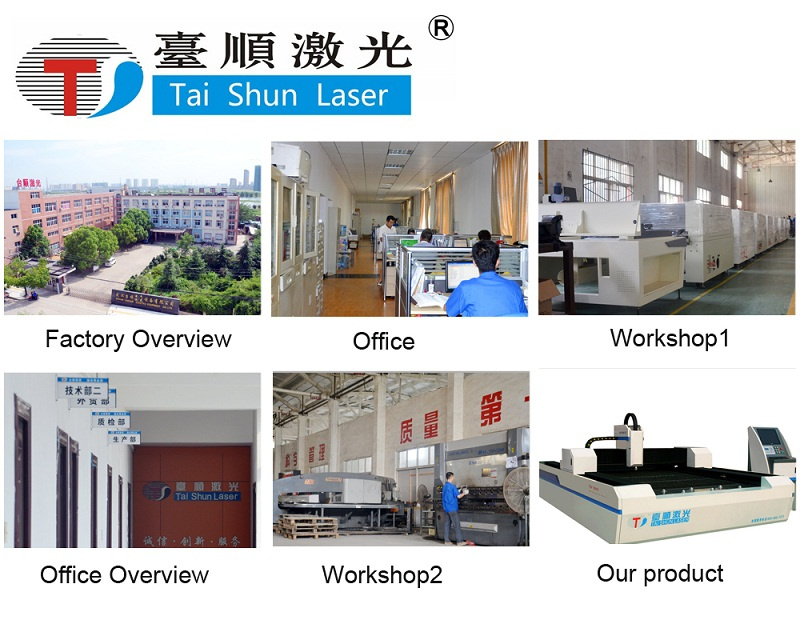

Taishun laser equipment Co., Ltd has been in the field of laser technology development and production for more than 20 years since the company was established, and always stand in the fore front product research and development.
Taishun company has strong Technical force and established set of perfect quality Management system, passed ISO9001: 2008 Quality Management System Certification, BV authentication, SGS and National Mandatory Product "3C" certification, which has reliable quality.
We developed 6 series of more than 10 types laser products which adopt international advanced technology. Such as, fiber laser metal cutting machine, YAG laser metal cutting machine, CO2 laser cutting and engraving machine, Fabric Flatbed laser cutting machine, Conveyor working table machine, laser marking machine and so on.
Taishun laser are good at produced medium and small laser power laser cutting machine, specially to supply one whole sets of laser processing solution scheme and related facilities for customers in plush toys, leather cutting, plush fabrics, automobile, textile, textile clothing, advertising handicrafts, electronics, medical equipment and etc. These laser equipment were widely applied in electronic circuit, auto spare parts, hardware tool, medical instrument, digital products, apparatus and instrument, optic communication component, packing and printing etc. To create a new Second-Generation small power laser cutting machine with more rapid and refinement manufacturing.
