Shanghai Huayuan Electronic Co., Ltd. >> Asset management EPC GEN2 Monzar5 E44 UHF RFID Label tag

Asset management EPC GEN2 Monzar5 E44 UHF RFID Label tag

Asset management EPC GEN2 Monzar5 E44 UHF RFID Label tag
Price: US $ 0.048-0.052/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 50000/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: E44 UHF RFID Label tag
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Frequency: 860-960MHz
Chip: MonzaR5
Materials: PVC ,Paper ,Adhesive ,PET
Application: supply chain,logistic, asset tracking, apparel man
Sample: avialable
Reading Range: 4 Meters~15Meters (after stick on the screen)
Crafts Of UHF Label: EPC ENCODING

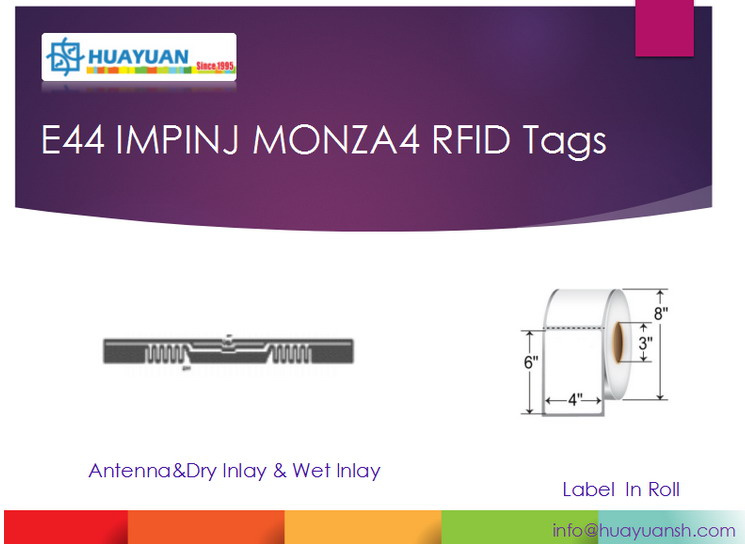

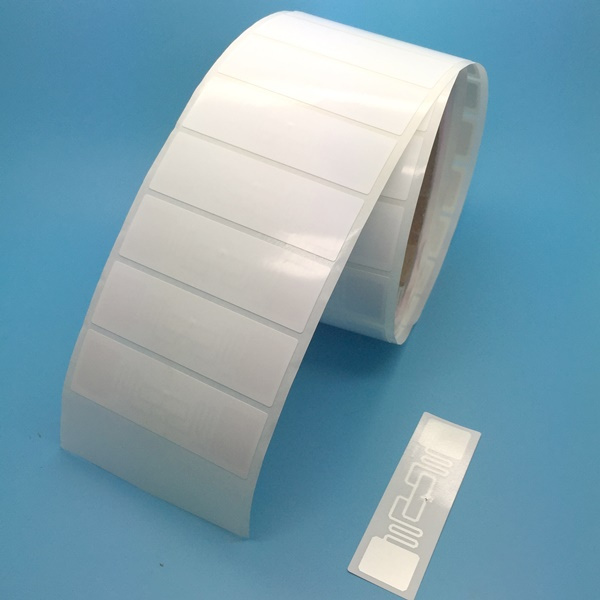

Finish Product: In roll or by piece
Delivery Time: 7-12days
MOQ: 50000PCS

Product Description

      Asset management EPC GEN2 Monzar5 E44 UHF RFID Label tag



1.Why choose HUAYUAN Monza4QT E44 wet Inlay label?

A. HUAYUAN had been parnter of avery dennison for 8 years.
B.World top level inserting and covert equipment for first class inlay
C. Offer billions inlay for top level RFID projects
D. HF,NFC, UHF antenna customize design available
E. Competitive price and high quality products for European and USA market
F.Reputable of delivering Highest and Consistent Quality RFID Products
G. High speed production for 1 billion production capability
H. Precise frequency and coherence for high quality antenna
F. Professional R&D for Inlay Design

2. Monza4QT E44 wet Inlay labelUHF RFID Datasheet
Use of high-k materials, such as near aluminum foil, near the metal,nearly liquid applications


Performance Index:
Supporting Agreement: ISO18000-6C (EPC GEN2)
Operating Frequency: ISM 902~928MHz
Operating Mode: Broad Spectrum Frequency Hopping (FHSS)
Chip: Monza 4D, 4E, 4QT
Antenna Material: Aluminum
Operating Temperature: -20ºC~+80ºC
Die Cut Size: 10*109mm
Antenna Size: 6*105mm
Reading Distance: 5m @ PVC
                  6.5m @ 1.5mm LDEP
                  10m @ 3mm LDEP
                  8m @ Jean
                  1.5m @ Book

Apllication
Test result: Glass or Windshield

 Impinj Model Features of E44 wet inlay

ModelUser MemoryEPC MemorySerialized TIDTrue3DTM Antenna TechnologyQT® Memory Security
(bits)(bits)
Monza 5 up to 128yes
Monza 4D32up to 128   yes   yes
Monza 4E128up to 496   yes    yes
Monza 4QT512up to 128   yes    yes   yes


3 RFID inlay options
HUAYUAN provide many inlay design for your options, AD 110 m5 ,AD-160 u7, AD-171 m5 ,AD-172 u7,AD-180 u7,AD-226 iM  AD-227 m5,AD-233 m5,  AD-236 u7,AD-237 r6,AD-318 m5 ,AD-319 eM ,AD-320 u7 ,AD-321 r6  ,AD-370 u7  ,AD-380 iL,AD-381 m5 ,AD-383 u7 ,AD-550 m5 ,AD-661 r6 ,AD-806 u7 ,F43 inlay,E51 inlay,E53 inlay,H47 inlay,ALN-9740 inlay,ALN-9762 inlay,ALN-9730 inlay,ALN-9730,ALN-9710 inlay,ALN-9715 inlay ,ALN-9720 inlay ,ALN-9728 inlay ,ALN-9726 inlay ,ALN-9770 inlay , ALN-9768 inlay ,ALN-9714 inlay , ALN-9745 inlay
 ALN-9640 inlay , ALN-9662 inlay ,ALN-9630 inlay , ALN-9610 inlay , ALN-9745 inlay ,ALN-9654 inlay , ALN-9634 inlay , ALN-9629 inlay ,ALN-9613 inlay etc

4. Why choose HUAYUAN RFID INLAY?

 As the world's largest UHF RFID partner, we provide solutions for multiple industries, from retail apparel and food to healthcare and aviation. Our integrated global RFID approach is proven to increase inventory accuracy, improve supply chain agility and enhance visibility across all channels.When you choose HUAYUAN RFID, you get field-proven inlayproducts, advanced research and testing capabilities, experienced engineering and technical resources, and, most importantly, a partner with a deep understanding of what it takes to make your application successful.
Sustainability is at the core of everything we do, from innovation and product design to development and production.

Dear,for more info on  EPC Gen 2 Monza4QT E44 wet Inlay label ,please feel free to contact us.

Shanghai Huayuan Elelctronic Co., Ltd, is the first supplier of magnetic cards as the ticket for AFC (Automatic Fare Collection) system for Shanghai Metro No1 line.

Our products line covered plastic card, Smart cards, Contactless cards and RFID products with growing of technology and applications in this area. Our experience is not only in RFID products R & D, but also system and solution design, and system integration. Our success in oversea market was apparent - from the first client in Spain in Europe in 2005, and expanded to hundreds of clients covering up to 100 countries and regions in several years.

Genuinely in communication and business, professionally in service and technology, HUAYUAN is experts of manufacture in plastic card, contact chip cards, passive RFID, NFC, contactless cards, and various RFID /NFC products with experience in applications and solutions everywhere our products may applied.

Researching and developing especially in passive radio frequency products, HUAYUAN offered UHF/HF RFID label & tag, LF/HF/UHF wristbands, key tags, token, crystal colorful NFC tag, or on metal tags with diverse encapsulations meet whether in harsh industrial environment or a fashionable commercial environment, with our total quality management with RoHS, and CE compliant.

Our History:

1992, Huayuan Elelctronic, stand in the advancing front of magnetic stripe card and smart chip card area.

1995, Shanghai Huayuan Elelctronic Corp. Found by Mr. Tao, main business is smart card and mag. Stripe card solution and applications, for transportation E-ticket, ID smartcard for Chinese organization and residents, payment, education and industrial applications.

1997, Shanghai Huayuan start to get in to developing many management system based on technical of card and RFID, worked as software developer and system integrator in domestic market. Like tolling system, highway appurtenance management system, insurance management information system, , E- voting system for Chinese stock holder.

1996-2002, we had successfully applied in toll management system, highway appurtenance, Social insurance management system., social insurance, E-Voting system for stockholder general meeting, etc.

2003-2004, as a core partner with HP in China, researching in "smart card personalized printing solution", especially preparing for Chines 2ND generation ID (RFID card with individual digital printing ) which has just begun to issue in every Chinese residents.

2005, HUAYUAN had been selected as Chinese RFID supplier in several European big companies which famous in card manufacture and smart card business.

2007, HUAYUAN smart information technical co. Ltd is established as an international agent for card and RFID products exporting business in global market in that years...At the end of 2007, we got about 80 countries client over the world.

2008, we reorganized several manufactories, then Shenzhen Huayuan Smart Tech. Co., Ltd as a smart card and RFID production base station, meanwhile several join venture manufactory for producing tags, readers and relative products in Shanghai, Shenzhen, etc.

2011, HUAYUAN regulated our products and customers from mass production to higher quality, technique and service creative products to innovation and enhance HUAYUAN brand in this business area.

2012, HUAYUAN is preparing obtain international business certificate to directly get into global card and RFID market, and ready for involve expending our business from products manufacturer to solution for specific application in near future by widely cooperate with professional companies to accommodate new economic environment in global market.
