Passive UHF Tamper Proof RFID Windshield label sticker
| Price: |
US $ 0.08-0.15/Piece |
| Trade Terms: |
CFR,CIF,EXW |
| Min Order: |
10000/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
RFID Windshield label |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item: |
RFID Windshield label |
| Frequency: |
860-960MHz |
| INLAY: |
UHF inlay |
| Materials: |
Paper, Adhesive, PET |
| Application: |
supply chain, logistic etc |
| Sample: |
avialable |
| Reading Range: |
4 Meters~15Meters (after stick on the screen) |
| Crafts Of UHF Label: |
EPC ENCODING |
| Delivery Time: |
7-12 Days |
| MOQ: |
1000PCS |
Product Description

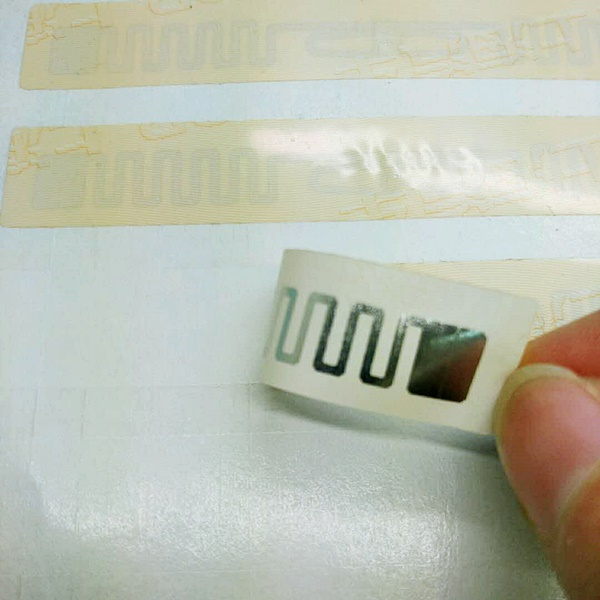

Passive UHF Tamper Proof RFID Windshield label sticker
HUAYUAN Windshield RFID Tag is designed for vehicle identification and tracking purpose with outstanding performance.
HUAYUAN RFID Windshield Tag Features and benefits
• Withstands toughest conditions
Stand up to a big range of temperature, high humidity and condensates, UV-resistant, chemical esistant, outdoor applications.
• Perfect RFID Performance
Up to 9m [30ft] reading range, to read vehicle speed up to 60km/h.
• Anti-tamper Security
Prevents tag removal and reuse. Die-cut; Destructible antenna; Fragile substrate.
• Customization
Customizable printing, dimension, structure, and chip memory can manage amounts of custom data.
| Parameter |
| Model Number | HY-9654 |
| Chip | UHF: H3 |
| Frequency | 860-960MHz (EPC Gen2) |
| Protocol | UHF:ISO 18000-6C |
| Size | 19*93mm, or customized. |
| Memory | User, EPC, Serialized TID: 512bit, 96bit, 64bit |
| Material | Inlay: Aluminum + PET, or cutomized Label: Paper(Coated paper,Direct thermal paper, Synthetic paper, Fragile paper), PET or customized |
| Write Endurance | ≥100000 cycles |
| Read Range | UHF: Up to 6m (depends on the reader and antenna) |
| Applications | · Vehicle Registration · Access Control Identification · Tolling Management · Fleet Management |
| H3 IC Features | Worldwide operation in the RFID UHF bands (860-960 MHz) 800-Bits of Nonvolatile Memory Pre-Programmed with a unique, unalterable 64-bit serial number User Memory can be Block Perma-Locked Supports all Mandatory and Optional Commands Low power operation for both read and program |

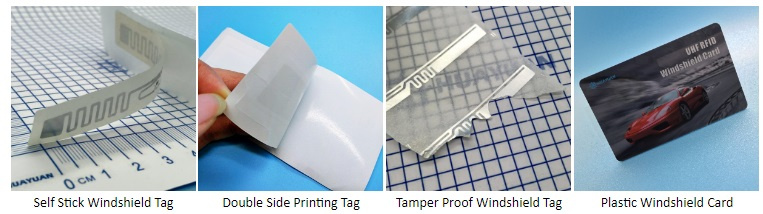

HUAYUAN RFID Windshield Tag Product Type
RFID Windshield Tag Applications

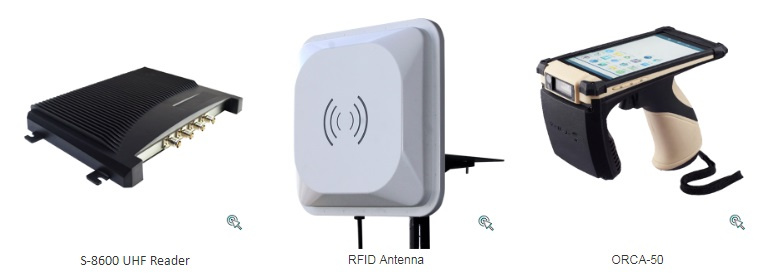

Vehicle Management RFID Solution Related Products
Shanghai Huayuan Elelctronic Co., Ltd, is the first supplier of magnetic cards as the ticket for AFC (Automatic Fare Collection) system for Shanghai Metro No1 line.
Our products line covered plastic card, Smart cards, Contactless cards and RFID products with growing of technology and applications in this area. Our experience is not only in RFID products R & D, but also system and solution design, and system integration. Our success in oversea market was apparent - from the first client in Spain in Europe in 2005, and expanded to hundreds of clients covering up to 100 countries and regions in several years.
Genuinely in communication and business, professionally in service and technology, HUAYUAN is experts of manufacture in plastic card, contact chip cards, passive RFID, NFC, contactless cards, and various RFID /NFC products with experience in applications and solutions everywhere our products may applied.
Researching and developing especially in passive radio frequency products, HUAYUAN offered UHF/HF RFID label & tag, LF/HF/UHF wristbands, key tags, token, crystal colorful NFC tag, or on metal tags with diverse encapsulations meet whether in harsh industrial environment or a fashionable commercial environment, with our total quality management with RoHS, and CE compliant.
Our History:
1992, Huayuan Elelctronic, stand in the advancing front of magnetic stripe card and smart chip card area.
1995, Shanghai Huayuan Elelctronic Corp. Found by Mr. Tao, main business is smart card and mag. Stripe card solution and applications, for transportation E-ticket, ID smartcard for Chinese organization and residents, payment, education and industrial applications.
1997, Shanghai Huayuan start to get in to developing many management system based on technical of card and RFID, worked as software developer and system integrator in domestic market. Like tolling system, highway appurtenance management system, insurance management information system, , E- voting system for Chinese stock holder.
1996-2002, we had successfully applied in toll management system, highway appurtenance, Social insurance management system., social insurance, E-Voting system for stockholder general meeting, etc.
2003-2004, as a core partner with HP in China, researching in "smart card personalized printing solution", especially preparing for Chines 2ND generation ID (RFID card with individual digital printing ) which has just begun to issue in every Chinese residents.
2005, HUAYUAN had been selected as Chinese RFID supplier in several European big companies which famous in card manufacture and smart card business.
2007, HUAYUAN smart information technical co. Ltd is established as an international agent for card and RFID products exporting business in global market in that years...At the end of 2007, we got about 80 countries client over the world.
2008, we reorganized several manufactories, then Shenzhen Huayuan Smart Tech. Co., Ltd as a smart card and RFID production base station, meanwhile several join venture manufactory for producing tags, readers and relative products in Shanghai, Shenzhen, etc.
2011, HUAYUAN regulated our products and customers from mass production to higher quality, technique and service creative products to innovation and enhance HUAYUAN brand in this business area.
2012, HUAYUAN is preparing obtain international business certificate to directly get into global card and RFID market, and ready for involve expending our business from products manufacturer to solution for specific application in near future by widely cooperate with professional companies to accommodate new economic environment in global market.
