| Prod Model: |
HZ-H004 |
| HS Code: |
73083000 |
| Door Curtain Material: |
French High Density Industrial Fabric |
| Drive System: |
1.German Sew 2.China Sej / Snma |
| Motor Power: |
0.75kw-2.2k/50-60Hz |
| Control System: |
1.Japan Mitsubishi 2.China Holip |
| Door Curtain Thickness: |
0.8/1.0/1.2/1.5mm |
| Opening Frequency: |
1000-1500times/Day |
| Quality Warranty: |
12 Months |
| Open And Close: |
0.6-1.8m/S |
| Type: |
Rolling |
| Open Style: |
Rolling |
| Special Function: |
Fire Proofing |
| Certification: |
SGS |
| Position: |
Commercial |
| Surface Finishing: |
Finished |
| Material: |
Fabric+PVC/Aluminium Alloy |
| Opening Type: |
Remote Control,Insect-Proofing, Dust-Proof, Heat |
| Color: |
Red/Orange/Green/Blue/Green |
Product Description

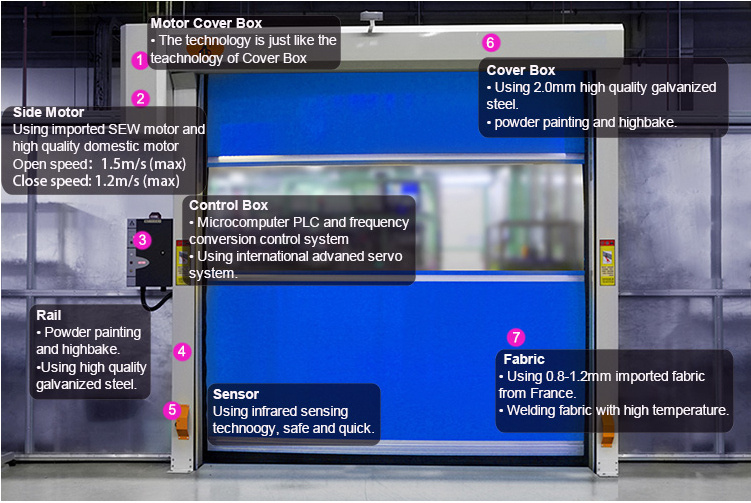

Automatic high Speed Door/Interior Roller Shutter/Rapid Rolling up/industrial Sliding Door

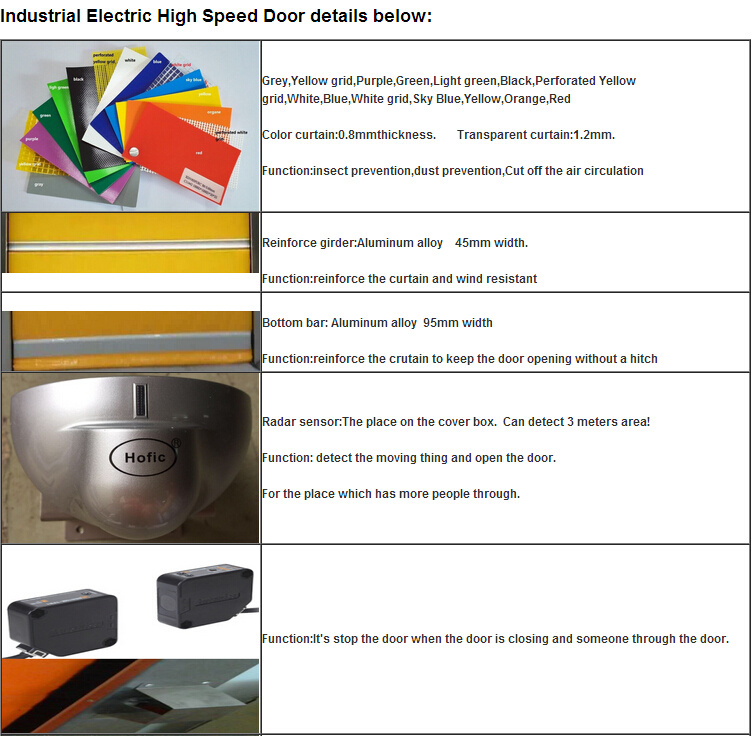

Material Selection:1.Safety Device:Korea Photocell Sensor, emergency stopping reaction when sensing obstacles.
2.Curtain:France high-density polyester fiber and the surface coating processing, thickness 0.8-1.5MM
3.Wind resistant:The Aluminium alloy Reinforce Girder to increase wind resistant effect.
4.Curtain replacement function:Aluminium alloy Reinforce Girder is loaded between 2 pieces Curtain, can be replaced easily if any curtain broken , save your cost.
5.Transparent window:1.2MM thickness transparent PVC window, size and location is Customized
6.Seal:Seal brush are Installed inside the guides, and the special bottom design .
7.Limiting Switch:Mechanical limiting switch, easily and exactly.
8.Emergency STOP :With emergency stop button on control panel, can stop easily by hand and once disconnect or accident
Specification| Size | 6000mm(Max W)*8000(Max H) |
| Speed | Opening 0.8~ 1.5m/sec (adjustable); closing 0.5~ 0.8m/sec(adjustable) |
| Motor | Turbine decelerator + brake, three-phase 220V |
| Power | Three-phase 220V AC, 15A |
| PVC Material | PVC Resin 1000 den textile, 0.8mm thickness; low flammability,dust-proof, and UV-proof |
| Door Frame Material | Galvanized steel, thickness: 2.0mm |
| Control Panel | PLC, transducer, switching power supply, breaker(With emergency rising and lowering bottoms) |
| Positioning System | Limit Switch/Encoder |
| Safety Device | 1. Korea Photocell Sensor installed on the side tracks
2. Airbag installed on the bottom edge of the door with sensor to react contacts to obstacles.
3. Control: Switches with emergency stopping reacting function. |
| Command System | Five options: radar sensor, magnetic loop, push button, pull rope, remote control. |

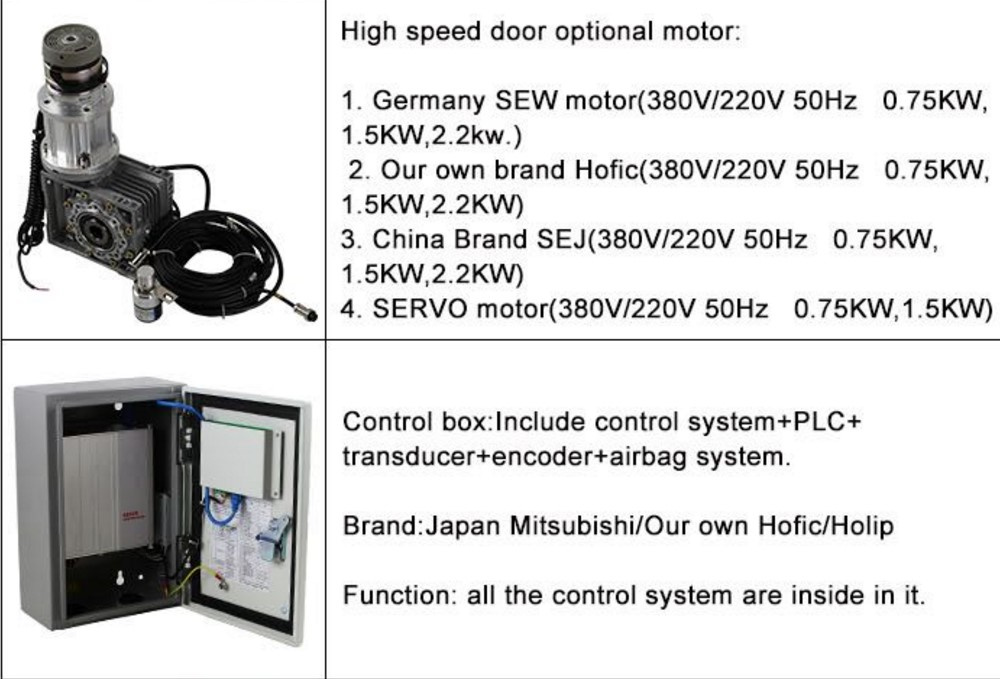

Motor and Control Box
Packaging
Company InformationHongze Auotomatic Co.,ltd. is a high-tech company that engages in the development of world-class advanced automatic doors.
Our main products include quick rolling door, industrial accumulation door, industrial rolling door, PVC rolling door, rapid
rolling door, fire-resisting rolling door, industrial lift door, automatic induction door, automatic vertical hinged door, medical
automatic door, stainless steel automatic door, electric folding gate, crystal rolling door, electric roller shutter of various
materials, and parking lot series.
F A Q1. What's the payment details?Deposit before production, and balance before shipment.2. What's the delivery time?For common order, about 7 days only.3. What about the warranty for the doors?We provide 12 months warranty for all doors and accessories. Forever providing after-sales service.4. Do you provide OEM Service?OEM & ODM Service are welcome.5. What's the MOQ?1 pc is also available.6. How about the package?Plywood case or Cardboard, suitable for sea freight or air freight, as your request.
