Price: | US $ 1100-1200/Piece |
---|---|
Min Order: | 1/Piece |
Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
Custom Sliding Industrial High Speed Door , Production Line Roll Up Security Gate
Specifications:
Technical Parameter for speed door
Max Size:4000mm(W)*4000mm(H)
Opening Speed:1.2m/s
Closing Speed:0.6m/s
Wind load Max:12m/s
Mechanical Unit
Frame:304 Stainless Steel
Inner Frame:Anti-wear Nylon Molded Inner frame
Thickness of frame:2.0mm Stainless Steel
Thickness of shaft cover:1.5mm 304 Stainless Steel
Motor cover:Yes
Frame Size:120mm*120mm
Control Unit
Control system
Control Box Size:320 X 400 X 210 mm
Driving System
Feature:Absolutely Encoder
Driving Unit Brand:ABB Motor / Yaskawa Frequent Convert
Activation System
Open and Close the door:

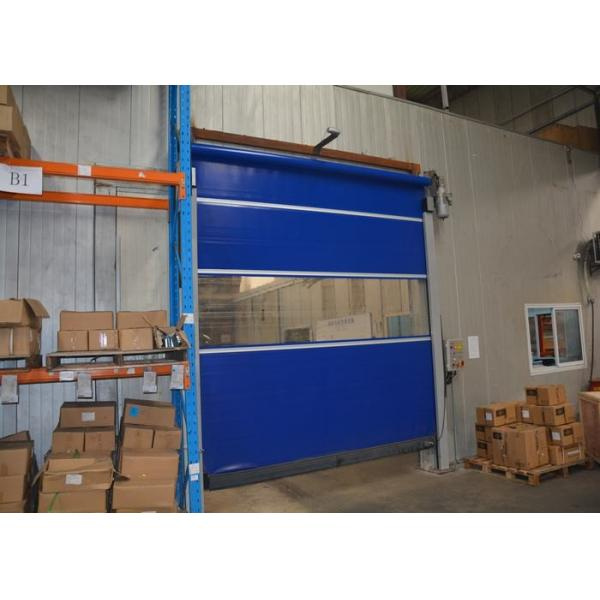

Stable control system inner high speed door rolling up PVC curtain
Products:
1, With stronger anti-load wind bar for wind load.
2, Wireless safety edge for shoulder protection during the door operation.
3, Viewing windows or transparent stripe will provide the convenience during the door operation.
Curtain Color | Customized Blue, Orange,Yellow, Red, Grey, White,Green. |
Viewing Window | Full transparent 1.5mm PVC window. |
Power supply | AC 220V - 240V,Single- 3 Phrase, 50HZ |
Temperature | -7 to 65 Celsius degree |
Normal Working | -5 to 65 Celsius degree |
Standard Motor Position | Left |
Installation Base | Concrete,Panel, Brick,Steel Structure. |
Installation Space | ≥600mm above the door |
Using Area | For Production Line |
Advantage:
Convenience: High Speed Doors are designed for fast open and close, allowing people and/or equipment to move quickly through the opening. Our automatic high speed doors keep traffic flowing seamlessly, and even our manual high speed doors operate more quickly than conventional doors.
Seal:ST high speed door install seal brush on both side of the door track , make it dust proof, wind resistant ,keep warm,noiseless also.
Safe:
Firstly,ST high speed door use automatic bounce equipment,when the people or car touch the falling door,it bound up automatically.
Secondly,at the bottom of our door,there is photoelectric sensors,as you obstruct the infrared ray,it stop.
Thirdly,our door also install emergency stop equipment.
Prod Model: | HZ-HSD300 |
---|---|
Drive System: | 1.German Sew 2.China Sej / Snma |
Door Curtain Thickness: | 0.8/1.0/1.2/1.5mm |
Installation Base: | Concrete, Panel, Brick, Steel Structure |
Command System: | Radar Sensor, Magnetic Loop, Remote Control |
Safety Device: | Photocell Sensor(Korea Autonics) |
Opening Frequency: | 1000-1500times/Day |
Motor Power: | 0.75kw-2.2K/50-60Hz |
Quantity Warranty: | 12 Months |
Perspective Window: | 1.2mm PVC Transparent |
Open And Close Speed: | 0.6-1.8m/S |
Type: | Rolling |
Open Style: | Rolling |
Certification: | SGS |
Position: | Interior |
Surface Finishing: | Finished |
Material: | Stainless Steel+PVC Fibar |
Opening Type: | Automatic |
Special Function: | Self Contol |
Color: | Yello/Orange/Grey/Blue/Green |
