Price: | US $ 1000-1300/Piece |
---|---|
Min Order: | 1/Piece |
Pay Type: | L/C,T/T,D/P,Western Union,Paypal |

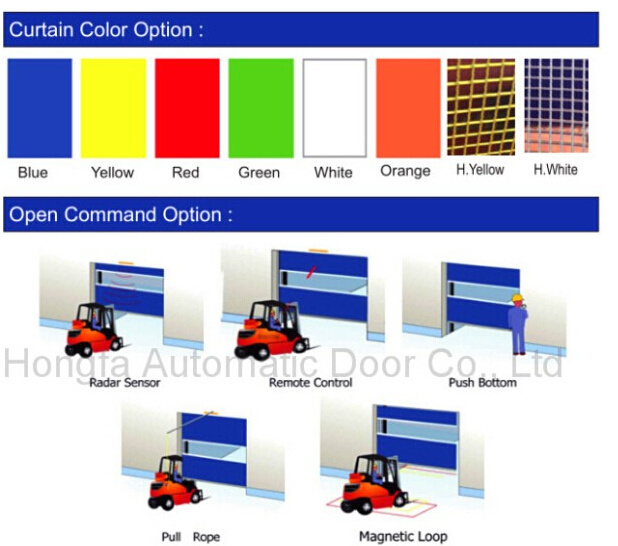

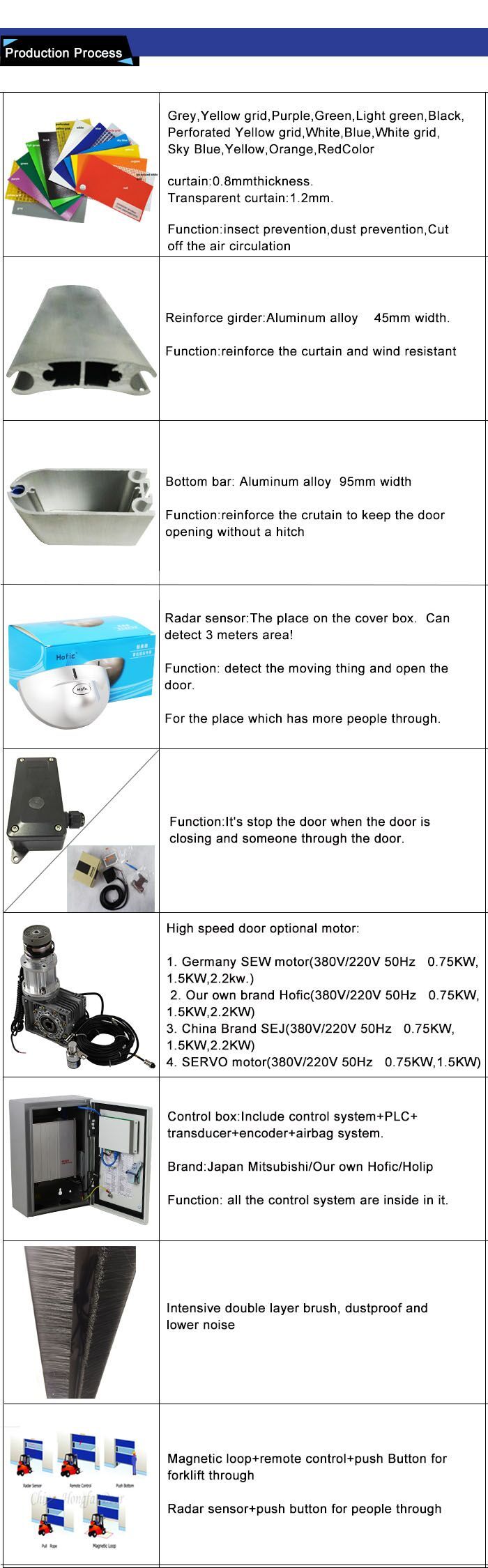

Rapid PVC door | Grey,Yellow grid,Purple,Green,Light green,Black,Perforated Yellow grid,White,Blue,White grid,Sky Blue,Yellow,Orange,Red Color curtain:0.8mmthickness. Transparent curtain:1.2mm. Function:insect prevention | ||||
Reinforce girder | Aluminum alloy 45mm width. Function:reinforce the curtain and wind resistant | ||||
Bottom bar | Aluminum alloy 95mm width Function:reinforce the crutain to keep the door opening without a hitch | ||||
Radar sensor | The place on the cover box. Can detect 3 meters area! Function: detect the moving thing and open the door. For the place which has more people through. | ||||
Photocell sensor | Function:It's stop the door when the door is closing and someone through the door. | ||||
Drive system | High speed door motor: Germany brand(SEW)and Our own brand Hofic. Germany SEW motor(380V/220V 50Hz 0.75KW,1.5KW,2.2kw.) Our own brand Hofic(380V/220V 50Hz 0.75KW,1.5KW,2.2KW) | ||||
Control system | Control box:Include control system+PLC+transducer+encoder+airbag system. Brand:Japan Mitsubishi and Our own Hofic Function: all the control system are inside in it. | ||||
Cover box | Material: Stainless steel201#or304# To avoid corrosive thing corrode the roll and dustproof | ||||
Opening way: | Radar sensor+push button for People through Magnetic loop+push button for forklift through |
Benefits of High Speed Door
Feature of HongFaze High Speed Door Include:
High speed Doors require little maintenance and automatically reset after impact or blowout.High speed Door also has easily replaceable, exchangeable heat sealed PVC panels
High Speed - Up to 60 inch" per second(adjustable)
Low Maintenance - Aluminium alloy reinforce Girder is loaded between 2 pieces Curtain, can be replaced easily if any curtain broken , save your cost.
Windproof - Aluminum alloy reinforce bar won't bend or break. Automatically resets after impact or blow-out,Wind load ratings by door size
Durable - Resistance to all rot, tear and mildew resistant,
Quick & Easy Installation - Installation video and instruction for you
Very Safe-Korea Photocell Sensor, emergency stopping reaction when sensing obstacles.
Curtain replacement function-Easily replaceable, exchangeable heat sealed PVC panels.
Warranty-12 Months warranty on all door and accessaries
Applications Include:
Prod Model: | HZ-H003 |
---|---|
Perspective Window: | 1.2mm PVC Transparent |
Open And Close: | 0.6-1.8m/S |
HS Code: | 73083000 |
Open Frequency: | 1000-1500times/Day |
Quantity Warranty: | 12 Months |
Door Curtain Thickness: | 0.8/1.0/1.2/1.5mm |
Drive System: | 1.German Sew 2.China Sej / Snma |
Motor Power: | 0.75kw-2.2k/50-60Hz |
Door Frame Material: | Stainless Steel or Aluminum Alloy |
Control System: | 1.Japan Mitsubishi 2.China Holip |
Type: | Rolling |
Open Style: | Rolling |
Certification: | SGS |
Position: | Industrial |
Surface Finishing: | Finished |
Material: | Stainless Steel+PVC Fibar |
Opening Type: | Automatic |
Special Function: | Insect-Proofing, Dust-Proof, Heat Retaining |
Color: | Red/Blue/Yellow/Green/Gray/Ornage/Transparent |
