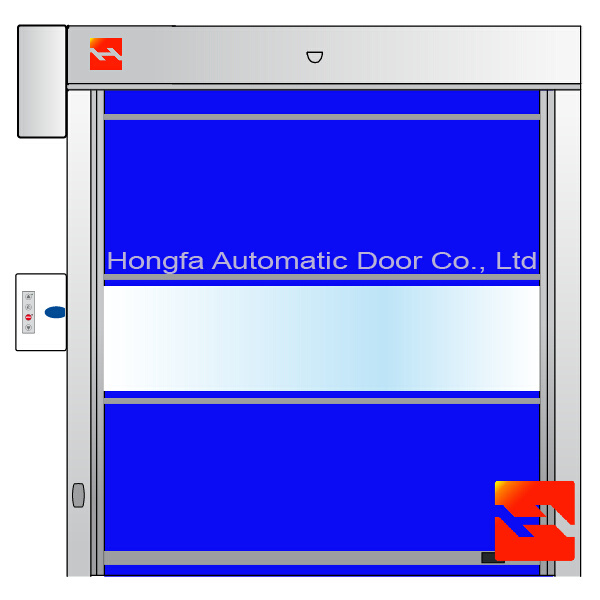

Automatic High Speed Rolling up PVC Door (HF-1100)
Product Description
Main features:
Automatic, super fast opening and closing, reducing leakage of heat and air, heat preservation, hygienic, flexible PVC panel and beautiful, various colors availble
Application scope:

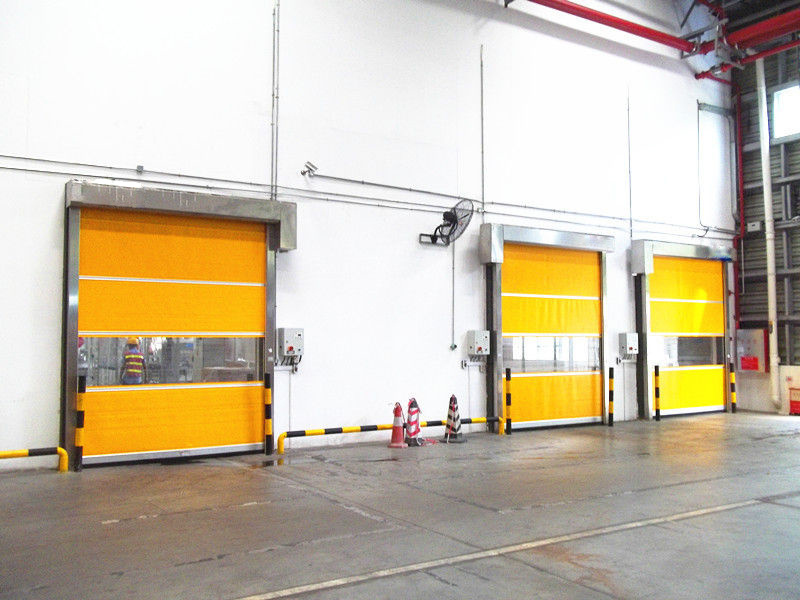

Inner and outer doors of all kinds of factories especially fit for food factory, cold storage, frequent logistics, chemical industry
Technical instruction:
Door dimension: Width / height 800-5000mm/2500-5000mm(Max dimension)
Normal speed: Open1.5m/s close 0.7m/s
Max speed: Open 2.0m/s close 1.0m/s
Opening direction: Vertical
Drive system: Electrical
Safety class: IP55
Control voltage: 24V
Opening frequency: 2000 time /day
Wind load: 30m/s
Safety device: Infrared photoelectric
Detail information:
1. Motor
ABB motor (SEW is optional). Work power source 220V/50Hz or 380V/50Hz. The power 0.55-1.5KW; F: IP55, 1500turns/minute. Operating temperature: -30-70 degree Celsius.
2. Control system
Schneider Inverter control system.
3. Steel construction system
Cover box: Galvanized steel, T=2.0 mm; Guide rail: Galvanized steel/Stainless steel /Aluminum alloy. Surface process: Electrostatic painting, various colors available.
4. Curtain:
Brand: SOIEN, imported from Europe. Material: PVC Plastic Fiber; Thickness: 1.0 mm/1.2mm/1.5mm/2.0mm; Color: Yellow/ Bluse/Orange/White/Red/Transparent
5. Safety performance
A Photo cells of both sides.
B Proximity sensor, at the bottom.
6. Operation method
Control buttons of both sides

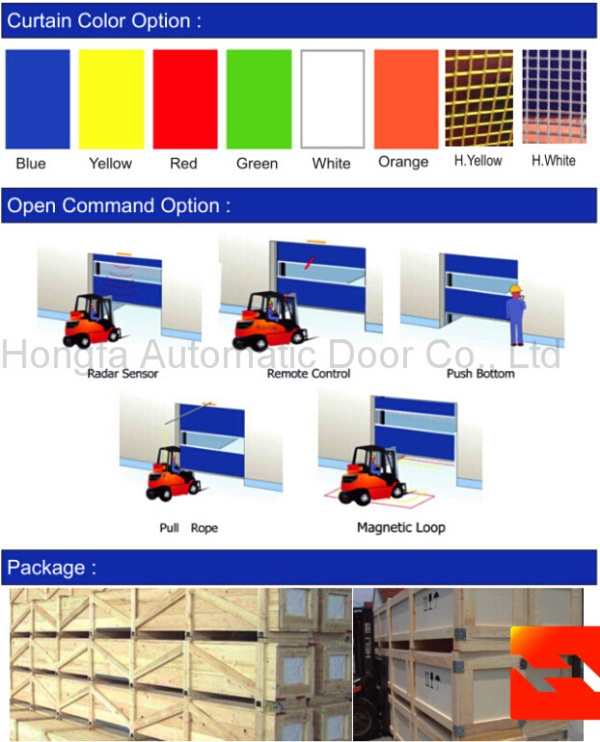

7. Control mode(optional)
Both-side geomagnetic ring/ Both side radar/ Both-side remote control / Both-side pull cord switch / linkage interlock
8. Opening speed
Adjustable btween 1.0m/s and 2.5m/s
9. Emergency opening
Manual swing bar available in case of power failure
Remarks:
1. Established in 1997, we have gained much experience in door solutions for various industries.
2. Honors and Certifications:
A. The member of Standard Committee of China Automatic Door and Garage Door
B. The member of Committee of China Steel Structure
C. China AAA enterprise
D. ISO9001: 2000 Management certification.
E. CE Certification
What service you can get from us ?
1) OEM service for you and your clients .
2) Arrange the shipment for you to everywhere .
3) CE / ISO-9001 / SGS Certification
4) Installation video or instruction for you.
5) Available suggestion about the correct doors.
6) Professional service supporting with different language , email or phone calling .
7) Operating guidance and instruction after installation .
8) Professional / Tirelessly after-sales service .
9) 12 Months warranty for all doors and accessories.
F A Q :
1. What's the payment details?
Deposit before production , and balance before shipment .
2. What's the delivery time?
For common order, about 7 days only .
3. What about the warranty for the doors ?
We provide 12 months warranty for all doors and accessories.
4. What certification you can provide ?
ISP-9001 ; CE ; SGS
5. Do you provide OEM Service?
Yes. OEM & ODM Service is ok for us .
6. What's the MOQ?
We accept 1 set as sample order .
7. How about the package?
Plywood case or Cardboard , suitable for sea freight or air freight , as your request .
Established in 2008, HONGFA Automatic Door Co., Ltd is a leading manufacturer of automatic doors. We are located in Shenzhen (beside HongKong), an industrial, convenient and beautiful city in the south of China. It is very convenient to all over the world by air or sea.
HONGFA is a high-tech company that integrates development, production, sales and service. Over the years, we have designed, developed and manufactured a wide range of automatic doors, such as fast rolling curtain doors, high speed automatic doors, medical automatic sliding doors, automatic inductive doors and so on. We has passed certification of ISO9001 international quality system.
HONGFA' S full range of products are made by Germany advanced technology. As the automatic door professional manufacturer, our company has perfect quality management system and after-sale service system, has good cooperation partnership with many national key projects. Our doors have been exported to Europe, Americas, Africa, the Middle East, and other Asia countries. Germany advanced technology, top quality material, advanced management, strong development and perfect service system make us stronger and stronger.
HONGFA people have the strong responsibility on our company and clients, not only selling product and service, but also ourselves. We creat the better life style.
We are looking forwards to building a strong business partnership with you and your company.
Welcome to us! ! !
