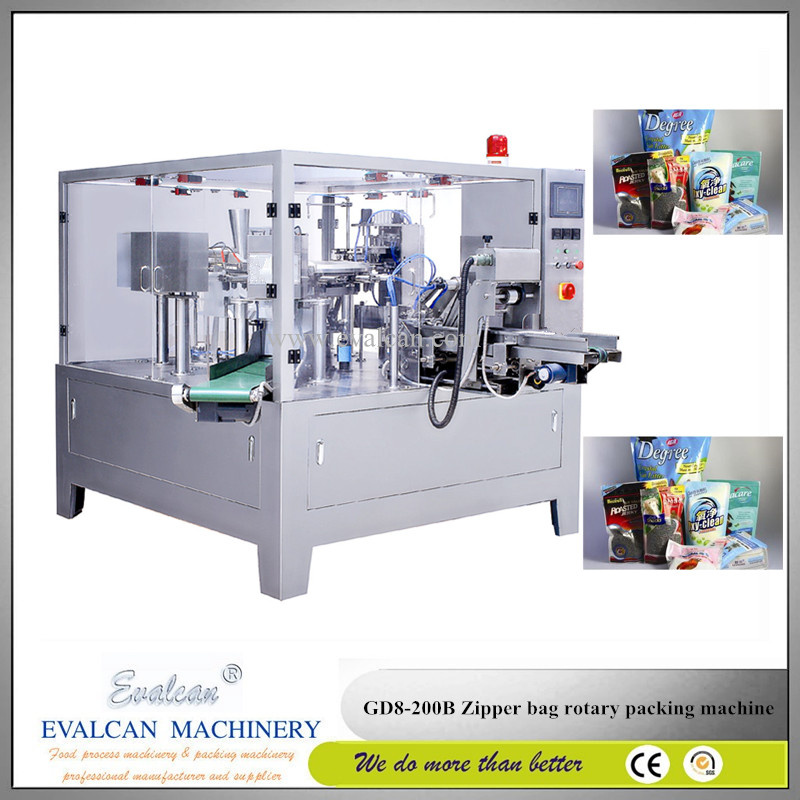

Automatic Zipper Pouch Liquid Filling Packing Machine
| Price: |
US $ 28000-55000Sets |
| Min Order: |
1Sets |
| Pay Type: |
L/C,T/T |
| Prod Model: |
GD8-200B |
| Product Model: |
Gd8-200b |
| Working Position: |
Eight-Working Position |
| Bag Material: |
Laminated Film, PE, PP etc. |
| Bag Type: |
Stand up Bag with Zipper |
| Bag Size: |
W 100-210mm; L 100-350mm (Can Be Customized) |
| Packing Speed: |
10-50 Bag/Min |
| Weight: |
1200kg |
| Power: |
3kw |
| Compressed Air: |
0.6m3/Min (Supply by User) |
| Voltage: |
380V 3phase 50Hz/60Hz |
| Automatic Grade: |
Automatic |
| Application: |
Food, Chemical, Beverages, Pharma |
| Driven Type: |
Electric |
| Material Type: |
Liquid, Paste, Granule, Powder, Solid |
| Packaging Type: |
Stand up Bag with Zipper |
| Packaging Material: |
Film, Plastic, Composite Materials |
Product Description
Automatic zipper pouch liquid filling packing machineApplicationThe rotary packing machine, with a wide usage in granule, solid, liquid, paste, powder etc. packing field. The bag shapes can as follows:
Changing the measuring system, the machine also can be used for a lot of materials, like:| Measuring System | Measuring type | Material range |
| Multihead Weigher | By weight | Granule type materials, solid type materials like chips, detergent, candy etc. |
| Auger Filler | By volume | Powder type materials, like milk powder, flour, detergent powder etc. |
| Measuring cup | By volume | Heavy powder and small granules type materials, like seeds, beans, salt, sugar etc. |
| Liquid & Paste Filler(Servo-motor drive) | By volume | Liquid type materials, like juice, paste etc. |
| Screw Conveyor | By volume | Powder type materials, granule type materials like milk powder, candy etc. |
As a basic rotary packing machine, this type of machines also has different bag size, and packing speed. | Model | Bag Size | Packing Speed |
| GD6-200C | W 100-210mm L 100-350mm | 10-50bag/min |
| GD6-250C | W 150-260mm L 150-350mm | 8-35bag/min |
| GD6-300C | W 200-300mm L 200-450mm | 8-30bag/min |
| GD8-200/200A/200B | W 100-210mm L 100-350mm | 10-50bag/min |
| GD8-250/250A/250B | W 150-260mm L 150-350mm | 8-35bag/min |
| GD8-300/300A/300B | W 200-300mm L 200-450mm | 8-30bag/min |
Function and Characteristics1-Easy to operate,adopt advanced PLC from Germany Siemens, mate with touch screen and electric control system, the man-machine interface is friendly.
2- Frequency conversion adjusts the speed: this machine uses frequency conversion equipment, can be adjusted within the range according to the needs of reality in production.
3- Automatic checking: no pouch or pouch open error, no fill, no seal. the bag can be used again, avoid wasting packing materials and raw materials.
4-Safety device: Machine stop at abnormal air pressure, heater disconnection alarm.
5-Horizontal conveyor style to giving bag: it can put on more bags on the bag storage and have a low requirement about the quality of bags.
6- The width of the bags could be adjusted by electrical motor. Press the control-button could adjust the width of clips, easily operate, and save time.
7-It matches with the glass safety door. The machine will stop working when you open the door. So that it could protect the safety of operators. At the same time, it could prevent dust.
8-Use the plastic bearing, don't need put on oil, less pollution.
9- Use no oil vacuum pump, avoid polluting the environment in the production.
10- The packing materials loss low, what this machine is used the preformed bag, the bag pattern is perfect and has a high quality of the sealing part, this improved the product specification
11-Product or packing bag contact parts adopt stainless steel or other materials which accord with the food hygienic requirements, guarantee hygiene and security of the food
12-With different feeders changed to pack solid, liquid, thick liquid ,powder and so on.

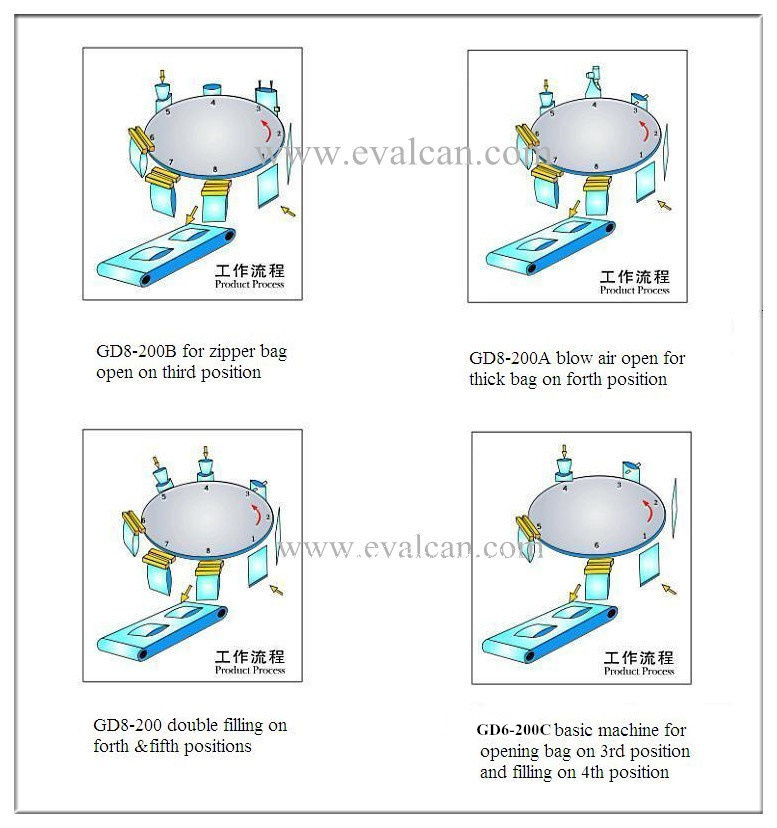

13-The packing bag suits in extensive range, suit for multi-layer compound, monolayer PE, PP and so on Preformed bag made by film and paper.Different Product Process
Main Parameters| Models | GD8-200/250/300 | GD8-200A/250A/300A | GD8-200B/250B/300B |
| Working Position | Eight-working position |
| Bag Material | Laminated film,PE,PP etc. |
| Bag type | Flat bags / stand-up bag | stand-up bag with zipper |
| Voltage | 380V 3phase 50HZ/60HZ |
| Power | 3-4KW |
| Compressed Air | 0.6m3/min (supply by user) |
| Models | GD6-200C | GD6-250C | GD6-300C |
| Working Position | Six-working position |
| Bag Material | Laminated film,PE,PP etc. |
| Bag type | Flat bags / stand-up bag |
| Voltage | 380V 3phase 50HZ/60HZ |
| Power | 2.5-3.5KW |
| Compressed air | 0.6m3/min (supply by user) |

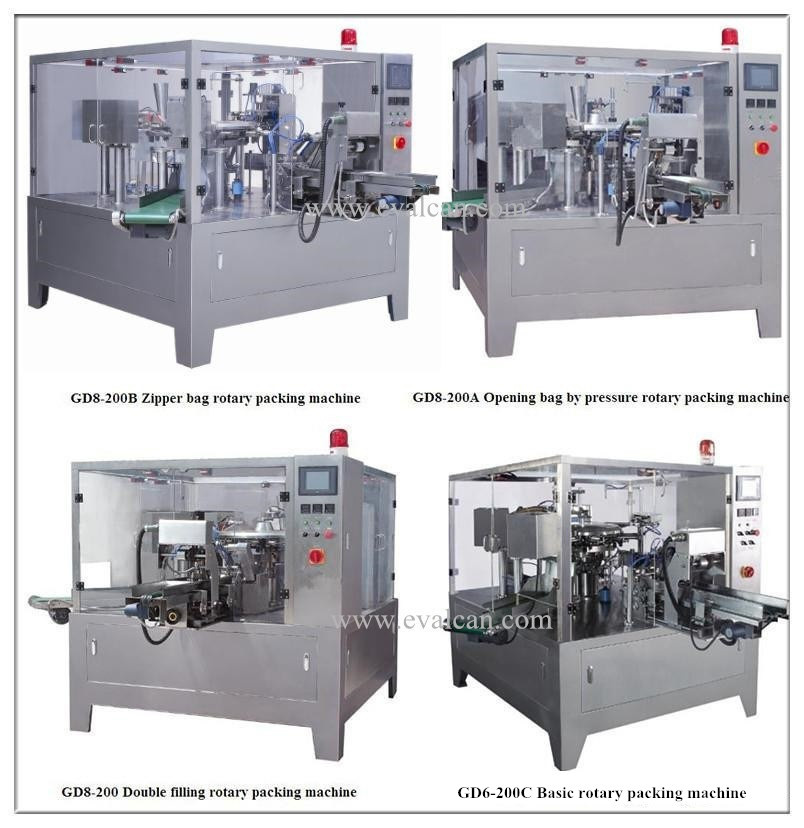

Typical Machines IntroductionApplication:
With different feeders changed to pack granule, solid, liquid, paste, powder etc.

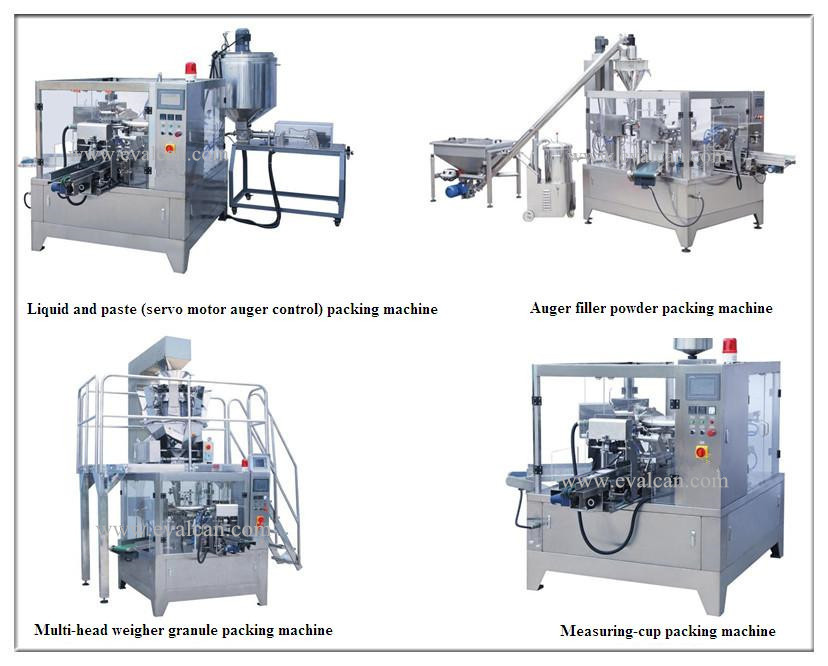

Other Types of Rotary Packing Machine UnitBased on the typical machines, there are some special design machines to be used for special materials, like:
Extra Functions IntroductionIn order to get a whole packing function, there are a series of accessories can be selected for this packing machine, like:
1-Date printer
This packing machine can use three type of printer:
A-Hot ribbon printer, can print date, batch number on the bag by hot ribbon, max. 3 lines.
B-Ink jet printer, can use ink jet to print the date information etc. on bags, without line limits.
C-Thermal - transfer printer, can use this printer to print the number, character information, and the bar code, logo, picture etc. on bags.

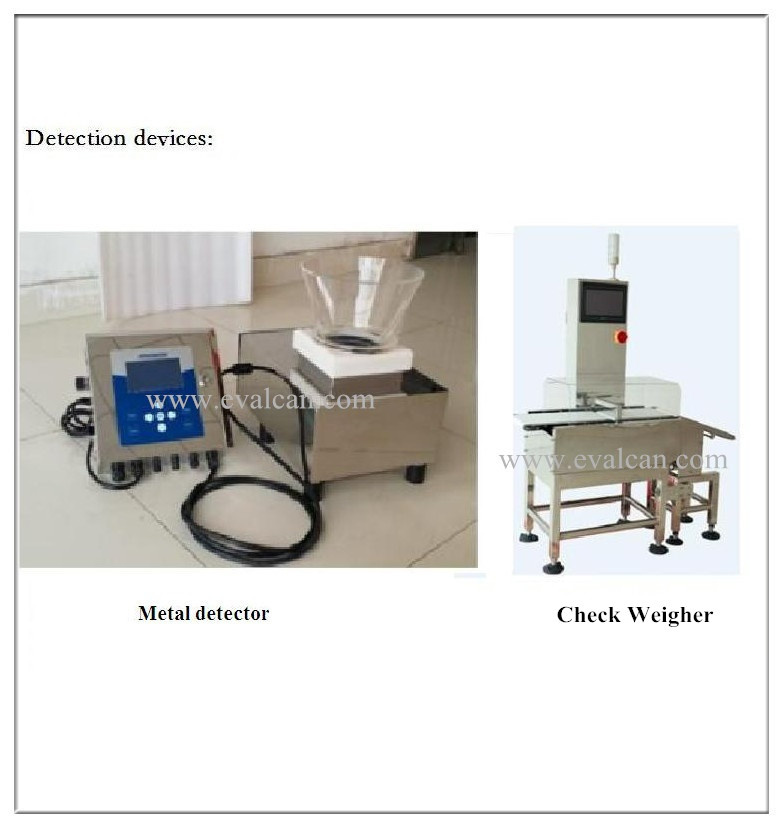

2-Detection devices
Can set metal detector before packing, and connecting with packing machine to select out the packs has the metal in.
Can set check weight after packing, to select the wrong weight packs.
