Rotary Packing Machine for Stand up Zipper Pouch
| Price: |
US $ 28000-55000Sets |
| Min Order: |
1Sets |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
GD8-200B |
| Bag Material: |
Laminated Film, PE, PP etc. |
| Bag Size: |
W 100-210mm; L 100-350mm |
| Packing Speed: |
10-50 Bag/Min |
| Certificate: |
Ce, ISO |
| Power: |
3kw |
| Compressed Air: |
0.6m3/Min (Supply by User) |
| Voltage: |
380V 3phase 50Hz/60Hz |
| After-Sales Service Provided: |
Engineers Available to Service Machinery Overseas |
| Packaging Details: |
Packed in Wooden Box |
| Machine Material: |
Stainless Steel |
| Automatic Grade: |
Automatic |
| Application: |
Food, Chemical, Beverages, Pharma |
| Driven Type: |
Electric |
| Packaging Material: |
Plastic |
| Material Type: |
Liquid, Paste, Granule, Powder, Solid |
| Packaging Type: |
Cartons, Bag |
Product Description
Rotary Packing Machine for Stand up Zipper Pouch
Application:
This machine could pack solid, liquid, paste, powder, grain, granule etc. with different filling devices.
Function and Characteristics:
1-Easy to operate,adopt advanced PLC from Germany Siemens, mate with touch screen and electric control system, the man-machine interface is friendly.
2- Frequency conversion adjusts the speed: this machine uses frequency conversion equipment, can be adjusted within the range according to the needs of reality in production.
3- Automatic checking: no pouch or pouch open error, no fill, no seal. the bag can be used again, avoid wasting packing materials and raw materials.
4-Safety device: Machine stop at abnormal air pressure, heater disconnection alarm.
5-Horizontal conveyor style to giving bag: it can put on more bags on the bag storage and have a low requirement about the quality of bags.
6- The width of the bags could be adjusted by electrical motor. Press the control-button could adjust the width of clips, easily operate, and save time.
7-It matches with the glass safety door. The machine will stop working when you open the door. So that it could protect the safety of operators. At the same time, it could prevent dust.
8-Use the plastic bearing, don't need put on oil, less pollution.
9- Use no oil vacuum pump, avoid polluting the environment in the production.
10- The packing materials loss low, what this machine is used the preformed bag, the bag pattern is perfect and has a high quality of the sealing part, this improved the product specification
11-Product or packing bag contact parts adopt stainless steel or other materials which accord with the food hygienic requirements, guarantee hygiene and security of the food12-With different feeders changed to pack solid, liquid, thick liquid ,powder and so on.
13-The packing bag suits in extensive range, suit for multi-layer compound, monolayer PE, PP and so on Preformed bag made by film and paper. Changing the measuring system, this machine also can be used for a lot of materials, like: | Measuring System | Measuring type | Material range |
| Multihead Weigher | By weight | Granule type materials, solid type materials like chips, detergent, candy etc. |
| Auger Filler | By volume | Powder type materials, like milk powder, flour, detergent powder etc. |
| Measuring cup | By volume | Heavy powder and small granules type materials, like seeds, beans, salt, sugar etc. |
| Liquid & Paste Filler(Servo-motor drive) | By volume | Liquid type materials, like juice, paste etc. |
| Screw Conveyor | By volume | Powder type materials, granule type materials like milk powder, candy etc. |

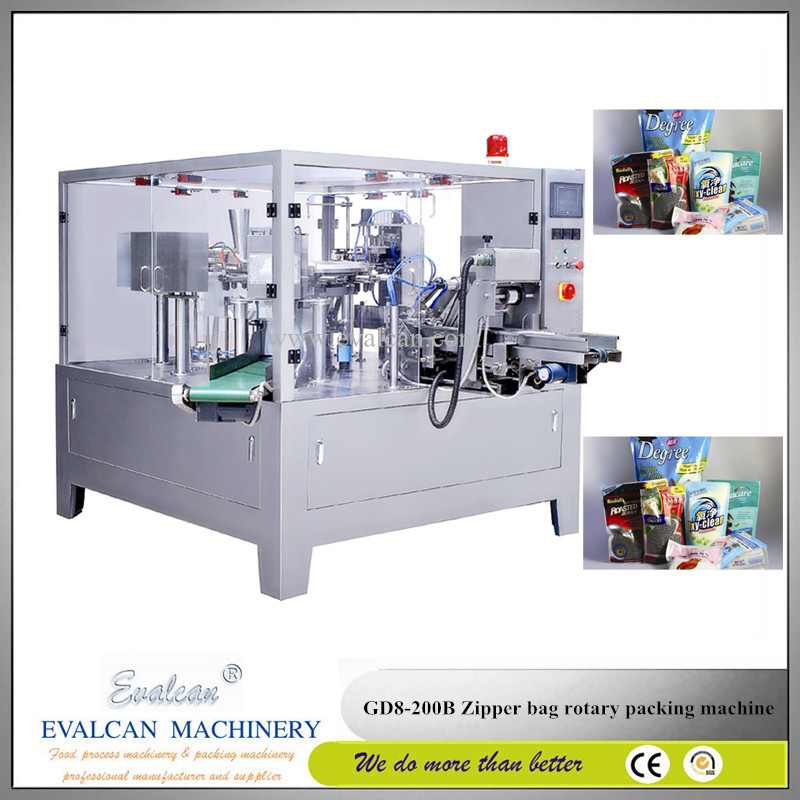

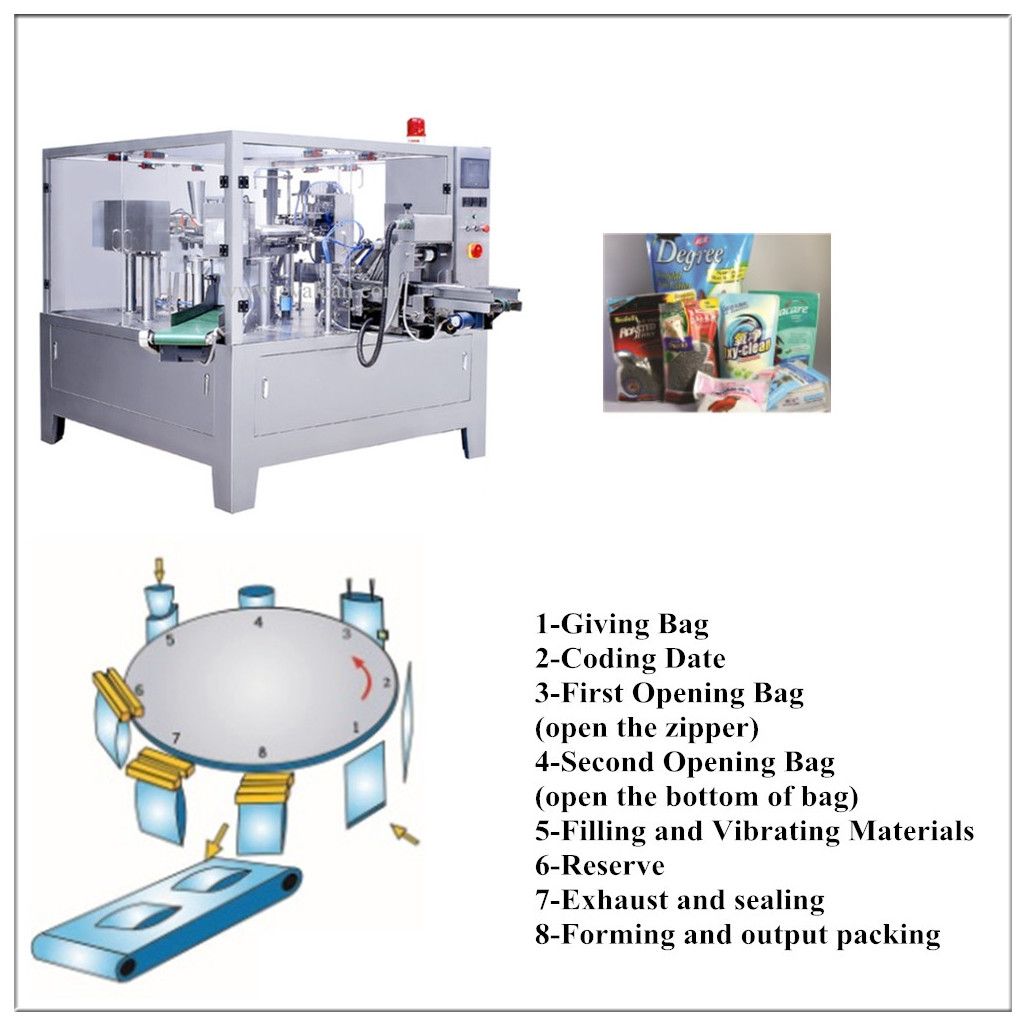

Machine Picture:
Main Parameters| Models | GD8-200B | GD8-250B | GD8-300B |
| Working Position | Eight-working position |
| Bag Material | Laminated film, PE, PP etc. |
| Bag Type | Stand-up pouch with zipper |
| Bag Size | W100-210mm;
L 100-350mm | W150-260mm;
L 150-350mm | W200-300mm;
L 200-450mm |
| Packing Speed | 10-50bags/min | 8-35bags/min | 8-30bags/min |
| Machine Weight | 1200kg | 1400kg | 1500kg |
| Voltage | 380V 3phase 50HZ/60HZ |
| Power | 3KW | 4KW | 4KW |
| Compressed Air | 0.6m3/min (supply by user) |

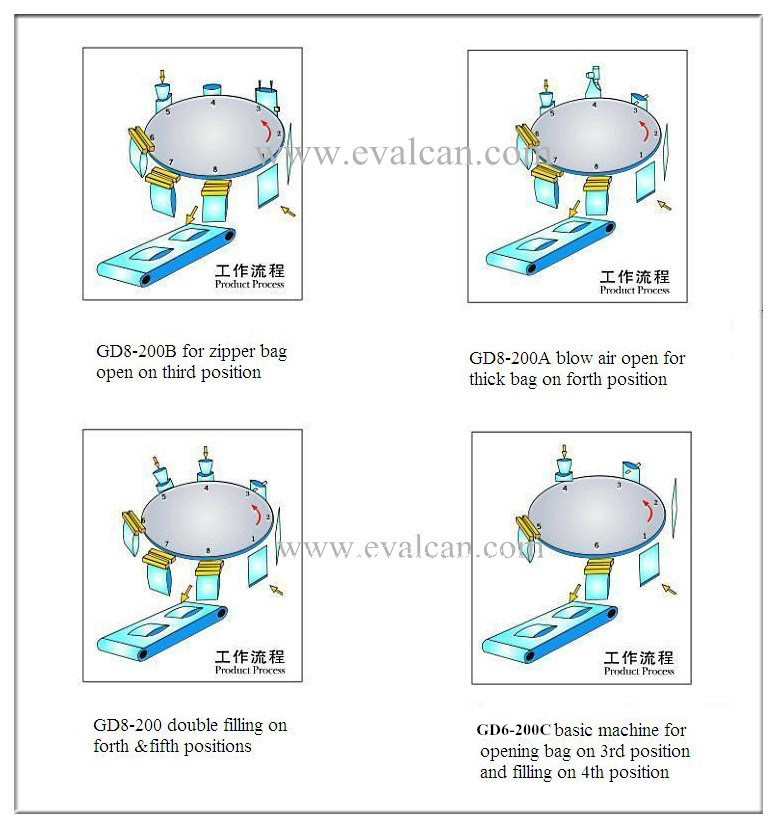

Different Product Process

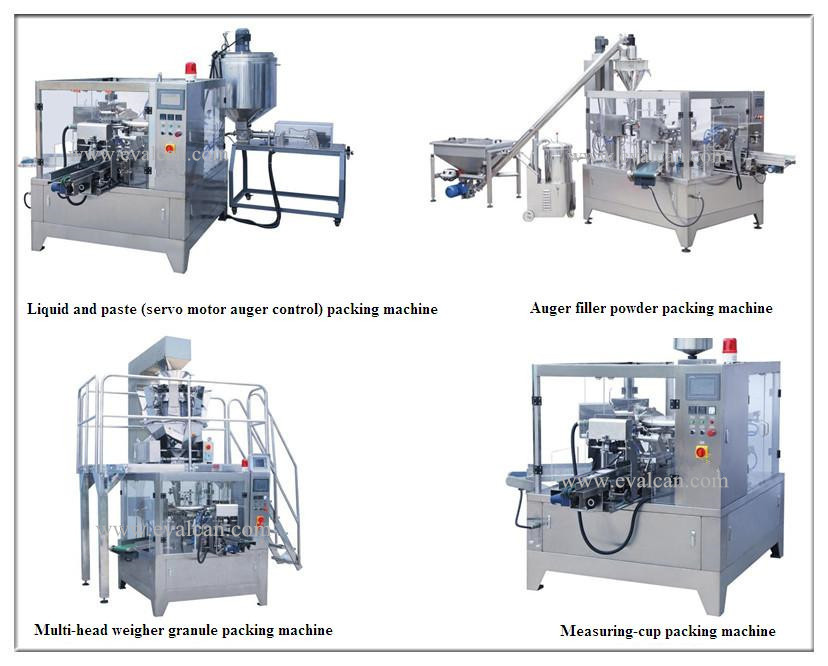

Other Machines Introduction
Application:
With different feeders changed to pack granule, solid, liquid, paste, powder etc.
Other Types of Rotary Packing Machine Units
Based on the typical machines, there are some special design machines to be used for special materials, like:
Extra Functions Introduction
In order to get a whole packing function, there are a series of accessories can be selected for this packing machine, like:
1-Date printer
This packing machine can use three type of printer:
A-Hot ribbon printer, can print date, batch number on the bag by hot ribbon, max. 3 lines.
B-Ink jet printer, can use ink jet to print the date information etc. on bags, without line limits.
C-Thermal - transfer printer, can use this printer to print the number, character information, and the bar code, logo, picture etc. on bags.
2-Detection devices
Can set metal detector before packing, and connecting with packing machine to select out the packs has the metal in.
Can set check weight after packing, to select the wrong weight packs.
Kindly Reminding
Please tell us the following information when sending inquiries. We will recommend suitable machine or provide suggestions upon the following information. Thank you in advance.
1. The product
2. Bag shape
3. Bag size
4. Filling weight
5. Packing speedTip: pictures along with the information above will be better.
After-sale Service
1. The buyer can send the worker to the seller's factory to learn the machine operation on-site; the seller can provide on-site installation at the buyer's factory. But the buyer should pay the fees in this period including tickets, food, accommodation and translator, the additional subsidy is USD80 per day.
2. The buyer shall provide the spare parts which is easy broken.
3. Guarantee time of 12 months. During this period, any part broken, the replacement parts shall provided for free. Beyond the guarantee time, broken parts shall be provided at cost.
