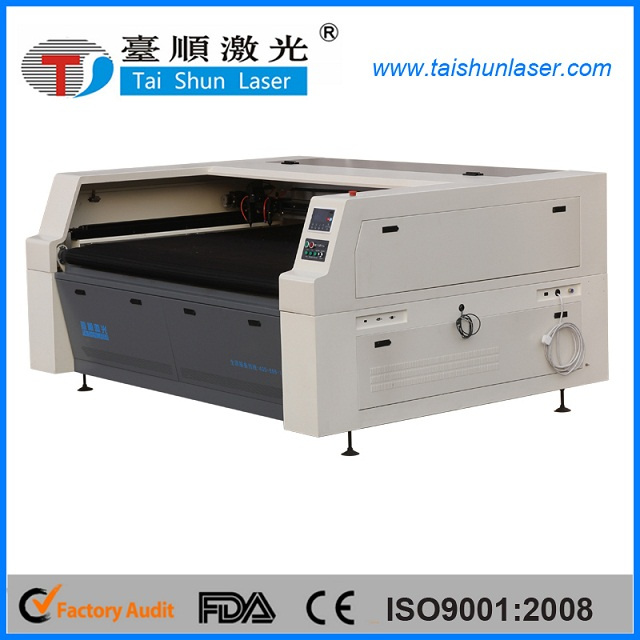

CCD Positioning Laser Cutting Machine for Applique Embroidery Cutting
| Price: |
US $ 3800-5500/Piece |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Paypal |
| Prod Model: |
TSZD180140 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Laser Type: |
CO2 |
| Laser Power: |
80W |
| Working Area: |
1800mmx1400mm |
| Working Table: |
Conveyor Working Table |
| Position Accuracy: |
+/-0.1mm |
| Movement System: |
Single Side Servo System |
| Standard Accessories: |
550W 2 Set Exhaust Fans |
| Supported File Format: |
Ai, BMP Plt Dxf Dst Ai BMP Plt Dxf |
| Guarantee: |
One Year Free Maintenance |
| Customized: |
Accepted |
Product Description
Main Configuration :
Working table:180140mm conveyor table with negative pressure absorption function
Laser Type:Co2 glass laser tube
Laser head:dual head to cut faster twice,single head to cut for large format,available to choose accoring to the production demand
Type setting software:intelligent Taishun typesetting sofatware to achieve continuous feeding material

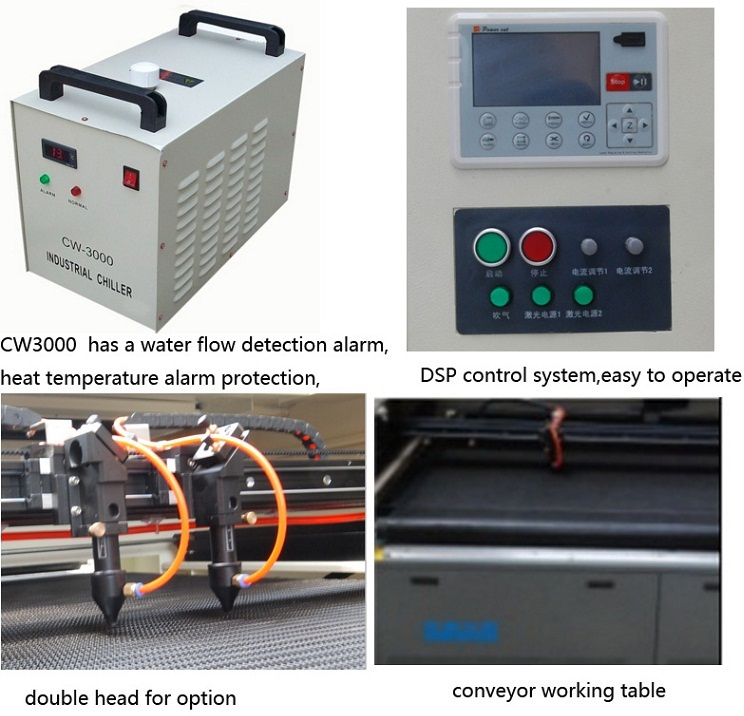

Water Chiller:water cooling system CW3000/make sure the laser tube work in ambient temperature.
Fume extractor: 2 sets 550W exhaust fan
Feature:
1 6.40M CCD Industrial Camera,single view reach 120mmx80mm;another choice for faster speed with a large CCD stored high under the window cap,single view can reach 800mmx600mm
2 DSP controlling system,simple buttons on the panel to set the parameter easily,offline working when power off is possible
3 Stepping motor driving system,imported from Germany,good quality improve precise cutting effect for strict quality required product such as genuine leather,high-end garment,etc
4 Straight line guide:imported from Japan,cut the soft material at one time perfectly,no need of post-treatment
5 Self typsetting software designed by Taishun,extra-long material outline setting to save material,make the most of the material for full usage.In this way to save cost
6 Industrial Computer,domestic good quality with updated operation system,easy to operate
7 Double head and conveyor,auto feeder,water chiller,red-pointer are available for different requests
8 Accept customized for different power ,for fabric,textile,leather,the common configuration are 900x500mm;1000mmx600mm,1600mmx3200mm;1600mmx1000mm;1800mmx1000mm,1400mmx1000mm;1800mmx1400mm;3200mmx6000mm,power ranges from 60W,80W,100W,110W,120W,130W,150W,180W,200W,etc
Sample show:
| Part description | Brand | Characteristic |
| Linear guide | Taiwan Hiwin | 1)High accuracy for positioning
2) Less abrasion and maintain accuracy for a long time;
3) for high speed movement and significantly reduce the required horsepower of drive machine;
4) can withstand the load from vertical and horizontal directions;
5) Easy assembling and with interchangeability;
6) simple lubrication structure |
| Transmission belt | Shanghai Fulong | Low noise,high transmission accuracy |
| Laser tube | Weiju | Domestic famous good brand with long lifespan |
| reflector Mirror and focus lens | America IIV(Diameter is 30mm) | long life span,precise focusing |
| Water Chiller | TEYU | alarm protection function,constant running |
| Ball Screw Rod | Taiwan TBI | enhance position accuracy |
| bearing | Japan NSK brand | high precision |
FAQ:
Q1.What's the guarantee for the product quality?
A:We offer one-year free maintenance services for our machines. Fault parts with the valid period will be replaced for free except for consumable parts.
Q2. Is it easy to operate for the new user ?
A: It is very easy ,we offer you operating manual in English ,also our technician can help you via MSN ,Skype or other instant communication tools.If problems in the process of operation,pls keep your lens and mirrors be clean ,then check your laser tube and talk details to us.
Q3. How to maintain the machine?
A: After 3 hours working, it's better close 10 minutes.
B, Keep lens and mirrors clean.
C, The water for laser tube should keep clean and lower temperature, in winter you need input antifreeze.
Q4 .How about the life-span of the laser tube ?
A: If you operate the machine rightly, it can reach to 1500 or 3000hours.(RF metal laser tube can max to 10000hours),It depends on your usage
For example, if it works 8 hours per day, the detailed data as follows:
1, If you set the power at 20%-30% of the total power, the service life is about 1-2years
2, If you set the power at 40-50% of the total power, the service life is about 1 year
3, If you set the power at 70%-80% of the total power, the service life is about 6-8 months
Q5: How can I know the power of the laser tube has been exhausted?
A: you can check the color of the laser beam ,new and strong laser tube is purple when working, otherwise it will be white color.
Q6: Is it harmful to human body when in operation ?
A: It is not harmful, as long as avoid to see it directly
7:How to distinguish laser tubes with different powers and applications?
A: 1. Laser tube length(relatively speaking, the longer, the bigger/stronger)
2. Laser tube diameter(relatively speaking, the thicker,the stronger)
3.The machine with bigger laser tube can cut deeper&more quickly, also its light spot is bigger, So, it is better to choose low-power for engrave, such as 40w, 50w, or 60w and strong power for cutting.
Guarantee&After-sale service
1, Best components, perfect technics and strictly ex factory inspection.
2, 1 year guarantee for whole machine.
3, 24 hours (all days) technical support by call ,e-mail, skype or computer
remote control service by engineer.
4, Multi-language software, operation CD and detailed User Manual together with machine.
5, We offer free training in our factory, engineer oversea service is available if you like.
Notice:
Please let us know following informations:
1. What materials you want to cut ?
2. What is the mostly used thickness and what is the maximum thickness?
3. What is the MAX dimension of your materials ?
4. After cuting, what will be the metal used for?
5. Are you an end user or retailer?
According to your above information,we'll recommend the most suitable machine to you.

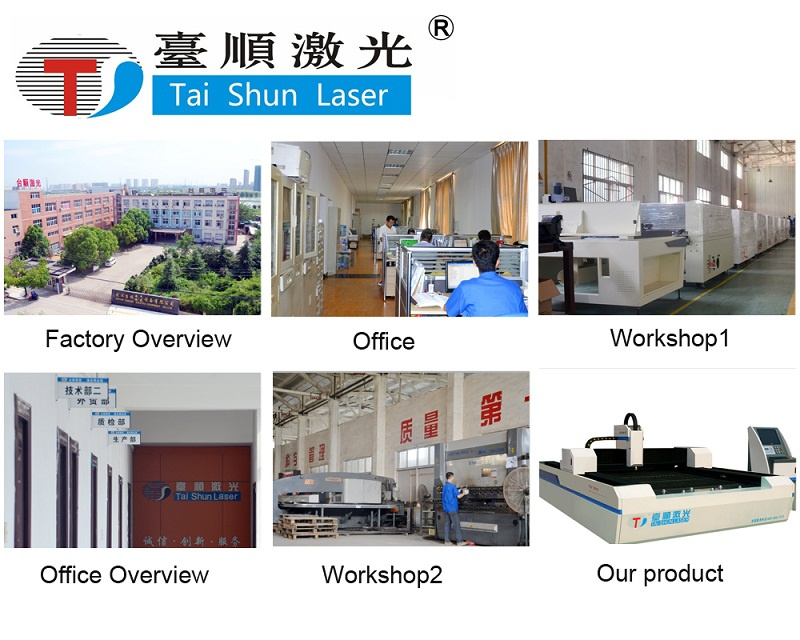

Taishun laser equipment Co., Ltd has been in the field of laser technology development and production for more than 20 years since the company was established, and always stand in the fore front product research and development.
