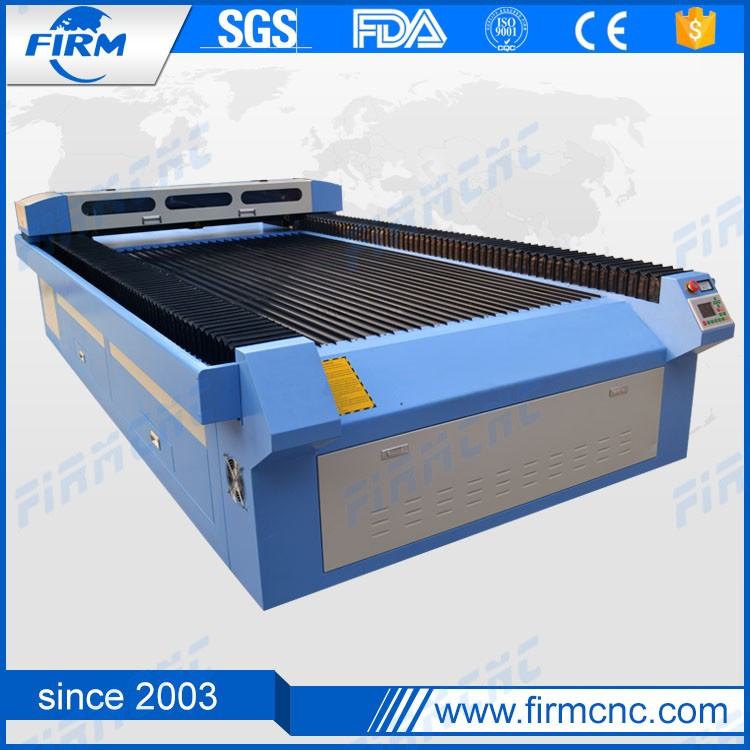

China cnc Laser engraving Machine with Blade Table
Features:
1. The imported linear guide way ensures the high precision and the long service.
2. The stepper motor guarantees cutting and engraving smooth.
3. The structure is strong enough to ensure the moving stable.
4. High quality laser tube provides the strong beam and long service life.
5. Focus lens and reflect molybdenum mirrors guarantee the powerful cutting strength.
6. The water system ensures the working stability.
7. The anti-pollution design improves the stability of the whole machine greatly.
8. High compatibility, applicable for the modes like PLT, BMP, DST, DSB and PXF etc.
Applicable materials/industry
The non-metal materials like double-color board, organic glass, crystal, wood, paper, leather and rubber etc.
The industries like advertising logo-making, crafts& gifts, crystal, relief sculpture, leather &cloth, embroidery and decoration.
Standard configuration| Air Pump | 1 piece |
| Exhaust Fan | 1 piece |
| Power Cable | 2 pieces |
| Air and Water Pipe | 3 pieces |
| Manual | 1 piece |
| Software CD, Soft Dog | 1 set |
| Focal Scale | 1 piece |
| Keys | 1 set |
| Insulate Tape | 1 piece |
| Inner Hexagon Wrench | 3 pieces |
| Measure Ruler | 1 piece |
| Blow Pipe | 1 piece |
| Ring Clamp | 2 pieces |
| Ring Flange | 2 pieces |
Technical specification| Machine Description: | Laser Cutting Machine | Options |
| Working size: | 1300*2500mm | As your need |
| Laser power: | 80w | 100W/ 120W/130W/150W |
| Laser tube: | Co2 sealed glass laser tube | RECI laser tube |
| Engraving speed | 0-50000mm/min | |
| Cutting speed: | 0-30000mm/min | |
| Repeating location: | ±0.1mm | |
| Resolution ratio: | 0.025mm | |
| Minimumshaping character | Letters 1 x 1mm | |
| Highest scanning precision: | 2000DPI | |
| Laser output control: | 1-100% software setting | |
| Control system: | DSP control system | |
| Interface: | USB flash. | |
| Software supported: | Coreldraw Phototshop ,Autocad output | |
| Support graphic format: | DST, PLT, BMP, DXF AI,CDR. | |
| Cooling system: | water-cooling and protection system | Chiller |
| Driving system: | Stepper motor. | Servo motor |
| Exhaust system | exhaust fan and air assist | |
| Offline work: | support | |
| Working voltage: | 220V/50Hz | 110V/60Hz |
| Operating temperature: | 5-40°C | |
| Operating humidity: | 5%-95% free of condensed water | |
Samples:
Guarantee & After Sales Service:
1. One year quality guaranty, the machine with main parts (excluding the consumables) shall be changed
free of charge when problems happened during the warranty period.
2. Lifetime maintenance free of charge.
3. Free training course at our plant.
4. We will provide the consumable parts at an agency price when you need replacement.
5.12 hours on line service each day, free technical support.
Working size can be customized as your requirement
If you want to know more information about our products ,
please feel free to contact us and welcome to visit our factory !
Jinan Firm CNC Equipment Co., Ltd is located in Jinan city, Shandong province. We are one of the most professional and good reputation manufacturers of CNC router (router CNC, CNC wood router), laser engraving machine, CNC plasma cutter, laser cutting machine, laser marking machine in China
Our main products are CNC router and laser machine, 5 axis machineing center, 4 axis machining center, 3 axis ATCcnc router, General 3 axis CNC router, CNC laser engraving and cutting machine, CNC plasma cutting machine. The application covers woodworking, advertising, Marble, Metal, Non-metal, MDF, plastic, etc. Our machines are widely sold in many countryes, European, American, Africa, Canada, England, and so on.
The aim of Jinan Firm CNC Equipment is to continuously upgrade the technique, to help our customers produce the best quality and high precision products, and offer the best after sale service.
Please feel free to contact us if you need the good quality machine, best price and the reassuring after sale service.
