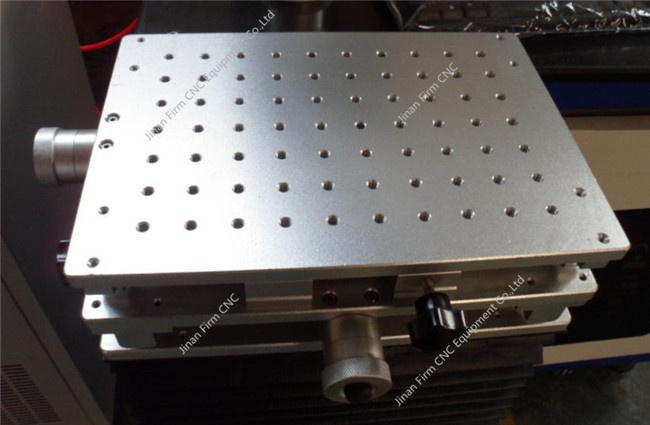

Eastern Laser Cutting and Engraving Machine with up and Down Table
Price: |
US $ 3000-5000/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T |

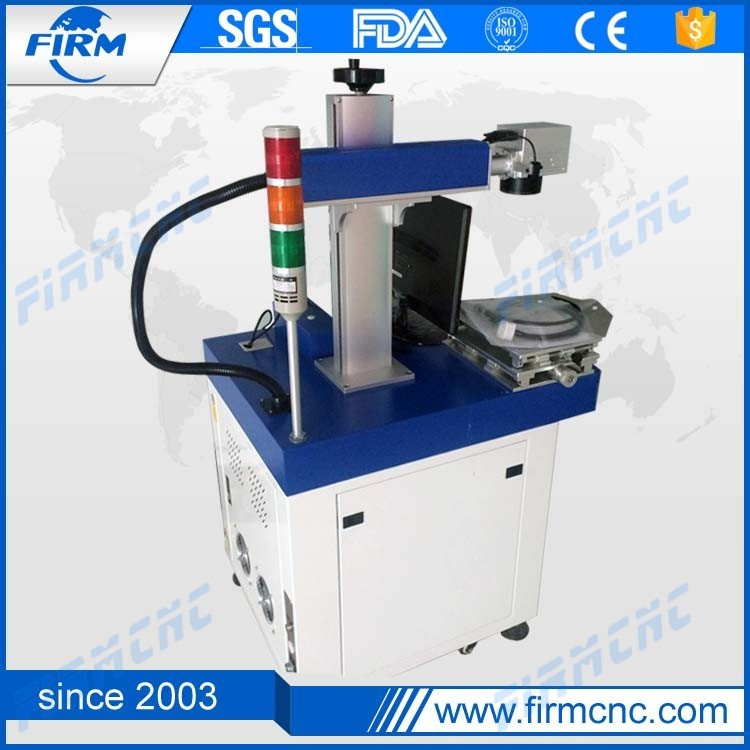

Eastern Laser Cutting and Engraving Machine with up and Down Table

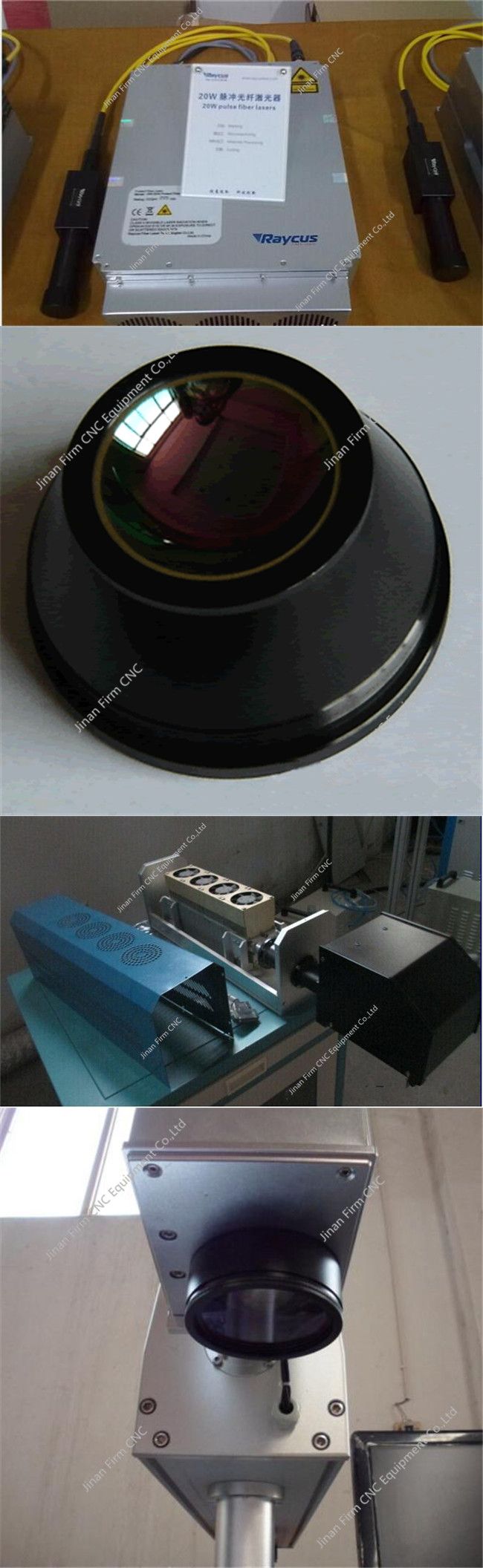

Features1. Adopts the USA RFM laser generator, high speed scanning vibrating lens and extending focusing system,
High precision, high speed.
2. Anti-intervention industrial computer system, BML-C can work on continuous 24 working hours stability.
3. Red light positioning system used to make processing of accurate positioning, avoid waste.
4. Professional marking software owns strong graphics drawing and editing funcion, enable direct marking of
Color graphic or marking after color convert from RGB to grey scale.
5. With red light positioning device accurately indicates the location of the processing of the laser head, eliminate
The trouble about manual positioning.Applicable MaterialCO2 laser marker is the main product researched by Jinan Firm CNC Router Co., Ltd. Its widely used in: Craft gifts,
Furniture, leather garments, advertising signs, model making, food packaging, electronic components, pharmaceutical
Packaging, medicine packaging, printing plate, shell plate etc, With Keyboard Laser marker, Glass laser marker, Arts laser
Marker, bathware laser marker and so on.
Sample
Technical specificationmodel | FM- 10 C / 30 C /50 C |
Laser power | 10w/30w/50W/100w |
Working area | 110*110mm/200*200mm/300*300mm |
Laser Wavelength | 10.64μm |
Response time | 0.5ms |
Frequency of pulse | 20KHz |
Max marking depth | 0-6mm |
Marking speed | 0-7000mm/s |
Marking lines | 1-10 lines(in the marking area) |
Minimum line width | 0.1mm |
Marking content | Text,pattern,date,bar code,etc |
Minimum character | 0.3mm*0.3mm |
Repeatability accuracy | ±0.00 2 mm |
Resolution ratio | 0.1mm |
Graphic format supported | bmp, jpg, gif, tga, png,tif,ai,dxf,dst,plt,etc. |
Unit power | ≤1.2KW |
Operation system | Microsoft Windows XP or Windows 2000 |
Control software | China RF FLYLeopard flying marking control software or laser2.1 marking control software |
Operation temperature | 5°~40° |
Relative moisture | ≤ 90%,no fog |
Supply Voltage | 220V/50Hz/10A |
Cooling method | Air cooling (100w : Water Cooling) |
Company information:FIRMCNC Group located in Jinan,Shandong PR, Founded in 2003. Leader of laser marking machine appliance manufacture.
We are an all-round enterprice,which is comprehensive in R&D, manufacture, and sales on laser marking machine appliances.
Customers often ask1.Can you recommend a plasma machine to me ?
Yes, In order to give you a suitable plasma machine,pls tell me the max working area, materials for processing and the thickness
for materials processing engraving or cutting. Then perfect suitable plasma machine will be recommended
2.Do you have operation manual and working video?
Yes, after we confirm order, operation manual will be send to you.
3.Does your company can processing my samples?
Yes, we can
4.If I bought machine, but don't know how to operation, what I can do?
Our engineer will teach you how to operation the machine through manual, video call or email, I still aso will help you .
5.How am I going to work on service parts on the machine? Example what if parts need to be replaced?
6.Does your engineer do aftersale service at abroad? how much cost?JINAN FIRM CNC EQUIPMENT CO.,LTD
A-505Jingliu Road, Huaiyin District, Jinan City, Shandong Province, China.
Tel: 0086-0531-69986330 Fax : 0086-0531-69986330
Website: http://firmcnc.en.alibaba.com/, http://firmcnc.en.made-in-china.com
www.firmcnc.com
Cell phone: +86-13954117091
Prod Model: |
FM-1290 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Engraving Machine Type: |
Laser Engraving Machine |
Control: |
CNC |
Current: |
AC |
Laser Type: |
CO2 |
Usage: |
All Kind of Material |
Laser Power: |
60W/80W/100W |
Working Area: |
600*900mm |
Marking Speed: |
0-7000mm/S |
Cooling Method: |
Air Cooling (100W : Water Cooling) |
Jinan Firm CNC Equipment Co., Ltd is located in Jinan city, Shandong province. We are one of the most professional and good reputation manufacturers of CNC router (router CNC, CNC wood router), laser engraving machine, CNC plasma cutter, laser cutting machine, laser marking machine in China
Our main products are CNC router and laser machine, 5 axis machineing center, 4 axis machining center, 3 axis ATCcnc router, General 3 axis CNC router, CNC laser engraving and cutting machine, CNC plasma cutting machine. The application covers woodworking, advertising, Marble, Metal, Non-metal, MDF, plastic, etc. Our machines are widely sold in many countryes, European, American, Africa, Canada, England, and so on.
The aim of Jinan Firm CNC Equipment is to continuously upgrade the technique, to help our customers produce the best quality and high precision products, and offer the best after sale service.
Please feel free to contact us if you need the good quality machine, best price and the reassuring after sale service.
