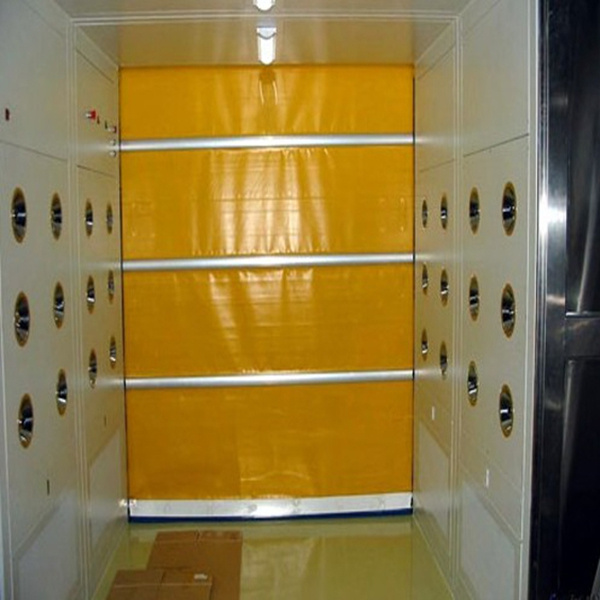

Clean Room Automatic Plastic Fast Rolling Shutter (HF-1019)
Specifications
1.material:PVC fabric
2.Automatic
3.Stainless steel frame
4..Opening speed:0.8-1.2 m/s
5.Safety system:airbag& photocell
Product name | High speed rolling door |
| door material | French-made high -density industrial fabric |
| Control system | Japanese Mitsubishi Inverter, PLC and other components. |
| Dynamical systems | Motor: SEW from Germany / SNMA Power: 0.75kw~2.2kw |
Framework & rolling
shaft | In 2mm thicknesses cold-roll steel sheets, or according
to your order |
| Cross bar | In aluminum lath |
| Curtain | made in high-density polyester fabric (Thickness: 0.8mm
or 1.5mm) |
| Color | red, yellow, orange, blue, Grey etc. |
| transparent window | transparent pvc film imported from Japan, thickness:1.5mm |
| Command systems | magnetic, radar sensor, pulling rope, remote control,
pushbottom |
| Safe system | Photoelectric sensor, Safe edge bottom, Emergency stop
protection |
| Seal | seal brush are Installed inside the guides, good seal
dustproof |
| Cross bar | In aluminum lath |
| Motor | SEW from Germany / SNMA or SEJ |
| Power | 0.75kw~2.2kw ( according to the size of the door) |
| Photoelectric sensor | installed on the side tracks, with emergency stopping
reaction when sensing obstacles |
| Safe edge bottom | when the people or vehicle touch the bottom edge of
falling door,it bound up automatically. |
| Emergency stop protection | with emergency stop buttom on control panel |
| Opening control method | Remote control, Wall switch, Radar, Geomagnetic and so on. |
The high speed door detail information:
Compared to traditional rolling metal doors, high speed doors, developed after the introduction of international advanced technology, with heat preservation, cold preservation, mothproof, windproof, dustproof, odor resistant, lighting and many other features. The high speed doors with automatic opening and closing function, they lower energy costs, decrease maintenance costs, improve work environments, enhance workflow, and improve safety and security.
The high speed door structure:
Use antioxidant Industrial aluminum alloy guiding track, Color: optional (silver-white); Doors hood and motor cover made of stainless steel. With trapping cloth bag at the bottom of Curtain. Can integrate tightly with uneven ground, with brush handling in the guiding track, dustproof, mothproof and sealed
FAQ
1 Are you manufacturer?
Yes, We have professional team of workers ,service and inspection, and we have our own factory.
2 How about the sample?
If we have the sample in stock, we will provide free sample to you, if we do not have it in stock, we will make it for you, Our sample for one small panel are Free, btw you should pay the freight
3 which item is your main item?
We Produce Roller Shutter Door and Window, Automatic glass door,Garage door
4 what's your Mini order?
One set for Trial order also can be accept
5.What's the delivery time?
For common order, 7 days only
6.How long warranty for the doors?
We provide 12 month warranty for all doors and accessories.
7.Do you provide OEM Service?
Yes. We do
8.How about the package?
Plywood case or Cardboard,Accordingly to your choose
Established in 2008, HONGFA Automatic Door Co., Ltd is a leading manufacturer of automatic doors. We are located in Shenzhen (beside HongKong), an industrial, convenient and beautiful city in the south of China. It is very convenient to all over the world by air or sea.
HONGFA is a high-tech company that integrates development, production, sales and service. Over the years, we have designed, developed and manufactured a wide range of automatic doors, such as fast rolling curtain doors, high speed automatic doors, medical automatic sliding doors, automatic inductive doors and so on. We has passed certification of ISO9001 international quality system.
HONGFA' S full range of products are made by Germany advanced technology. As the automatic door professional manufacturer, our company has perfect quality management system and after-sale service system, has good cooperation partnership with many national key projects. Our doors have been exported to Europe, Americas, Africa, the Middle East, and other Asia countries. Germany advanced technology, top quality material, advanced management, strong development and perfect service system make us stronger and stronger.
HONGFA people have the strong responsibility on our company and clients, not only selling product and service, but also ourselves. We creat the better life style.
We are looking forwards to building a strong business partnership with you and your company.
Welcome to us! ! !
