Cold Work Alloy Flat Steel D3/1.2080/SKD1 With High Wear Resistance
| Price: |
US $ 1320-1380/Ton |
| Min Order: |
1/Ton |
| Pay Type: |
L/C,T/T |
1.2080/D3/SKD1/Cr12 Cold Work Mould SteelTo make the cold work mould fits low impact load and with high wear resistance.
1, Application:
Used for making small impact, high quality wear cold-punching mould;
1) Used for high tolerance and long service life of all kinds of cold stamping die and cold shear blade, thread rolling plate, etc.;
2) Tabletting punches and sleeves for corrosive;
3) Suitable for complex deformation of mould.
2, Features:
1) High hardenability, high hardness, high wear resistance and good toughness, quenching deformation, etc;
2) High carbon high chromium tool steel;
3) Good machinablity and inoxidizability;
4) Immune from sinking in use, high resistance to heavy pressure.
3, Steel Grade:1.2080/ D3/ SKD1/Cr12 Cold Work Mould Steel
About products:
4, Specification:| Chemical Compositons |
| Grade | C | Si | Mn | P | S | Cr | W | V |
| Cr12 | 2.00-2.30 | ≤0.40 | ≤0.40 | ≤0.030 | ≤0.035 | 11.50-13.0 | - | - |
| D3 | 2.00-2.30 | 0.10-0.60 | 0.10-0.60 | ≤0.030 | ≤0.030 | 11.00-13.50 | ≤1.00 | ≤1.00 |
| 1.2080 | 1.90-2.20 | 0.10-0.60 | 0.20-0.60 | ≤0.030 | ≤0.030 | 11.00-13.50 | - | - |
| SKD1 | 1.90-2.20 | 0.10-0.60 | 0.20-0.60 | ≤0.030 | ≤0.030 | 11.00-13.50 | - | - |
5, Heat treatment: | Quenching | Tempering |
| Heating temperature/ºC | Cooling way | Hardness (HRC) | Tempering temperature
/ºC | Cooling way | Hardness
(HRC) |
| 950-980 | Oil Cooling | ≥60 | 180-220 | Air Cooling | 60 |
| 400 | Air Cooling | 54-58 |
6, Delivery condition:
Surface:Grinding surface, black surface, turned surface and milling surface according to customer's requirements.
For abundant stock, 15-20 days.
For customized products, 30-50 days.
7, Package: We provide standard export packing or according to customers' request.
About our factory:
About GUANGZHOU CHANGFENG STEEL CO.,LTDGuangzhou ChangFeng Steel Co., Ltd. is a professional special steel company, which specialized in exporting mould steel products based in China. With more than 20 years experience in special steel industry, our main products are Plastic Mould Steel, Hot Work Mould Steel, Cold Work Mould Steel, Alloy Structural Steel, Tool Steel, Stainless Steel, Carbon Steel and Forged Block.
To ensure provide high quality products to customers, we have close cooperation with many Chinese first class special steel enterprises, including Baosteel Group, Dongbei Special Steel, Changcheng Special Steel, Hongsheng Heavy Industry, Xingcheng Special Steel, Daye Special Steel.
We have thousand tons of stock materials in our own factory and also can provide processing services to customers. We are full of export experience for many years, the product covers America, Germany, France, Italy, Turkey, Singapore, Thailand, Malaysia, Vietnam, Taiwan, and Middle-East. After years of development, the company has established a complete quality management and export service system. We have a group of experienced and competent elites and is capable of offering the best service to clients.

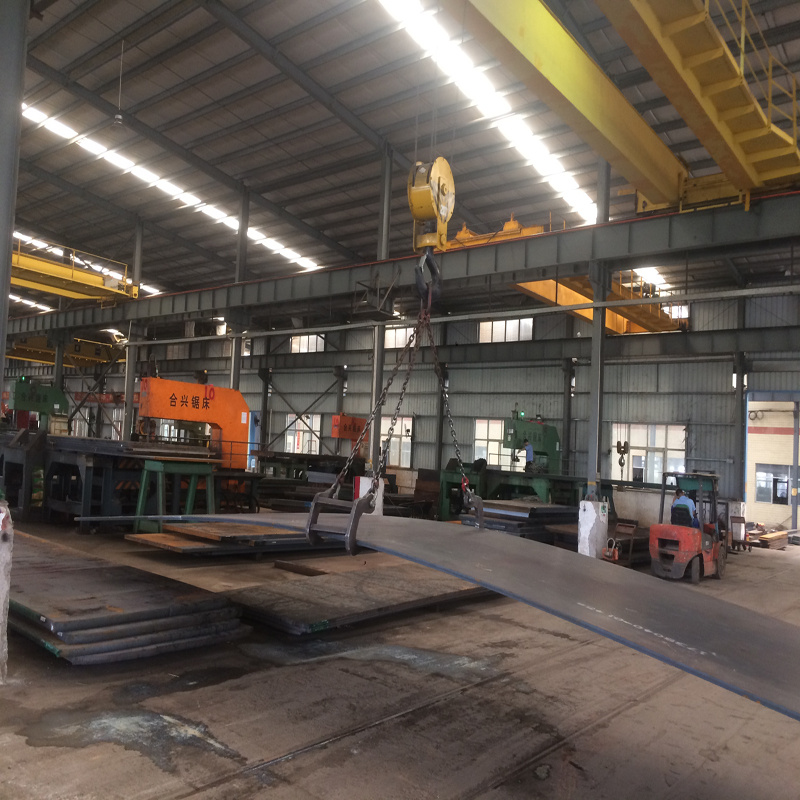

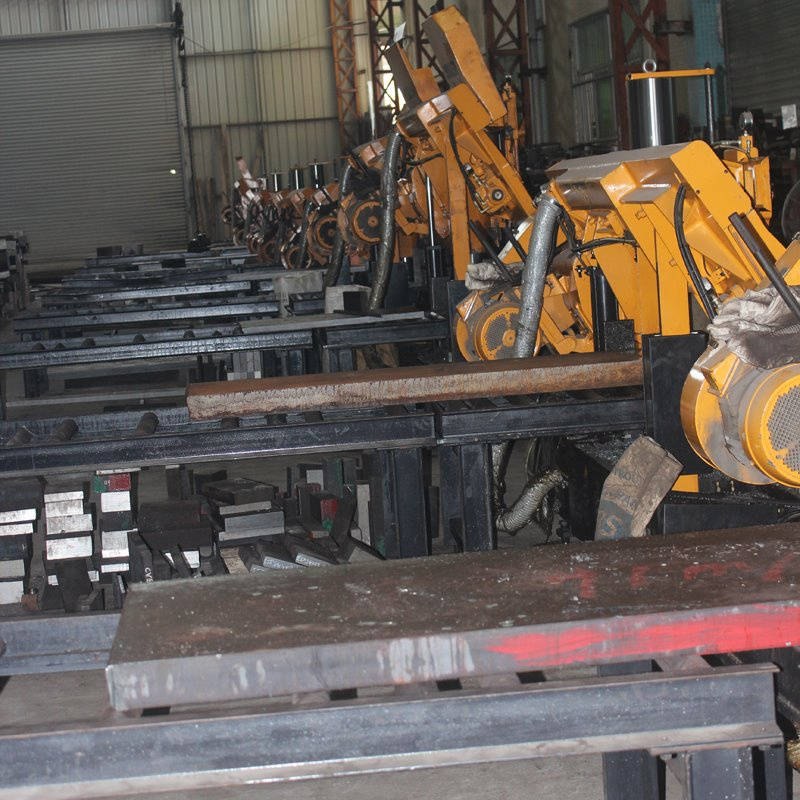

Our company equips with large-sized Vertical saw machines, Horizontal saw machines, Milling machines, Grinding machines and other advanced equipments to provide customers with cutting and other processing services.
All the products should be inspected the metallographic analysis, hardness, ultrasonic flaw detection and other strict inspection processes, which meet the standards of DIN, AISI, JIS and GB to ensure their function and quality.
| Prod Model: |
1.2080, SKD1, D3, Cr12 |
| Grade Number: |
SKD1/ D3/ Cr12 /1.2080 Mould Steel |
| Grade: |
1.2080/ D3/ SKD1/Cr12 |
| Hardness: |
Annealed Hbs248 Max |
| Payment: |
30% Deposit,Blance by L/C at Sight or T/T |
| Certificate: |
ISO/Mill Certificate |
| Delivery Quantity: |
Include MOQ |
| Surface: |
Black / Milling / Machined |
| Type: |
Steel Plate |
| Standard: |
BS |
| Certification: |
RoHS |
| Technique: |
Hot Rolled |
| Special Use: |
Wear Resistant Steel |
| Stock: |
Stock |
