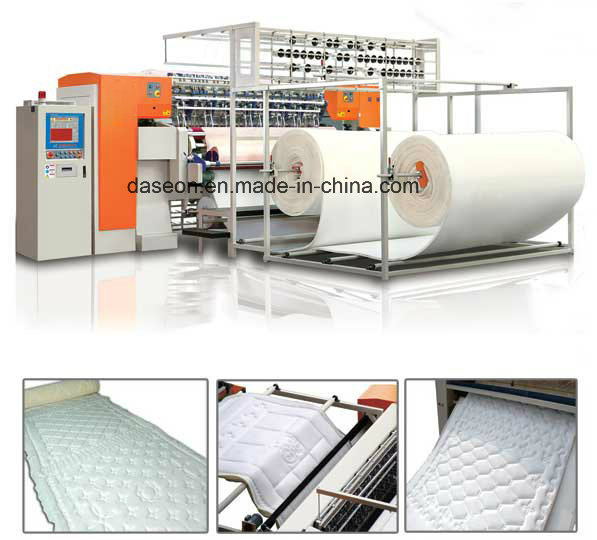

Computerized Chain Stitch Multi- Functional Quilting Machine for Mattress

Name: Computerized Chain Stitch Multi- Functional Quilting Machine for Mattress
Brand: FullPackage
SKU: 818902985
Availability: InStock
Rating: 5 (123 reviews)

Price:	US $ 30000-41000/Set
Min Order:	1/Set
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Purpose:It is widely used for quilting high-quality mattresses, quilt covers, and household ornaments. Different patterns are available.

Parameter(Unit mm):

Dimension(L×W×H) :4820×1650×2060

Quilting width:2450

Space between needle rows: 76.2,76.2,152.4(6")

Space between needles:25.4

X-axis movement displacement:535

Thickness of quilting≤60(for all patterns)

Stitch length:3-8

Speed of operation:60~230(m/hour)

Model of needle:24/180 23/160 22/140 21/130

Quilting speed:200~980(RPM)

Total power required:7KW

Voltage :380V/50HZ 220V/60HZ

Gross weight:5500kg

Detail Information:

• Based on the Multi-needle Quilting Machines and with all the functions of Multi-needle Quilting Machine, at the same time also with the functions of single needle

quilting .

• With much more output comparing with Single Needle Quilting Machines and with more patterns comparing with Multi-needle Quilting Machines.

• Adopting Chain stitch quilting mechanism, avoiding frequently replacing bottom thread, and making the quilting stitches much firmer.

• Needle bar and press plate are controlled by a double- swinging device without cam avoiding lubrication and dirtying of material

• Automatic stop motion control in case the top thread or the bottom thread breaks,automatic needle-lifting and CNC speed adjustment

• CE Certificate

• CNC precision control system, no need to adjust the press plate's position when the thickness of quilting material varies

• Strong functions of pattern-combining and Tack & Jump quilting to enable you to quilt different patterns in same row of the mattresses

• Fault detection function for ease of determining the running state of the machine at any given time

Prod Model:	W-DGN
Computerized:	Computerized
Precision:	Precision
Warranty:	1 Year
Customized:	Customized
