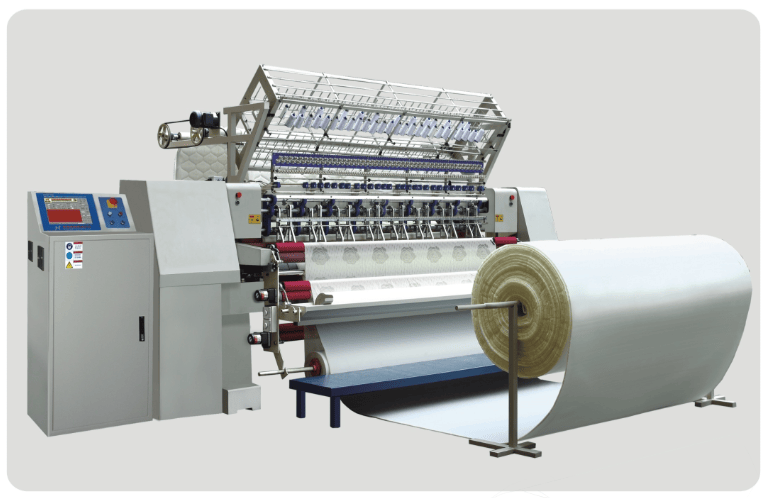

Computerized Shuttle Multi-needle Quilting Machine(HY-128-3A)1.high speed multi-needle quilting machine
2.chain stitch
3.nice productsProduct Description:It is widely used for quilting high-quality garments, quilt covers,hand bags,gloves,sleeping bags,pajamas,bed spreads,seat covers,plus material and household ornaments.Technical characteristic1.Needle bar and press plate are connected by cam-free double-swinging device, which is with high precision and durable. This structure can avoid lubrication and dirty material effectively.
2. High rigidity machine body and structure can make the machine running faster and more stable.
3.Adopting the new structure of press plate's adjusting makes the machine much simple.
4.Multi-span independent pattern (360°and 180° patterns are available)
5.Advanced and practical up thread-break detection unit
6.Computerized automatic needle-lifting speed adjustment
7.New generation of CNC system, advanced machine structure, high precision quilting, dispense with too much parameter adjustment or pattern modification during quilting
8.Easy preparation of CAD drawing extremely precise
9.Different patterns in each line can be quilted on 3.2 m fabric and patterns can strongly combine
10.Able to quilt simple embroidery patterns
11.Fault detecting and indication enabling fast fault correction and return operation
Technical Specification:| Model | HY-64-3A | HY-94-3A | HY-128-3A |
Dimension(L×W×H): | 3350*1160*1750mm | 4500*1160*1750mm | 5350*1160*1800mm |
Quantity of needle bar: | 3 | 3 | 3 |
Quilting width: | 1600mm | 2450mm | 3300mm |
Space between needle rows: | 76.2,152.4 | 76.2,152.4 | 76.2,152.4 |
Space between needles: | 25.4mm | 25.4mm | 25.4mm |
X-axis movement displacement: | 203.2mm | 305mm | 305mm |
Thickness of quilting: | ≤25mm | ≤25mm | ≤25mm |
Stitch length: | 2~5mm | 2~5mm | 2~5mm |
Speed of production(m/h) | 20-100 | 20-100 | 20-90 |
Model of needle: | 16#,19# | 16#,19# | 16#,19# |
Speed of main shaft(RPM): | 550~800 | 550~800 | 450~700 |
Total power required: | 4.5KW | 4.5KW | 5.5KW |
Voltage: | 380V/50HZ 220V/60HZ | 380V/50HZ 220V/60HZ | 380V/50HZ 220V/60HZ |
Gross weight: | 2500kg | 3800kg | 4500kg |

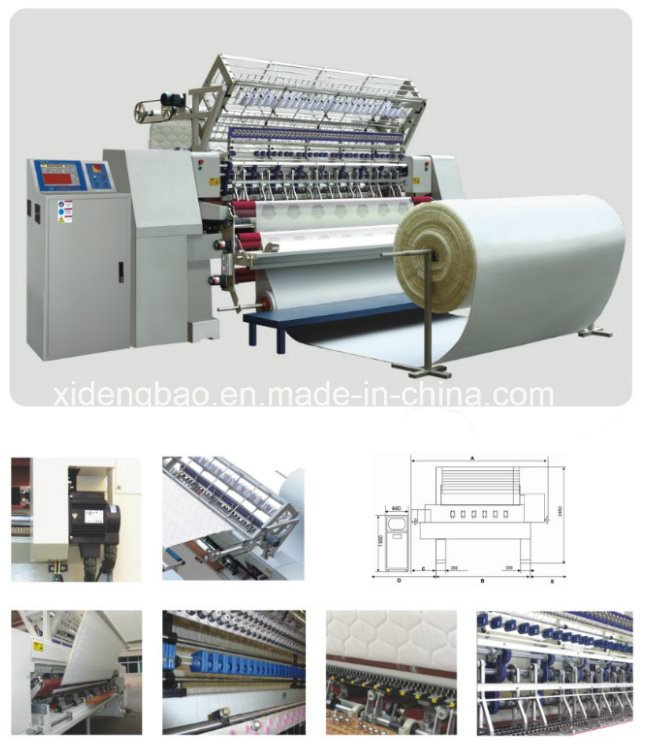

Product Pictures:
