Double Side Tie for Insulator/ Distribution Cable Ties
| Price: |
US $ 1.6/Set |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,Western Union |

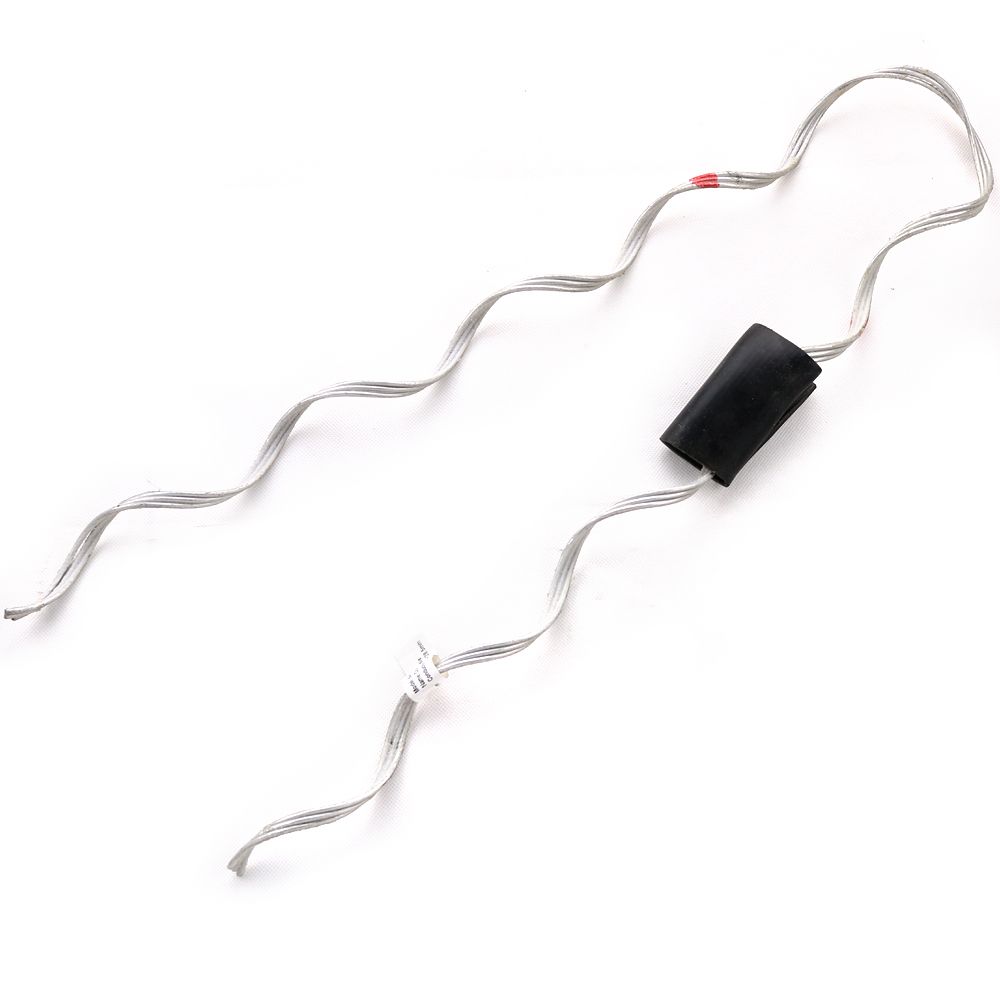

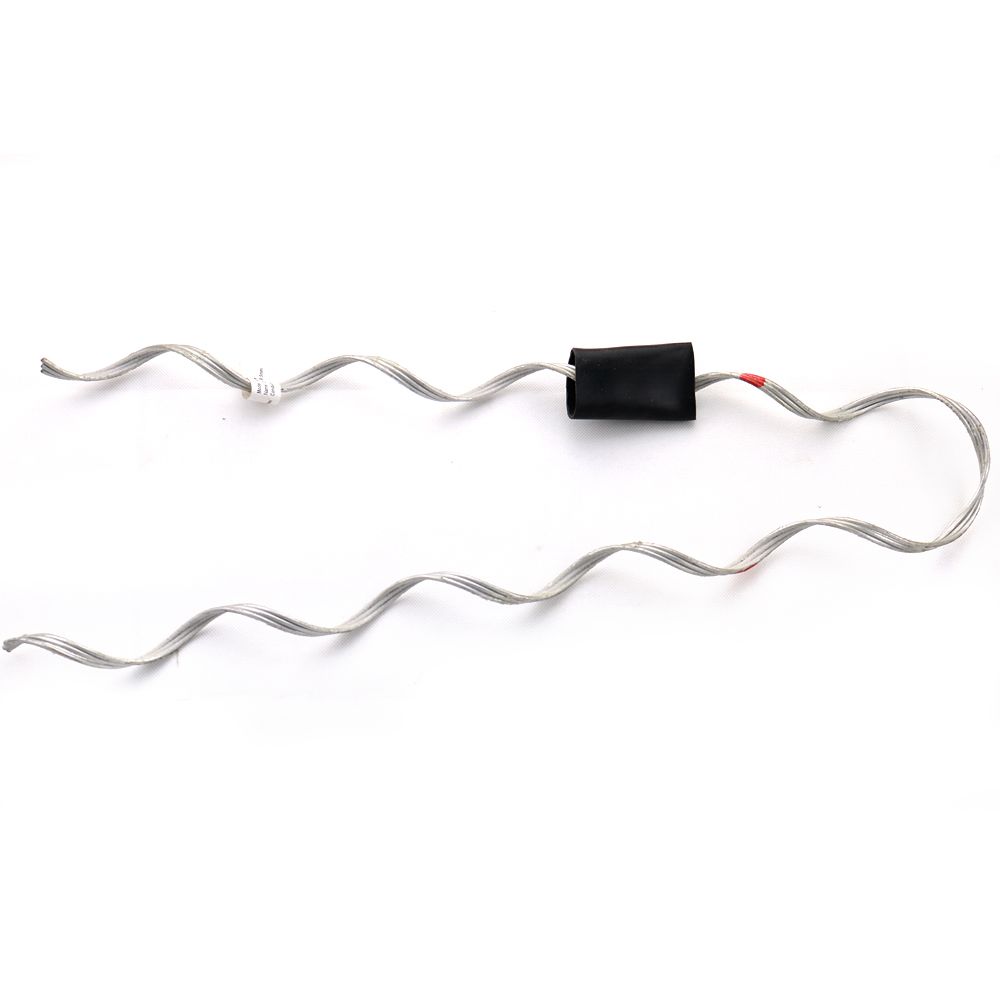

Preformed Insulator double side tie/ Distribution guy grips
Description:The preformed Insulator Tie is used for insulated conductor with the Insulators.It is made of galvanized steel wire with PVC coating, the material have good characters in tensile strength and impact strength.
Features:Easy installation and no special tools needed.
It is compatible with other hardware.
Helical insulator distribution tie,suitable for bare conductor and insulated wire used cooperatively with P-10 type pin insulators(neck diameterØ74)
Technical Data sheet:| Model | Applicable diameter of conductor(mm) | Product parameters | Applicable international wire |
| Color code | Number in each group | LJ | Ordinary insulation 10KV | Thinner insulation 10KV |
| SDB-1000 | 4.83 | 5.46 | Blue | 2 | 16 | | 10 |
| SDB-1001 | 5.83 | 6.46 | Blue | 3 | 17 | | 11 |
| SDB-1003 | 7.83 | 8.46 | Blue | 5 | 19 | | 13 |
| SDB-1005 | 9.83 | 10.46 | Blue | 7 | 21 | | 15 |
| SDB-1007 | 11.83 | 12.46 | Blue | 9 | 23 | | 17 |
| SDB-1009 | 13.83 | 14.46 | Blue | 11 | 25 | | 19 |
| SDB-1011 | 15.83 | 16.46 | Blue | 13 | 27 | | 21 |
| SDB-1013 | 17.83 | 18.46 | Blue | 15 | 29 | | 23 |
| SDB-1015 | 19.83 | 20.46 | Blue | 17 | 31 | | 25 |
| SDB-1017 | 21.83 | 22.46 | Blue | 19 | 33 | | 27 |
| SDB-1018 | 22.83 | 23.46 | Blue | 20 | 34 | | 28 |
| SDB-1019 | 23.83 | 24.46 | Blue | 21 | 35 | | 29 |
| SDB-1012 | 21.82 | 24.59 | Blue | 2 | 300 | 120,150 | 150,185 |
| SDB-1013 | 24.61 | 27.84 | Green | 2 | 400 | 185 | 240 |
| SDB-1014 | 27.85 | 31.5 | Yellow | 2 | | | |
|
Installation Guide:
Contact Information:
Certification:
| Prod Model: |
SCBX |
| Customized: |
Customized |
| Condition: |
New |
| Flame Retardant: |
High |
| Coating: |
PVC Coating |
Founded in 1994, POWTECH invested by Taiwan, is an independently owned international corporation dedicating to develop, produce & distribute JETPOWER brand power supplies and OPTELEC brand optical cables.
The first JETPOWER branded online high frequency UPS was developed in 1994. Driven by customer requirements, we have developed OFF LINE UPS, Line-interactive UPS, Industrial Online UPS, outdoor UPS, telecom inverter, power inverter and home inverter. Through a decade of great efforts, we have made our JETPOWER branded power supplies widely applied in the fields of finance, telecom, electric power, petrochemistry, custom and military field etc, and have been honorably commented by clients. Besides, we also cooperate with many famous power supply companies by OED/ODM, and now our products have been sold worldwidely, including Europe, South America, Africa, Middle East, Asia etc.
As the fast development of power supply, We also expand our business to optical cable and accessories. In 2006, we have set up our own OPTELEC brand to develop, manufacture and distribute ADSS cable, OPGW cable, optical cable, Fusion Splicer, OTDR, Terminal tool kit, ADSS fittings, OPGW fittings, link fittings, wire mesh cable tray, preformed cable tray, cable trunking, cable ladders, STG modules, STG magazines and accessories. Till now, our OPTELEC brand optical cable and accessories have been used in more than 20 countries' telecom lines' construction and power transmission lines' construction.
Powtech has passed the ISO9001 international quality system certification and has established a complete quality system from material source, process, assembling to testing. All Powtech products have been approved by KEMA, SGS and CE (LVD/EMC) or by customer-appointed safety agencies.
Not only do we pride ourselves on competitive price, Advanced technology and top quality products but also we have value-added technical support. We can dispatch our engineer to customer's site for site installation and training, Or we can provide online service to solve any problem during installation & operation. On the priniciple that there is no customer too big or too small, Every customer deserves most professional service. POWTECH people anticipate growing and prospering with you, Embarking on a way of success.
