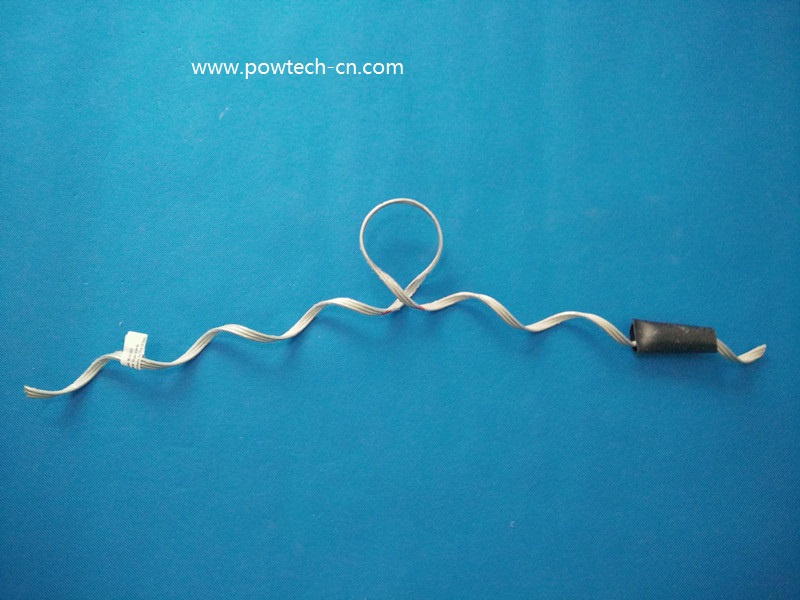

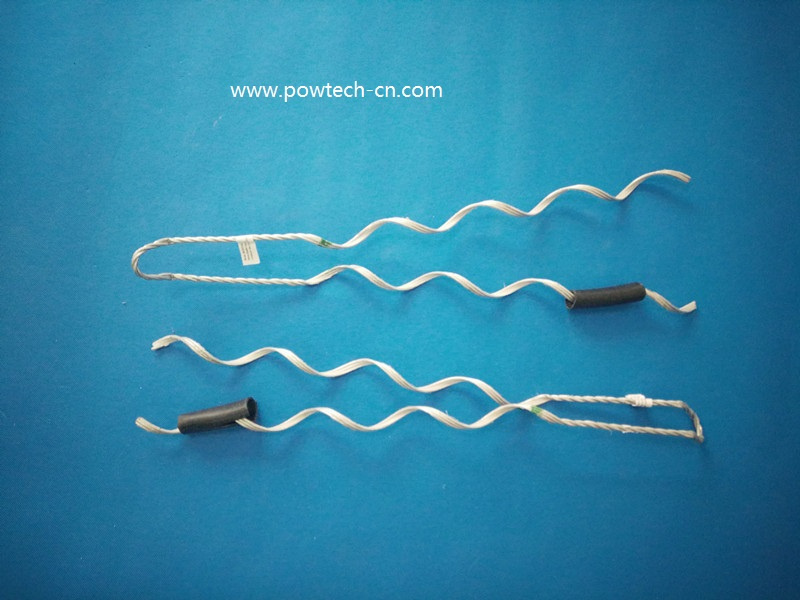

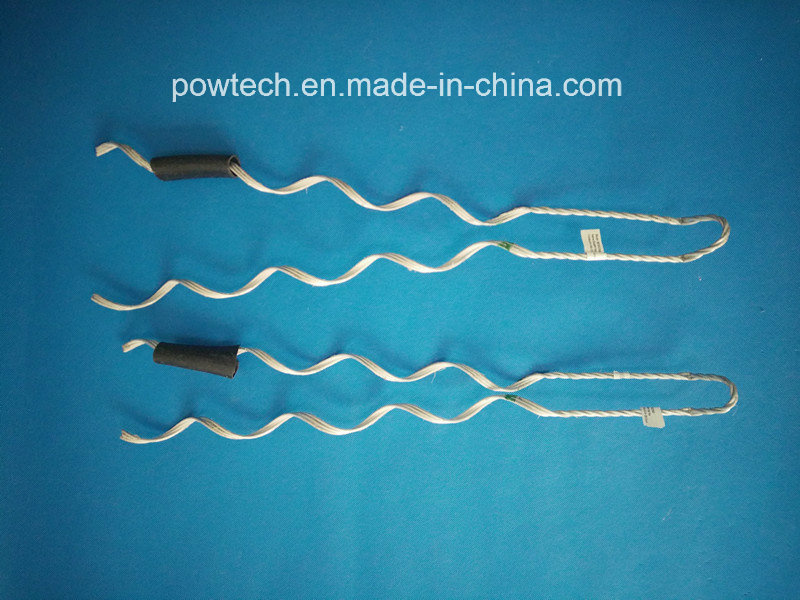

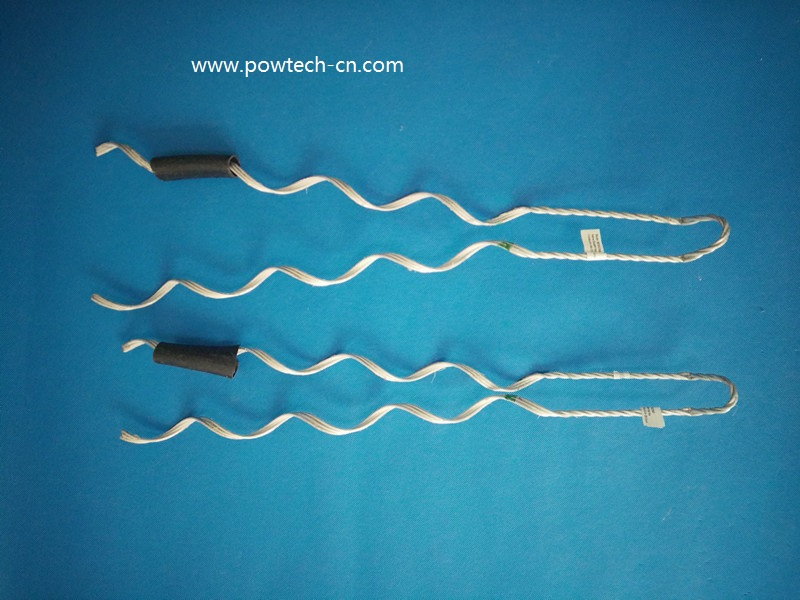

Preformed Insulator Double Top Ties/ Distribution Guy Grips
The preformed Insulator Tie is used for insulated conductor with the Insulators.
Description:It is made of galvanized steel wire with PVC coating, the material have good characters in tensile strength and impact strength.
Features:Easy installation and no special tools needed.
It is compatible with other hardware.

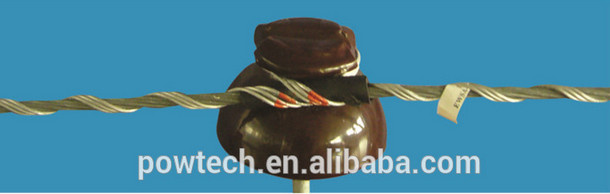

Helical insulator distribution tie,suitable for bare conductor and insulated wire used cooperatively with P-10 type pin insulators(neck diameterØ74)
Technical Data Sheet:| Model | Applicable diameter of conductor(mm) | Product parameters | Applicable international wire |
| Color code | Number in each group | LJ | Ordinary insulation 10KV | Thinner insulation 10KV |
| DDB-74-5460 | 4.83 | 5.46 | Blue | 2 | 16 | | 10 |
| DDB-74-6200 | 5.47 | 6.20 | Brown | 2 | | | 16 |
| DDB-74-7040 | 6.21 | 7.04 | Orange | 2 | 25 | | |
| DDB-74-8000 | 7.05 | 8.00 | Purple | 2 | 35 | | |
| DDB-74-9070 | 8.01 | 9.07 | Red | 2 | 50 | | |
| DDB-74-1029 | 9.08 | 10.29 | Yellow | 2 | | | |
| DDB-74-1166 | 10.3 | 11.66 | Blue | 2 | 70 | | |
| DDB-74-1321 | 11.67 | 13.21 | Orange | 2 | 95 | 10.16 | |
| DDB-74-1494 | 13.22 | 14.94 | Red | 2 | 120 | | 25 |
| DDB-74-1689 | 14.95 | 16.89 | Purple | 2 | 150 | 25,35 | 35,50 |
| DDB-74-1918 | 16.9 | 19.18 | Brown | 2 | 185,210 | 50 | 70 |
| DDB-74-2179 | 19.2 | 21.79 | Red | 2 | 240 | 70,95 | 95,120 |
| DDB-74-2459 | 21.82 | 24.59 | Blue | 2 | 300 | 120,150 | 150,185 |
| DDB-74-2784 | 24.61 | 27.84 | Green | 2 | 400 | 185 | 240 |
| DDB-74-3150 | 27.85 | 31.50 | Yellow | 2 | | | |
If any requirement,Please feel free to get in touch with us asap.
