Product Description

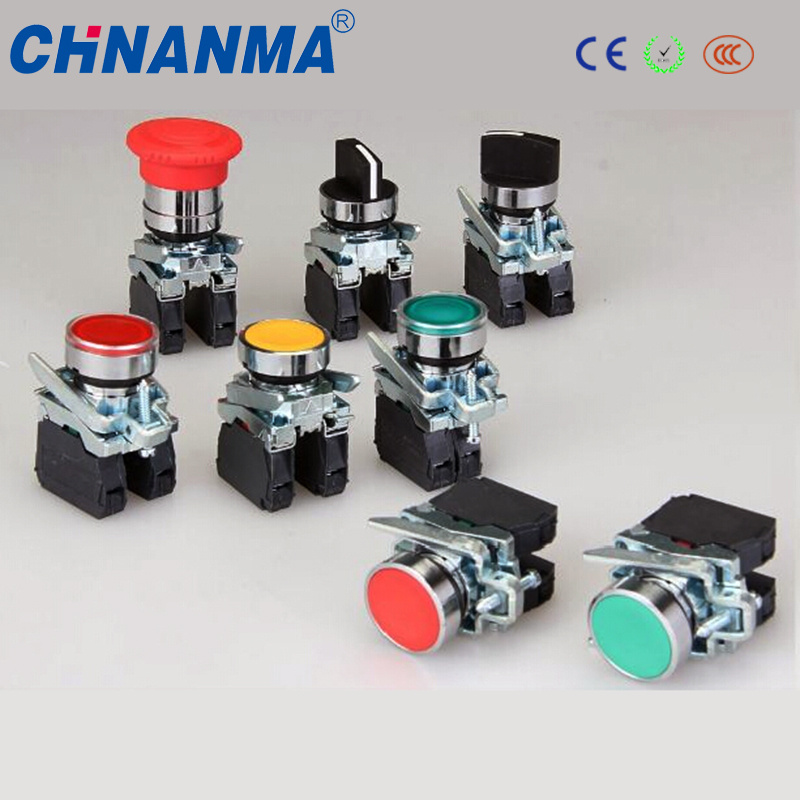

Emergency stop push button switch
Mounting Hole Size: Φ 22mm
Contact Configuration: 1NO1NC
Operation Type: Latching
Protection Degree: IP40, ( IP65 Can be made to order )
Packing details:
We pack each diameter 22mm plastic push button switches packed into a small box separately. Then will put 10 small boxes into a 3 layers corrugated inner box with 1 piece of guarantee card. Finally, we packed 50 boxes into a 5 layers corrugated export carton.
Working Temperature | -25°C ~ +55°C No frozen |
| Protection Degree | IP40 |
| Workenvironment humidity | 45-85%RH |
| Contact material | Silver cadmium oxideS ilver plated gold plating thickness |
| Contact resistance | ≤50mΩ |
| Insulation resistance | ≥100mΩ |
| Contact between lamp bead pin | 2000VAC |
| Between same class terminal | 1000VAC |
| Between different electrode terminal | 2000VAC |
| Vibration proof | 50HZ,Amplitude about 1.2mm |
| Impact resistance | Greater than 10g |
| Mechanical Life | 1,000,000 times |
| Electric Life | Above 30,000 times |
| Operating distance | button about3mm |
| Solder heat resistance | Not more than 3 seconds when 230°C |
| Specified value of the switch |
| Rated insulation voltage | AC600V |
| Heating current | 10A |
| Rated current | 24V | 48V | 110V | 220V | 380V | 500V |
| DC | 8A | 4A | 2.2A | 1.1A |
|
|
| PF=0.7AC |
|
| 10A | 6A | 4A | 2A |
Yueqing Nanma Electrical Co., Ltd.and Jiangxi Nanma Electrical Co, Ltd Which a professional R&D and manufacture Micro switch, limit switch, travel swith, sealed switch, waterproof switch, toggle switches and so on Our company was established in 2004. Our ISO 9001-certified factory occupy a total land area of 1000 square meters and house more than 200 employees and two production lines outfitted with advanced production equipment. We have a monthly outup of 10 thousand sets of switch, which are exported to the Southeast Asia, Middle East, European. The market feedback shows that the products may completely substitude for the similar, work force: Our 2 QC auditors ensure all our products passed CE and CCC certifications. Implementing strict quality control in the whole production process, We have 2 R&D personnel with more than five years of experience who can design as customer offered sample to open model. We have 4 trade representatives with more than three years of experoence who are proficient in English. We are sincerely invite you to witness our development and resplendence together! Contact us today.
