Drill Tool Button Bits with High Quality
| Price: |
US $ 4516 |
| Min Order: |
116 |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
All Sizes |
| Shape: |
Spherical,Conical,Ballistic,Crested Chisel,etc. |
| Model No.: |
16 X 28, 16 X 21, 16 X 26, 14 X 22, K034, K032 |
| Drilling Material: |
Coal, Ore, Water Well, Granite, Basalt |
| Delivery Time: |
20-25 Days |
| Grade: |
Yk05, Yk20, Yg8c, Yg10c, Yg11c |
| Raw Material: |
100% |
| Thread: |
R22, R25, R28, R32, R35, R38, T38, T45, T51, St58 |
| Application: |
Mining, Water Well Drilling, Construction |
| ODM/OEM: |
Accepted |
| Features: |
Good Wear Resistance, High Precision |
| Type: |
Button Bits |
Product Description

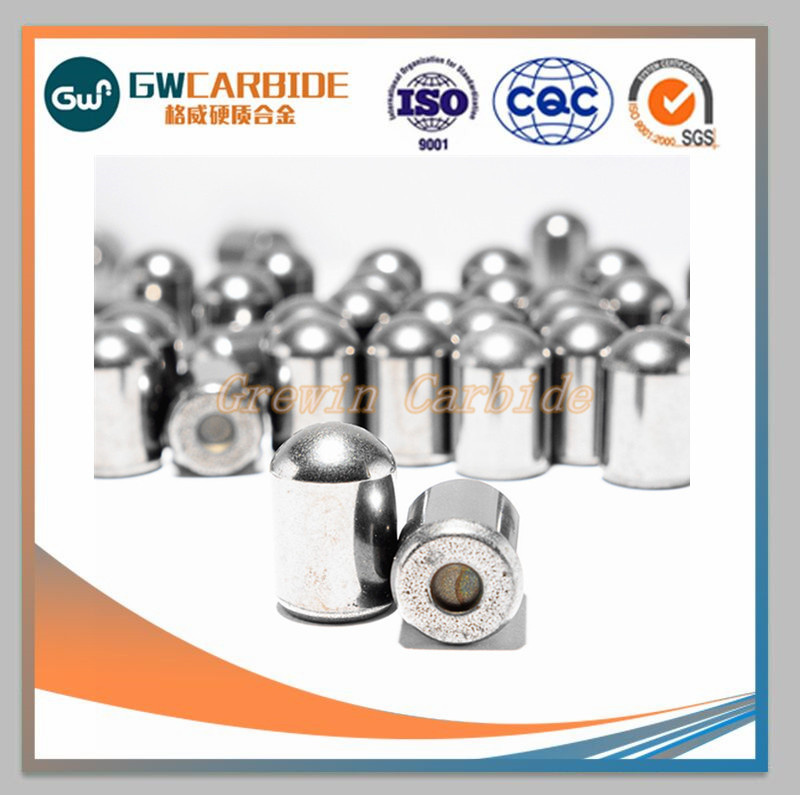

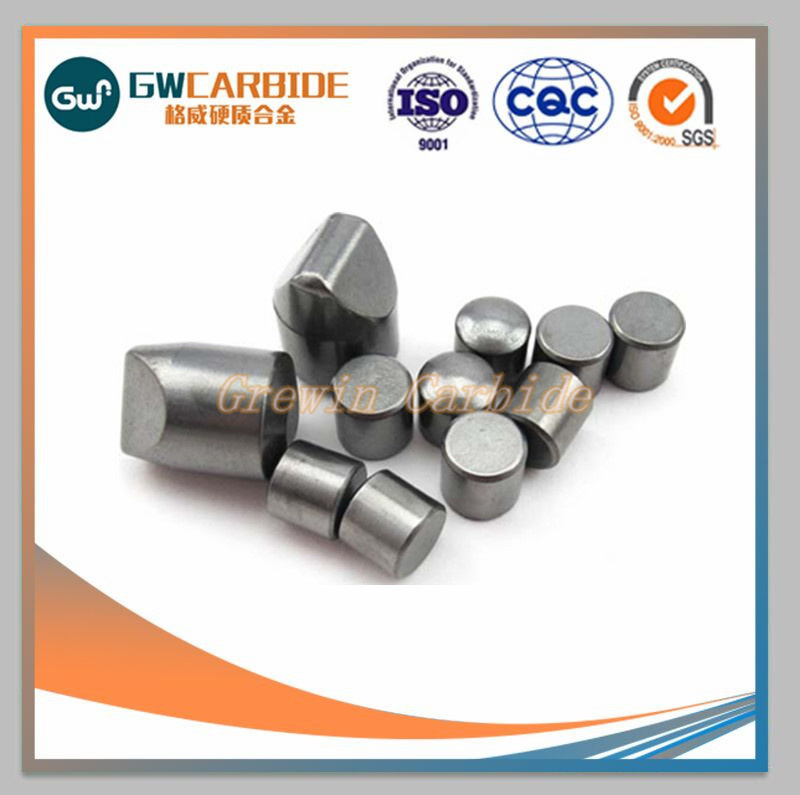

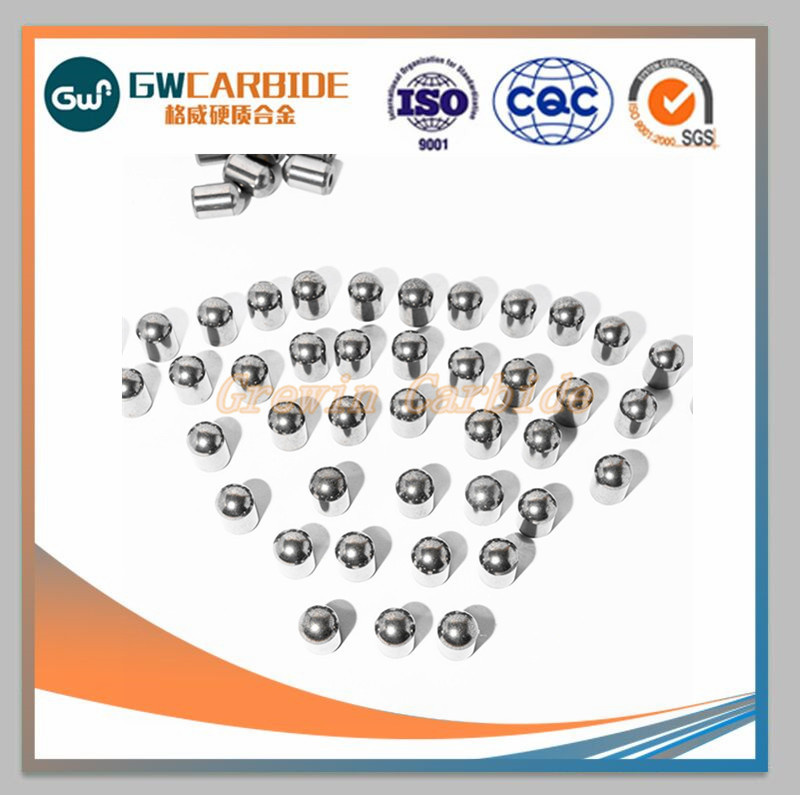

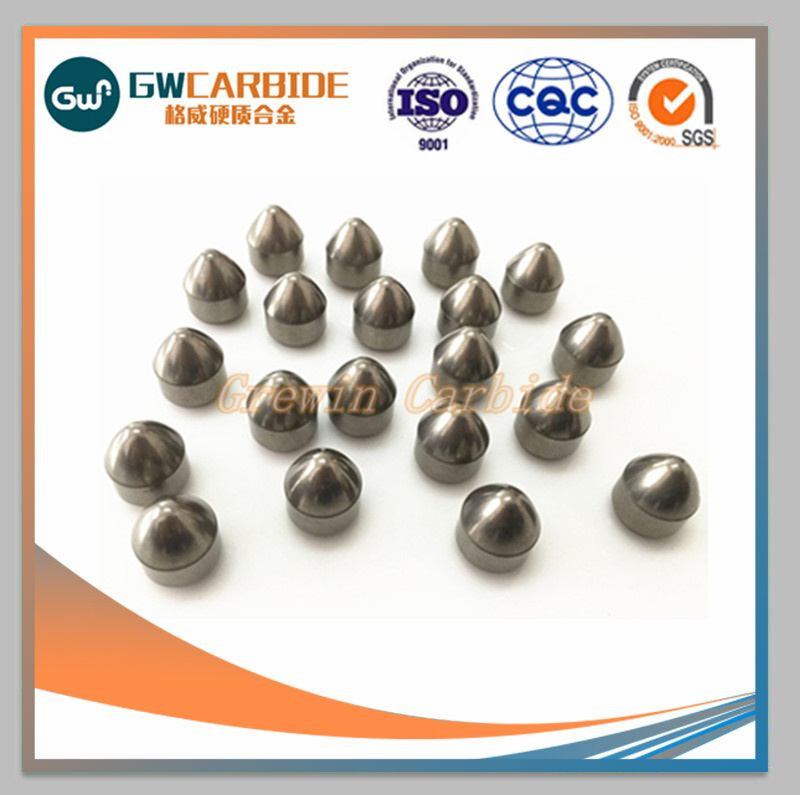

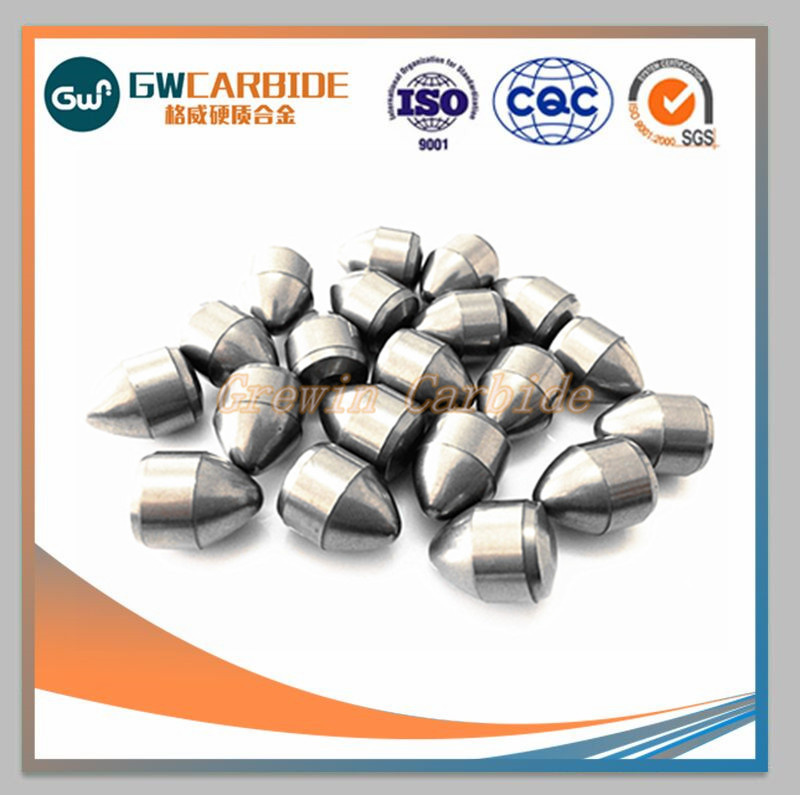

Product DescriptionTungsten carbide buttons are mainly used for high and low pressure DHT drill and hydraulic Screw-in drill and so on.
It is suitable for hot insert or cold pressing bit inserting process, With some of the materials used in the welding process. These products are stable in quality, Excellent in performance, can meet or exceed the domestic advanced level.
We are developing carbide grades use in crushing and recycling industry. Tire, plastic, metals and trashes that needs to break down and recycle. Weariness, toughness and resistance to acidy working environment are essential properties. Specific develop grades working with different crushing materials improves the runtime of your equipment.Shape: Spherical, Conical, Ballistic, Crested Chisel, Wedge Crested Chisel, Scoop Chisel ButtonThread: R22, R25, R28, R32, R35, R38, T38, T45, T51, ST58, T60Diameter: 38-127mm.Before official order, please confirm the information below.(1) Type
(2) Standard or NOT
(3) Bit button shape (tip shape)--Spherical or Ballistic
(4) Bit face shape--Drop Center, Flat Face, Convex, Concave, etc. | Grade |
Density
g/cm3 |
TRS
MPa |
Hardness
HRA |
Performance & application recommended |
YG4C |
15.10 |
1800 |
90.0 |
Mainly used as small buttons for percussion bits to cut soft and medium hard formations. |
YG6 |
14.95 |
1900 |
90.5 |
For coring crowns, electric coal drill bits, coal cutting picks, oil cone bits and scraping knife bits, used in geological prospecting, coal mining and oil well boring. |
YG8 |
14.80 |
2200 |
89.5 |
For coring crowns, electric coal drill bits, coal cutting picks, oil cone bits and scraping knife bits, used in geological prospecting, coal mining and oil well boring. |
YK05 |
14.95 |
2500 |
90.5 |
Mostly used as the buttons of small and medium sized percussion bits and as the inserts of rotary prospecting bits to cut soft and medium hard formations. |
YG8C |
14.80 |
2400 |
88.5 |
YK15 |
14.60 |
2450 |
87.6 |
Suitable to strips, conical buttons for rotary percussion-resistant, geological prospection buttons, cut soft and medium hard formations. |
YK20 |
14.40 |
2500 |
86.8 |
Primarily for the buttons and inserts of rotary percussion bits to cut medium-hard and hard formations. |
YK25 |
14.40 |
2550 |
87.2 |
Primarily for the buttons and inserts of rotary percussion bits to cut medium-hard and very hard formations. |
YG11C |
14.40 |
2700 |
86.5 |
Largely for the inserts and buttons of percussion bits and tricone bits to cut medium-hard, hard, and very hard formations. |
YG13C |
14.2 |
2850 |
86.0 |
Primarily for the buttons of tricone bits and inserts of rotary percussion bits to cut hard and very hard formations. |
YG15C |
14.0 |
3000 |
85.5 |
For oil cone drill bits, for medium soft and medium-hard rocks. |
Our ServicesMore than 2000 products are available. Assembly line production, high standard and strict requirements.
OEM Services Offered
Customized Tools Offered
Free laser marking on tools and boxes Offered
Fast delivery time and Convenient Transportations.We have discount on shipping cost from our courier companies, such as FEDEX,DHL,TNT, UPS etc.Company IntroductionZhuzhou Grewin Tungsten Carbide Tools Co., Ltd is located in hometown of Chinese carbide industry - Zhuzhou city. The company has more than 20 years' experience in manufacture, design and sale of various kinds of carbide products, main products include: carbide end mills, carbide rods, indexable inserts, brazed inserts, wire drawing dies, forging dies, wood working tools, saw tips, mining buttons, etc
With excellent quality, strong technical support, and good after sales service, Grewin Carbide brand products are sold to more than 50 countries in the world, such as Europe, USA, south east Asia, middle east, south America, etc.
The company is dedicated to " WE GROW, WE WIN". Grewin Carbide is growing up with the World's carbide technology, to meet the demand of our customers from all over the world.
