Elevator Two-in-One Light Curtain
| Price: |
US $ 90/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
10/Set |
| Pay Type: |
L/C,T/T |
| Prod Model: |
WECO-917/957F |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
2.1*0.09*0.09mm |
| Output: |
DC24 |
| Gw: |
7kgs |
| Type: |
Mining lamp |
| Material: |
Alloy |
| Light Source: |
Fluorescent |
| Certification: |
CCC |
| IP Rating: |
IP65 |
Product Description

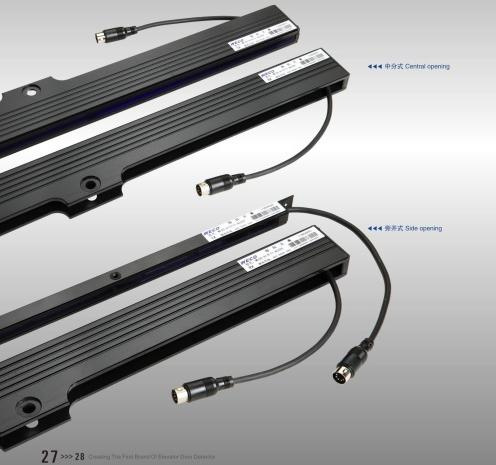

Product Name: Two-in-one Light Curtain
Model No.: 917/957F
Place of Origin: Zhejiang, China (Mainland)
Brand Name: WECO
| Technical Features |
| Items | 917F6 | 917F7 | 957F6 | 957F7 | 957F8 | 957F9 |
| Response time | replay output 45ms | replay output 61ms | replay output 36ms | replay output 57ms | replay output 65ms | replay output 95ms |
| transistor output 21ms | transistor output 37ms | transistor output 12ms | transistor output 33ms | transistor output 41ms | transistor output 72ms |
| Number of infra diodes | 17 Diode sets | 32 Diode sets | 17 Diode sets | 32 Diode sets | 40 Diode sets | 48 Diode sets |
| Scanning beams | 94-33 beams | 128-94 beams | 94-33 beams | 154-94 beams | 194-118 beams | 234-142 beams |
| Detecting height | 20-1840 mm | 20-1870mm | 20-1900mm |
| Infra red diodes range | 117.5 mm | 58.8 mm | 117.5 mm | 58.8 mm | 47.5 mm | 40.0 mm |
| Redundancy | None | Same to 957F7 | None | One transmitter shielded after 120s detected absent |
| Power consumption | ≤ 4 w or 100mA/DC24 v |
| Operating temperature | ' -20º C+65 º C |
| Tolerance | vertical> 10mm/10° Horizontal> 5mm/7° |
| Light immunity | ≤ 100000Lux |
| EMC(En12015)(En12016) | EFT | Passed level 2 tests D (± 1kv ) | Passed level 4 tests D (± 4kv ) |
| Surge | D(± 2.5kv line to ground, ± 1kv line to line ) |
| ESD | A(Air discharge± 15kv Direct discharge ± 6kv) |
| Radio-frequency | D(10V rms, 150kHz-80MHz, 80%, 1kHz Amp. Mod., 1%, 3s ) |
| Radiated-immuity | D(30 V/m, 80MHz-1.96GHz, 80%) |
| Vibration | Vibration 20 to 500Hz 4hrs per X-Y-Z axis, sinusoidal vibration 30 mins per X-Y-Z axis |
| Detecting range | 0-3m |
| Protection level | IP54(TX, RX), IP31(Power box) |
| Voice reminder | Buzzer in RX, after continuous detection for 15s, buzzer ON. |
