Full Height Beams Sensor Safety Light Curtain Without Channel, Best Sell in Tukey
| Price: |
US $ 70/Piece |
| Trade Terms: |
others |
| Min Order: |
10/Piece |
| Pay Type: |
T/T |
| Prod Model: |
WECO-917L61 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
2.1*0.09*0.09mm |
| Output: |
DC24 |
| Gw: |
3.8kgs |
| Type: |
Portable Lamp |
| IP Rating: |
IP65 |
| Light Source: |
LED |
| Material: |
Aluminum |
| Certification: |
CCC |
Product Description

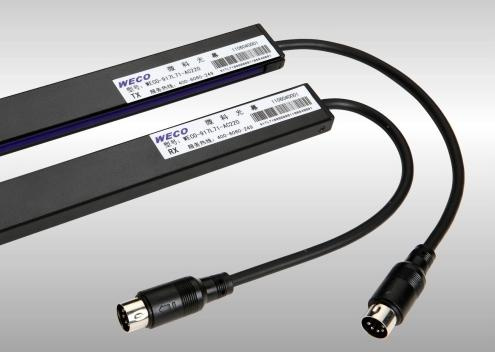

Product Name: Safety Light Curtain
Model No.: 917/957L
Place of Origin: Zhejiang, China (Mainland)
Brand Name: WECO
| Technical Features | | | | | |
| Items | 917L6 | 917L7 | 957L6 | 957L7 | 957L8 | 957L9 |
| Response time | replay output 45ms | replay output 61ms | replay output 36ms | replay output 57ms | replay output 65ms | replay output 95ms |
| transistor output 21ms | transistor output 37ms | transistor output 12ms | transistor output 33ms | transistor output 41ms | transistor output 72ms |
| Number of infra diodes | 17 Diode sets | 32 Diode sets | 17 Diode sets | 32 Diode sets | 40 Diode sets | 48 Diode sets |
| Scanning beams | 94-33 beams | 128-94 beams | 94-33 beams | 154-94 beams | 194-118 beams | 234-142 beams |
| Detecting height | 20-1840 mm | 20-1870mm | 20-1900mm |
| Infra red diodes range | 117.5 mm | 58.8 mm | 117.5 mm | 58.8 mm | 47.5 mm | 40.0 mm |
| Redundancy | None | Same to 957L7 | None | One transmitter shielded after 120s detected absent |
| Power consumption | ≤ 4 w or 100mA/DC24 v |
| Operating temperature | ' -20º C- +65 º C |
| Tolerance | vertical> 10mm/10° Horizontal> 5mm/7° |
| Light immunity | ≤ 100000Lux |
| EMC(En12015)(En12016) | EFT | Passed level 2 tests D (± 1kv ) | Passed level 4 tests D (± 4kv ) |
| Surge | D(± 2.5kv line to ground, ± 1kv line to line ) |
| ESD | A(Air discharge± 15kv Direct discharge ± 6kv) |
| Radio-frequency | D(10V rms, 150kHz-80MHz, 80%, 1kHz Amp. Mod., 1%, 3s ) |
| Radiated-immuity | D(30 V/m, 80MHz-1.96GHz, 80%) |
| Vibration | Vibration 20 to 500Hz 4hrs per X-Y-Z axis, sinusoidal vibration 30 mins per X-Y-Z axis |
| Detecting range | 0-3m |
| Protection level | IP54(TX, RX), IP31(Power box) |
| Voice reminder | Buzzer in RX, after continuous detection for 15s, buzzer ON. |
Ningbo Weco Optoelectronics Co., Ltd. was founded in 2004 with registered capital of 22 million HK dollars and is a wholly owned foreign enterprise owned by FULL SENSE INVESTMENTS LIMITED. Lt is part of the international WECO group of companies. NINGBO WECO ELECTRON-OPTICAL Co., Ltd. is located in the Ningbo economic & tech developing zone and occupies an area of 6000 square meters with over 100 employees specializing in the development and production of "WECO" brand door detectors, with an annual production capacity of 300, 000 sets.
WECO sold more than 150, 000 sets of door detectors in 2009. WECO is the largest door detector manufacturer in Asia. WECO cares stongly about the environment and has obtained ISO9901 Quality Management System, ISO14001 Environment control system, as well as GB/T28001 occupation health and safety control system.
WECO door detectors have been certified to European CE Certification and North Amerrican CSA Certification. WECO company put to use ERP and 6s management system. WECO's in-house R&D conceptualize and develop products, totally owning the intellectual property rights and have two patents pending. WECO has obtained 4 patents for practical new products and 4 new software registrations to date. In 2008, WECO was awarded the prize of "State advanced and innovative tech enterprise".
WECO has in-house advanced SMT production line, a LCT on line tester, a AOL tester, along with high-low temperature tester, aging facilities and test banks, an EMC lab and life cycle lab(including atmospheric equipment). WECO products have been sold to more than 100 elevator factories in China. WECO's sales offices in China are located in Beijing, Guangzhou, Shanghai, Chongqing, Wuhan, Jinan and Shengyang. Our European Union office was established in lrelang in 2004 and our North American office in Cananda in 2005. In 2006 we established WECO France in Nice and in 2007 we opened a EU distribu tibution facility in Barcelona, Spain. In 2008 we established WECO India. In the US WECO have five regional distributors in Toronto, New York, Miami, San Francisco and Chicago. WECO door detectors are sold in more than 40 countries abroad with distributor in lreland, Germany, France, the United Kingdom, Poland, Hungary, Slovenia, Croatia, Spain, Turkey, India, Canada, Taiwan, Korea, Venezuela, Russia and the USA.
