EVA MACHINE
Product description
1. Extra large design of die holder can produce 4 pairs/ station in the same time, which increases the productivity a lot.
2.The error between two molds can be automatic compensated
3.The injection oil hydraulic system adopts the proportional flow, pressure control valve
4.The injection part controlled by 5-stage PID can achieve fast temperature setting and steadily insure the high quality of finished products
5.It adopts the function of auto diagnosis and maintains to operate the monitor system, and insure that you can know the machine's working condition well.
6.This Machine is controlled by the touch screen PLC, which is full-automatic saving much labor work. Meanwhile, with servo system it can save more than 40% electric consumption.
Technical Parameter
| Technical Terms | UNIT | HM-128-6 |
| Screw Diameter | MM | 60 |
| Heating plate dimension | MM | 290*550*2 |
| Temperature control | point | 4 |
| Heating of barrel | KW | 14 |
| QTY Of injection gun | piece | 2 |
| Screw Rotation Speed | rpm | 0-260 |
| clamping force | Ton | 170-200 |
| Work station | station | 6 |
| Motor | KW | 18.5X2 |
| Total electricity | KW | 143 |
| Space for mould | MM | 450x260x650 |
| Machine Dimension | M | 7x4.5x2.73 |
| Machine Weight | TON | 26 |
| ABOVE PARAMETER IS ONLY FOR STANDARD MACHINE |
For EVA Machine we have exported to the following countries:
1.Argentina
2.Uganda
3.Korea
4.Sudan
5.Burundi
For EVA footwear production process need the followings equipment:
1.vertical color mixer
2.cooling water tower
3.air compressor
4.conveyer
5.raw material
6.mould

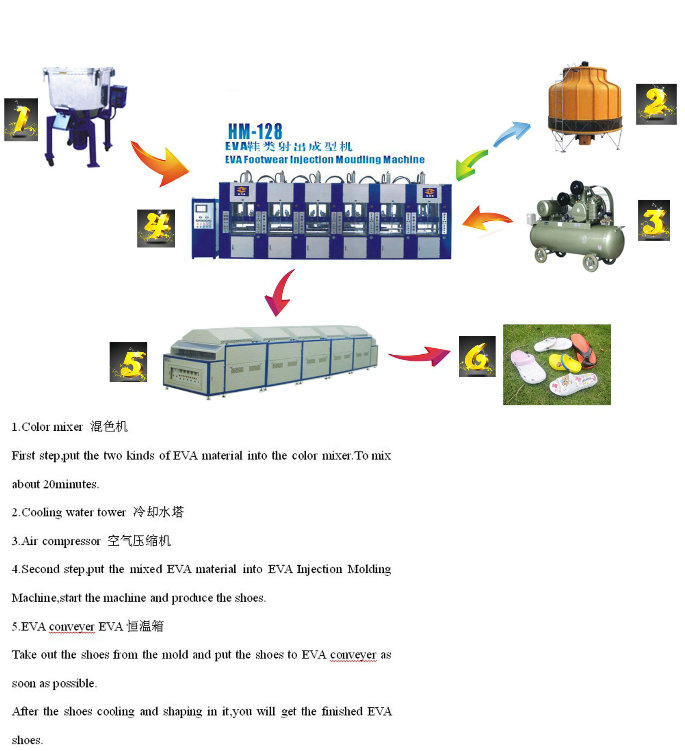

EVA Injection Moulding Machine Production Process1.1st step,put the two kinds of EVA material into the color mixer,to mix about 20 minutes.2.cooling water tower including pump3.air compressor including gas tank4.2nd step,put the mixed EVA material into EVA injection moulding machine,start the machine and produce the shoes5.take out the shoes from the mould and put the shoes to EVA conveyer as soon as possible.after the shoes cooling and shaping in it,you will get the finished EVA shoes.
Our Company
Funded in 2007 in the famous shoe-making hometown-Liaobu Town Dongguan City,Dongguan Honking Machinery Equipment CO.,LTD .
is specialized in manufacturing and selling mechanical equipment for shoes making machine and related equipment.
Since its foundation,Honking has stressed on management and product quality.Featuring high quality and stable performance,
the products have passed the authentication of international "CE" safety organization.
They have become best seller in the domestic market and have been sold to Southeast Asia and Europe,etc.
Branch offices are established on the various footwear production bases in China.
Welcome the friends from all over the world to visit our company and meet our people!
Our Certificate:CE
Our Overseas Sale Team
We have a strong professional team with various experiences.
We are always ready to shulder the responsibility if any caused to our customer due to our mistakes.
Our Trade Shows:
FAQ
Q1:Are you trading company or manufacturer?
We are manufacturer of shoes machine and related equipment.
Q2. Do you have quality certificate?
Yes we have CE, SGS etc.
Q3. What's the delivery time?
Around 20~30days after we receiving your deposit payment.
however,it base on the order
Q4. What about your machine warranty?
Our machine warranty is 1 year (from the installation date)for all machine parts.
Exception:consumable machine parts such as screw,motor and ect.Damage caused by mis-operation
Q5. What's payment terms ,trade terms you accept ?
Usually we accept T/T 30% deposit , then 70% balance is paid before shipment ,we usually offer FOB SHENZHEN price
but we also accept other way like L/C ,and do CFR&CIF etc.
Q6. Does it easy to operate and what can i do if it doesn't work?
First ,our machine is stable and easy to operate,and we will arrange our engineer to install your machine
and train your workers to operate the machine.Also we will send you manual and video.
If there is something goes wrong,you can call us,video-chat,email us.
And we will give solutions within 36 hrs.
Q7. If the machine's spare parts broken ,where can i get ?
We will give you the spare parts which is vulnerable along with the shipment,
we have Q/C department to control the quality. When the machine is finished, we will make sure it's work well.
our quality is good ,in case it broken within one year ,we will sent you for free.
Welcome to visit our factory!
My contact information:
| Contact Name | Betty Yu |
| Mob | +86 15813109893 |
If you show interested in about this machine,please be free to contact with me.
Honking machinery is a professional manufacturer of shoes injection machine located in Dongguan. China since 2006.
Our major products:
1. Vertical TPU. TR. TPR. PVC soles injection machine
2. Plastic PVC air blowing slippers and crystal shoes machine
3. Rotary 1.2.3 color TPU. TR. TPR. PVC soles machine
4. PVC jelly slippers injection machine
5. EVA garden shoes injection machine
6. Rain boots injection machine
7. Rubber soles making machine
8. Related auxiliary equipment. Mold and material
We have exported our products to Africa, Southeast Asia, South Asia and South America. We believe that our success depends on your satisfaction with our products. We always adhere to the principle of "quality first, customer supreme" and provide pre and after-sales services for our customers. Our team of experienced engineers strives to continuously improve our technology from hardware design to machine components to make them the most durable and reliable in the marketplace. Our shoes machines are thoroughly tested, both in the design and throughout the entire production process.
