Company Information:
HONKING Machinery Equipment Co., Ltd. Is a premier manufacturer of shoes making machine and related equipments. Our factory is located in Dongguan, China which is called as "World Factory" and "Shoes Capital of Asia". We focus on the innovation, research and make of shoe making machine, and also work hard to solve various kinds of injection technology. We have machine for all kinds of material which have different type and hardness, such as TPR, PVC, TPU, TR, EVA, PU, RUBBER and so on. Our professional products are as followed: 1. PVC shoes air blowing machine (1/2 color) 2. PVC jelly shoes injection moulding machine (1/2/3 color) 3. Rain boots injection moulding machine(1/2 color) 4. Rotary TPR/PVC/TPU/TR outsole injection moulding machine (1/2/3 color) 5. Vertical TPR/PVC/TPU/TR injection moulding machine (1/2 color) 6. EVA shoes injection moulding machine (1/2 color) 7. RUBBER injection moulding machine 8. Silicone injection moulding machine 9. PU injection moulding machine 10. PVC upper injection moulding machine (1/2/3 color) We have been working well exporting to Europe, Africa, Asia, South America, Middle East, Russia, Turkey and so on. We believe that our success depends on your satisfaction with our products. We always adhere to the principle of "Quality First, Customer Supreme" and providing our best sales services for our customers. Our team of experienced engineers strives to continuously improve our technologies-----from hardware design to machine components making them the most durable and reliable in the marketplace. Our shoes machines are thoroughly tested, both in the design and throughout the entire production process.
Product Description:

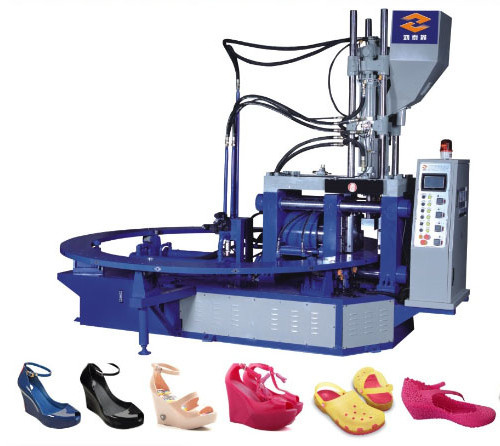

- This machine adopts the newest and special horizontal clamping device,it supply strong clamping force and make sure the quality is perfect.
- It is suitable to produce crystal shoes,jelly shoes and short-height rain boots in PVC/TPU/TR.
- The oil and electric circuits is controlled individually.
- The injection volume of each station can be setted individually.
Specification: | Technical Terms | UNIT | HM-588L |
| Screw diameter | mm | 55 |
| Max. Injection volume | cm3 | 550 |
| Heating bands power | kw | 7 |
| Temperature control | point | 4 |
| Screw rotation speed | r.p.m. | 0 - 200 |
| Max. Injection stroke | mm | 210 |
| Motor | hp | 25 |
| Clamping force | tons | 120 |
| Work stations | stations | 16 |
| Space for mold | mm(L*W*H) | 420 x 300 x 160 |
| Machine dimension | mm(L*W*H) | 3500x 3150 x 2700 |
| Installation dimension | mm(L*W*H) | 7000 x 3500 x 3000 |
| Machine weight | kg | 7500 |
FAQ:
1.WHY CHOOSE HONKING ?
Hongking Shoes Making Machinery have established for 10 YEARS . Our engineers strive to improve our technology continuously .
2.What is the delivery time ?
The machine will be finished in 30 days for general . But if you have any special requests , it will cost longer .
3.How about if I know nothing with the machine or I am a stranger in this filed ?
Don't worried about it ! After the machine arrived in you company , our engineer will go and install for our customer until the machine work normally .
4.Are you a manufacturer or trading company ?
We are a manufacturer .All machines are manufactured by ourselves . We have customzation service according to your requirment .
5.How can you garantee that we will get a good quality machine ?
We have QC department which is strict with the quality of machine . When the machine is finished, we will send you the video about machine-testing . And producing some soles as samples . Also you are welcome to our company for quality-checking .
6.What about the warranty of the machine ?
Our machine has a one year warranty . All parts can be replaced for free with one year not including man-made .
7.What approval/certificate do you have for machines ?
We have CE, SGS, CO, etc.
Any confusion or inquiry, Please feel free to contact us by clicking "Contact Now"
Honking machinery is a professional manufacturer of shoes injection machine located in Dongguan. China since 2006.
Our major products:
1. Vertical TPU. TR. TPR. PVC soles injection machine
2. Plastic PVC air blowing slippers and crystal shoes machine
3. Rotary 1.2.3 color TPU. TR. TPR. PVC soles machine
4. PVC jelly slippers injection machine
5. EVA garden shoes injection machine
6. Rain boots injection machine
7. Rubber soles making machine
8. Related auxiliary equipment. Mold and material
We have exported our products to Africa, Southeast Asia, South Asia and South America. We believe that our success depends on your satisfaction with our products. We always adhere to the principle of "quality first, customer supreme" and provide pre and after-sales services for our customers. Our team of experienced engineers strives to continuously improve our technology from hardware design to machine components to make them the most durable and reliable in the marketplace. Our shoes machines are thoroughly tested, both in the design and throughout the entire production process.
Please don't hesitate to contact us!
