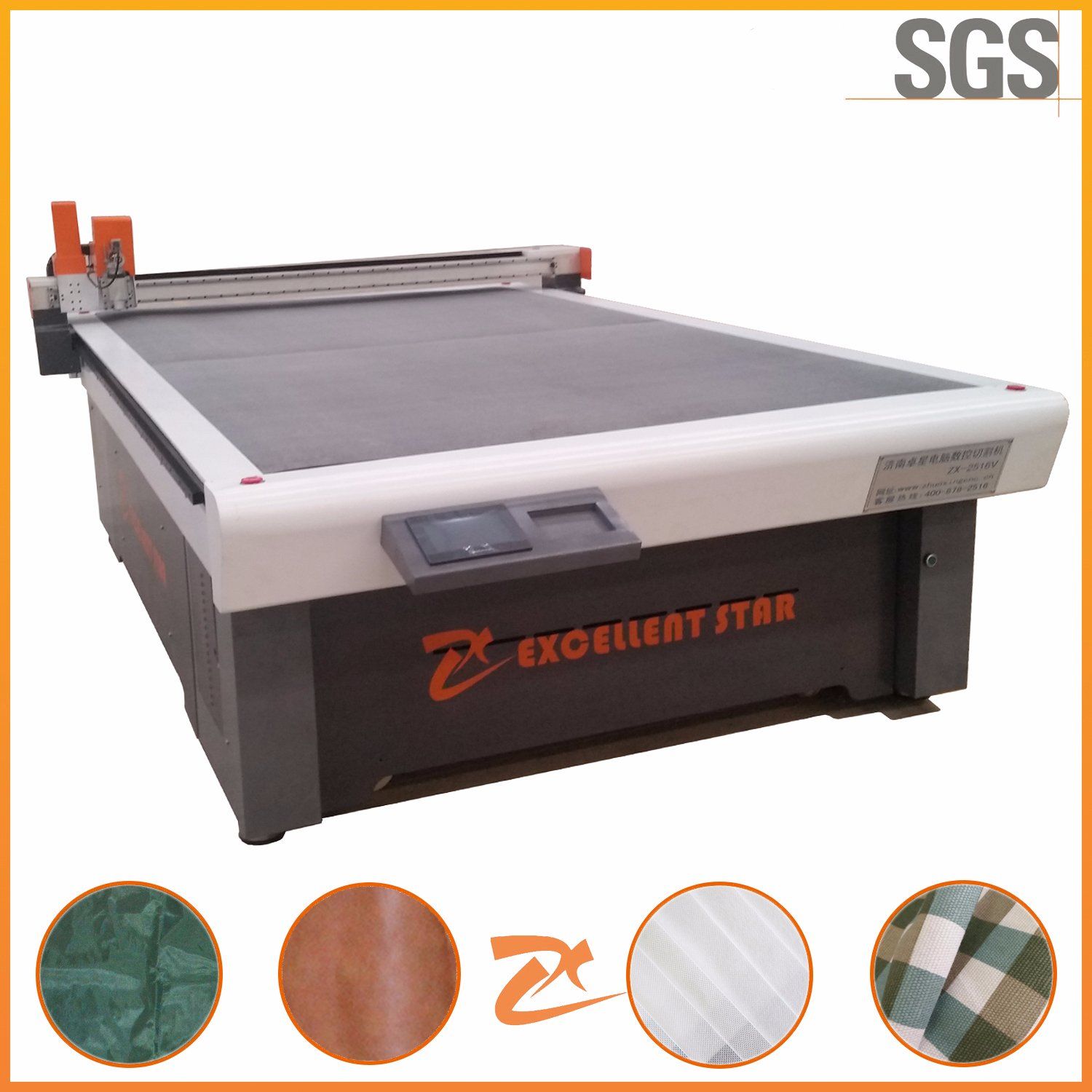

Excellent Star Vibrating Knife Cutting Machine for Apron 2516
| Price: |
US $ 16000-35000set |
| Min Order: |
1set |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Parameter configuration| Model no. | ZX-2516V |
| Working area | 2500×1600mm(L*W) |
| Machine size | 3230x2255x1240mm(L*W*H) |
| Operating characteristic | Can work offline; 24 hours continuous and efficient working |
| Safty device | With infrared sensors, rapid response, safe and reliable |
| Max cutting speed | 1000mm/s |
| Translational velocity | 1200mm/s |
| Applicative material | PE, PVC, PU, fabric, non-woven, flax, canvas, rubber and other flexible materials |
| Cutting extent | Full cut, kiss cut, dot cut |
| Cutting thickness | 0.1-18.0mm(depend on the material) |
| Cutting precision | 0.1-0.3mm(depend on the material) |
| Transmission interface | Ethernet |
| Drive system | Imported Servo motor, imported linear guideway, rack drive |
| Fixed type | Intelligent vacuum adsorption |
| Control panel | Liquid crystal display |
| Standard configuration | vibrating knife cut head, 30 pcs of blade, red light pointing |
| Other optional configuration | hobbing cutting head, V-shaped cutter, angling cutter, half cutter, punching tool, drawing pen, scanner, automatic feeding, MARK camera |
| Working voltage | AC 220V 380V±10%, 50HZ |
| Rated power | 11KW |
Application: apron
Apron always used to keep cleaning, and sometimes to protect.
It's widely used in market, kitchen, hospital, lab, painting, sculpture, factory, construction site and other place like that.
Also it's made of many different materials, like normal of fabric, flax, canvas, some disposable made of non-woven, PE, PVC, and some particular made of PVC, PU, rubber, no matter which kind of flexible materials, our machine could cut very well.

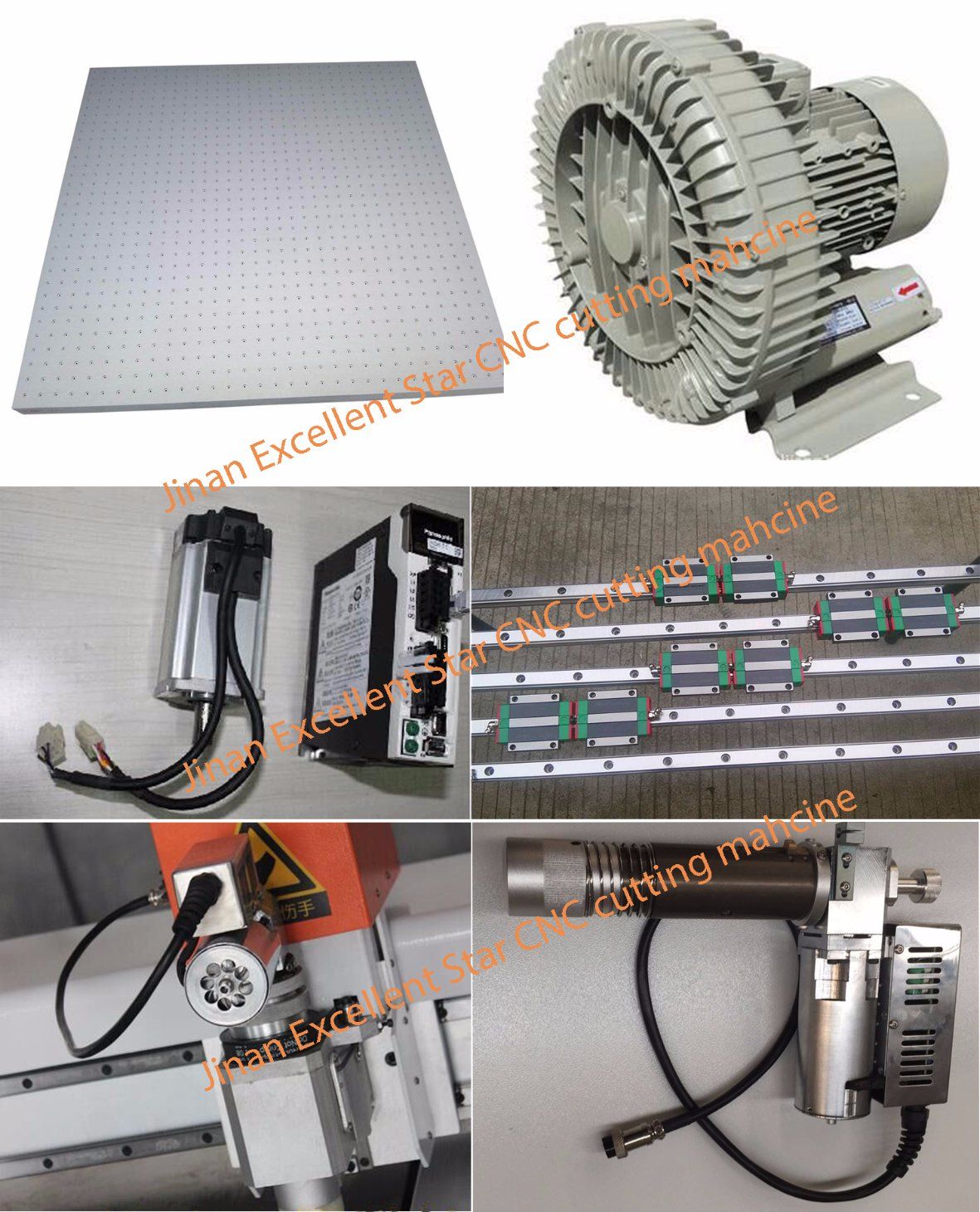

Detail pictures
Our advantage and servise1. We are manufacturer, so we accept customization and support machine design for
your particular request for different purpose or material and etc.
2. We have professional technician, they can help when you need any technological
support.
3. Self-development knife head and purpose made high quality knife realize perfect cutting, and more durable than others.4. With our patented correction system, cutting more exact.
5. We promise to use the best quality component as we alway do, also support
customization.

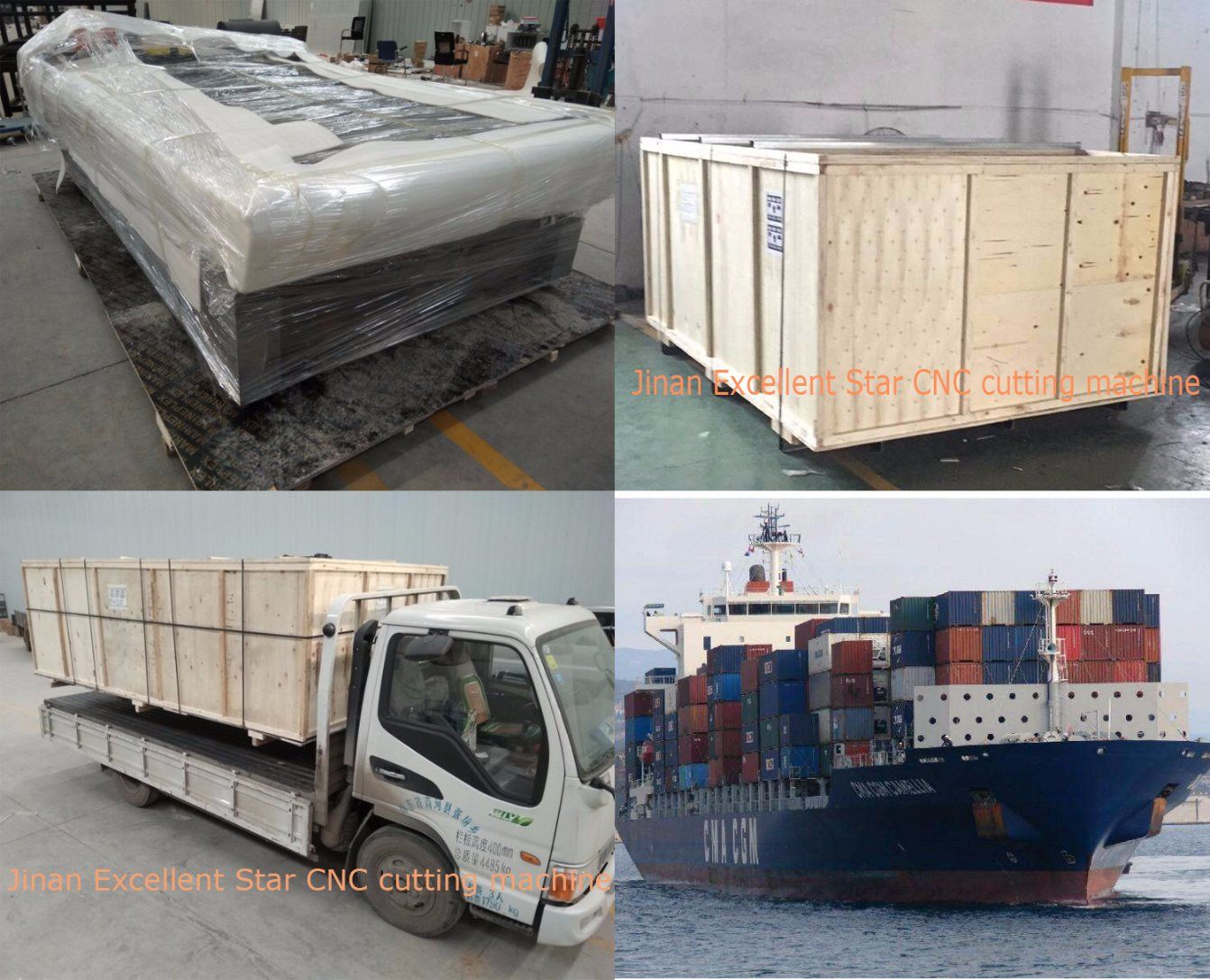

6.One year guarantee, and life-time technological guidance.Package and transportation
Company profileJinan Excellent Star intelligent technology CO.,LTD. is the first company engaged in
independent research, produce, market, and after-sales services of vibrating
cutting machine in north of China.
From develop the first generation digital cutting machine with our own proprietary
intellectual property rights to now the fifth generation, we promote the market
demands, fill the void.
And always keep in the forefront of our industry through unceasing innovation. We promise to offer
the best product for same price,
the best price for same quality.
| Prod Model: |
ZX-2516V |
| Working Area: |
1600*2500mm (W*L) |
| Safety Device: |
Infrared Sensors, Rapid Response,Safe and Reliable |
| Drive System: |
Imported Servo Motor and Linear Guideway |
| Fixed Type: |
Intelligent Vacuum Adsorption |
| Translational Velocity: |
1200mm/S |
| Max Cutting Speed: |
1000mm/S |
| Cutting Thickness: |
0.1-18.0mm(Depend on The Material) |
| Cutting Precision: |
0.1-0.3mm(Depend on The Material) |
| Rated Power: |
11kw |
| Working Voltage: |
AC 220V 380V |
Jinan Zhuoxing Intelligent Technology Co., Ltd. is a key state enterprise specialized in research and development, production, sales and service of CNC cutting equipment for leather industry and industry CAD/CAM system.
From the research and development of the first generation of CNC cutting machine with independent intellectual property rights to the birth of the fifth generation of new cutting machine of ZHUOXING, it has promoted the market demand and made up the industry gap. Through the unceasing innovation and refinement, ZHUOXING always walks in the forefront of the industry, and its products have been exported to Europe, South Korea, India, Malaysia, Vietnam, Hong Kong, Taiwan and other countries and regions, and the global network marketing strategy has been realized.
In the future, ZHUOXING will lead more national enterprises to complete industry upgrade from quantity to quality, trademark to brand, labor-intensive to technological innovative, make more "made in China" into "created in China", help our national enterprises stand in the new highs, and fight for better international market.
We supply different kinds of products. High quality and favorable price. We stick to the principle of " Quality first, service first, continuous improvement and innovation to meet the customers" For the management and " Zero defect, zero complaints" As the quality objective.
