| Prod Model: |
1000*1000 mm |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
Carbon Steel |
| Thickness: |
2mm |
| Certificate: |
China Patent |
| Weight: |
2.5 ~ 20 Kgs |
Product Description
Products Feature:

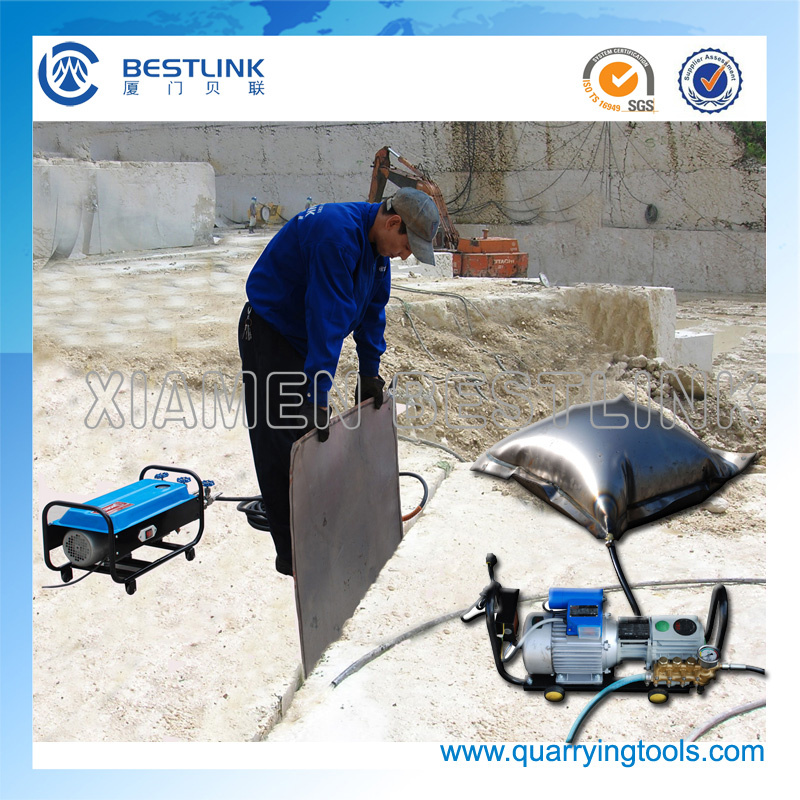

The steel cushion Hydro Bag is widely used in the marble and stone quarrying industry, specially for stripping blocks from the mountain. The revolutionary aspect of the HYDRO BAG equipment lies basically in the possibility of stripping blocks up to 1000 tons or more, without the need to prepare slots to house the jacks since the HYDRO BAG has an original thickness of just 2 mm (0.08") and can be easily slipped into the wire saw cut.
A complete HYDRO BAG equipment consists of:
1. Electric or pneumatic pump unit to create the pressure for the cushions;
2. Safety valves and distribution valves;
3. Pipes, cocks and inlet filters;
4. Quick couplings;
5. A series of HYDRO BAG cushions.
Package for the quarry stone Hydro bag:
This Quarry Stone Pushing Tools Steel Hydro Bag will be packing into the wooden case, if the qty is enough.
If you only need a few qty, those hydro bags will be packaged with a steel packing belt.
| Specification | Theoretical Pushing Capacity | Net weight (kg) |
| 50*50cm | 75 tons | 2.5 kgs |
| 100*50cm | 150 tons | 5.0 kgs |
| 100*100cm | 300 tons | 10.0 kgs |
| 100*200cm | 600 tons | 20.0 kgs |
| 150*150cm | 675 tons | 22.5 kgs |
Pump Unit:
| Item | Power | Specification | Weight |
| High Pressure Water Pump | Electric | 2 phase, 220V/50Hz | 25.0 kgs |
| High Pressure Water Pump | Pneumatic | air consumption 2 cbm/min, 5-7 bar | 25.0 kgs |
