Price: | US $ 8000-9500/Set |
---|---|
Trade Terms: | FOB,CFR,CIF |
Min Order: | 1/Set |
Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
Power consumption:49.34KW;

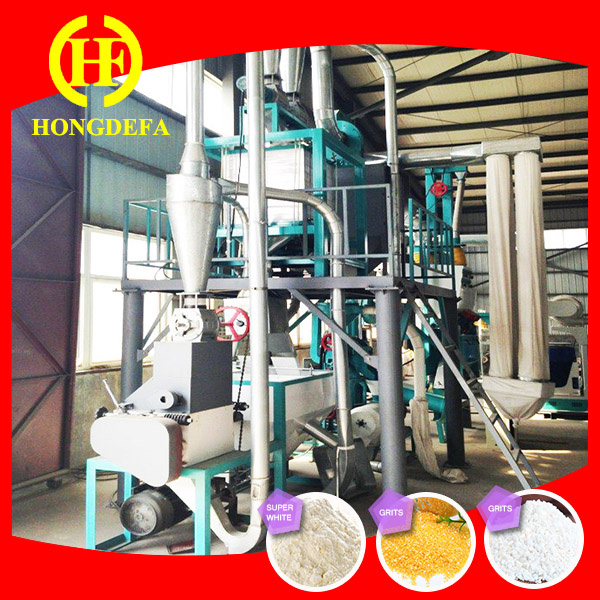

Main equipments Factory Price Maize Mill Maize Milling Machine:

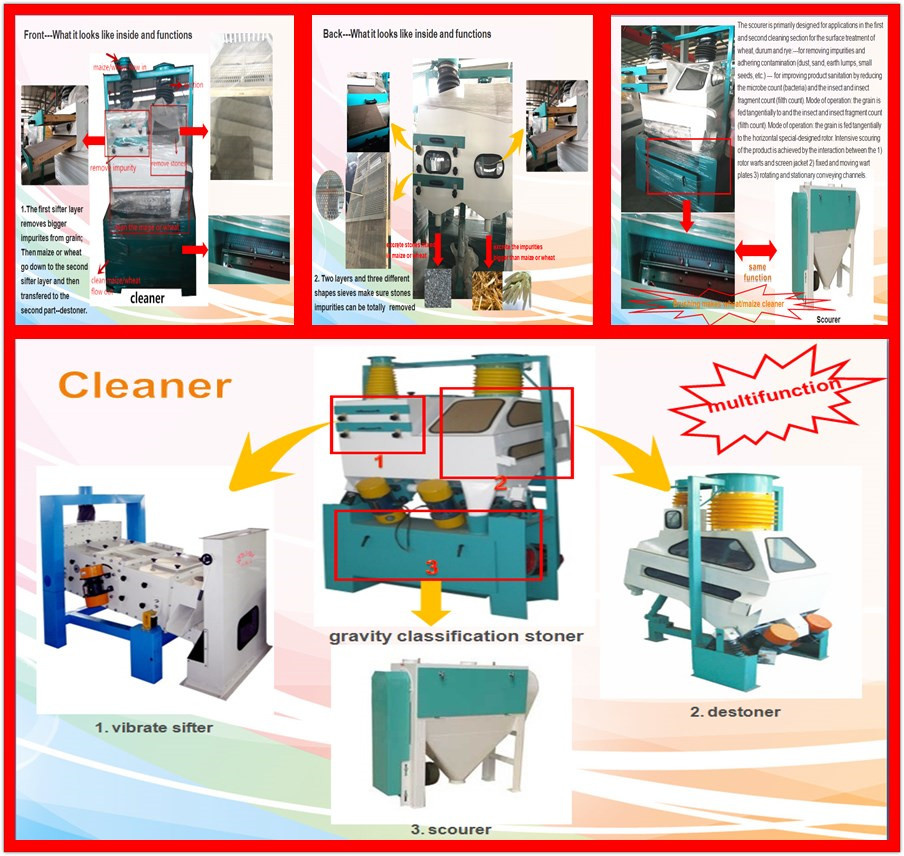

1.Cleaner in 10T maize mill
The maize flow through feeding entrance into the first part to get large impurity removed.
Then maize go through first part to the second part to get stones removed.
There are three different kinds of sieves inside this part to make sure the stones removed cleanly.
Then maize flow into the third part to get brushed.Finally clean maize flow out of the cleaner.

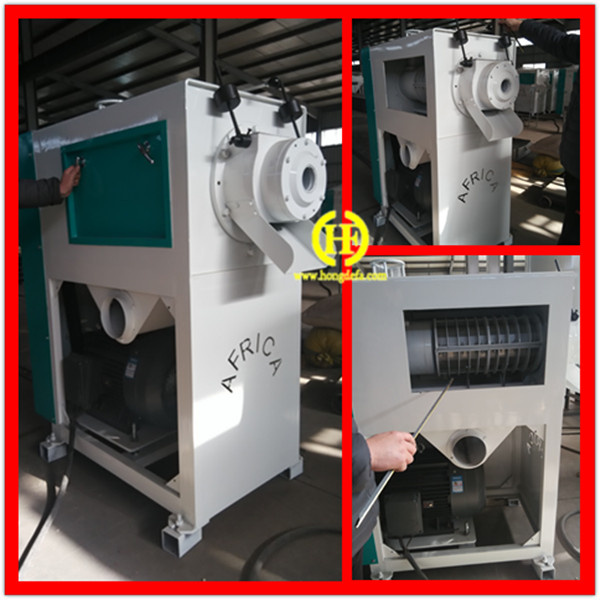

2.Degerminator in 10T maize mill
Degerminator is designed to scrub the bran skin from the maize kernel and to dislodge the germ from its cavity, with the minimum reduction in size of the broken fragments.
Our degerminator is designed based on Japan technology.It can process maize/ corn into maize grits.

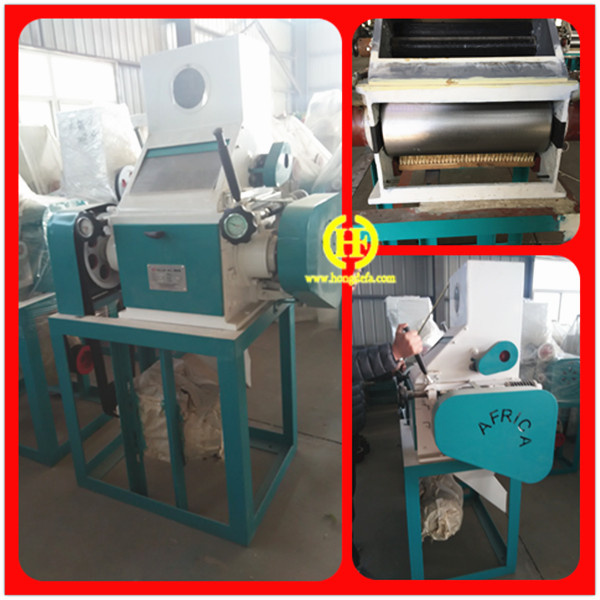

3.Single roller mill in 10T maize mill
Roller mill is the main equipment of flour mill line.Depending on a pair of grinding rollers, which have differences in speed and rotate oppositely, maize endosperm is peeled from bran coat and rolled into flour via squeezing, cutting, peeling and scraping.
Type | Roller size (MM) | Roller mill size (MM) | Power (KW) | Weight (KG) |
6F2235 | Ø220x350 | 950x750x1580 | 4.0-11 | 520 |
6F2240 | Ø220x400 | 1000x750x1580 | 5.5-11 | 550 |
6F2250 | Ø220x500 | 1100x750x1620 | 7.5-15 | 630 |
6F2260 | Ø220x600 | 1200x750x1650 | 7.5-15 | 680 |
6F2540 | Ø250x400 | 1040x790x1680 | 5.5-11 | 650 |
6F2550 | Ø250x500 | 1140x790x1680 | 5.5-15 | 720 |
6F2560 | Ø250x600 | 1240x790x1680 | 7.5-15 | 780 |
4.Sifter in 10T maize mill
High efficiency sifting, mix-proof to get crediblerun, a perfect classification machine, and also used for flour checking or less stock cleassifying, siftering in large size flour factory.
What is the final products of our maize mill?
Our maize mills can produce super fine flour, super white corn meal, roller meal, breakfast meal, maize grits, fine maize flour, corn meal and bran.
You can make posho meal, ugali, sadza, fufu, nshima, kenkey, koko, etc.
Pls let us know which final product you want, we will design the suitbale machine for it.
Shijiazhuang Hongdefa Machinery Co.,LTd is a professional manufacture of wheat flour mill and maize mill.
We provide high quality machine from 5 to 500 ton per day with different design according to our client needs, with European technology,South Africa maize process, China wheat process, roll out unique and innovative wheat flour mill and maize mill plant.
The head office of Shijiazhuang Hongdefa Machinery Co.,Ltd is located 4hours driving from Beijing.
Shijiazhuang Hongdefa Machinery have more than 30 years experience in maize mill market.

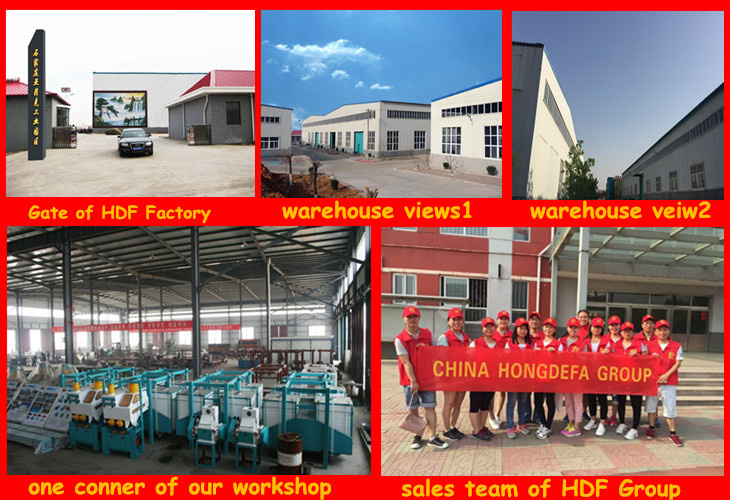

This is Hongdefa factory for manufacturing Factory Price Maize Mill Maize Milling Machine.
Where we have installed the Factory Price Maize Mill Maize Milling Machine?
Capacity | Countries | Year |
5ton/24h, 10ton/24h,20tons/24h 30t/24h maize mill | Zimbabwe | 2009,2012,2015 |
Ethiopia | 2015 | |
Congo | 2010 | |
Cameroon | 2010 | |
Kenya | 2014,2015 | |
Zambia | 2011,2012,2013,2014,2015 | |
RD Congo | 20112014, | |
Uganda | 2011,2014,2015, | |
Angola | 2011,2014 | |
50-80tons/24h maize mill | Malawi | 2009,2013 |
Kenya | 2010,2013,2014,2015 | |
RD Congo | 2010,2014,2015 | |
Zimbabwe | 2010,2015 | |
Argentina | 2010 | |
Venezuela | 2010 | |
Zambia | 2010,2013,2014,2015 | |
Uganda | 2011,2014,2015 | |
Ethiopia | 2015 | |
100tons/24h maize mill | South Africa | 2010,2014 |
Venezuela | 2010 | |
150Ton/24h maize mill | Zambia | 2013 |
Zambia | 2015 | |
Kenya | 2014 | |
Benin | 2009 | |
200ton/24h maize mill | Brazil | 2010 |
Egypt | 2013 | |
240ton/24h maize mill | Angola | 2016 |
300ton/24h maize mill | Afghanistan | 2014 |
500Ton/24h maize mill | South africa | 2012,2013,2014 |
Ethiopia | 2007 |
Luna
+86 15131196347
www.maizewheatmill.org/index.php/maquina-de-molienda-de-maiz
After-sale service is available.
Prod Model: | 5t 10t 20t 30t 50t 100t 150t 200t 300t 500t |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
After-Sales Service Provide: | Engineer Available to Service Machinery Overseas |
Capacity: | 10 Ton Per Day |
Certification: | ISO9001 |
Size: | Accordingly for Factory Price Maize Mill Maize Mil |
Warranty: | One Year |
Market: | Mainly in Africa |
Branch Offices: | South Africa, Zambia, Uganda |
Brand Name: | Hongdefa |
Material: | Steel Structure |
Processing Type: | Factory Price Maize Mill Maize Milling Machine |
Type: | Flour Mill |
Application: | Corn Maize |
Voltage: | 380V |
Appearance: | Horizontal |
Press Series: | Fourth |
Condition: | New |
Customized: | Customized |
Press Materials: | Maize Corn |
