Price: | US $ 100000-200000/Piece |
---|---|
Trade Terms: | FOB,CFR,CIF |
Min Order: | 1/Piece |
Pay Type: | L/C,T/T,D/P,Western Union,Paypal |

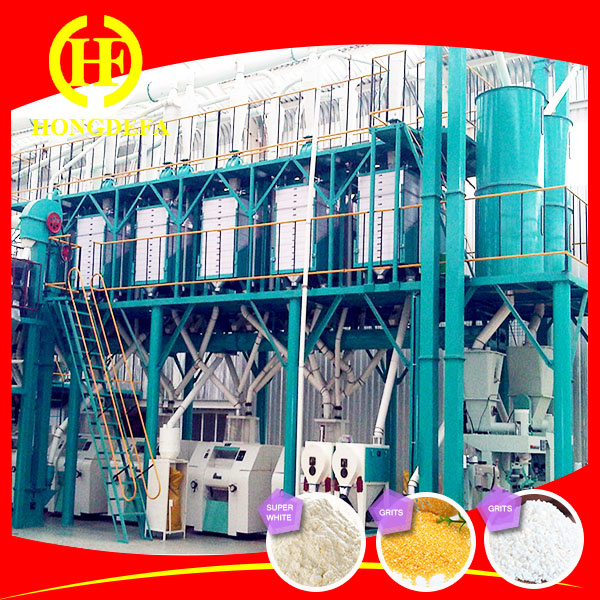

Use auto-filter to control the dust in the workshop, the whole workshop is very cleaning. Hongdefa supply the whole processing machine and also the plantform and support. The buyer just need to prepare the building.
What is the specifications of Professional Processing Maize Flour Mill?
1. Input maize --cleaner--maize moisture dampener --degerminator--roller mill--plansifter--super maize meal/special maize meal/maize grits,corn flour--packing
2.The control system: Control panel control or PLC control
3.Pipes in milling section are stainless steel
4.auto-roller mill and plansifter
5.Japan Degerminator technology
6.European Condition dampener
Main features of Professional Processing Maize Flour Mill
1. Automatic complte line including cleaning, degerminating, milling, packing and controlling systems.
2. Complete function including clean corn, peel corn, and grind corn into corn flour and corn grits.
3. Clean corn to remove stone, metal, sand and all sorts of impurities.
4. Peel corn to remove corn skin, remove corn germ, remove black corn hilum. After cleaning and peeling, it prepares best corn material for further processing into corn flour or grits.
5. One line array up, low maintenance cost.

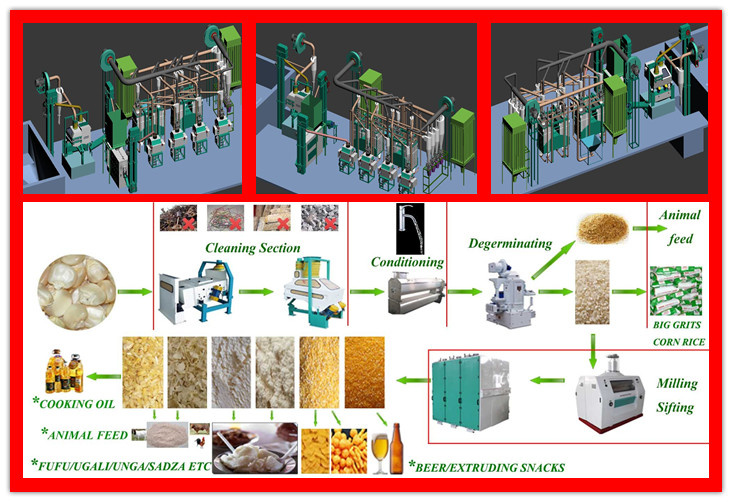

This is the technical flow of Professional Processing Maize Flour Mill
Main euqipments of Professional Processing Maize Flour Mill
1. Cleaner of Professional Processing Maize Flour Mill
The maize flow into the first sieve surface through feeding entrance. Inside this surface, large impurity on the upper sieve is discharged to the hopper.
The maize through first sieve surface to the second sieve surface for continual filter.
The small impurity is discharged on the soleplate straightly, the clean stock on the upper sieve surface come to the discharging hopper through the suction road.

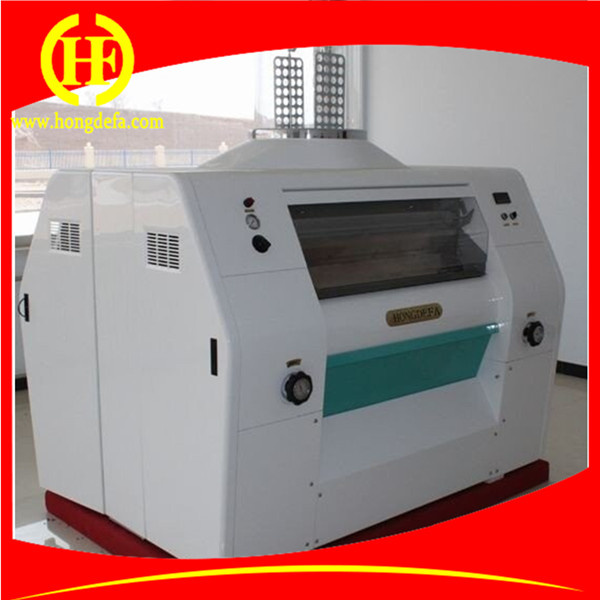

2. Pneumatic Roller mill of Professional Processing Maize Flour Mill
The roller mill is the main equipment of flour mill line. Depending on a pair of grinding rollers, which have differences in speed and rotate oppositely, wheat or maize endosperm is peeled from bran coat and rolled into flour via squeezing, cutting, peeling and scraping.
3. Sifter of Professional Processing Maize Flour Mill
High efficiency sifting, mix-proof to get crediblerun, a perfect classification machine, and also used for flour checking or less stock classifying, siftering in large size flour factory.
4. Controlling system of Professional Processing Maize Flour Mill
1) Two Mode: Auto Mode & Manual Mode
2) Data setting by English
3) Real-time data display screen -- Process status monitoring screen
4) Giving Alarm
5) Showing Production Detailed Report

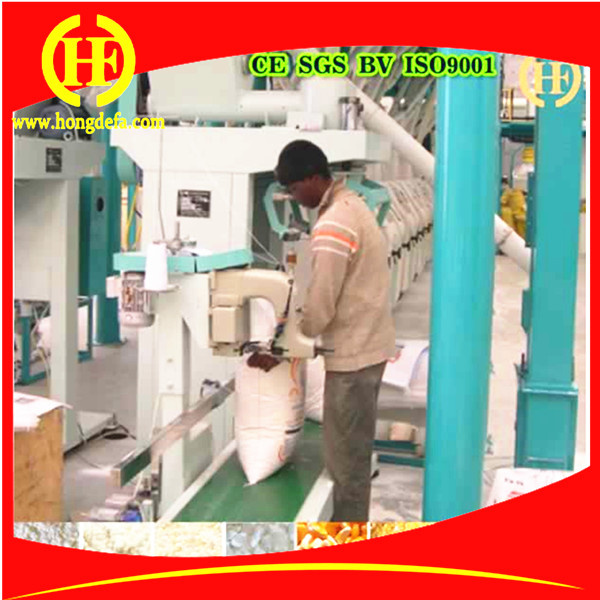

5. Auto-weight and packing machine of Professional Processing Maize Flour Mill
Packing maize grits, maize flour, mazie bran, etc
Struction: e-measurement technology, realized automatically fill, automatically detect weight, automatically measure the number of bags. It has different packing weight: 10-25kg, 25-50kg.
What is the final products of Professional Processing Maize Flour Mill?
Our maize milling machines can produce super fine flour, super white corn meal, roller meal, breakfast meal, maize grits, fine maize flour, corn meal and bran.
You can make posho meal, ugali, sadza, fufu, etc.
pls let us know which final product you want, we will design the suitbale machine for it.
We have so many flour milling mahcines overseas, especially in Africa. Our engineers are experienced and professional. They are capable to guide local workers install the machine well. And they will responsible for commissioning and teaching local workers how to operate the machine.
Q1. Does the maize mill line can produce different kind of maize meal,maize flour same time? |
Yes,the maize mill line can produce size maize meal or maize flour at same time at one production line |
Q2. Does the maize mill line can running with Generator? |
Yes,the maize mill line can running with Generator |
Q3. Does the maize meal packing machine can pack different bags? |
Yes,the packing machine can pack 1kg-5kg;5kg-20kg,12.5kg-25kg,50kg |
Q4. Does the maize mill line can processing maize and wheat same time? |
No,it is because the maize and wheat Physical Characteristics is different,like the shape,the hardness,all are different,and the final product flour size is also different. The cleaner,the roller millparameter,the plansifter sieve all are different.As professional manufacture for maize meal or flour,cannot processing maize and wheat same time. |
Shijiazhuang Hongdefa Machinery Co.,LTd is a professional manufacture of wheat flour mill and Professional Processing Maize Flour Mill
We provide high quality machine from 5 to 500 ton per day with different design according to our client needs, with European technology,South Africa maize process, China wheat process, roll out unique and innovative wheat flour mill and maize mill plant.
The head office of Shijiazhuang Hongdefa Machinery Co.,Ltd is located 4hours driving from Beijing.
Shijiazhuang Hongdefa Machinery have more than 30 years experience in milling market.

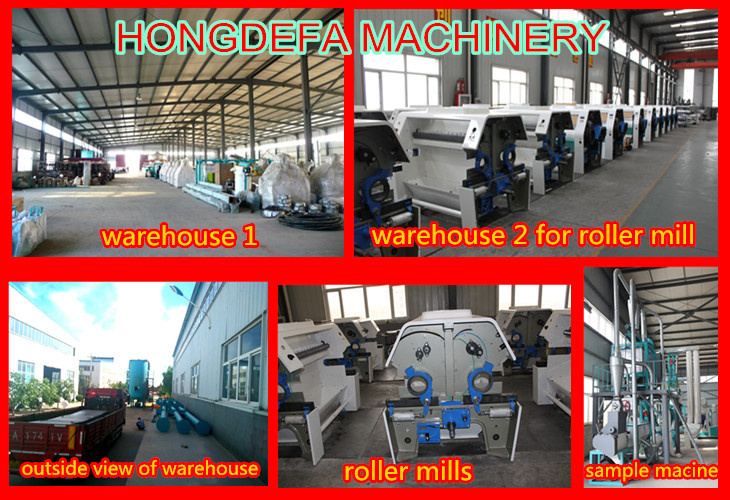

This is Hongdefa factory for manufacturing maize/corn/wheat flour milling machines.
Where we have installed the Professional Processing Maize Flour Mill?
Capacity | Countries | Year |
5ton/24h, 10ton/24h,20tons/24h 30t/24h flour mill | Zimbabwe | 2009,2012,2015 |
Ethiopia | 2015 | |
Congo | 2010 | |
Cameroon | 2010 | |
Kenya | 2014,2015 | |
Zambia | 2011,2012,2013,2014,2015 | |
RD Congo | 20112014, | |
Uganda | 2011,2014,2015, | |
Angola | 2011,2014 | |
50-80tons/24h flour mill | Malawi | 2009,2013 |
Kenya | 2010,2013,2014,2015 | |
RD Congo | 2010,2014,2015 | |
Zimbabwe | 2010,2015 | |
Argentina | 2010 | |
Venezuela | 2010 | |
Zambia | 2010,2013,2014,2015 | |
Uganda | 2011,2014,2015 | |
Ethiopia | 2015 | |
100tons/24h flour mill | South Africa | 2010,2014 |
Venezuela | 2010 | |
150Ton/24h flour mill | Zambia | 2013 |
Zambia | 2015 | |
Kenya | 2014 | |
Benin | 2009 | |
200ton/24h flour mill | Brazil | 2010 |
Egypt | 2013 | |
240ton/24h flour mill | Angola | 2016 |
300ton/24h flour mill | Afghanistan | 2014 |
500Ton/24h flour mill | South africa | 2012,2013,2014 |
Ethiopia | 2007 |
Contact Information
We are 24 hours available.
If you are interested in this Professional Processing Maize Flour Mill, Please contact us freely:
Luna Du
Website:www.maizewheatmill.org
Shijiazhuang Hongdefa Machinery Co.,Ltd
Prod Model: | HDF |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Processing Type: | Professional Processing Maize Flour Mill |
After-Sales Service Provide: | Engineer Available to Service Maize Flour Mill |
Branch: | Zambia South Africa Congo |
Capacity: | 100 Ton Per Day Maize Flour Mill |
Certification: | ISO9001 Ce SGS BV |
Color: | as Your Demand |
Market: | Mainly in Africa for Processing Maize Mill |
Power: | 380V 50Hz |
Quality: | First Class |
Warranty: | One Year for Spare Parts |
Type: | Flour Mill |
Application: | Maize Corn |
Voltage: | 380V |
Appearance: | Horizontal |
Press Materials: | Corn |
Press Series: | Fifth |
Condition: | New |
Customized: | Customized |
