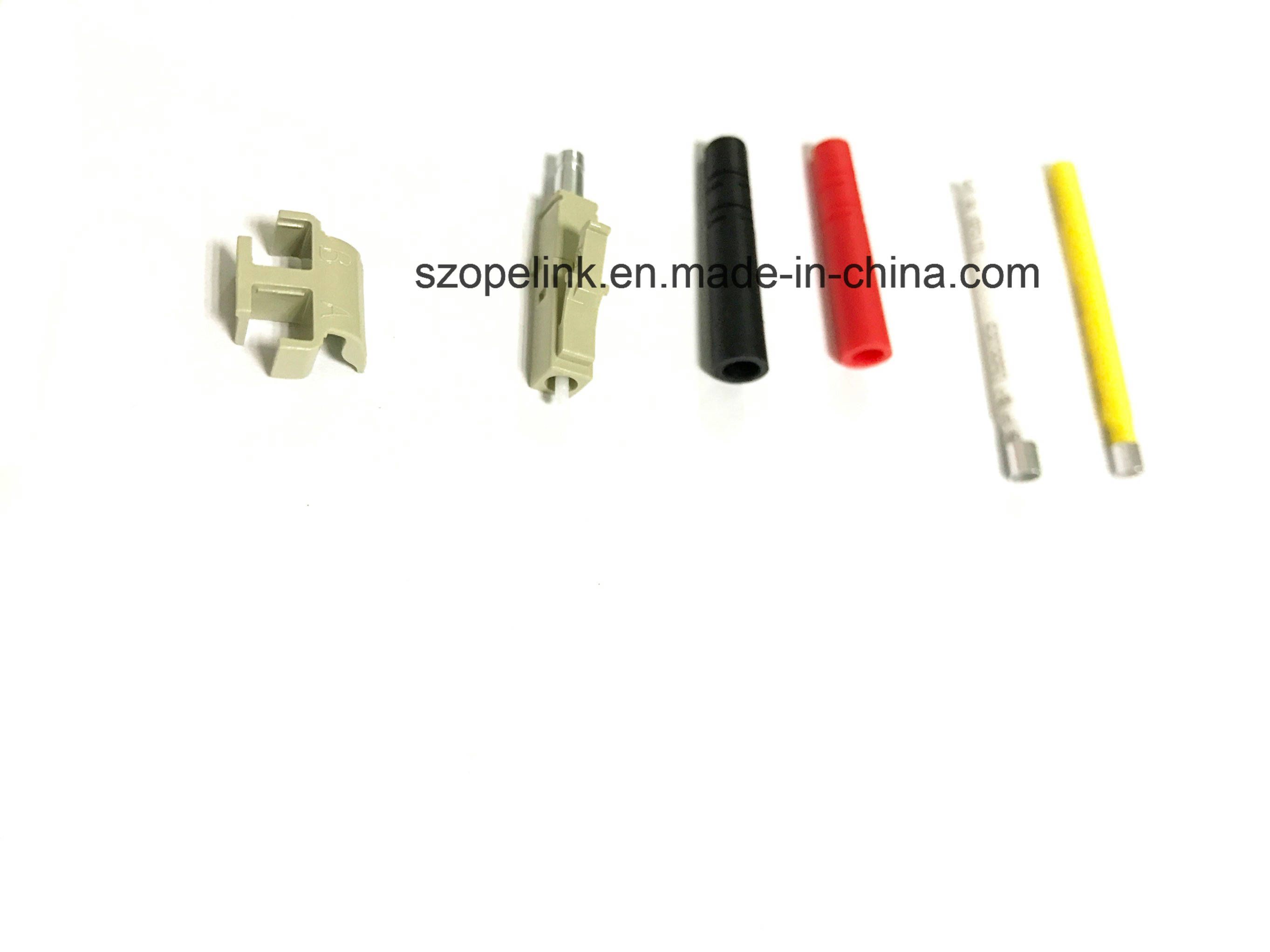

Fiber Optic patch cord Connector LC-PC, B&R Boot
Application: 1. Local Area Network (LAN)
2.Data communication network3.Telecommunication optical transmission network Features:Low insertion lossMeets Telecordia-GR-326-CORE specifications Ultra low back reflection Fixed key and activity key can be selectedFor 3.0mm, 2.0mm jacket or 900um buffer
Specifications: | | | | LC/SC/FCST/MTRJ/MPO | |
| | | | | | |
| Parameter | Unit | | SM | | MM |
| | | | | | |
| | | PC | UPC | APC | PC |
| | | | | | |
| Insertion Loss | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 |
| | | | | | |
| Return Loss | dB | ≥45 | ≥50 | ≥60 | ≥30 |
| | | | | | |
| Exchangeability | dB | | | ≤0.2 | |
| | | | | | |
| Repetability | dB | | | ≤0.2 | |
| | | | | | |
| Durability | time | | | ≥1000 | |
| | | | | | |
| Operating Temperature | ºC | | | -40~75 | |
| | | | | | |
| Storage Temperature | ºC | | | -40~85 | |
| | | | | | |

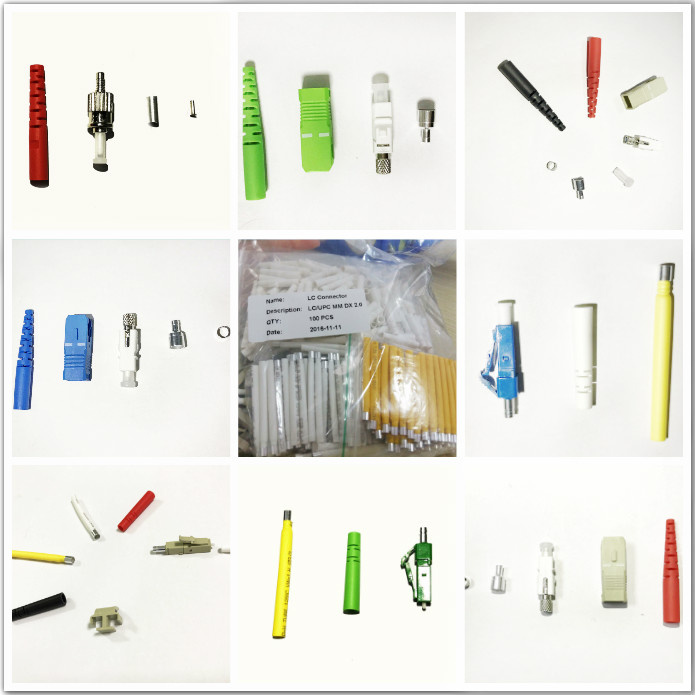

Other Types of Connector
----------------------------------------------------FAQ--------------------------------------------------------- Q1. Can I have a sample order for this product? What' MOQ of it?A: Yes welcome send sample order for test. MOQ is 1 piece. Q2. What about the lead time?A:Sample needs 3-5 days, mass production time needs 1-2 weeks. Q3: What' s the payment termA: We usually use TT(Telegram Transfer) in advance, Western Union. Other payment method is negotiable. Q4. How do you ship the goods and how long does it take to arrive?A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional. Q5:
What' s the freight of it? A: It depends on the order quantity. We have some reliable ship forwarders. We will offer cost effective method for you. Q6: Do you offer guarantee for the products?A: Yes, we offer 1-2 years warranty according to different products. Q7:
What action will you take if there are some product problems?A: If there are defective ones in the batch of products, we will offer spare ones for.
OPELINK Technology is a high-tech enterprise with a focus on the design and the production of optical communication and accessories. We are among the industry leaders here in China and we own that to our highly skilled and experienced production staff and engineers. We manufacture a complete selection of premium quality products including fiber optic splitters, optical WDM, fiber optic circulator and many other active optical components.

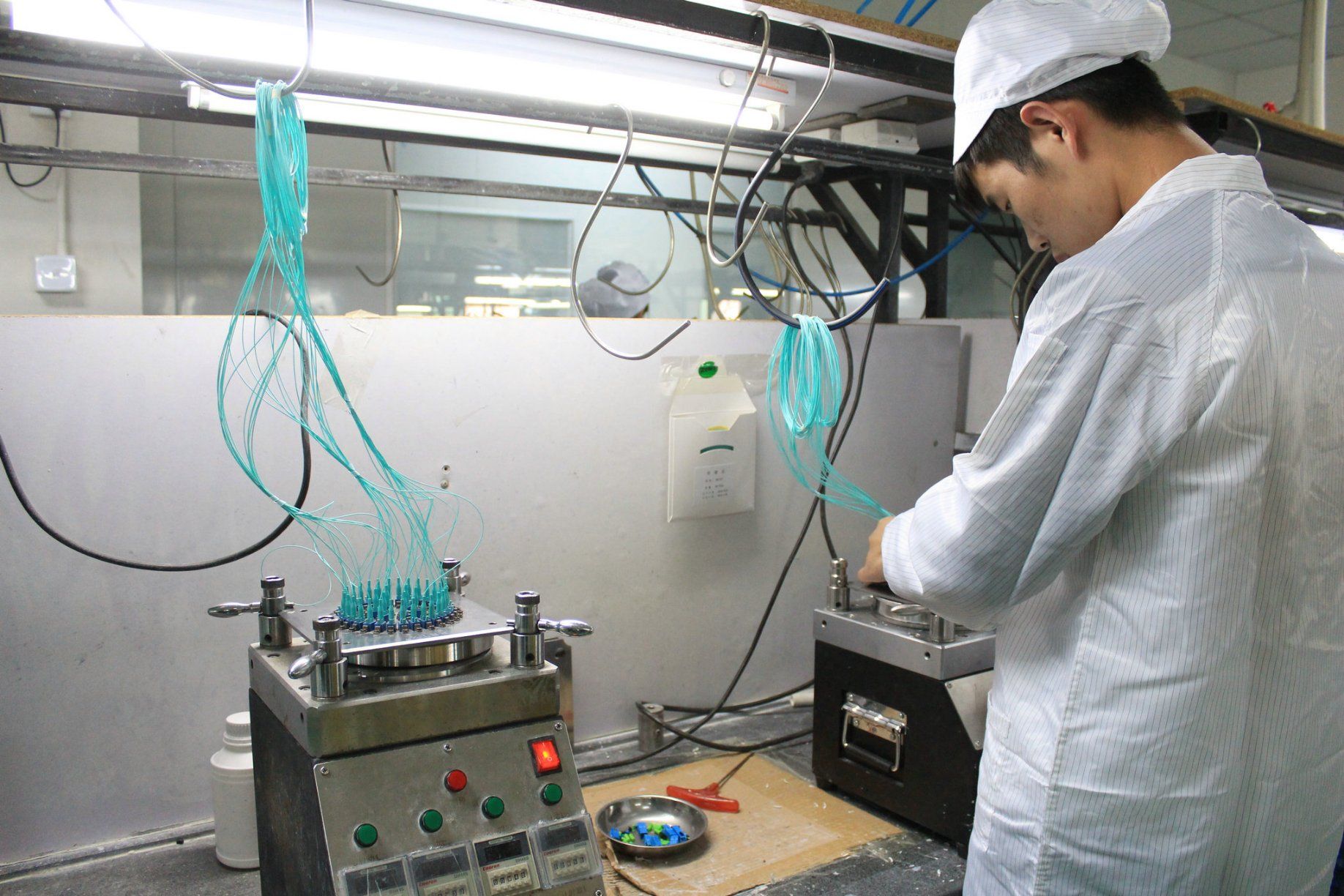

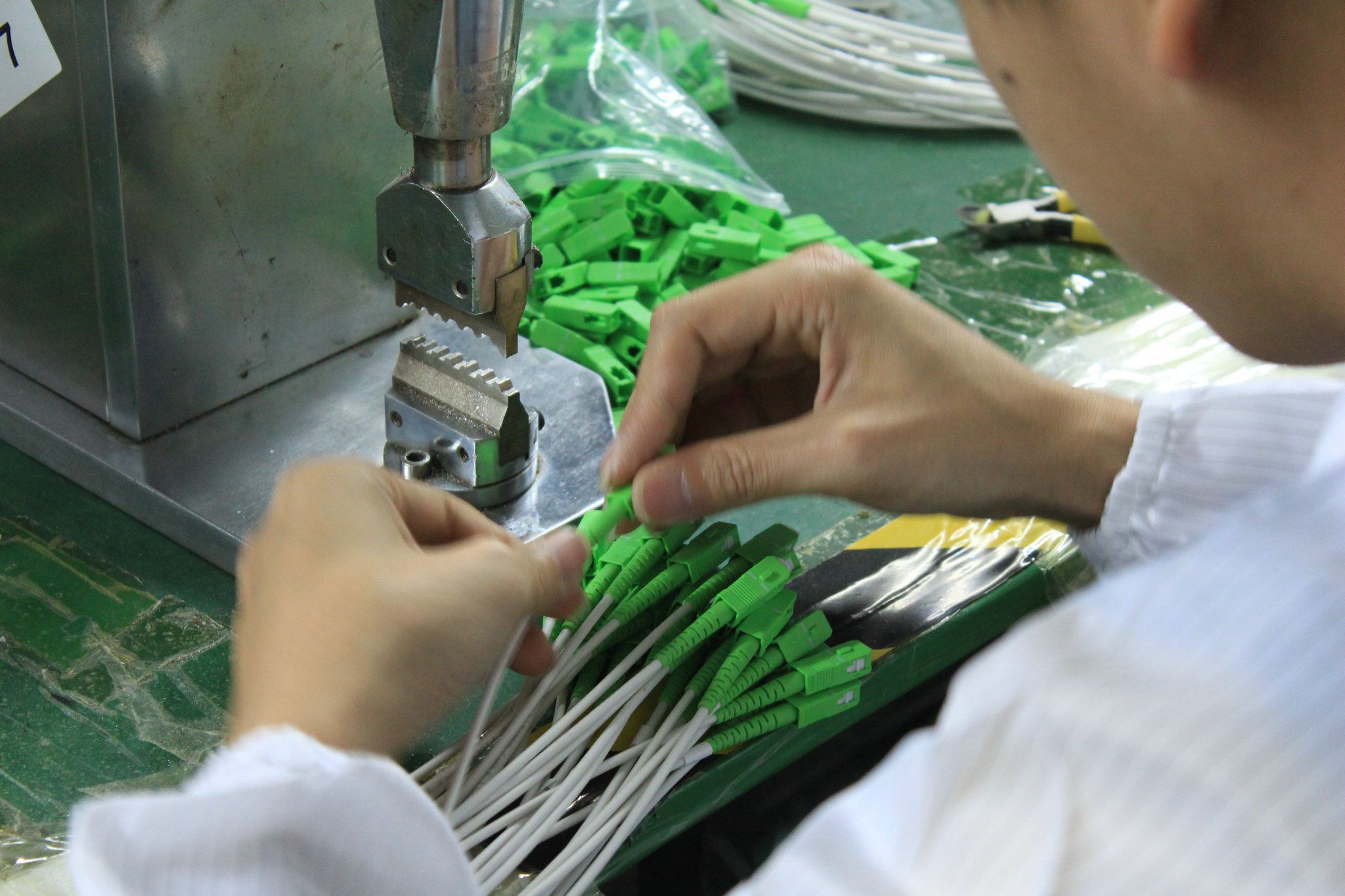

Every stage PF production in our workshop is carefully controlled, from raw material selection to assembly, packaging and transport. We do this to guarantee quality and ensure that all of our customers are satisfied with their delivery.
In addition to our products sold in China, we also do business in France, the United States, Brazil, Russia, and many other countries. So far we have cooperated with Ericsson (Spain), Vodafone (Hungary), etc.
Moreover, OPELINK employs a professional foreign team in which most of members have more than 5 years experience in optical communication equipment.
