Fiber Optic Patchcord Flex Angle Boots
Features:Low insertion loss and High Return LossGood durabilityGood exchangeabilityHigh temperature stabilitycompliant with standards of Telcordia GR-326-CORE Application:Optical Fiber Communication SystemsOptical Access NetworkFiber optic data transmissionOptical Fiber CATVLocal Area Network (LAN)Test Equipment Description:Connector:SC,FC,ST,LC,MU,MTRJ,E2000, etcPolishing type:PC,UPC,APCFiber core:Singlemode(G652D,G657A)Fiber cable:Simplex,Duplex,Multi-core,Ribbon,Distribution, Armoured, etcCable OD:0.9mm,2.0mm,3.0mm,etcCable Material:PVC-OFNR,PVC-OFNP,LSZH, etcPatchcord Length:1m,2m,etc
Specifications: | ITEM | SM/MM Patchcord |
| Polishing Type | UPC | APC |
| I.L | <=0.3dB,MTRJ<=0.5dB | <=0.3dB |
| R.L | >=55dB,MTRJ>=30dB | >=65dB |
| Operating temperature | -20ºC~75ºC |
| Storage Temperature | -40ºC~75ºC |
| 100 mating cycles loss | I.L changed≤0.1dB |
| Durability | >1000 cycles |
| ITEM | PC Polishing | APC Polishing |
| SC Type | LC Type |
|
| R.O.C | 10~25mm | 7~25mm | 5~12mm |
| Apex Offset | <50um | <50um |
| Fiber Height | -125nm-50nm | -100nm-100nm |
| Polishing Angle |
| 8°± 0.3° |
Ordering information: | Type | Fiber Core | Cable Type | Cable OD | Cable Material | Cable
Color | Connector
(A End -B End) | Patchcord
Length |
PT=Patchcord
PY=Pigtail | S1=G652D
S2= G657A1
M1=50/125
M2=62.5/125
M3=OM3
M4=OM4
XX=other | 01=simplex
02=Duplex
03=Armoured
04=Distribution
05=Ribbon
06=breakout
XX=other | 01=OD 0.9mm
02=OD 2.0mm
03=OD 3.0mm
XX=other | 1=PVC(R)
2=PVC(P)
2=LSZH | 01=Blue 02=Orange
03=Green 04=Brown
05=Slate 06=White
07=Red 08=Black
09=Yellow 10=Violet
11=Rose 12=Aqua
13=12Color XX=other | 01=SC 02=FC 03=ST
04=LC 05= E2000
06=SC/APC (Cone Type)
07= SC/APC (Step Type)
08= FC/APC (Cone Type )
09= FC/APC (Step Type)
10=LC/APC 11=E2000/APC
12=MTRJ 13=MPO/PC
14=MPO/APC 15=D4
16=DIN 17=LX5 18=FDDI
00=None XX=other | 005=0.5m
010=1.0m
020=2m
025=2.5m
XXX=other |
----------------------------------------------------FAQ---------------------------------------------------Q1. Can I have a sample order for this product? What' MOQ of it?A: Yes welcome send sample order for test. MOQ is 1 piece. Q2. What about the lead time?A:Sample needs 3-5 days, mass production time needs 1-2 weeks. Q3: What' s the payment termA: We usually use TT(Telegram Transfer) in advance, Western Union. Other payment method is negotiable. Q4. How do you ship the goods and how long does it take to arrive?A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional. Q5:
What' s the freight of it? A: It depends on the order quantity. We have some reliable ship forwarders. We will offer cost effective method for you. Q6: Do you offer guarantee for the products?A: Yes, we offer 1-2 years warranty according to different products. Q7:
What action will you take if there are some product problems?A: If there are defective ones in the batch of products, we will offer spare ones for.

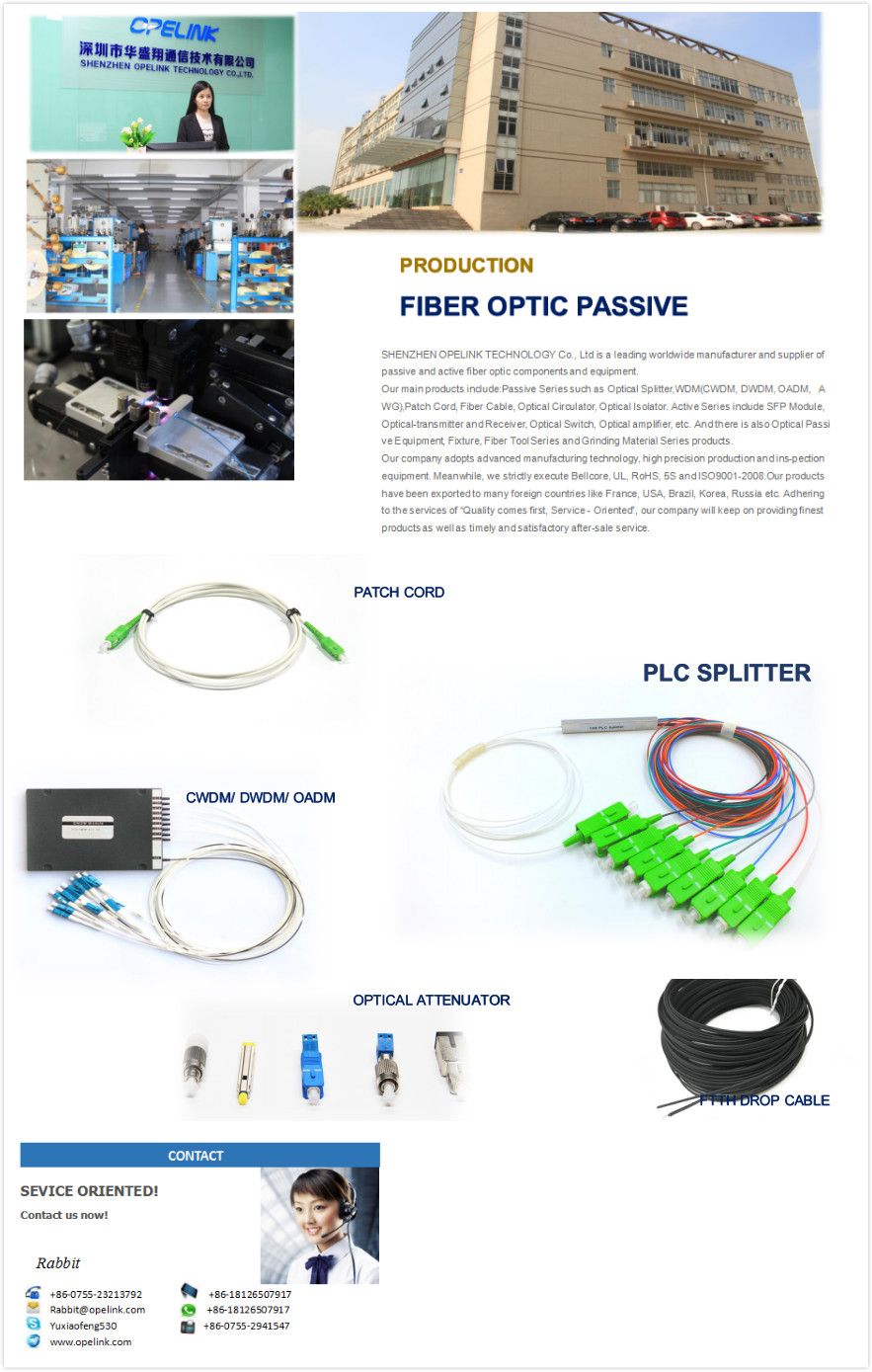

OPELINK Technology is a high-tech enterprise with a focus on the design and the production of optical communication and accessories. We are among the industry leaders here in China and we own that to our highly skilled and experienced production staff and engineers. We manufacture a complete selection of premium quality products including fiber optic splitters, optical WDM, fiber optic circulator and many other active optical components.

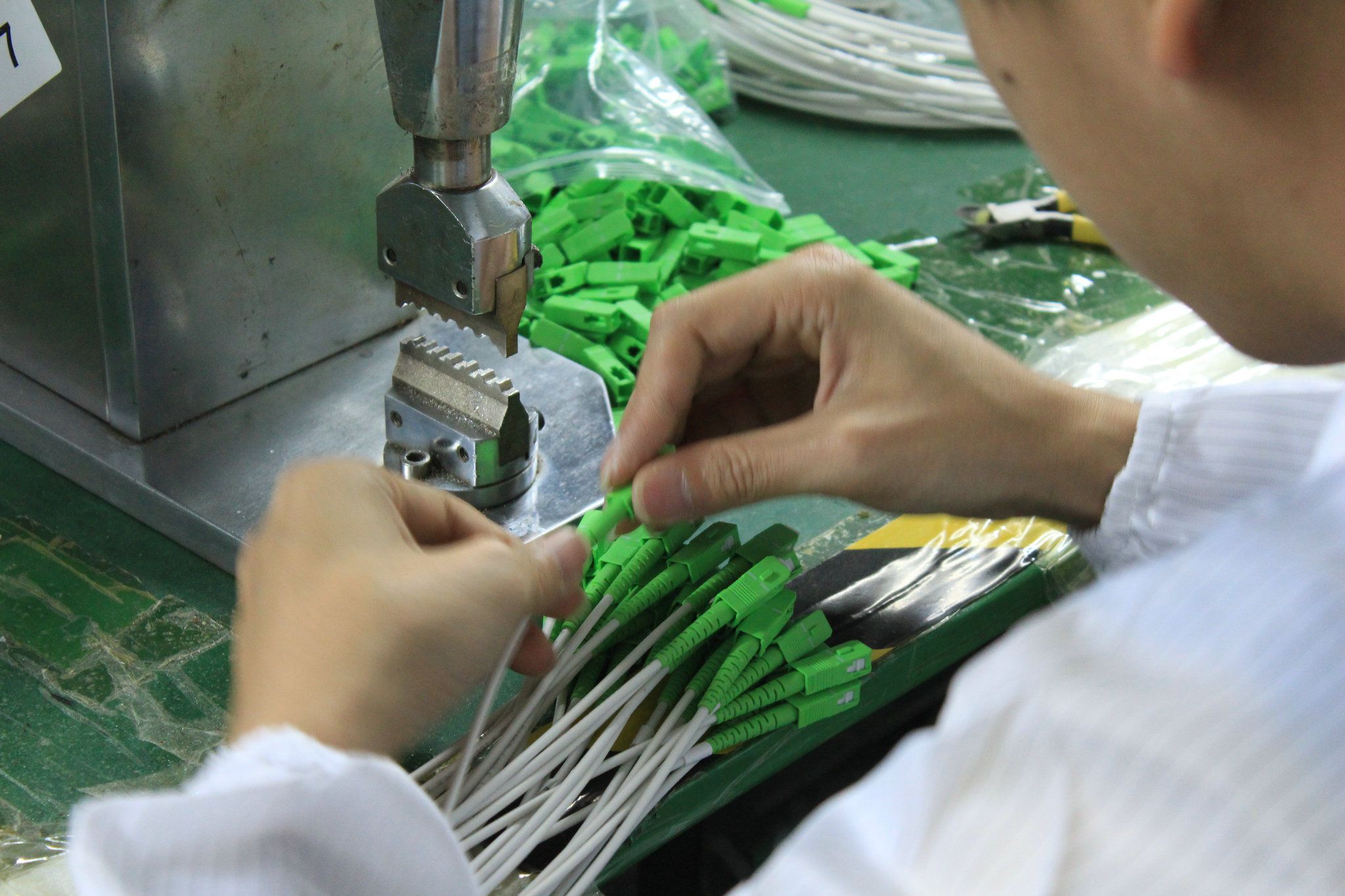

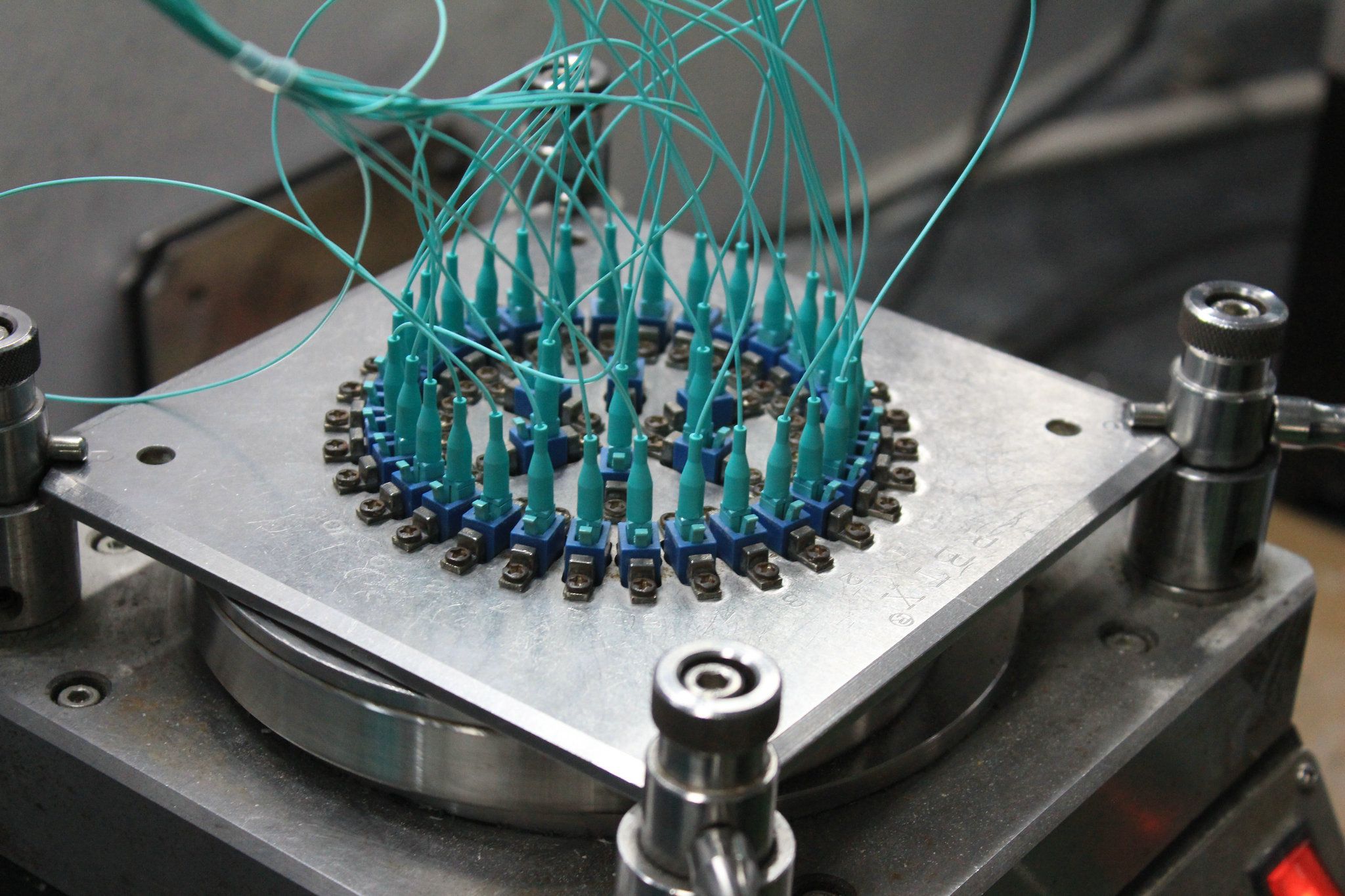

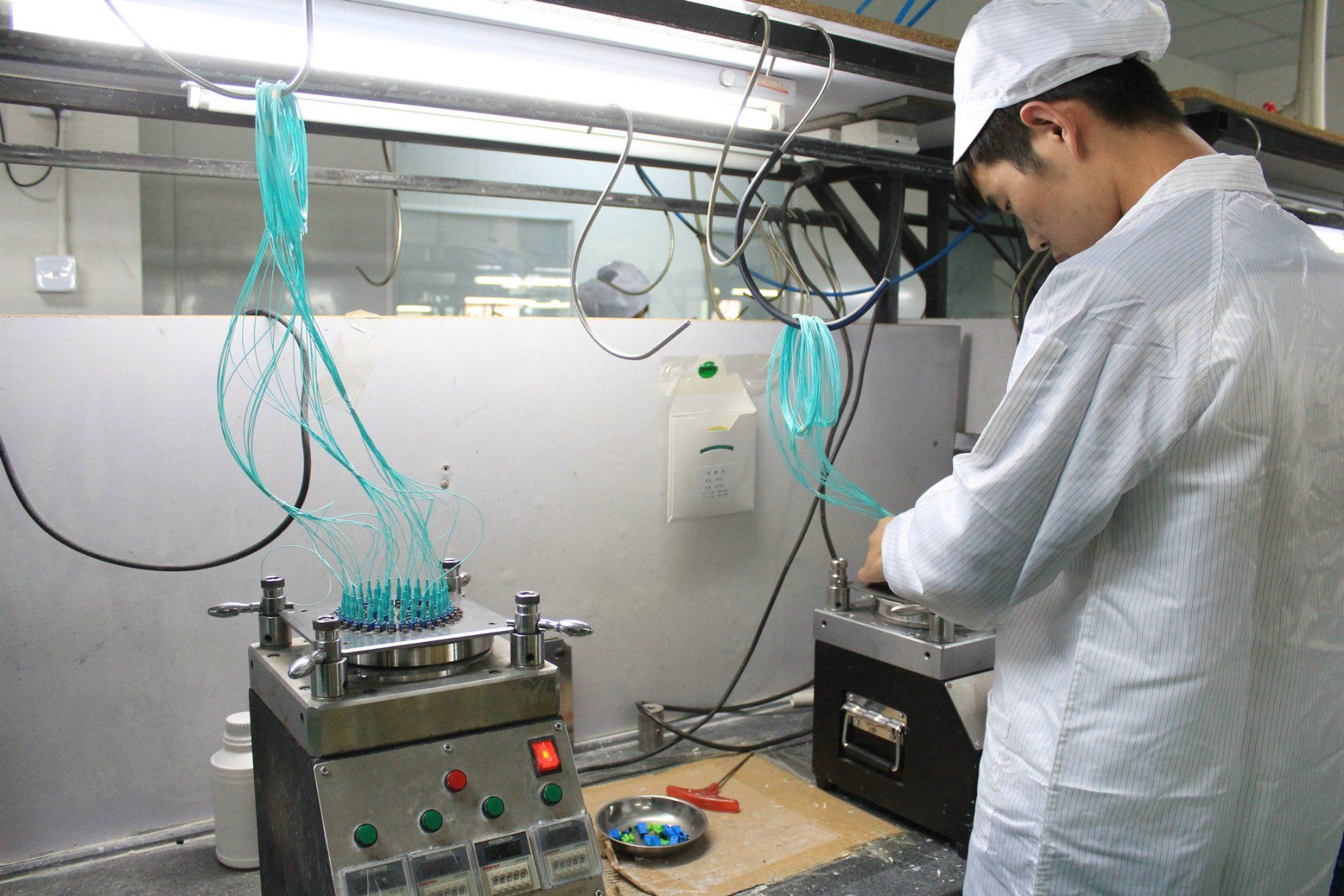

Every stage PF production in our workshop is carefully controlled, from raw material selection to assembly, packaging and transport. We do this to guarantee quality and ensure that all of our customers are satisfied with their delivery.
In addition to our products sold in China, we also do business in France, the United States, Brazil, Russia, and many other countries. So far we have cooperated with Ericsson (Spain), Vodafone (Hungary), etc.
Moreover, OPELINK employs a professional foreign team in which most of members have more than 5 years experience in optical communication equipment.
