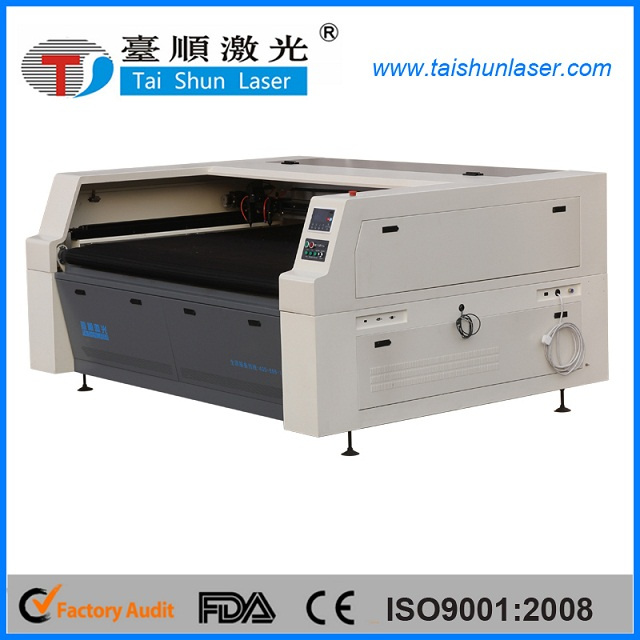

Full Certificates PU Foam/EVA/Sponge CO2 Laser Cutting Machine
| Price: |
US $ 3500-5500/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
Product parameter:| Laser type | Glass CO2 laser tube | Movement system | stepping motor system |
| Output power | 60W | Cooling system | Water cooling |
| Working area | 1600x1000mm | Electrical Voltage | AC220V+-5% 50/60hz |
| Working table | Conveyor working table | Supported file format | AI,BMP,PLT,DXF,DST,AI,BMP,PLT,DXF |
| Working speed | Adjustable | Standard accessories | 1 set 550W exhuast fans |
| Position accuracy | plus minus 0.1mm | Optional accessories | 100w,130w,150w laser tube,auto feeding system, |
| CCD single screen view range | 120x80mm | Connect interface | USB |

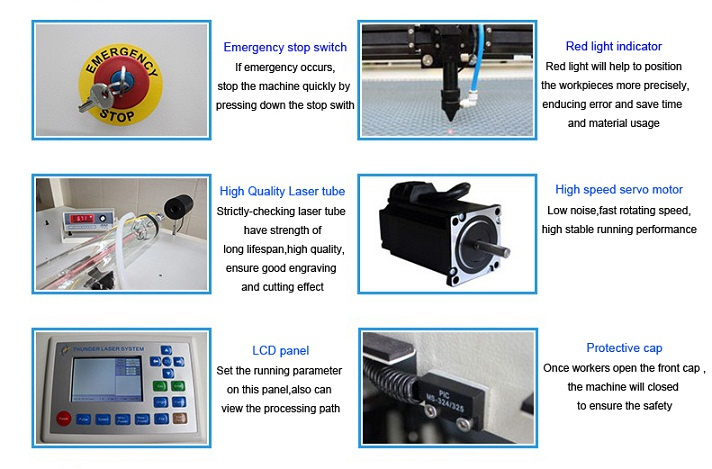

Feature:
1.Humanized and most modernized design of appearance reflects caring idea of Tai Shun Design departme
2.Advanced DSP control system and special motion control ship make the machines cut curve continuously
and rapidly,the selection function of the shortest path makes efficiency higher.
3.All machined are configurated with U-disk offline control system,so it is more simple and easier to operate.
4.The red-light positioning device can indicate process site of laser head to avoid trouble of manual position.
5 Strong steel frame structure body makes the engraving process stable with no moving or deformation
6,Converyor working table with negative pressure adsorption function can cut long size fabric continuously and to impress you, thus the fabrics still kept flatly and smoothly.
Samples
Video:http://v.youku.com/v_show/id_XNTU2Nzg0MTky.html?from=s1.8-1-1.2 laser cutting EVA application
Our machine series: CO2 Laser Engraving and Cutting Machine for most of the non-metal materials. Laser Marking Machine fiber laser marker for meta tag,hardware,circuit board,machinery,plastic marking of barcode,symbol,texts,;CO2 laser marker for nonmetal (fabric,leather,textile,PU,paper,cardboard,PVC,etc) of barcode,images,floral,flying dynamic marking effects.Metal laser Cutting Machine:YAG metal laser cutting machine(can 7-8mm Mild Steel and 5-6mm Mild Steel ), Fiber metal laser cutting machine( can cut 8-12 mm Carbon Steel )Application:
1. Industrial textile: filter cloth, bolting cloth, filter fabric, nonwoven, glass fiber, felt, synthetic fibre, fabric ducting, polypropylene (PP), polyethylene (PE), polyester (PES), polyamide (PA), cement packing, geotextile, coated fabric, sponge, insulating material and other industrial flexible materials.
2. Non-woven fabrics for health & medical: insulating material, glass fibre, polyester fibre, Microfiber, Cleanroom Wiper, Glasses cloth, Micro-fiber Wiper, non-dust cloth, clean wiper, paper diaper, etc.
3. Home furnishing fabrics: upholster, carpet, mat, floor rug, mattress, curtain, doormat, valance, wall paper, tablecloth, bed sheet, bedspread, counterpane, dust cover, sofa fabric, etc.
4. Garment fabrics: sportswear, swimwear, diving suit, exposure suit, liner, lining, adhesive interlining, wadding piece, case-hardened cotton, synthetic leather, genuine leather, etc.
5. Automotive interiors: car seat cover, car cushion, car mat, car carpet, car rug, pillowcase, air bag, auto dustproof cover, seat belt (safety belt), etc.
6. Outdoor products: polyester, nylon, PE/PVC/TPU/EVA/Oxford fabric, Oxford polyester cloth, PVC coated fabric, Tarpaulin, canvas, PVC tarpaulin, PE tarpaulins, Sail cloth, Inflatable products, tents, Inflatable toys, Inflatable castle, Inflatable boats, surf kites, fire balloon, parachute, paraglider, parasail, rubber dinghy, canopy, awning, etc.
FAQ:
Q1.What's the guarantee for the product quality?
A:We offer one-year free maintenance services for our machines. Fault parts with the valid period will be replaced for free except for consumable parts.
Q2. Is it easy to operate for the new user ?
A: It is very easy ,we offer you operating manual in English ,also our technician can help you via MSN ,Skype or other instant communication tools.If problems in the process of operation,pls keep your lens and mirrors be clean ,then check your laser tube and talk details to us.
Q3. How to maintain the machine?
A: After 3 hours working, it's better close 10 minutes.
B, Keep lens and mirrors clean.
C, The water for laser tube should keep clean and lower temperature, in winter you need input antifreeze.
Q4 .How about the life-span of the laser tube ?
A: If you operate the machine rightly, it can reach to 1500 or 3000hours.(RF metal laser tube can max to 10000hours),It depends on your usage
For example, if it works 8 hours per day, the detailed data as follows:
1, If you set the power at 20%-30% of the total power, the service life is about 1-2years
2, If you set the power at 40-50% of the total power, the service life is about 1 year
3, If you set the power at 70%-80% of the total power, the service life is about 6-8 months
Q5: How can I know the power of the laser tube has been exhausted?
A: you can check the color of the laser beam ,new and strong laser tube is purple when working, otherwise it will be white color.
Q6: Is it harmful to human body when in operation ?
A: It is not harmful, as long as avoid to see it directly
7:How to distinguish laser tubes with different powers and applications?
A: 1. Laser tube length(relatively speaking, the longer, the bigger/stronger)
2. Laser tube diameter(relatively speaking, the thicker,the stronger)
3.The machine with bigger laser tube can cut deeper&more quickly, also its light spot is bigger, So, it is better to choose low-power for engrave, such as 40w, 50w, or 60w and strong power for cutting.
Full services
1. service before sales: our salesman will get a full knowledge of your requirement and supply a most suitable scheme for your product. Order detailed checked and confirmed by an official procedure
2. service during production: we will send photos of machines during production.In this way customers can get updated about status
3. service before shipping: we will take photo and confirm with customers the specification of their orders to avoid the any mistakes arisen
4. service after shipping: we will seed the shipping documents to you accordingly and send a shipping advice about the ETD and ETA about the goods.
5. service after arrival: we will confirm with customers if machine is in good condition. and see if any spare parts missing .
6. service of teaching: there are some manual and video about how to use machine, if some
customers have question about it. we will have professional technician to help them to install and
teach how to use through skype ,calling, video or mail.
7. service of warranty: we offer 1 year warranty for whole machine. if any parts of our machine
is broken. we will replace it for free.
8. service in longterm : we hope every customer can use our machine easily and have a good experiences during the process of operation
If customers have any problems of machine in 2 or 3 , 5 years , they can contact us .
Guarantee&After-sale service
1, Best components, perfect technics and strictly ex- factory inspection.
2, 1 year guarantee for whole machine.
3, 24 hours (all days) technical support by call ,e-mail, skype or computer
remote control service by engineer.
4, Multi-language software, operation CD and detailed User Manual together with machine.
5, We offer free training in our factory, engineer oversea service is available if you like.
Order Notice:
Please let us know following informations:
1.What materials you want to cut ?
2.What is the mostly used thickness and what is the maximum thickness?
3. What is the MAX dimension of your materials ?
4. After cutting, what will be the metal used for? (application)
5. Are you an end user or reseller?
According to your above information,we'll recommend the most suitable machine to you.
Demo video
https://www.youtube.com/watch?v=xs_Im20mv6g carpet cutting
https://www.youtube.com/watch?v=GbkX77rZW_Q labels engraving
https://www.youtube.com/watch?v=DOUXxajO3_w insole engraving
https://www.youtube.com/watch?v=hPIgjdvG_GY fiber laser cutting metal
https://www.youtube.com/watch?v=KJ4UGkaCjkk fiber laser cutting machine
https://youtu.be/5PgXtVNajn4 large format fabric cutting
https://youtu.be/L6Rz6L3UaXY embroidery applique cutting
https://youtu.be/uy6NRT4HsrU MDF laser cutting
| Prod Model: |
TSHY-160100LD |
| Laser Type: |
CO2 Glass Tube |
| Application Area: |
Car Carpet, Plush Toys, Home Textiles, Garments |
| Application Material: |
Fabric, Rubber Acrylic Wood EVA Sponge |
| Power Supply: |
AC220V+-5%50Hz |
| Graphic Format Supported: |
Ai, Plt, Dxf, BMP, Dst, Dwg, Dxp |
| Cutting Area: |
1600X1000mm |
| Output Power: |
60W |
| Cutting Speed: |
Adjustable |
| Working Table: |
Conveyor Working Table |
| Guarantee: |
One Year Free Maintenance |

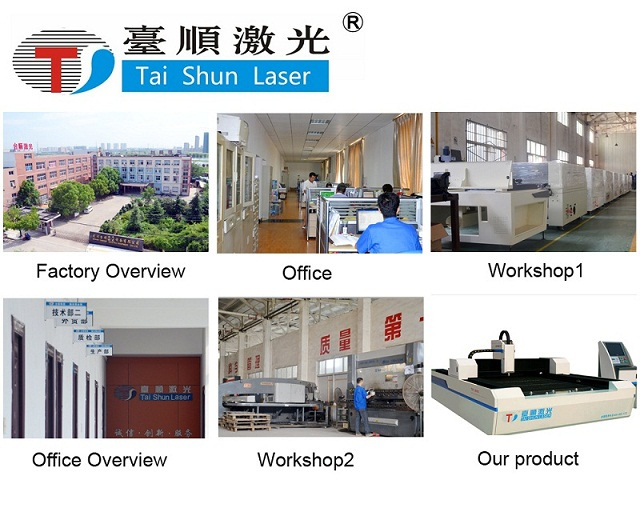

Taishun laser equipment Co., Ltd has been in the field of laser technology development and production for more than 20 years since the company was established, and always stand in the fore front product research and development.
Taishun company has strong Technical force and established set of perfect quality Management system, passed ISO9001: 2008 Quality Management System Certification, BV authentication, SGS and National Mandatory Product "3C" certification, which has reliable quality.
We developed 6 series of more than 10 types laser products which adopt international advanced technology. Such as, fiber laser metal cutting machine, YAG laser metal cutting machine, CO2 laser cutting and engraving machine, Fabric Flatbed laser cutting machine, Conveyor working table machine, laser marking machine and so on.
Taishun laser are good at produced medium and small laser power laser cutting machine, specially to supply one whole sets of laser processing solution scheme and related facilities for customers in plush toys, leather cutting, plush fabrics, automobile, textile, textile clothing, advertising handicrafts, electronics, medical equipment and etc. These laser equipment were widely applied in electronic circuit, auto spare parts, hardware tool, medical instrument, digital products, apparatus and instrument, optic communication component, packing and printing etc. To create a new Second-Generation small power laser cutting machine with more rapid and refinement manufacturing.
