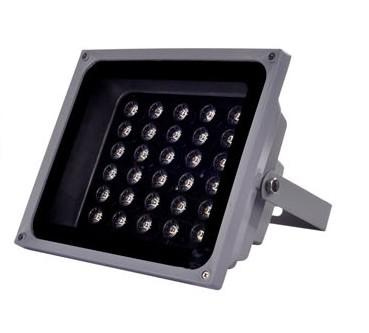

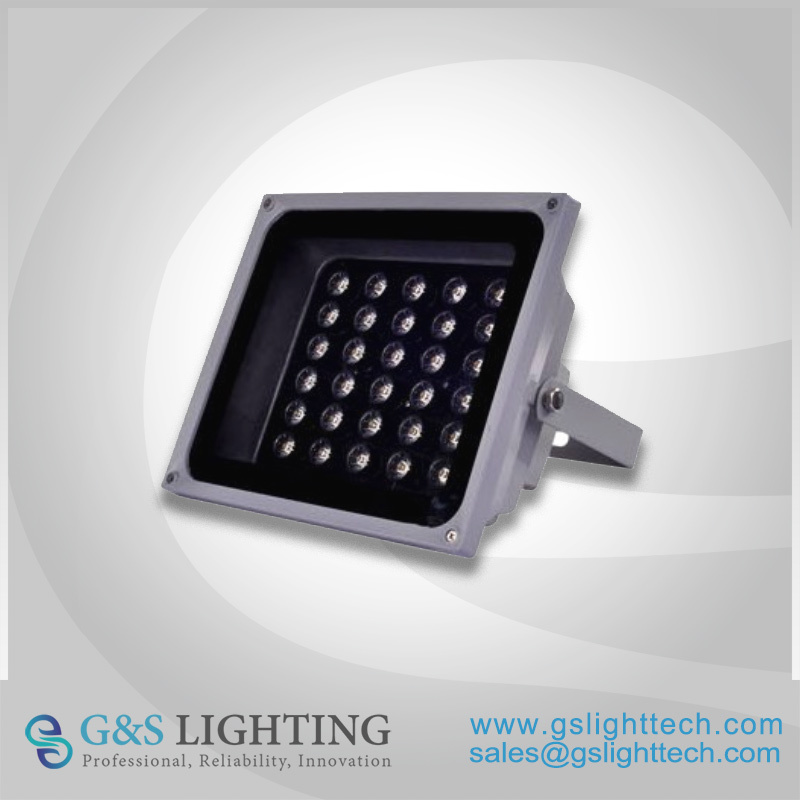

DescriptionG&S Helipad LED Flood Light Apron Light
Specification| Name | Parameter |
| Type | GS-HP/F |
| Power Supply | AC85~260V |
| Supply Frequency | 50HZ~60HZ |
| Power Consumption | 30W |
| Light Source | LED |
| Working Mode | Steady burning |
| Luminous Flux | ≥4000~5600Lm |
| Emitting Color | White |
| Overall Size | 288mm×245mm×150mm |
| IP Protection | IP65 |
| Ambient Temperature | -20ºC~65ºC |
| Weight | 2.5kg |
| Connection Mode | External connection |
Function&Features- Full sealed structure base, with superior waterproof performance.
- With work stability, strong anti-interference ability and shock resistance.
- With the anti-surge protection device.
- Professional custom LED chips, with high light brightness and long service life.
- Adopts constant current as power supply, stable working, No RF interference.
- Adopts the toughened glass smooth, provides corrosion resistance and UV protection.

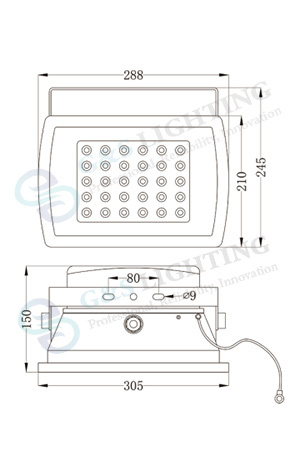

Dimension Drawing
Usage notice- Don't use out of standard voltage, or will destroy the device.
- Do not open it if the device is out of operation, in order not to be hurt by the internal high pressure.
- After finished the installation, the personnel must check whether the device is in a good waterproof processing and whether the screw spikes are tightened.
- Non-professional workers can not do the device maintenance, so as not to expand the error and be hurt.
ApplicationAirport, Heliport, Broadcasting tower, Television tower, Microwave tower, Mobile phone base station
Real case application

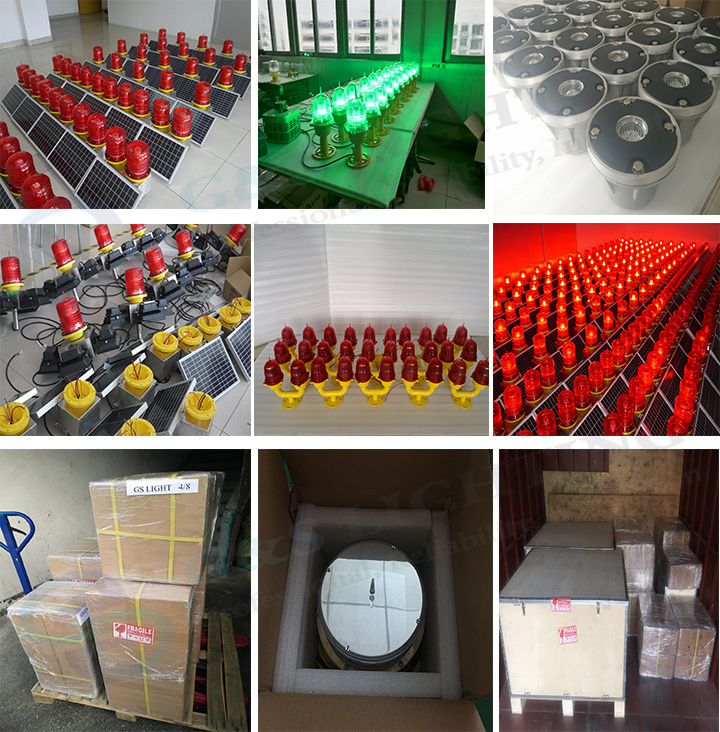

Production picture
