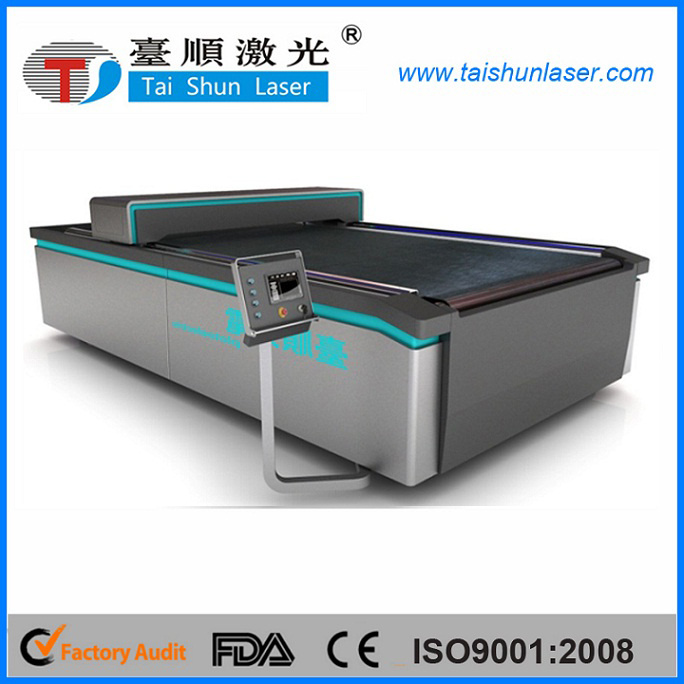

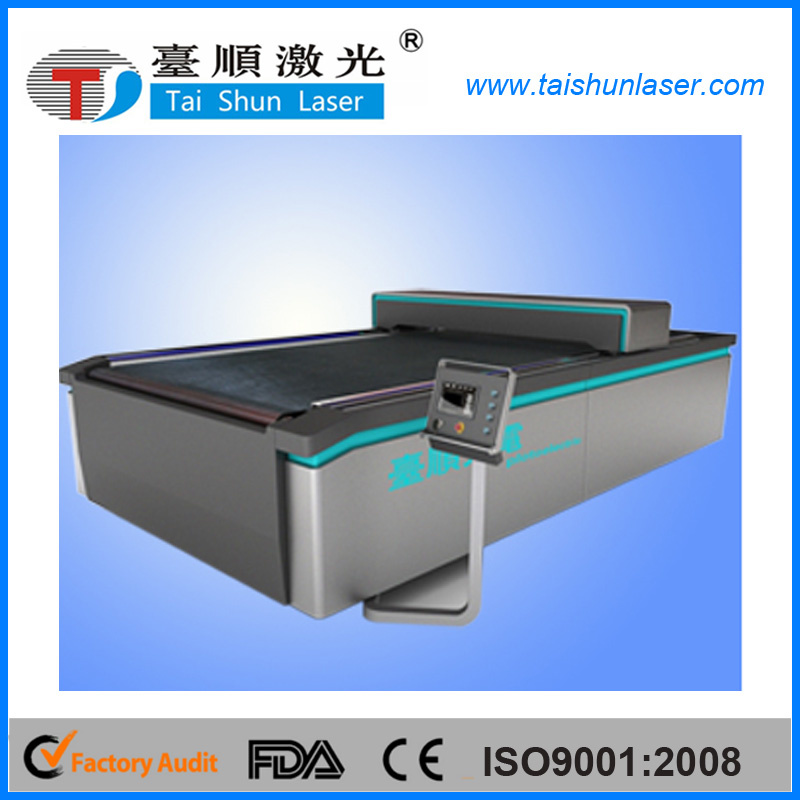

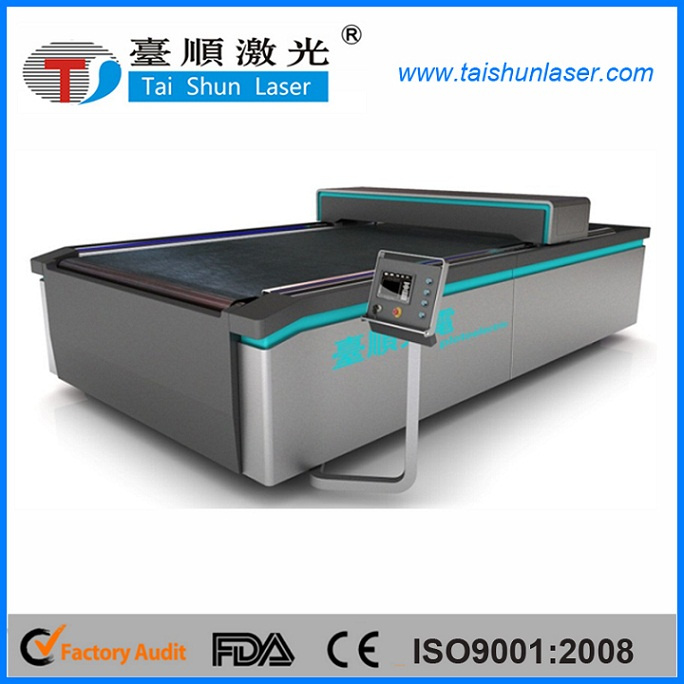

High Accuracy Flatbed Fabric Laser Cutter

Prod Model:	TSC300210L
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Laser Type:	CO2
Application Area:	Car Accessories, Plush Toys, Extiles, Garments
Application Material:	Fabric, Acrylic Wood Non-Woven, Leather
Power Supply:	AC220V+-5%50Hz
Graphic Format Supported:	Ai, Plt, Dxf, BMP, Dst, Dwg, Dxp
Cutting Area:	3000mmx2100mm
Output Power:	80W×2
Cutting Speed:	Adjustable
Working Table:	Conveyor Working Table
Guarantee:	One Year Free Maintenance

Product Description

Feature:
1.Humanized and most modernized design of appearance reflects caring idea of Tai Shan Design department

2.Advanced DSP control system and special motion control ship make the machines cut curve continuously
and rapidly,the selection function of the shortest path makes efficiency higher.

3.All machined are configurated with U-disk offline control system,so it is more simple and easier to operate.

4.The red-light positioning device can indicate process site of laser head to avoid trouble of manual position.

5 Strong steel frame structure body makes the engraving process stable with no moving or deformation

6,Converyor working table with negative pressure adsorption function can cut long size fabric continuously and to impress you, thus the fabrics still kept flatly and smoothly.

7,The following-up fume extractor system is going with laser head to save power consumption and good fume chasing effect.

Product parameter:

Laser type	Glass CO2 laser tube	Movement system	stepping motor system
Output power	80wx2	Cooling system	Water cooling
Working area	3000mmx2100mm	Electrical Voltage	AC220V+-5% 50/60hz
Working table	Conveyor working table	Supported file format	AI,BMP,PLT,DXF,DST,AI,BMP,PLT,DXF
Working speed	Adjustable	Standard accessories	1 set 550W exhuast fans
Position accuracy	plus minus 0.1mm	Optional accessories	100w,130w,150w laser tube,auto feeding system,water chiller
CCD single screen view range	120x80mm	Connect interface	USB

Technic parameter:

Model	TSC160300LD	TSC210300LD	TSC320600	TS160100LD	TSHY180100LD	TSHY180140	TSZD9050	TSZD15090
Working Area	1600x3000mm	2100x3000mm	3200x6000mm	1600x1000	1800x1000mm	1800x1400mm	900x500mm	1500x900mm
Laser power	80w	80w.	80w	80wx2	80wx2	80w	60W	60W
Cutting Depth	Rubber 0-25mm
Engraving speed	0-1000mm/s adjustable
Cutting speed	0-600mm/s adjustable
Worktable	Fiex or conveyor or honeycomb work table
Resetting Positioning Accuracy	≤±0.01mm
Graphic format supported	PLT/DXF/BMP/JPG/GIF/PGN/TIF,AI etc.
Software supported	Coreldraw, Photoshop, AutoCAD
Motor type	Stepper Motor
Cooling  System	Water pumb/Water chiller
Laser tube lifetime	EFR/SPT/SP laser tube :3500h      Reci laser tube:10000h
Power supply	220V±10% 50HZ or 110V±10% 60HZ
Main configuration	1x Laser tube
	1set x Reflector and lens
	1xWater chiller  1x air compressor  1x exhaust fan ,1x water pipe
	1x USB cable      1xcommunication cable    1x U disk
Optional  Devices	Rotary device :engraving Cylinder, Pen ,Glass Cup
	Red dot pointer, Auto Focus system
	Auto-feeding system
	Water chiller system
Consumable Parts	Laser Tube 80w/100w/130w ,reflectors and lens

Demos:

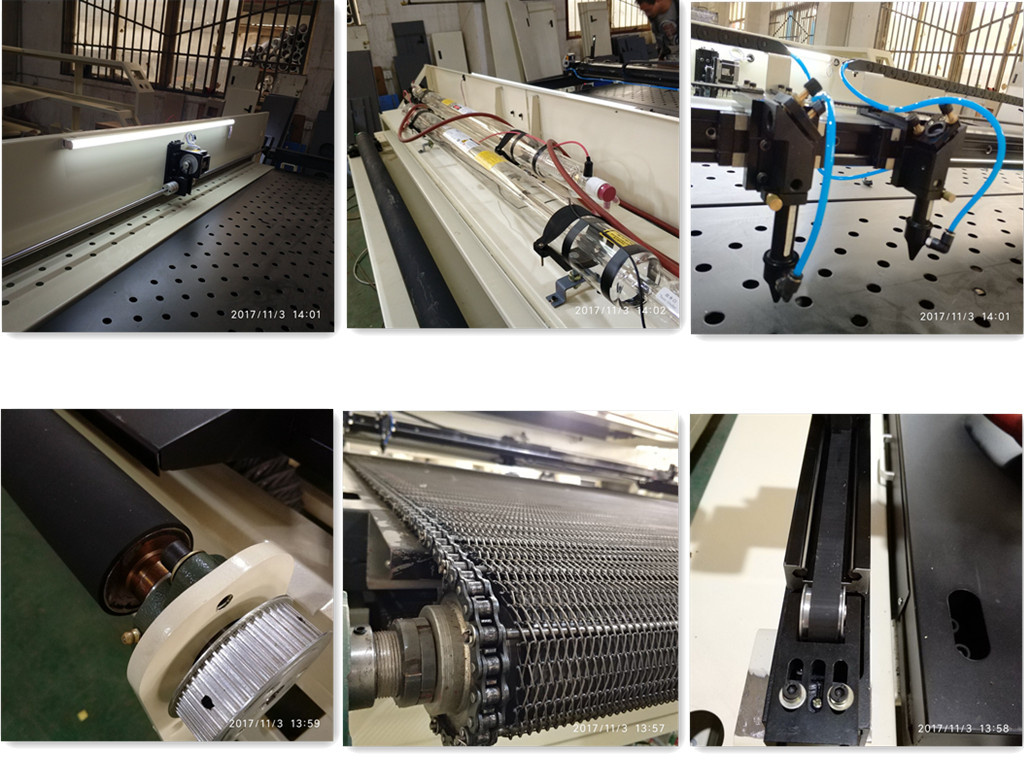

Close up:


Application:
1. Industrial textile: filter cloth, bolting cloth, filter fabric, nonwoven, glass fiber, felt, synthetic fibre, fabric ducting, polypropylene (PP), polyethylene (PE), polyester (PES), polyamide (PA), cement packing, geotextile, coated fabric, sponge, insulating material and other industrial flexible materials.
2. Non-woven fabrics for health & medical: insulating material, glass fibre, polyester fibre, Microfiber, Cleanroom Wiper, Glasses cloth, Micro-fiber Wiper, non-dust cloth, clean wiper, paper diaper, etc.
3. Home furnishing fabrics: upholster, carpet, mat, floor rug, mattress, curtain, doormat, valance, wall paper, tablecloth, bed sheet, bedspread, counterpane, dust cover, sofa fabric, etc.
4. Garment fabrics: sportswear, swimwear, diving suit, exposure suit, liner, lining, adhesive interlining, wadding piece, case-hardened cotton, synthetic leather, genuine leather, etc.
5. Automotive interiors: car seat cover, car cushion, car mat, car carpet, car rug, pillowcase, air bag, auto dustproof cover, seat belt (safety belt), etc.
6. Outdoor products: polyester, nylon, PE/PVC/TPU/EVA/Oxford fabric, Oxford polyester cloth, PVC coated fabric, Tarpaulin, canvas, PVC tarpaulin, PE tarpaulins, Sail cloth, Inflatable products, tents, Inflatable toys, Inflatable castle, Inflatable boats, surf kites, fire balloon, parachute, paraglider, parasail, rubber dinghy, canopy, awning, etc.

 Pls pay attention to the working environment for the double head laser engraver machine:
A: Avoid to put it near others machines with high magnetic and voltage such as welder and launching tower because they may interfere the signal transmission
B: Make sure to use a voltage regulator to keep the voltage stable, voltage fluctuation will hurt the machines
C: Pls use a three-pin socket to make sure the laser machine is connected well
D: You'd better not run it for too long time in an environment of strong acid to strong base to avoid damage precise components.

Order Notice:
Please let us know following informations:
1.What materials you want to cut ?
2.What is the mostly used thickness and what is the maximum thickness?
3. What is the MAX dimension of your materials ?
4. After cutting, what will be the metal used for? (application)
5. Are you an end user or reseller?
According to your above information,we'll recommend the most suitable machine to you.
