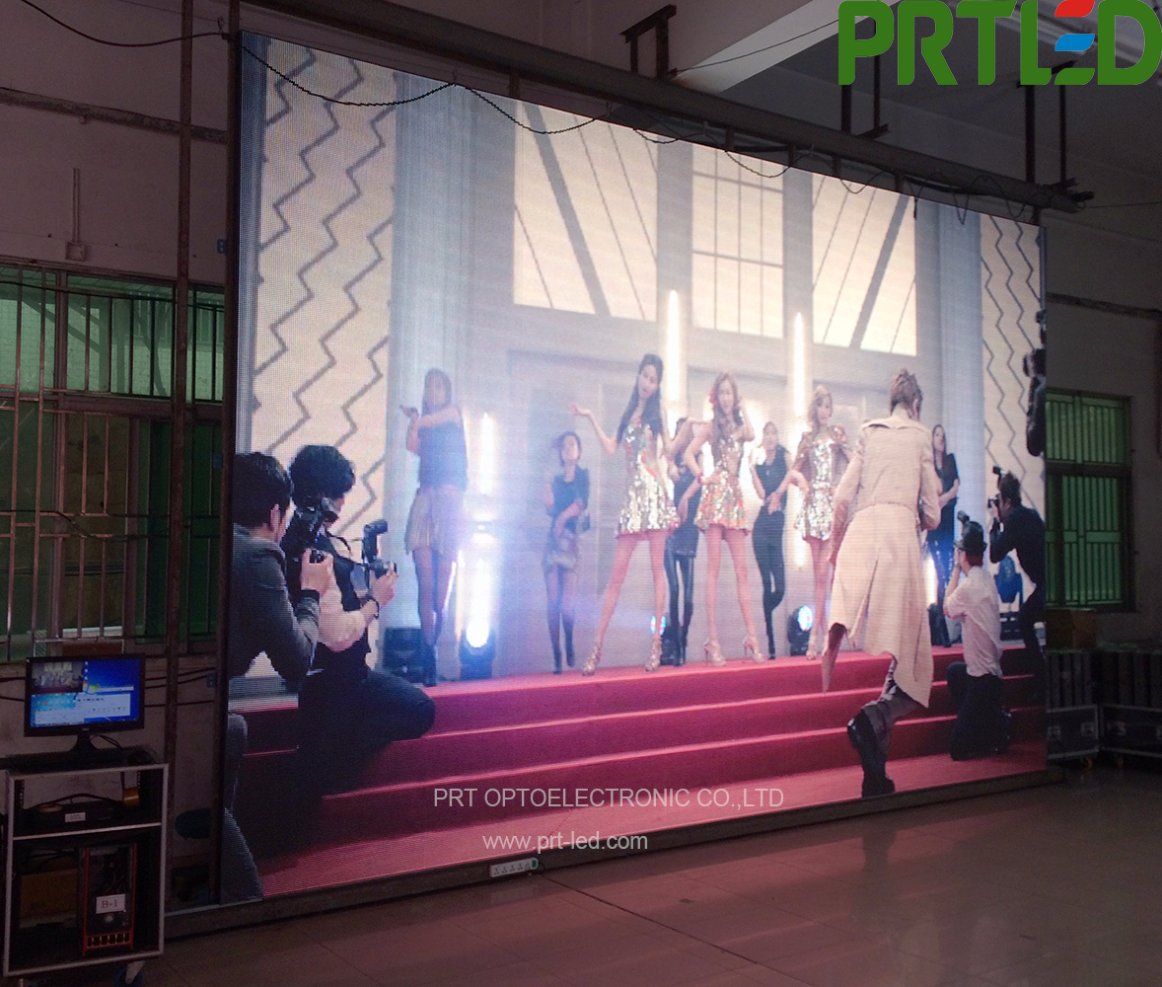

P8.928 Outdoor Full Color LED Display with die-casting aluminum cabinet 500x1000mm for outdoor rental or permanent install with cheap cost
1.SMD3535 led encapsulation confirm high brightness and wide view angle
2.Good waterproof IP65, long life span>100000Hours
3.Bigge pixe pitch, long view distance,can be seen from 100M away
4.With Die-casting aluminum cabinet, light weight and stability,can stand singly
5.With fast locks and aviation plugs for quickly connection, convenient to combine and dismantle
6.Only with one power supply,low power consumption, no fans low noise created,
7.Widely used for stage, concert, show, banquet, wedding, rental display, outdoor advertising
P8.928 Outdoor full Color LED Screen Specification |
| Pixel pitch | 8.928mm |
| Pixel Configuration | 1R1G1B |
| LED component | SMD3535 black |
| Size of module | 250mm x 250mm |
| Resolution of module | 28x28dots |
| Size of cabinet | 500mm x 1000mm x 75mm |
| Resolution of cabinet | 56x112dots |
| Material of Cabinet | Die-casting Aluminum |
| Weight of Cabinet | <13KGS |
| Brightness | >6000cd/m² |
| Density | 12546dots/m² |
| Best viewing angle | 140 /140 |
| Best viewing distance | 8-100M |
| Maximum power consumption | <800W/m² |
| Average power consumption | <300W/² |
| Driving method | 1/5 scan |
| Control method | Synchronization |
| Gray scale | 65536 |
| Colors | 256*256*256 |
| Color temperature | 3200-9300k |
| Uniformity | 97% |
| Working voltage | AC220V/110V±10% |
| Working temperature | -20ºC~+50ºC±10% |
| Working humidity | 10% ~ 90% |
| MTBF | 10,000 hours |
| Frame frequence | 50/60Hz |
| Refresh frequence | >1800Hz |
| IP grade | IP65 |
| Life Span | 100,000 hours |
| Data transafer method | RJ45 |
| Pratical standard | CCC TUV-CE ETL etc. |
Effectivce Communication
Distance(without relay) | Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Single-mode optic fiber: 10KM |
| Accepting signal with video processor | PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc. |
| Systems operating platform | WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development |
