Mesh Configuration LED Video Curtain with High Transparency for P 8, P 10
Price: |
US $ 700-800/Square Meter |
Min Order: |
10/Square Meter |
Pay Type: |
L/C,T/T,Western Union |

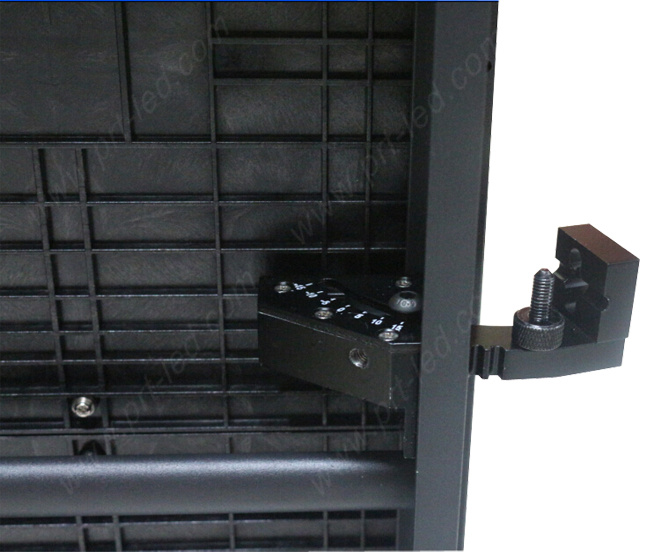

P8.928 P10.416 Full Color LED curtain with aluminum cabinet 500x1000mm for indoor or outdoor,also can be equiped angle-adjuster for curve shapesFeatures:1.SMD3535 led encapsulation confirm high brightness and wide view angle
2.Good waterproof IP65, long life span>100000Hours
3.Bigger pixel pitch with long view distance,can be seen from 100M away

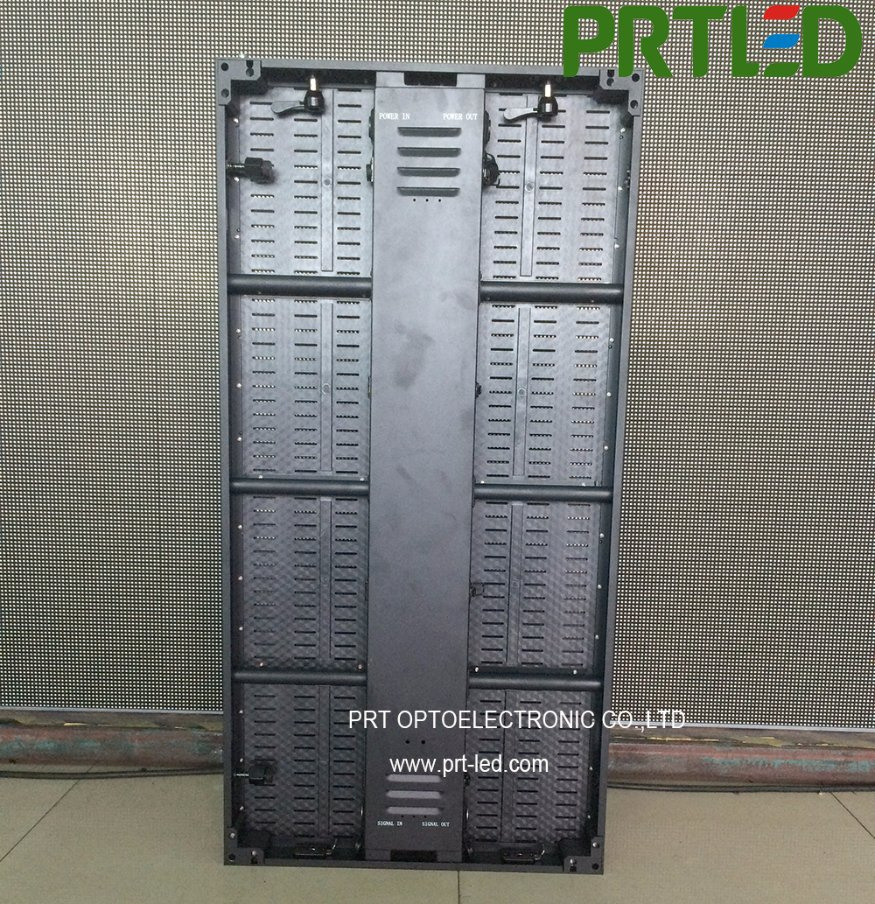

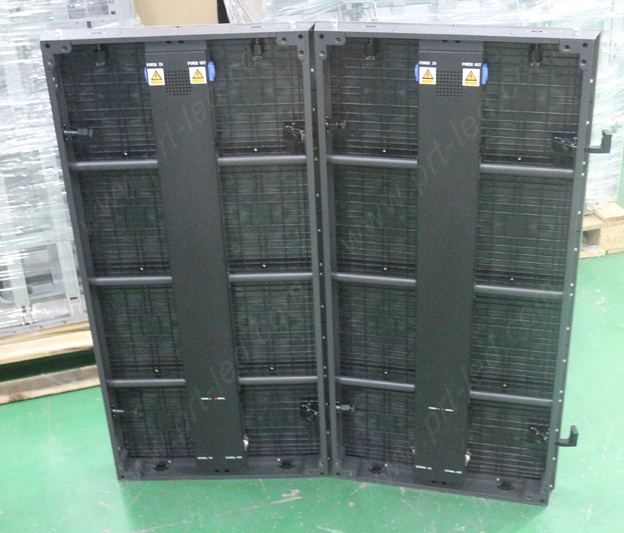

4.With aluminum cabinet, light weight and stability,can stand singly
5.With fast locks and aviation plugs for quickly connection, convenient to combine and dismantle
6.Only with one power supply,low power consumption, no fans low noise created,

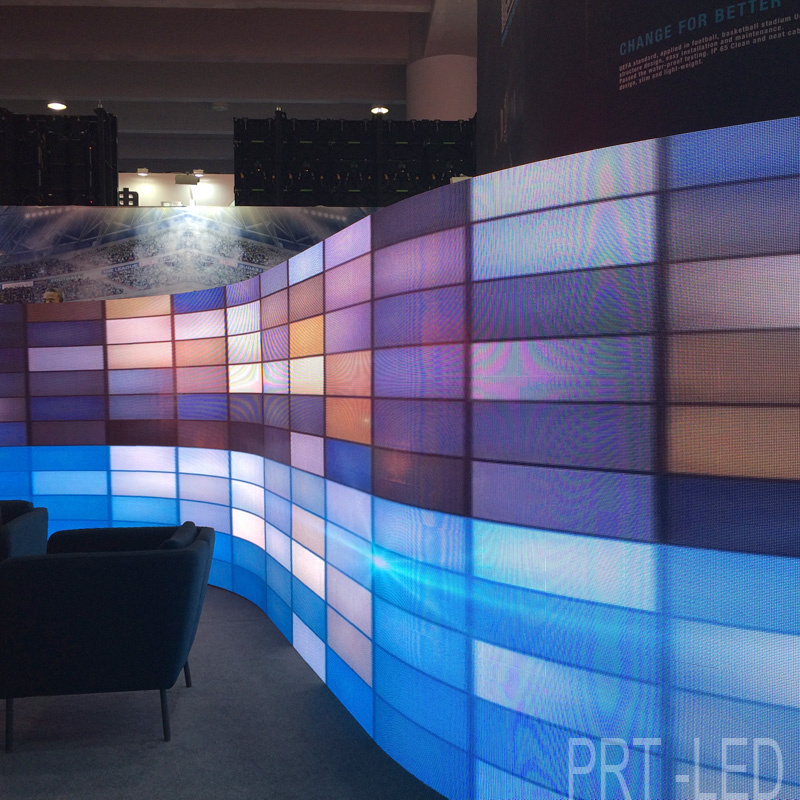

7.Widely used for stage, concert, show, banquet, wedding, rental display, indoor outdoor advertising P8.928 Outdoor full Color LED Screen Specification |
Pixel pitch | 8.928mm |
Pixel Configuration | 1R1G1B |
LED component | SMD3535 |
Size of module | 250mm x 250mm |
Resolution of module | 28x28dots |
Size of cabinet | 500mm x 1000mm x 75mm |
Resolution of cabinet | 56x112dots |
Material of Cabinet | Aluminum profile |
Weight of Cabinet | <13KGS |
Brightness | >6000cd/m² |
Density | 12546dots/m² |
Best viewing angle | 140 /140 |
Best viewing distance | 8-100M |
Maximum power consumption | <800W/m² |
Average power consumption | <300W/² |
Driving method | 1/5 scan |
Control method | Synchronization |
Gray scale | 65536 |
Colors | 256*256*256 |
Color temperature | 3200-9300k |
Uniformity | 97% |
Working voltage | AC220V/110V±10% |
Working temperature | -20ºC~+50ºC±10% |
Working humidity | 10% ~ 90% |
MTBF | 10,000 hours |
Frame frequence | 50/60Hz |
Refresh frequence | >1800Hz |
IP grade | IP65 |
Life Span | 100,000 hours |
Data transafer method | RJ45 |
Pratical standard | CCC TUV-CE ETL etc. |
Effectivce Communication Distance(without relay) | Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M; Single-mode optic fiber: 10KM |
Accepting signal with video processor | PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc. |
Systems operating platform | WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development |
Prod Model: |
P8.928 |
LED Encapsulation: |
SMD3535 |
Module Size: |
250X250mm |
Cabinet Size: |
500X1000mm |
Cabinet Material: |
Die-Cast Aluminum |
Tube Chip Color: |
Full Color |
IP Rating: |
IP65 |
Pixel Configuration: |
1R, 1G, 1B |
Display Function: |
Video Display |
Average Power Consumption: |
300W / m² |
Display Type: |
LED Video Display |
Certification: |
FCC |
Pixel Pitch: |
8.928mm |
Pixel Density: |
12546dots/Sq.M |
Scanning Mode: |
1/7 |
Application: |
Advertising,Stage Performance,Rental |
